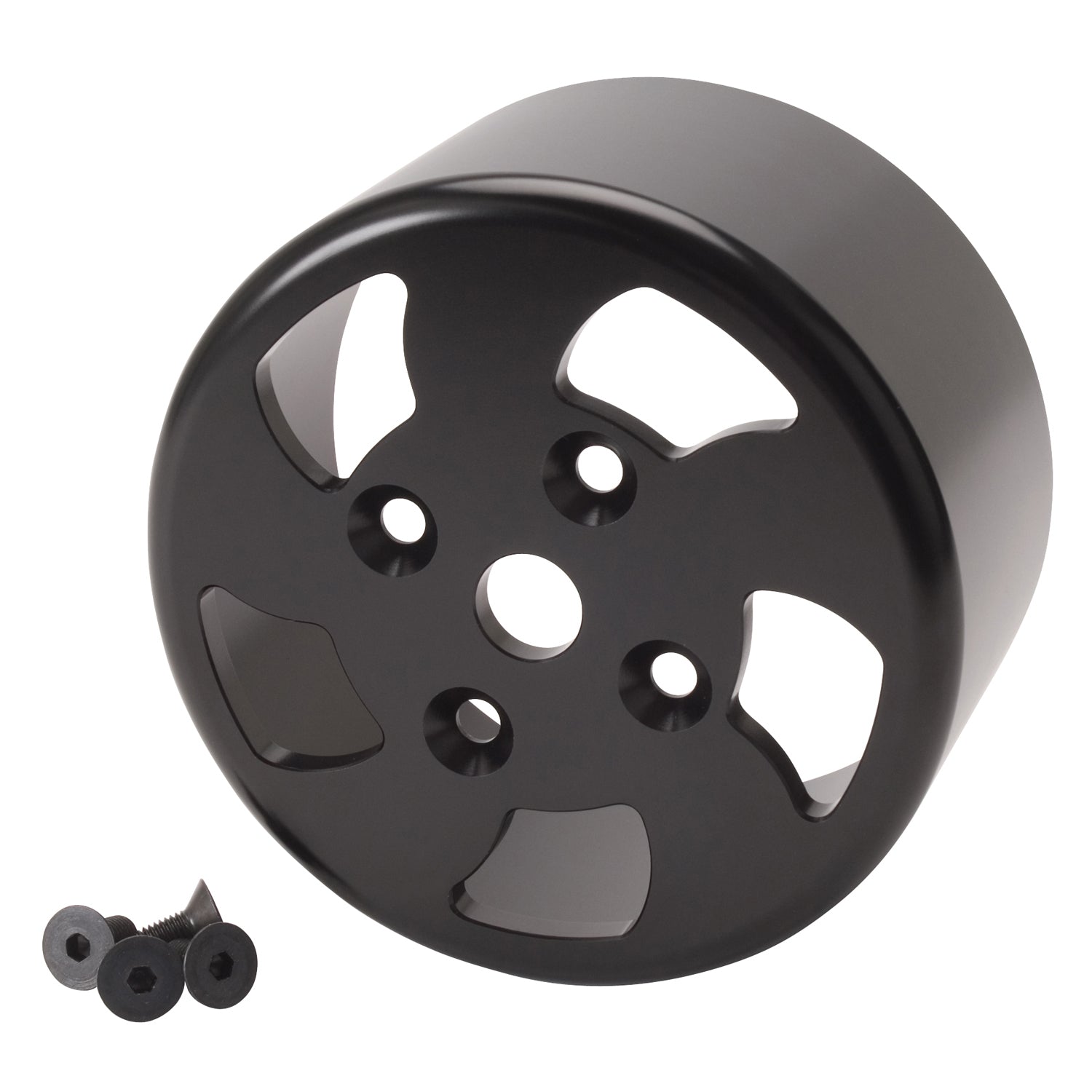

The 8898 is a hard anodized billet aluminum water pump pulley. This pulley is designed to work with our 8896 LS water pump. This pulley is a universal type design that will work with belt offsets of most GM Gen III and Gen IV small block V8 engines (LS LM LQ and LR). The pulley diameter is identical to stock and it requires a 3/4" pilot.
Edelbrock Engine Water Pump Pulley 8898
Specifications:
| Attachment Type | Bolts |
| Color | Black |
| Inside Diameter | 5.475 |
| Material | Aluminum |
| Outside Diameter | 5.850 |
| Mounting Hardware Included | Yes |
| Pulley Type | Serpentine |
| Mounting Hole Quantity | 4 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Width | 3.26 |
| Belt Type | Serpentine |
| Description_ABR | Pump Pulley |
| Description_INV | GM Gen III and Gen IV Water Pump Pulley |
| Description_LAB | Billet pulley for LS water pump #8896 |
| Description_ASM | Chevrolet:Gen III LS1:346 (5.7L) |
| Description_ASM | Chevrolet:Gen III LS6:346 (5.7L) |
| Description_EXT | The 8898 is a billet aluminum water pump pulley. Its designed to work with our 8896 LS water pump. This pulley is a universal type design that will work with belt offsets of most GM Gen III & Gen IV small block V8 engines (LS LM LQ & LR). |
| Description_MKT | The 8898 is a hard anodized billet aluminum water pump pulley. This pulley is designed to work with our 8896 LS water pump. This pulley is a universal type design that will work with belt offsets of most GM Gen III and Gen IV small block V8 engines (LS LM LQ and LR). The pulley diameter is identical to stock and it requires a 3/4" pilot. |
| Description_TRA | Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing |
| Description_TRA | The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft |
| Description_TRA | Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit |
| Description_TRA | So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty |
| Description_TRA | The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump |
| Description_DEF | Engine Water Pump Pulley |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2004 | Cadillac | CTS | Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 1998 | Chevrolet | Camaro | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 1999 | Chevrolet | Camaro | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2000 | Chevrolet | Camaro | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2001 | Chevrolet | Camaro | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2002 | Chevrolet | Camaro | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 1997 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 1998 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 1999 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2000 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2001 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2002 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2003 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2004 | Chevrolet | Corvette | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 1998 | Pontiac | Firebird | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 1999 | Pontiac | Firebird | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2000 | Pontiac | Firebird | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2001 | Pontiac | Firebird | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2002 | Pontiac | Firebird | Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black,Billet Aluminum; For Use w/Water Pump PN[8896]; Black | |
| 2004 | Pontiac | GTO | Billet Aluminum; For Use w/Water Pump PN[8896]; Black |
