*item may differ from images

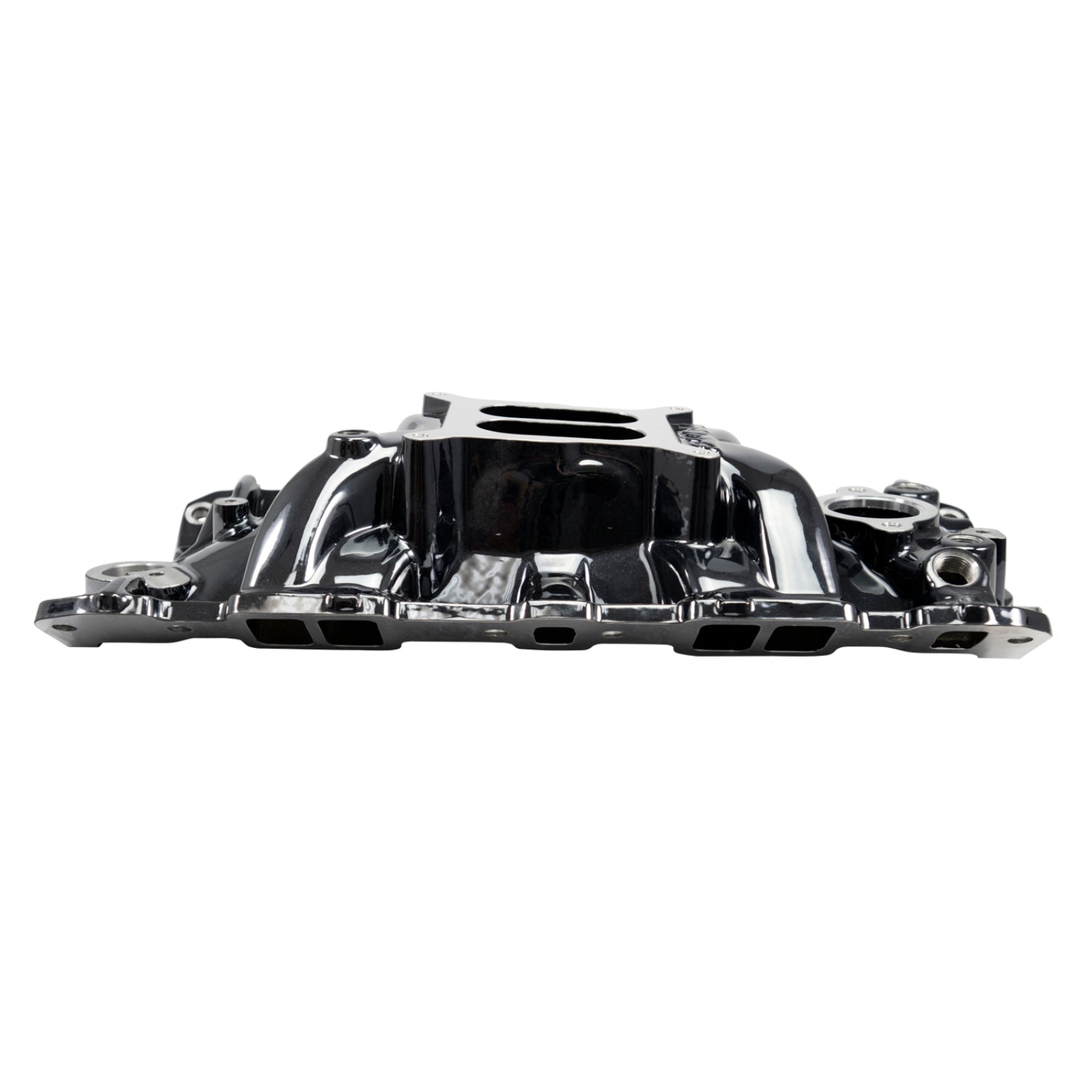

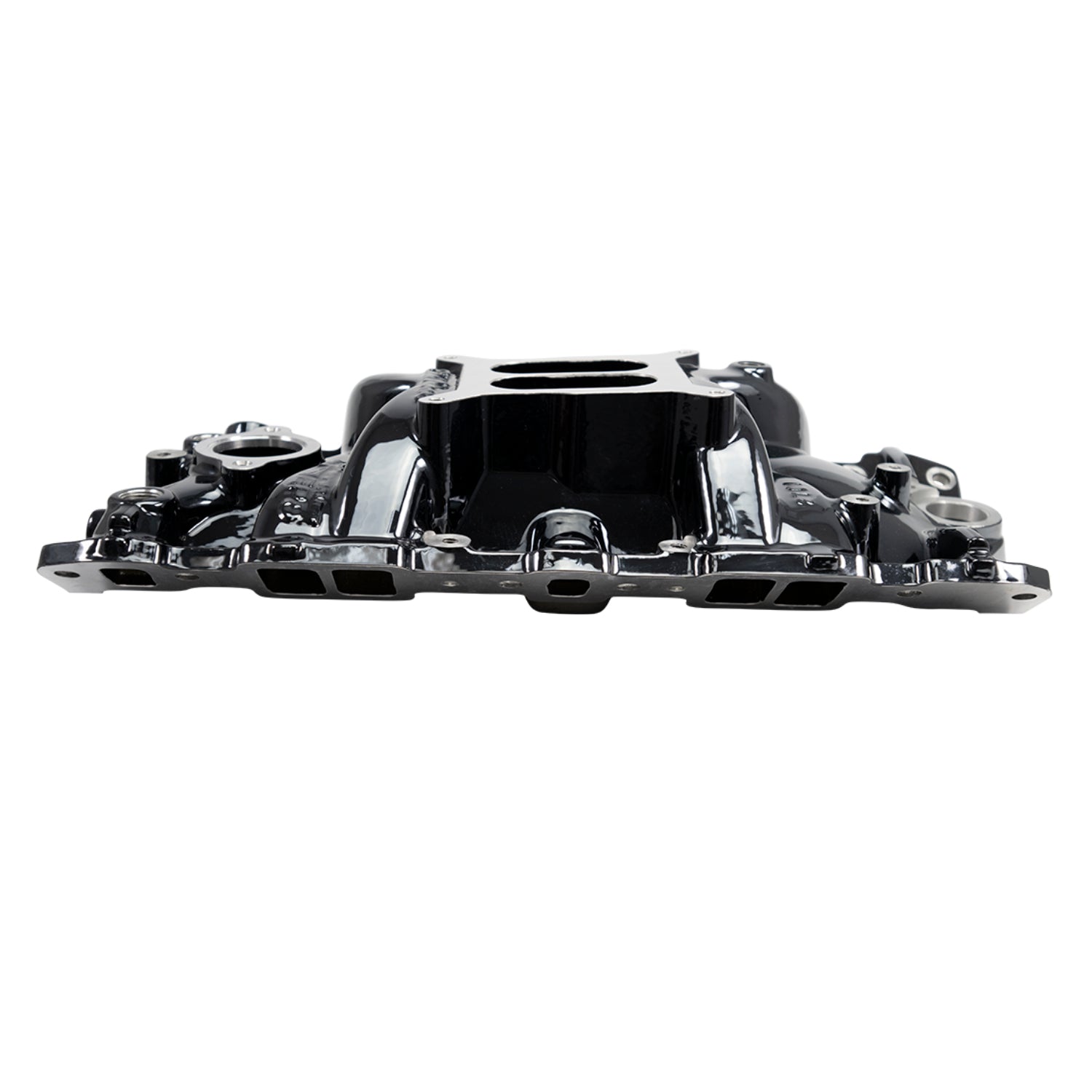

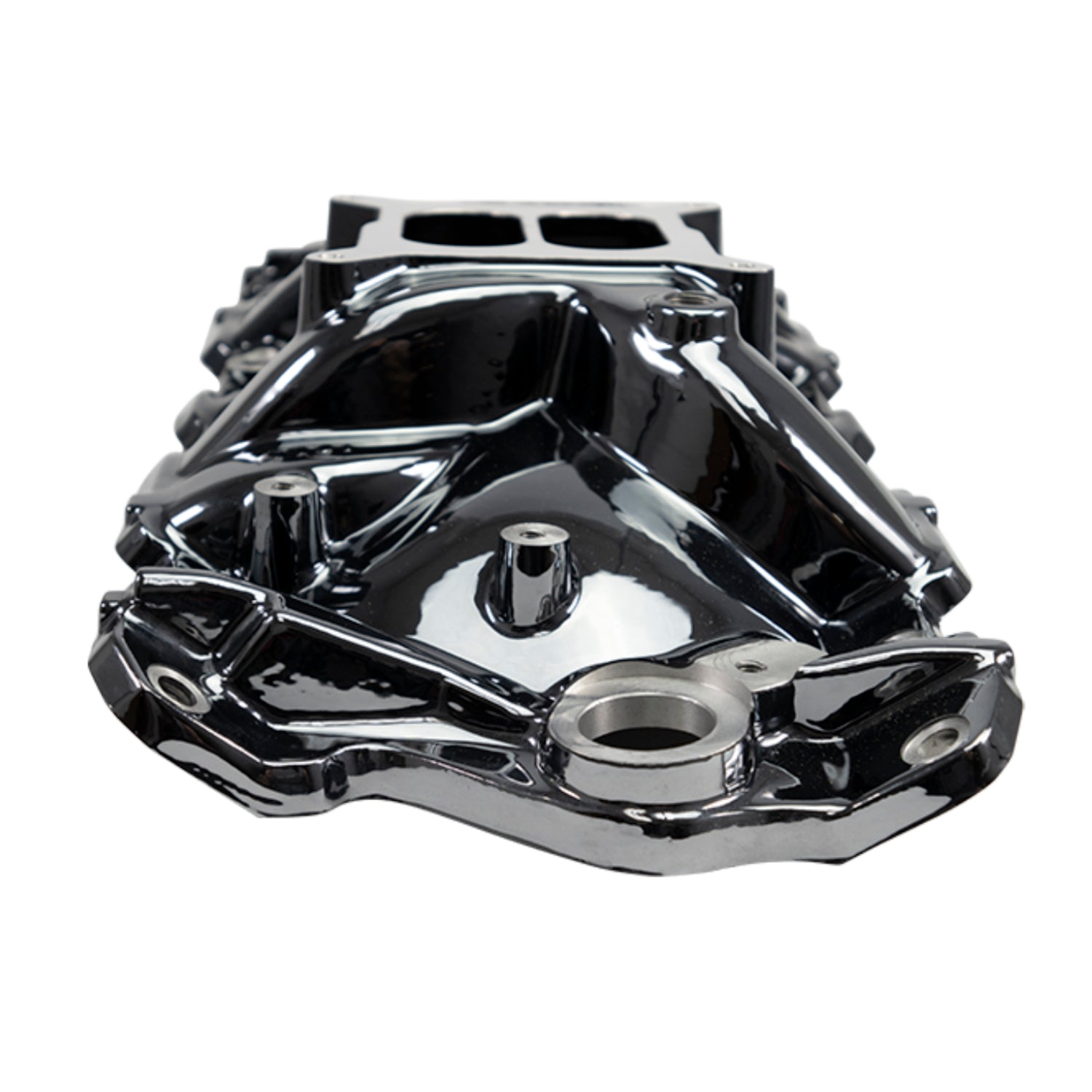

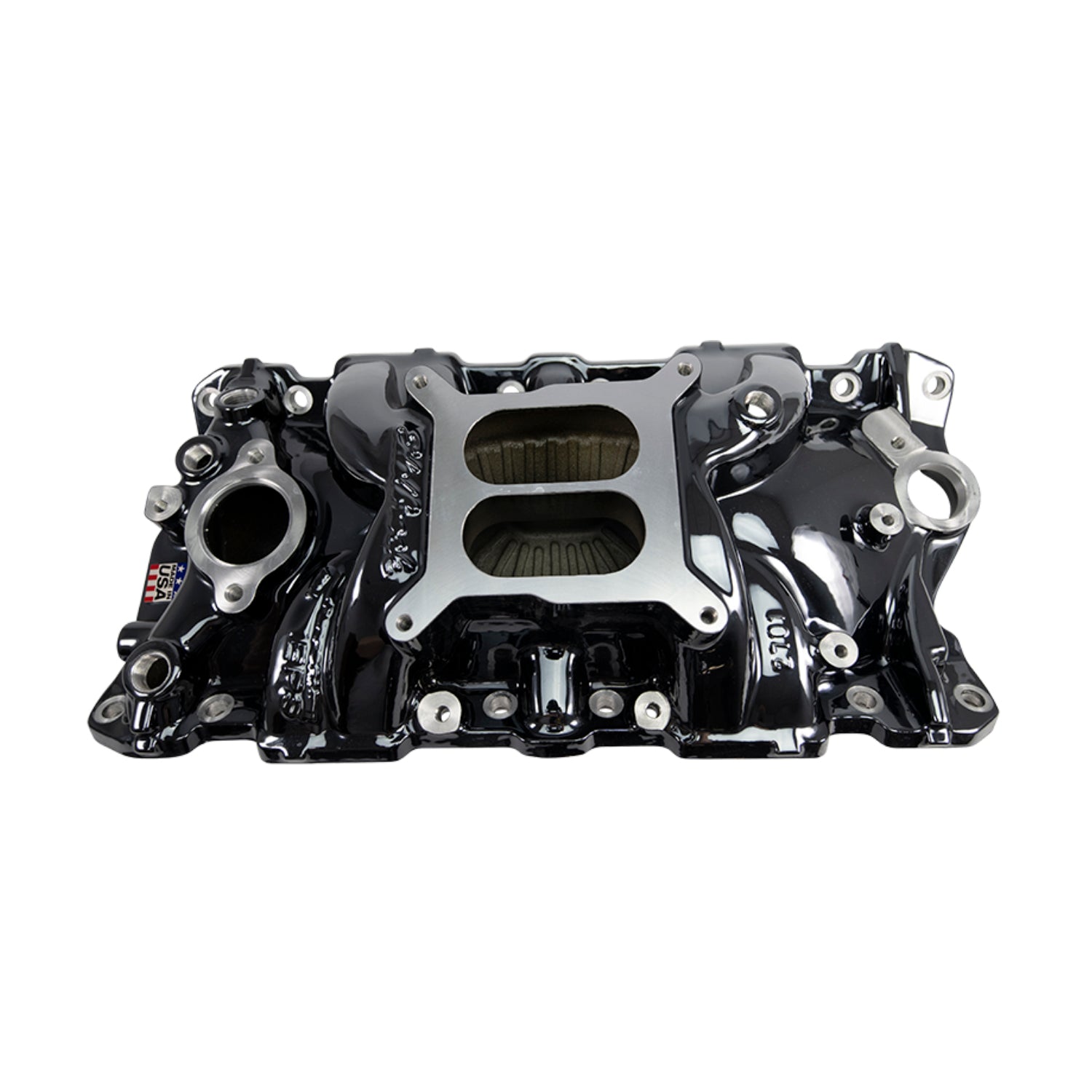

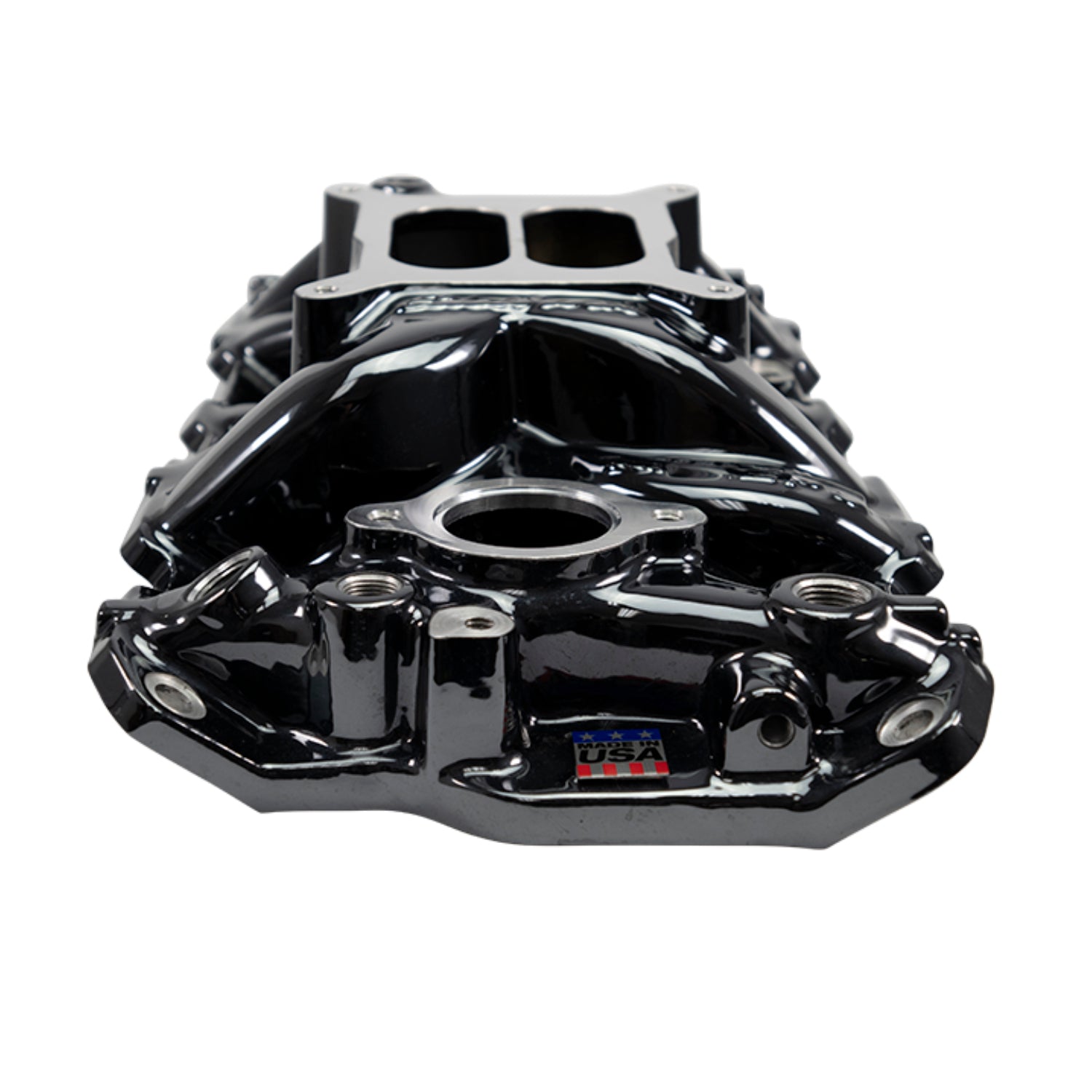

Edelbrock part #2701-BP Performer EPS intake manifold is for 1986 and earlier 262-400 cubic-inch Chevys. Design is optimized for Edelbrock EPS or AVS2 carburetors, although any 4150 style carburetor will fit. Edelbrock's Patented dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range and gives excellent throttle response. The Edelbrock Performer EPS intake manifold has a runner design that's tuned for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. This PN 2701-BP version comes with a beautiful reflective Black Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finises the process.
Edelbrock Engine Intake Manifold 2701-BP
Specifications:
| Single Or Dual Plane Type | Dual |
| Front Maximum Height | 3.740 |
| Rear Maximum Height | 4.800 |
| CNC Ported | No |
| Grade Type | Performance |
| Center Maximum Height | 4.270 |
| Material | Aluminum |
| Flange Type | 4150 |
| Basic Operating RPM Range | Idle-5500 |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series | Performer |
| Finish | Black Plasma |
| Gasket Or Seal Included | No |
| EGR Port | No |
| Vehicle Model | Chevrolet |
| Description_FAB | 7 stage prewash and 4 stage coating for a beautiful and durable finish |
| Description_FAB | Easy to maintain, just wipe and go! |
| Description_FAB | Low profile with provisions for stock accessory brackets |
| Description_FAB | Outstanding performance for street rods, muscle cars and classics |
| Description_TRA | Manifold ht: A-3.74", B-4.80" |
| Description_TRA | Carb pad height: 4.27" |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 500-650 cfm |
| Description_TRA | Port exit dimensions: 1.15" x 1.87". |
| Description_TRA | Recommended intake gasket: Edelbrock #7201. |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA | NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA | DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA | Will not fit under stock Corvette hood. |
| Description_TRA | Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA | Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Description_ABR | Intake Mnfld |
| Description_INV | Manifold |
| Description_INV | SBC Perf EPS Black Plasma |
| Description_LAB | Performer EPS Intake Manifold for 55-86 Small-Block Chevy w/ Black plasma Finish |
| Description_ASM | Chevrolet:Small-Block Gen I:265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_EXT | Edelbrock Performer EPS Intake Manifold for 1955-86 262-400 Small-Block Chevrolet V8, Accepts a 4150-Style Square-Bore Carburetor. Non-EGR. Low profile design fits all standard brackets and accessories. Easy maintenance Black Plasma finish |
| Description_MKT | Edelbrock part #2701-BP Performer EPS intake manifold is for 1986 and earlier 262-400 cubic-inch Chevys. Design is optimized for Edelbrock EPS or AVS2 carburetors, although any 4150 style carburetor will fit. Edelbrock's Patented dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range and gives excellent throttle response. The Edelbrock Performer EPS intake manifold has a runner design that's tuned for peak torque at 3500 rpm on a 350-inch engine making it ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer manifold #2101 on a 350 Chevy. This PN 2701-BP version comes with a beautiful reflective Black Plasma finish that is durable and easy to maintain. The Plasma finishes are applied by a fully automated 7 stage prewash and 4 stage finish. A durable clear powder coat finises the process. |
| Description_DEF | Engine Intake Manifold |
