*item may differ from images

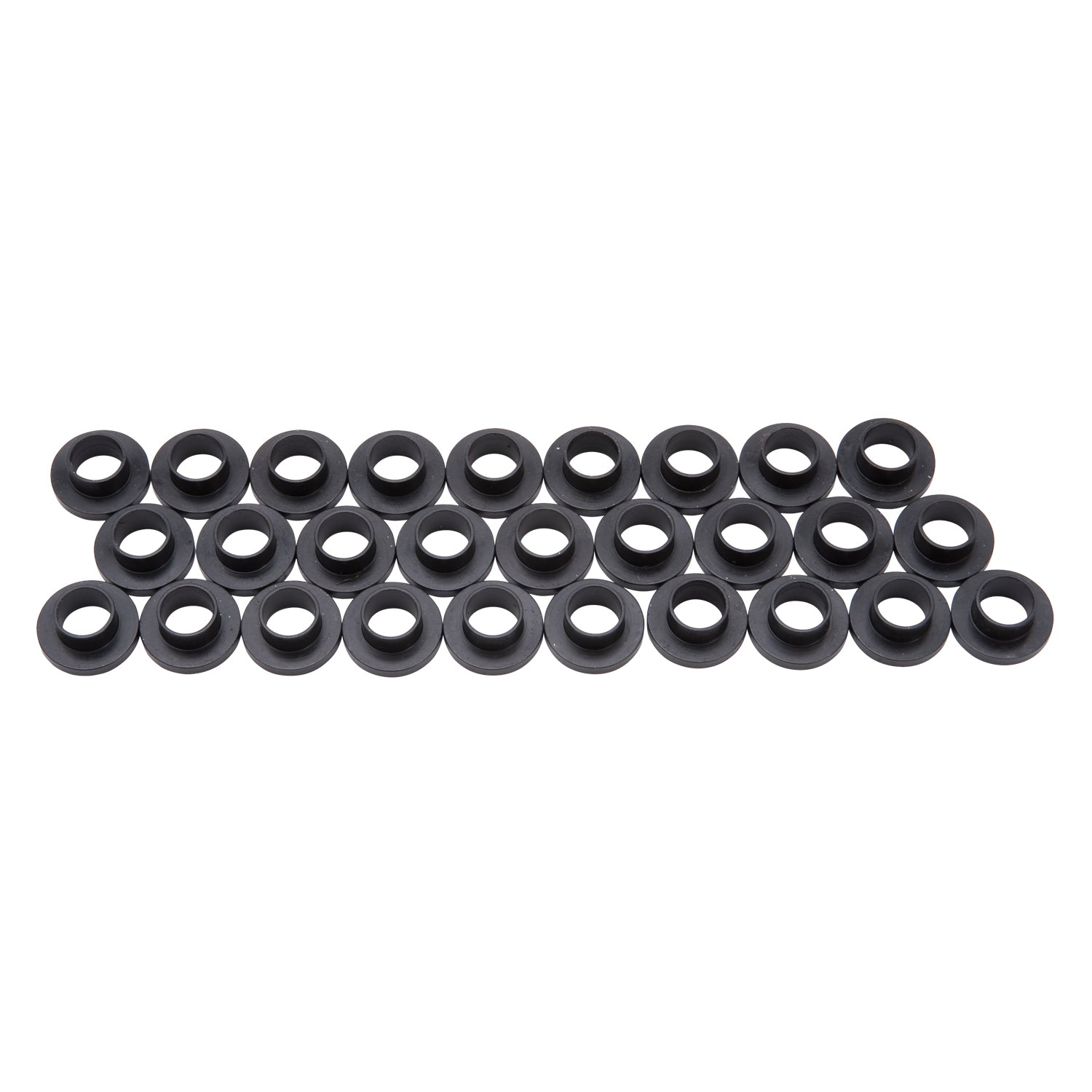

Edelbrock #9693 7/16" to 1/2" Bushing Washer Kit allows the use of Stock or Edelbrock 7/16" Head Bolts with 1/2" Bolt Holes on pre-1970 AMC engines. Use with Edelbrock #60129/60139 Performer AMC and #60109/60119 RPM AMC Cylinder Heads.
Edelbrock Engine Cylinder Head Bolt Set 9693
Specifications:
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Maximum Outside Diameter | 0.8750 |
| Finish | Black Oxide |
| Quantity | Set of 28 |
| Thickness | 0.1250 |
| Maximum Inside Diameter | 0.4375 |
| Material | Chromoly |
| Minimum Outside Diameter | 0.500 |
| Description_ABR | AMCHeadBolt |
| Description_INV | AMC Head Bolt Bushings |
| Description_LAB | AMC Head Bolt Bushings |
| Description_ASM | AMC:-:290 (4.8L)-401 (6.6L) |
| Description_EXT | Edelbrock #9693 7/16" to 1/2" Bushing Washer Kit allows the use of Stock or Edelbrock 7/16" Head Bolts with 1/2" Bolt Holes on pre-1970 AMC engines. Use with Edelbrock #60129/60139 Performer AMC and #60109/60119 RPM AMC Cylinder Heads. |
| Description_MKT | The Edelbrock #9693 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining |
| Description_TRA | The Edelbrock #9693 is made specifically for AMC engines |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. |
| Description_TRA | #60109 and #60119 heads will have to apply a thin bead of silicone around the oil drain back provisions. This will prevent any leaks that may occur. CAUTION: The silicon bead on OEM type head gaskets will overlap these provisions. The addition of the silicone bead will help provide a better seal. |
| Description_TRA | Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA | Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| Description_TRA | or 30, 60, 90, 100-110). |
| Description_DEF | Engine Cylinder Head Bolt Set |
