Edelbrock Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block 85912

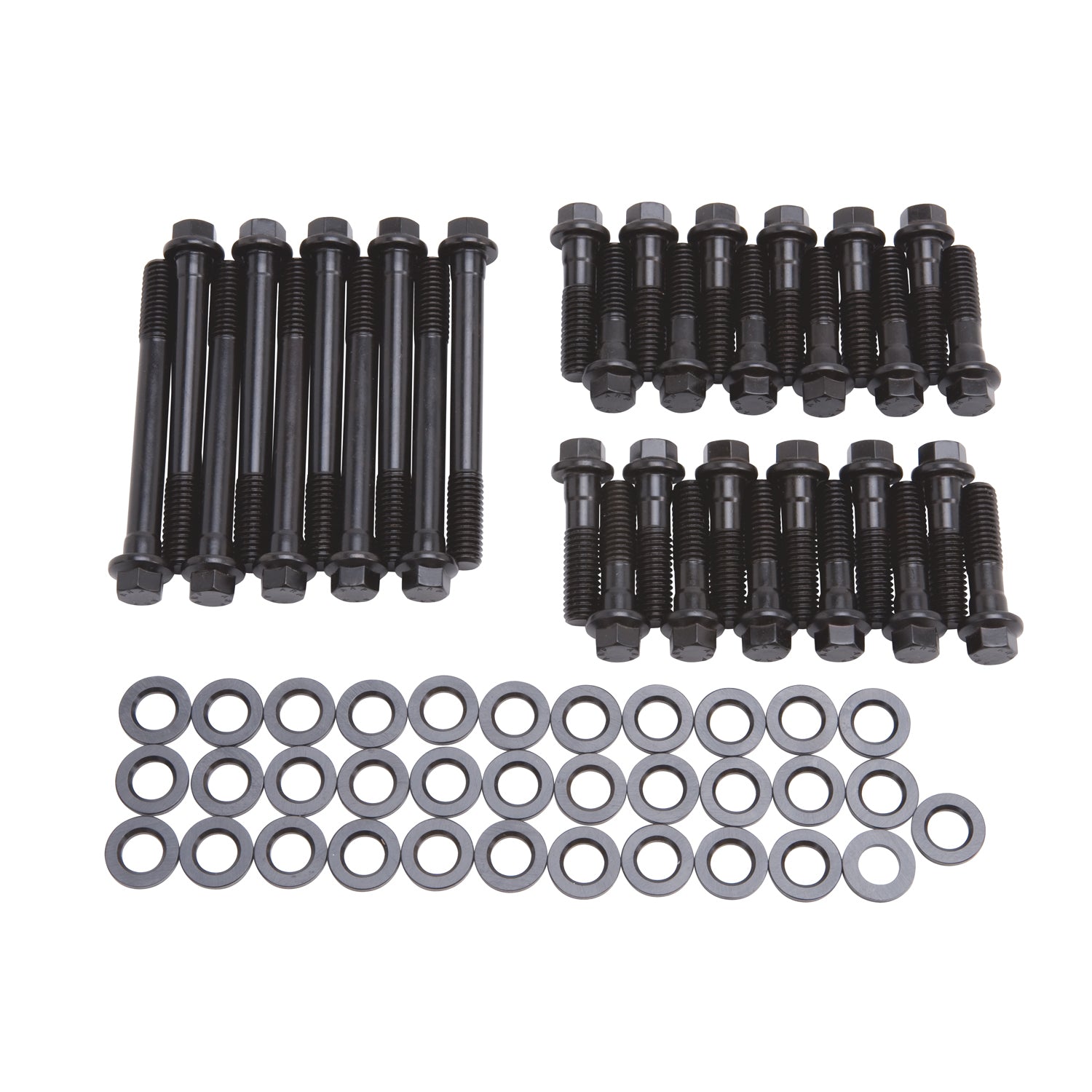

Edelbrock E-Series Cylinder Head Bolt Kit #85912 is specially designed for use with Chrysler big-block engines equipped with E-Street/Performer RPM cylinder heads (#60825, 60829, #60929, #60185, #60189, #5090 and #5093). This kit contains all necessary bolts and washers to install one set of heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.

Edelbrock Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block 85912

Specifications:

RGL	WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
9	Hex
10	8740 Chromoly
546	Coarse
557	0.4375
2596	1.75
3072	Yes
Finish	Black Oxide
Grade Type	Performance
Quantity	Kit
Length	(24) 1.75 in, (10) 4.00
Description_TRA	Apply 30W oil to fine threads and under nuts and washers and torque nuts to 25 ft./lbs. A head bolt re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling).
Description_DEF	Engine Cylinder Head Bolt Set
Description_ABR	HeadBoltKit
Description_INV	Big Block Chrysler Head Bolt Kit
Description_LAB	Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block
Description_DES	Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block
Description_SHP	None
Description_ASM	Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L)
Description_ASM	Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L)
Description_EXT	Edelbrock #85912 is a Head Bolt Kit for Big-Block Chrysler Engines with Edelbrock (#60825, 60829, #60929, #60185, #60189, #5090, #5093 E-Street and Performer RPM Cylinder Heads. This kit contains a complete set of Head Bolts & Washers.
Description_MKT	Edelbrock E-Series Cylinder Head Bolt Kit #85912 is specially designed for use with Chrysler big-block engines equipped with E-Street/Performer RPM cylinder heads (#60825, 60829, #60929, #60185, #60189, #5090 and #5093). This kit contains all necessary bolts and washers to install one set of heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
Description_FAB	For big-block Chrysler w/E-Street/Performer RPM aluminum heads
Description_FAB	Yield tensile strength of 190,000 PSI
Description_FAB	Heat treating with rolled threads for superior form and strength
Description_FAB	black-oxide finish with sealer
Description_FAB	Edelbrock E logo stamped on bolt head
Description_TRA	The Edelbrock #8591 is made specifically for big block Chrysler
Description_TRA	Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary.
Description_TRA	Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation.
Description_TRA	Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers.
Description_TRA	Torque to 70 ft./lbs. in three steps (40, 55, 70) following the factory tightening sequence.
Description_TRA	Apply a continuous 1/8" bead of automotive RTV silicone sealer to end sealing surfaces on block and along bottom of intake ports on cylinder head. Also, apply a thin bead of sealer around intake ports on cylinder head and gasket.
Description_TRA	Position intake gasket thin valley cover in place and tighten bolts down. Then, place intake manifold in position and torque manifold bolts to 25 ft. lbs.
Description_TRA	Rocker shaft hold-down studs, nuts and washers, for 2 places marked (S) in each head, are supplied in this kit.
Description_TRA	Double nut both studs and screw them in until they reach the bottom. Install rocker shaft, factory concave washer and hard washer supplied with this kit.
