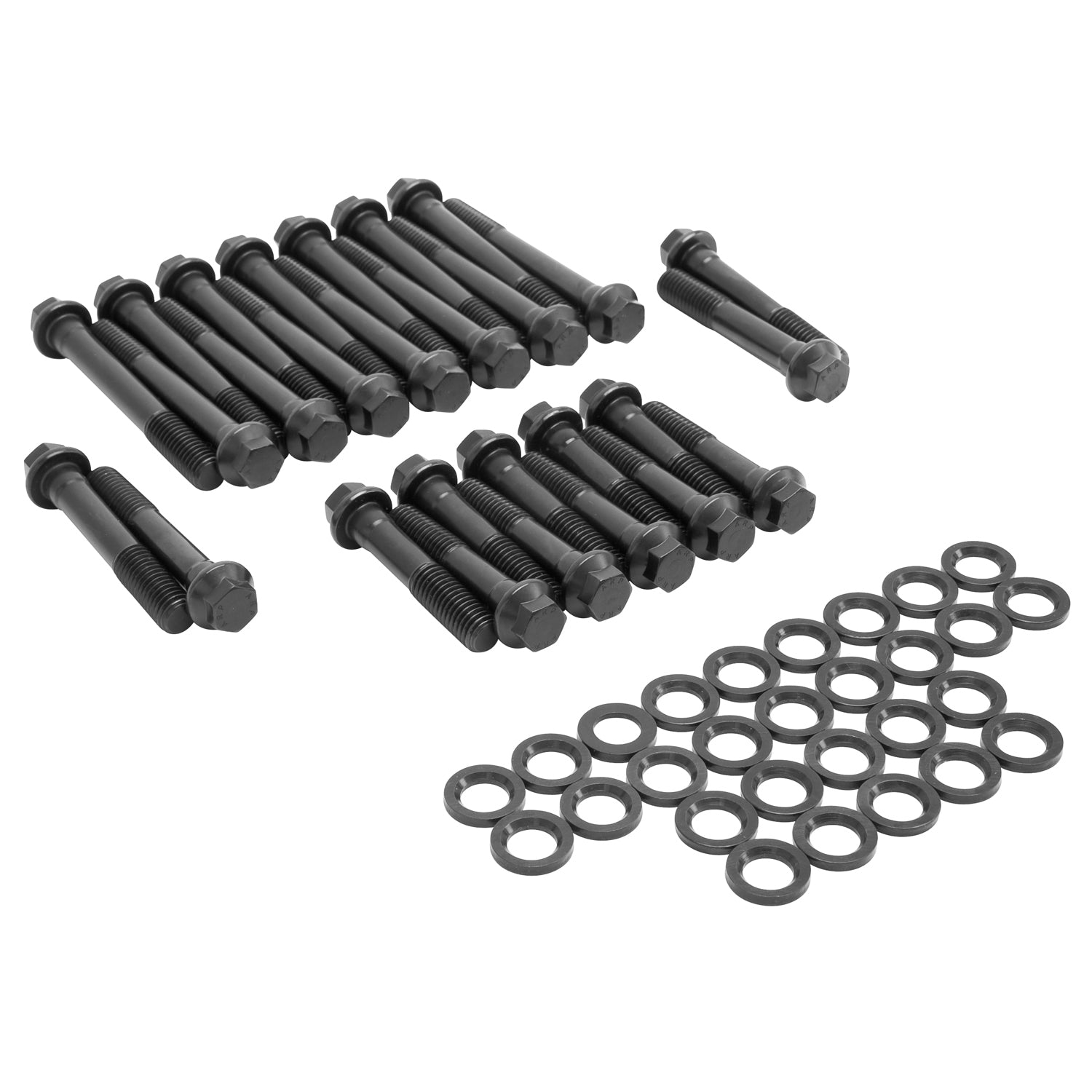

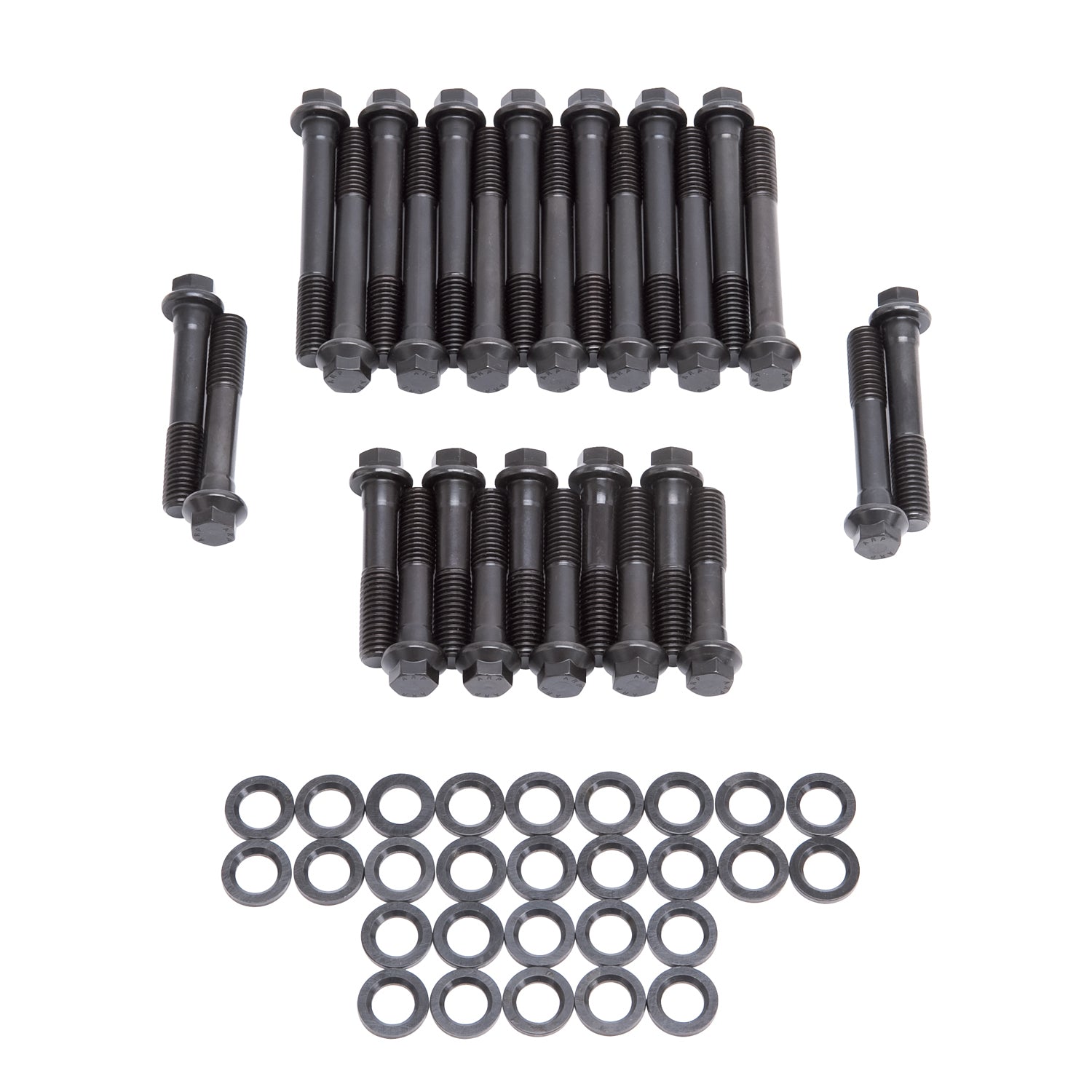

"Edelbrock E-Series Cylinder Head Bolt Kit #85322 is designed for use with Edelbrock Performer Cylinder Heads #60129/#60139 and Performer RPM Cylinder Heads #60109/#60119 used on 1970-later AMC engines with 1/2-inch diameter head bolts. This kit contains all necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head."
Edelbrock Edelbrock E-Series Cylinder Head Bolt Kit #85322 for 1970-later AMC V8 engines 85322
Specifications:
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| 9 | Hex |
| 10 | 8740 Chromoly |
| 546 | Coarse |
| 557 | 0.5 |
| 2596 | 2.5 |
| 3072 | Yes |
| Finish | Black Oxide |
| Grade Type | Performance |
| Quantity | Kit |
| Length | (10) 2.25 in, (4) 3.00 in, (14) 3.75 |
| Description_ABR | HeadBoltKit |
| Description_INV | Edelbrock Cylinder Head Bolt Kit #85322 |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85322 for 1970-later AMC V8 engines |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85322 for 1970-later AMC V8 engines |
| Description_SHP | None |
| Description_ASM | AMC:-:304 (5.0L)/360 (5.9L)/401 (6.6L) |
| Description_EXT | Edelbrock Head Bolt Kit #85322 is for 1970-later AMC 290-401 Engines with Edelbrock #60129, 60139, 60109, & 60119 Performer & Performer RPM Cylinder Heads. Kit Includes Complete Set of 1/2" Diameter Bolts and Washers. |
| Description_MKT | "Edelbrock E-Series Cylinder Head Bolt Kit #85322 is designed for use with Edelbrock Performer Cylinder Heads #60129/#60139 and Performer RPM Cylinder Heads #60109/#60119 used on 1970-later AMC engines with 1/2-inch diameter head bolts. This kit contains all necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head." |
| Description_TRA | The Edelbrock #85322 is made specifically for 1970- Later AMC |
| Description_TRA | Installation is the same as for original equipment cylinder heads. |
| Description_TRA | Consult service manual for specific procedures, if necessary. |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA | Torque cylinder head bolts in three steps following the factory tightening sequence |
| Description_DEF | Engine Cylinder Head Bolt Set |
