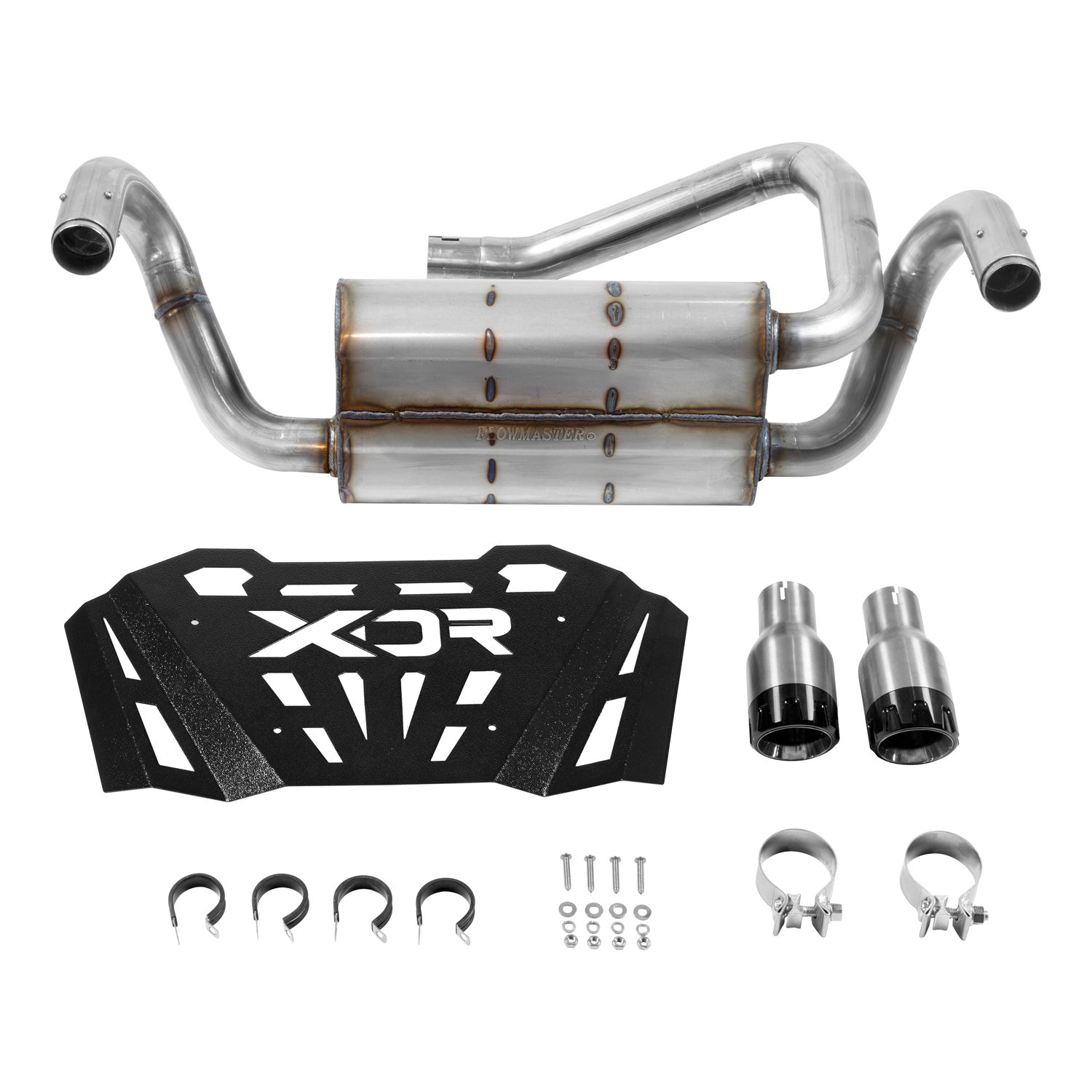

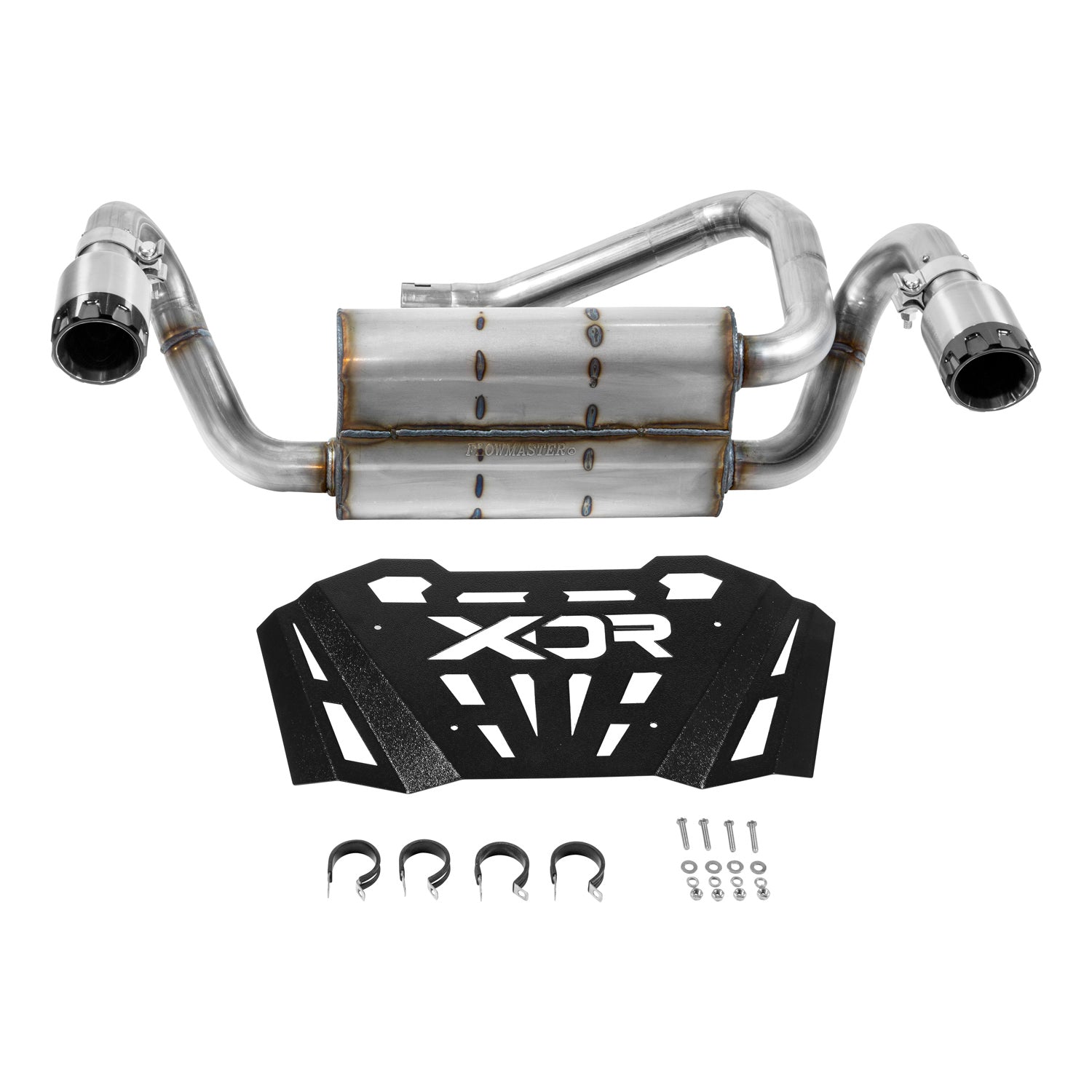

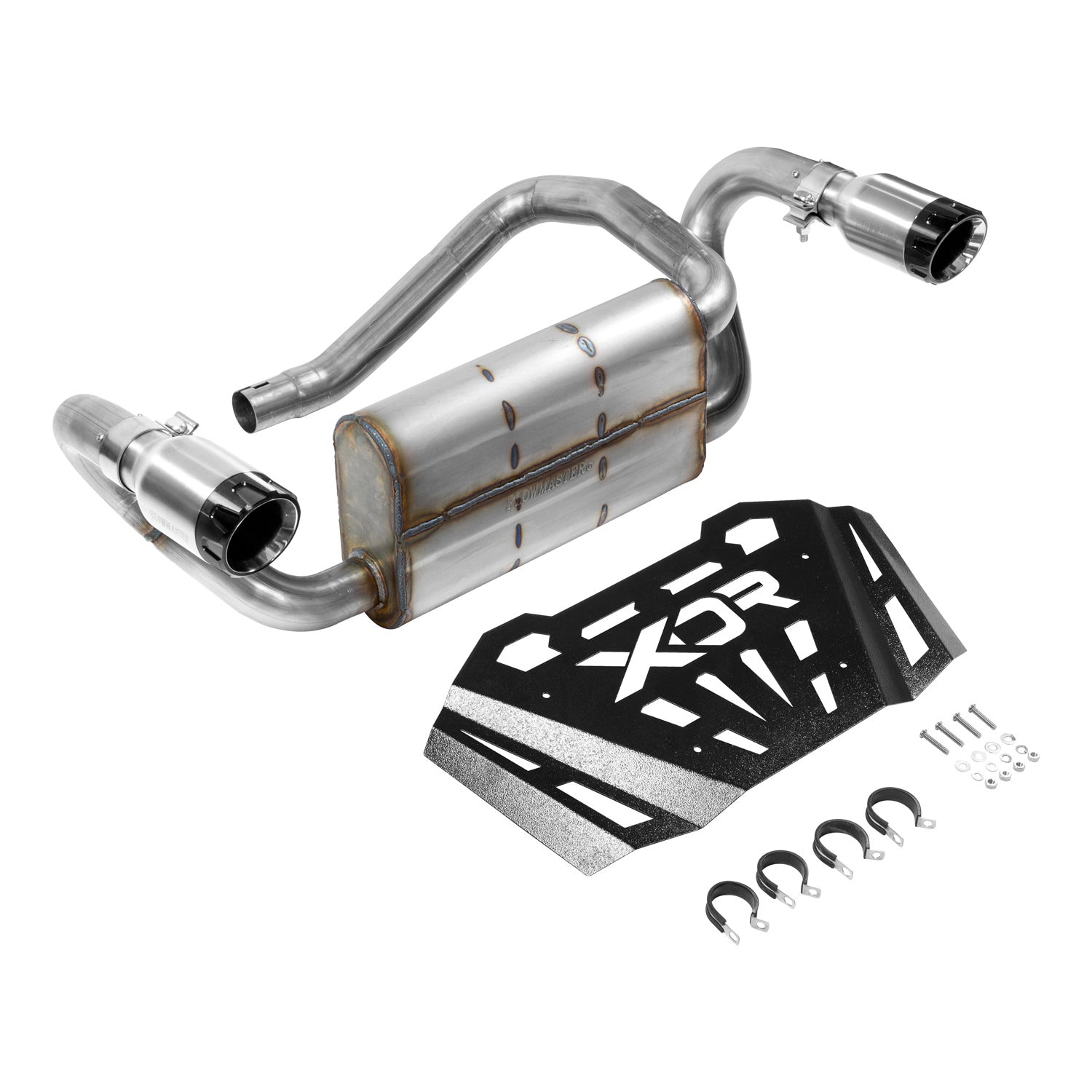

This bolt-on XDR Competition exhaust system fits 2016-2021 Yamaha YXZ1000R and features 409S stainless steel construction, connects at the factory slip-fit connection and is firmly held in place using the factory rubber mounts. The 2.25-inch mandrel-bent inlet tube flows into the XDR "straight-through" Competition cross-flow muffler providing a deep moderate to aggressive sound level. The dual 2.25-inch mandrel-bent tailpipes are tucked up high within the rear fenders and are finished off with a pair of 3.50-inch brushed 304s stainless steel tips with black anodized aluminum end caps. The system comes with a custom black powder coated heat shield with a laser-cut XDR logo with venting cut in the shield showing everyone behind you why your YXZ1000R sounds so good. Includes all hardware and installation instructions necessary for a simple at home installation. Note: This system does not include a catalytic converter and therefore is not emissions compliant for on-road or trail use. For Competition use only.
XDR XDR Off-Road Competition Exhaust 7704
Specifications:
| Assembly Required | No |
| Brand | XDR |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds), Nickel (Metallic) |
| CARB (California) Compliant | No |
| Category | Exhaust |
| Compatible Brands/Models | Yamaha YXZ 1000R |
| Components Included | Muffler, Tips, Heatshields, Hardware and Instructions |
| Decibal Rating (dB) | Not Available |
| Emission Code | 4 |
| Exit Location | DOR |
| Flange Quantity | Not Included |
| Header Pipe Quantity | Not Included |
| Included Safety Features | Heat Shield |
| Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Method | Bolt On |
| Muffler Body Height (in) | 9.75 |
| Muffler Body Length (in) | 17 |
| 4372 | 409 Stainless |
| Muffler Configuration | Single |
| Muffler Inlet Count | 1 |
| Muffler Inlet Inside Diameter | 2.14 |
| Muffler Internal Description | Absorption |
| Muffler Outlet | 2 |
| Muffler Outlet Inside Diameter (in) | 2.14 |
| 4374 | 1 |
| Muffler Style | Transverse |
| Mufflers Included | Yes |
| Overall Exhaust System Diameter (in) | 2.25 |
| part type | Exhaust System Kit |
| Pipe Material/Type | 409 Stainless |
| Power Sport Item Type | Rear Section Exhaust |
| Product Type | Exhaust Systems / Kits |
| Special Fitment Info | Competition use only. Not emissions compliant |
| Sub Category | Exhaust System Kit |
| System Color/Finish | Natural |
| Tip Cut | Angle |
| Tip Diameter (in) | 3.5 |
| Tip Finish | Polished/Black anodized |
| Tip Included | Yes |
| Tip Length (in) | 8.5 |
| Tip Material | 304 Stainless/Aluminum |
| Tip Quantity | 2 |
| 1378 | Round |
| Tip Style | Double Wall |
| USFS Approved Spark Arrestor | Yes |
| Warning | California Proposition 65 |
| Y-Pipes Included | No |
| California Proposition 65 Required | Yes |
| Muffler Body Width | 4 |
| Muffler Color/Finish | Natural |
| Description_ABR | XDREXHAUST |
| Description_SHO | Exhaust System Kit |
| Description_INV | 1621 YAMAHA YXZ1000R DOR 409S |
| Description_ASC | 2016-2021 Yamaha YXZ1000R models |
| Description_DES | XDR Off-Road Competition Exhaust |
| Description_EXT | 2016-2021 Yamaha YXZ1000R models - Moderate/Aggressive Sound |
| Description_MKT | This bolt-on XDR Competition exhaust system fits 2016-2021 Yamaha YXZ1000R and features 409S stainless steel construction, connects at the factory slip-fit connection and is firmly held in place using the factory rubber mounts. The 2.25-inch mandrel-bent inlet tube flows into the XDR "straight-through" Competition cross-flow muffler providing a deep moderate to aggressive sound level. The dual 2.25-inch mandrel-bent tailpipes are tucked up high within the rear fenders and are finished off with a pair of 3.50-inch brushed 304s stainless steel tips with black anodized aluminum end caps. The system comes with a custom black powder coated heat shield with a laser-cut XDR logo with venting cut in the shield showing everyone behind you why your YXZ1000R sounds so good. Includes all hardware and installation instructions necessary for a simple at home installation. Note: This system does not include a catalytic converter and therefore is not emissions compliant for on-road or trail use. For Competition use only. |
| Description_FAB | High Performance XDR Competition Muffler High Clearance Dual Exhaust Tailpipes Full Stainless Steel Construction Quick and Easy Installation Large Mandrel-bent Tubing Lifetime Limited Warranty |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2016 | Yamaha | YXZ1000R | Base | |
| 2017 | Yamaha | YXZ1000R | Base | |
| 2018 | Yamaha | YXZ1000R | Base | |
| 2019 | Yamaha | YXZ1000R | Base | |
| 2020 | Yamaha | YXZ1000R | Base | |
| 2021 | Yamaha | YXZ1000R | Base | |
| 2016 | Yamaha | YXZ1000R SE | Base | |
| 2017 | Yamaha | YXZ1000R SE | Base | |
| 2018 | Yamaha | YXZ1000R SE | Base | |
| 2019 | Yamaha | YXZ1000R SE | Base | |
| 2020 | Yamaha | YXZ1000R SE | Base | |
| 2017 | Yamaha | YXZ1000R SS | Base | |
| 2018 | Yamaha | YXZ1000R SS | Base | |
| 2019 | Yamaha | YXZ1000R SS | Base | |
| 2020 | Yamaha | YXZ1000R SS | Base | |
| 2017 | Yamaha | YXZ1000R SS SE | Base | |
| 2018 | Yamaha | YXZ1000R SS SE | Base | |
| 2019 | Yamaha | YXZ1000R SS SE | Base | |
| 2020 | Yamaha | YXZ1000R SS SE | Base | |
| 2021 | Yamaha | YXZ1000R SS SE | Base | |
| 2020 | Yamaha | YXZ1000R SS XT-R | Base | |
| 2021 | Yamaha | YXZ1000R SS XT-R | Base |
