The OEM Y-bridge for these trucks is a poorly designed, slip-fit style two piece bridge with very little support and is prone to blowing apart under boost on hard working and high performance trucks creating poor drivability, reduced fuel economy, and decreased power. This kit is a much improved, high flow, bolt together style two piece 3" bridge which provides a secure sealing surface where the air inlet horn connects to the bridge. 3" high flow upper and lower intercooler pipes feature smooth flowing mandrel bends, CNC machined billet flanges and perfectly compliment the y-bridge to offer a full 3" tract from intercooler pipe slip connection to the engine incorporating the factory grid heater and EGR connection controls. The Driver (Hot) Side 3" Intercooler Pipe replaces the 2 1/2" OEM piece with a full 3" pipe. The stock part uses a reverse style bead roll design at the turbo which is prone to blowing off of the turbo under higher boost levels than stock. The 3.5" High Flow Passenger (Cold) Side Intercooler Pipe replaces the aging and failure prone factory plastic piece with a larger and more durable, high flow, 14 ga. aluminum fabricated 3.5" components. This part uses CNC machined flanges with double o-ring seals, comes supplied with new wire clip rings for both slip flanges, and uses an upgraded silicone hump boot with stainless steel t-bolt clamps to withstand higher boost pressures than stock to increase reliability and eliminate blown factory boots and horsepower robbing boost leaks. Finished in your choice of custom powder colors. Pairs best with emissions compliant tuning and drop in turbochargers for optimum performance gains.

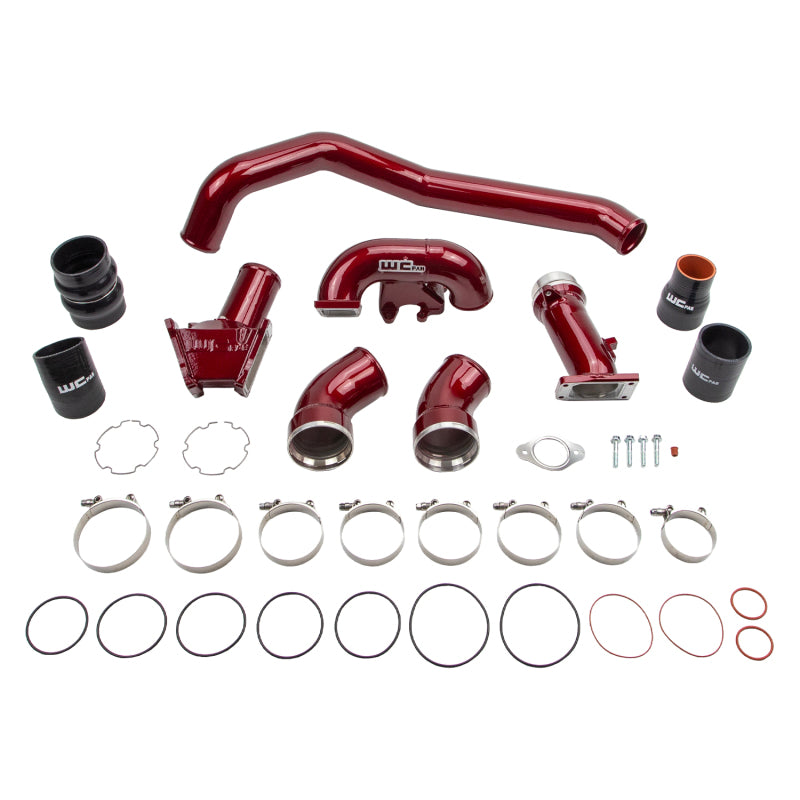

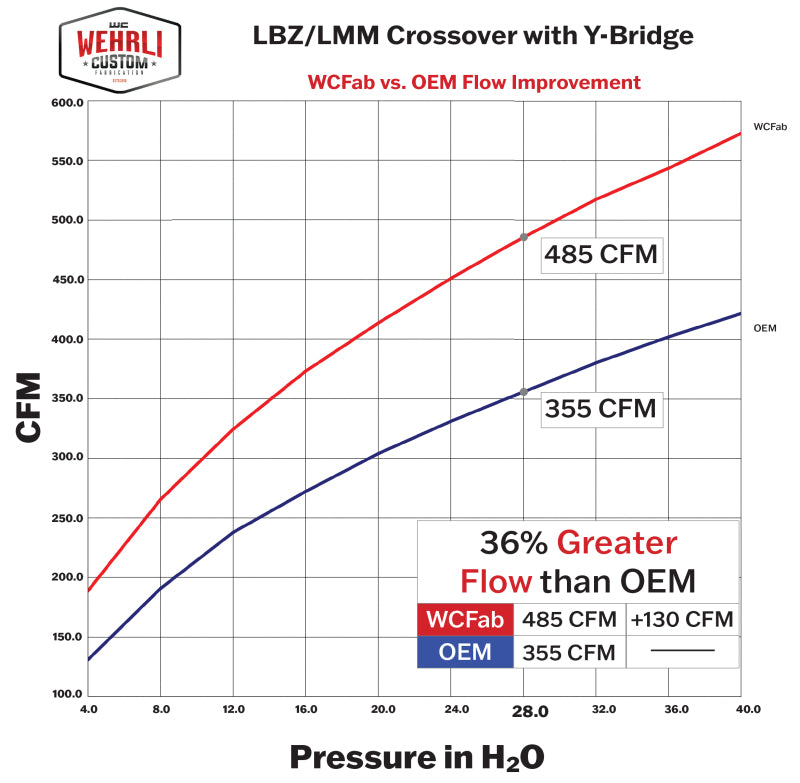

- WCFab's Signature 3" Two Piece Y-Bridge, with Upper Crossover and Lower Intercooler Pipes (Flows 36% Better Than Stock!)
- 3" Hot (Driver) Side Intercooler Pipe with high temperature wire-reinforced boot
- Compatible with stock trucks. No other modifications or upgrades necessary!

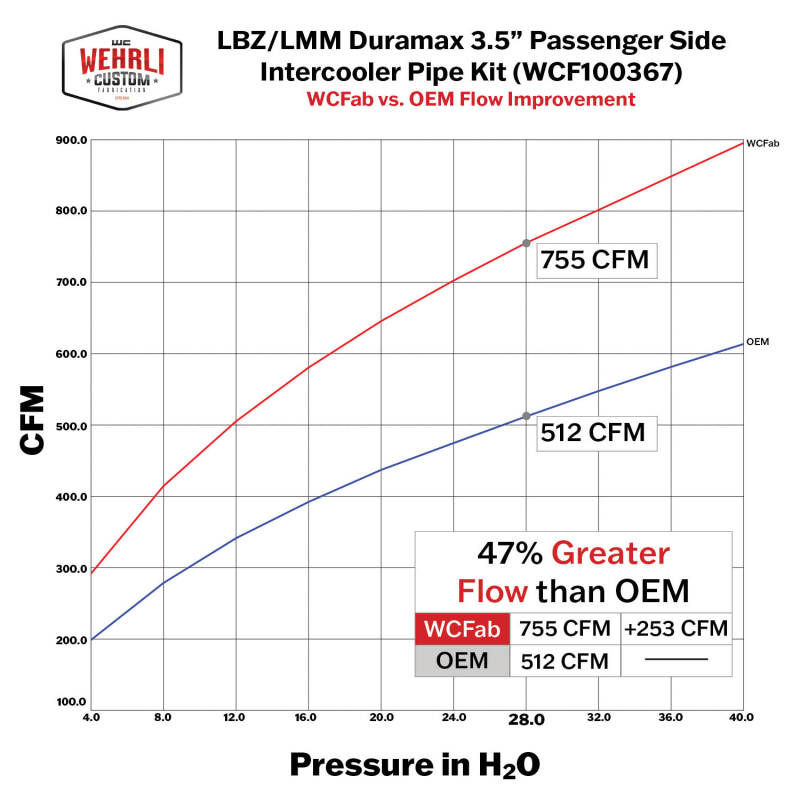

- 3.5" Cold (Passenger) Side Intercooler Pipe (Flows 47% Better Than Stock!)
- Includes installation hardware and required seals and gaskets.
- High Quality Silicone Boots & Stainless Steel T-Bolt Clamps
- Saves Up to $99 vs. buying included parts individually
- No Tuning Required, Bolt On!
- Custom Powder Coat Finish
- Made in USA
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Chevrolet | Silverado 2500 HD | LS |
| 2006 | Chevrolet | Silverado 2500 HD | LT |
| 2006 | Chevrolet | Silverado 2500 HD | WT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LS |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | WT |
| 2006 | Chevrolet | Silverado 3500 | LS |
| 2006 | Chevrolet | Silverado 3500 | LT |
| 2006 | Chevrolet | Silverado 3500 | WT |
| 2007 | Chevrolet | Silverado 3500 Classic | LS |
| 2007 | Chevrolet | Silverado 3500 Classic | LT |
| 2007 | Chevrolet | Silverado 3500 Classic | WT |
| 2006 | GMC | Sierra 2500 HD | SL |
| 2006 | GMC | Sierra 2500 HD | SLE |
| 2006 | GMC | Sierra 2500 HD | SLT |
| 2006 | GMC | Sierra 2500 HD | WT |
| 2007 | GMC | Sierra 2500 HD Classic | SL |
| 2007 | GMC | Sierra 2500 HD Classic | SLE |
| 2007 | GMC | Sierra 2500 HD Classic | SLT |
| 2007 | GMC | Sierra 2500 HD Classic | WT |
| 2006 | GMC | Sierra 3500 | SL |
| 2006 | GMC | Sierra 3500 | SLE |
| 2006 | GMC | Sierra 3500 | SLT |
| 2006 | GMC | Sierra 3500 | WT |
| 2007 | GMC | Sierra 3500 Classic | SL |
| 2007 | GMC | Sierra 3500 Classic | SLE |
| 2007 | GMC | Sierra 3500 Classic | SLT |
| 2007 | GMC | Sierra 3500 Classic | WT |
