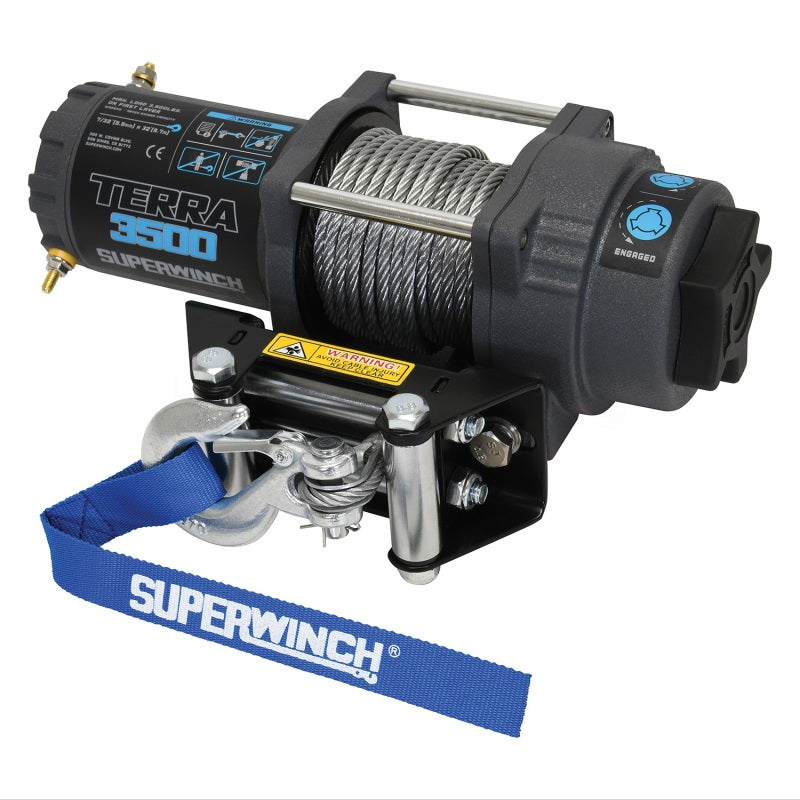

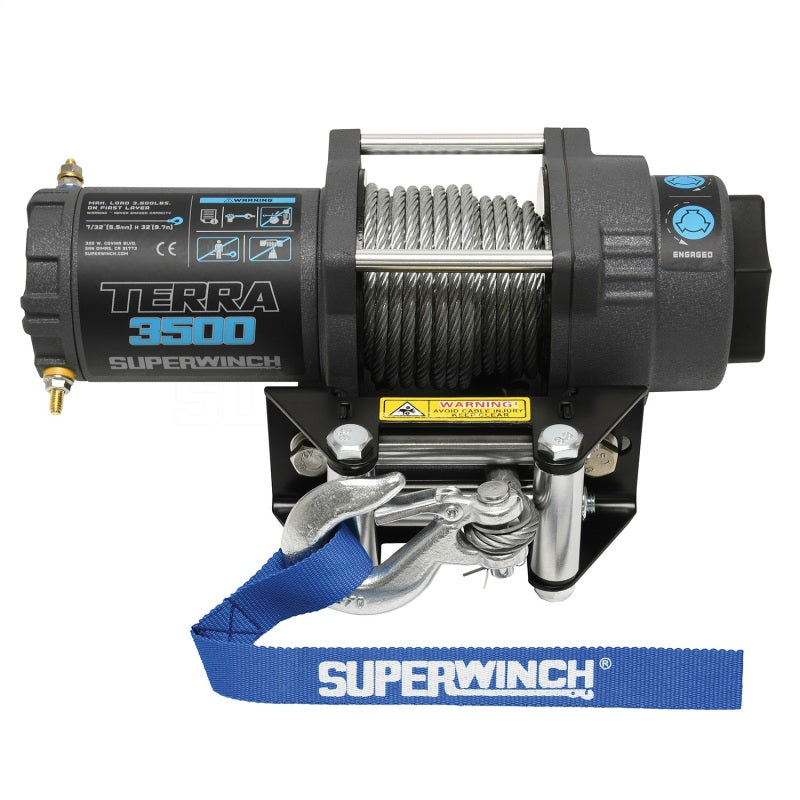

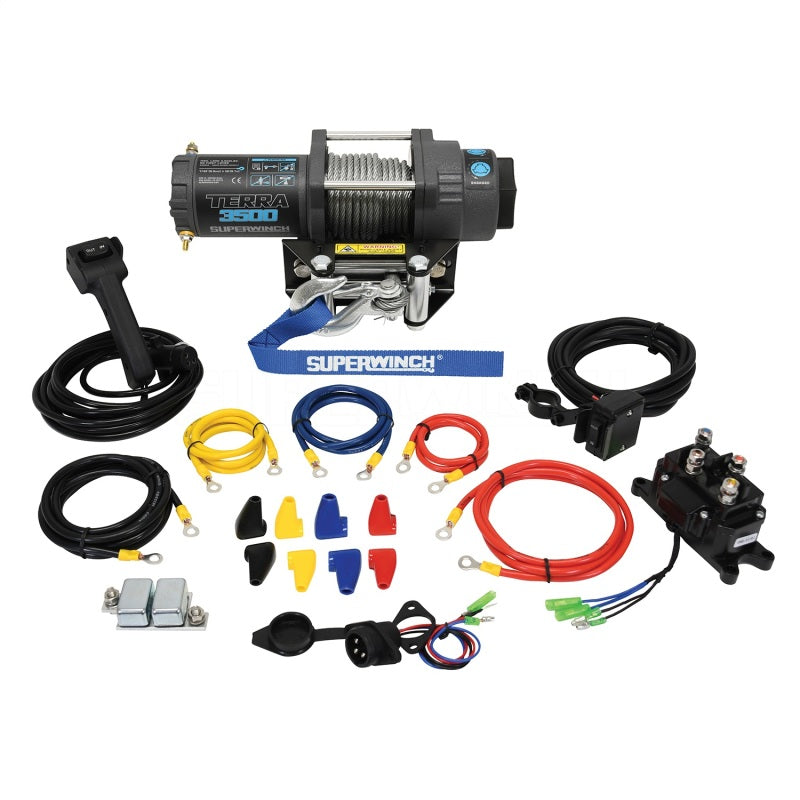

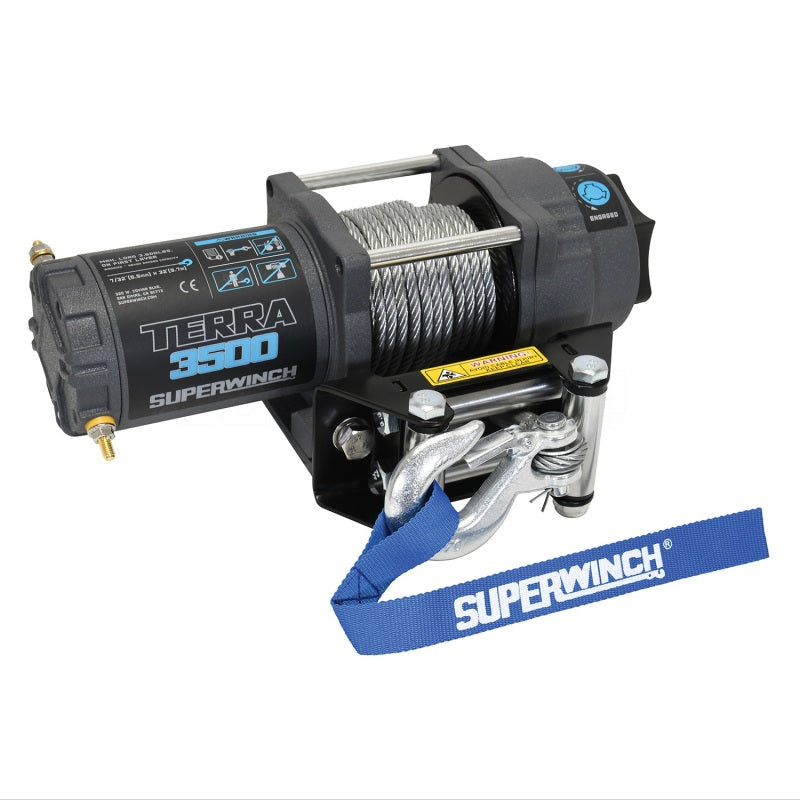

The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 3500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.
Installation InstructionsTechnical Drawing
Installation Instructions

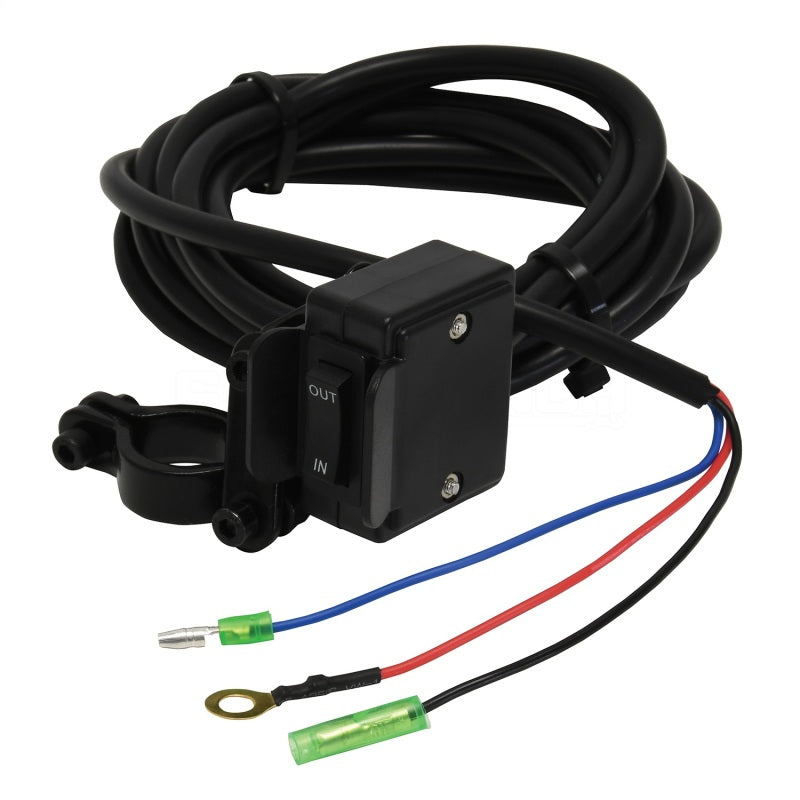

- 10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
- Narrow drum allows easier mounting in tight spaces
- 10' handheld remote with handlebar rocker switch

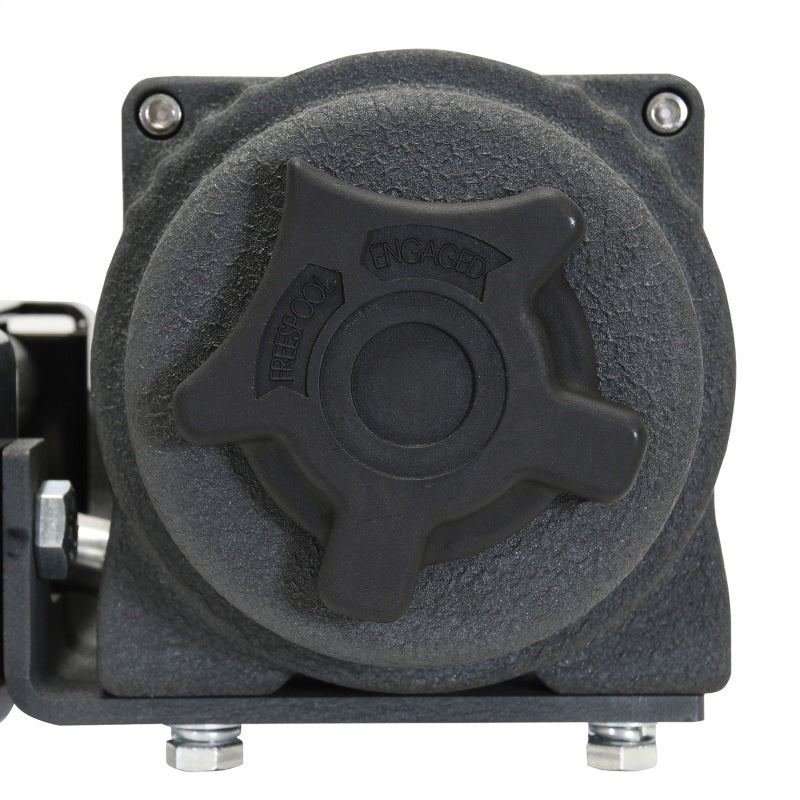

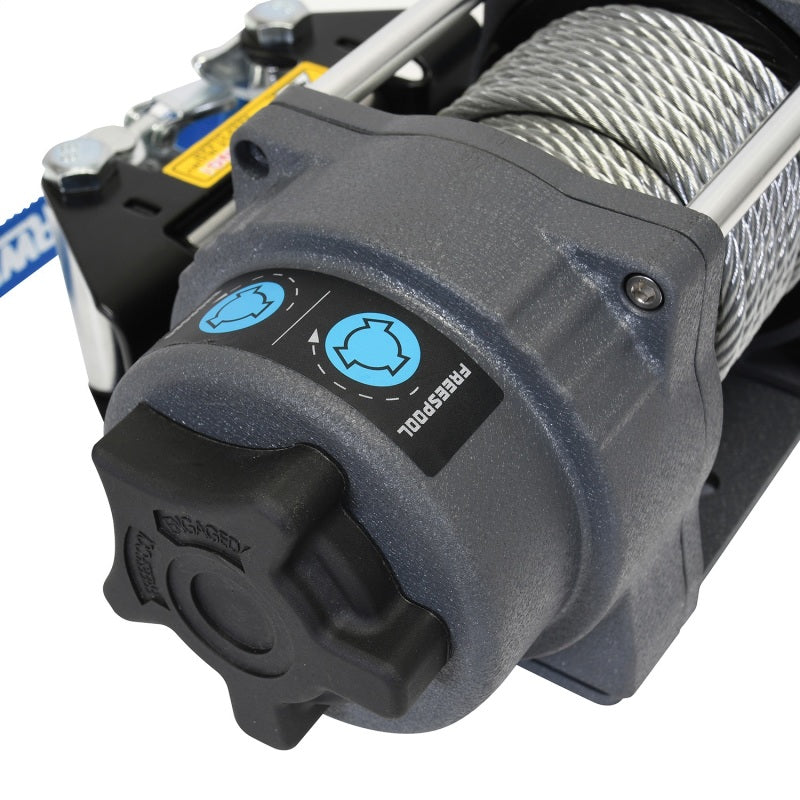

- Easy to engage ergonomic freespool control knob
- 3-Stage planetary gearing with 198:1 ratio
- Heavy-duty, clevis pinned, latched hook
- Heavy-Duty Clevis Pinned Latched Hook
- Mounting Bolt Pattern 3 in. X 4.9 in.
- Sealed solenoid with circuit breaker
- IP67 protection from water and dust
- 4-way roller fairlead (wire rope)
- Mounting bolt pattern 3" x 4.87"

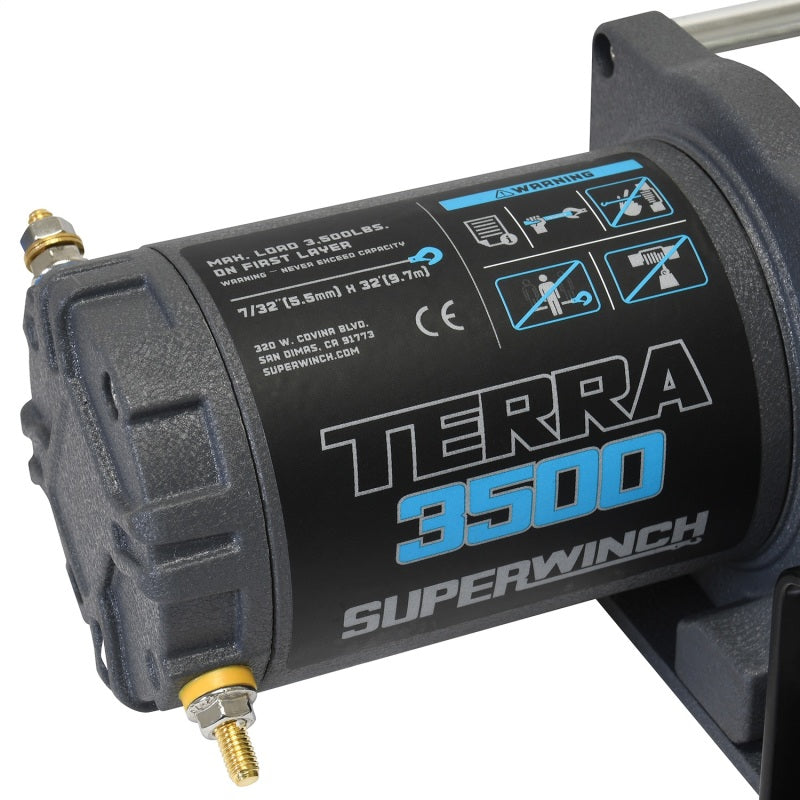

- 1.6 HP permanent magnetic motor
- Gray wrinkle powder coat finish
- Rated Line Pull Of 3500 Lbs
- 7/32 in. - 32 ft. wire rope
- Universal mounting plate

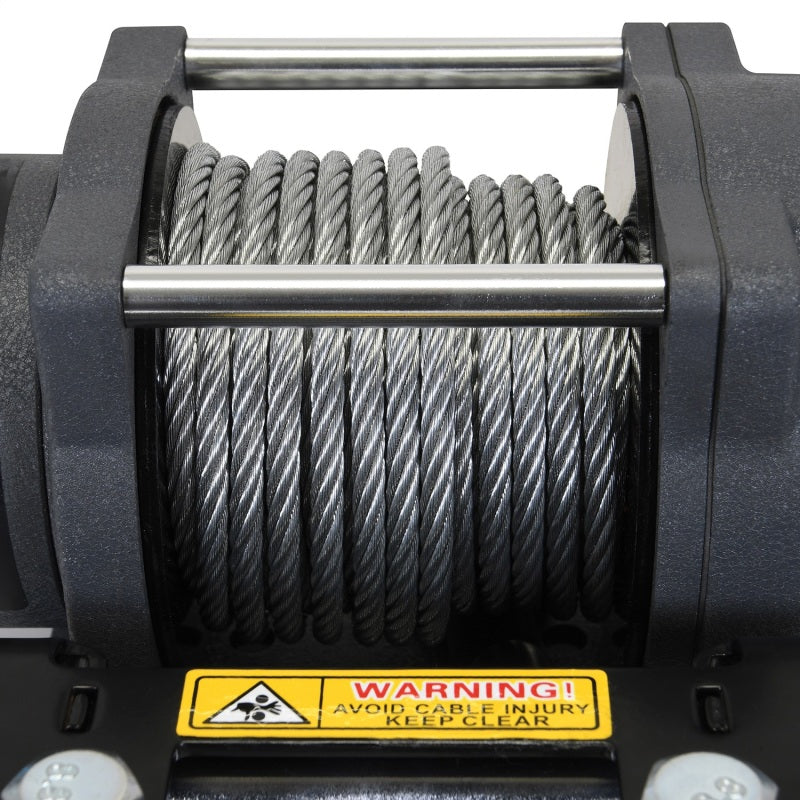

- Heavy-duty steel drum
- 4 Way Roller Fairlead
- 3,500 lbs capacity
- All steel gear set
- Clockable motor
