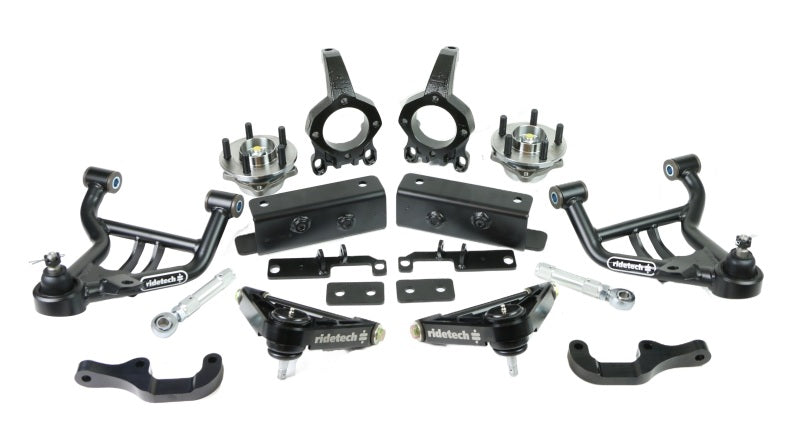

Ridetech 79-93 Ford Mustang w/ Aftermarket K-Member Front SLA Suspension System

MyPartsGuy SKU: RID12122650
  • Manufacturer Part Number: 12122650
Ridetech
$5,408.49 CAD
$5,408.49 CAD

Oversize / Overweight Items Will Be Assesed a Surcharge

Available Items Are Processed and Leave Ottawa Warehouse In 3-10 Business Days depending on if a STORE TRANSFER was required. Some Items may take longer.

NO BROKERAGE FEES - NO CUSTOMS FEES - NO DUTIES

This is a special order part. We will order it for you from the manufacturer. Special orders can take 2-8++ weeks. Contact us is you have a deadline.➀

🗙

What does "Special Ordered" mean?

This means that we do not have the product in our warehouse. We only order “Special Order” products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items.

“Special Order” products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process."

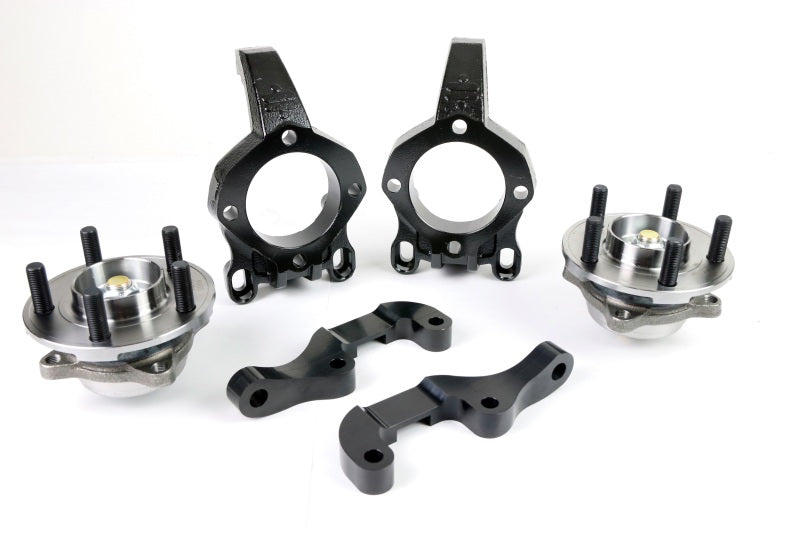

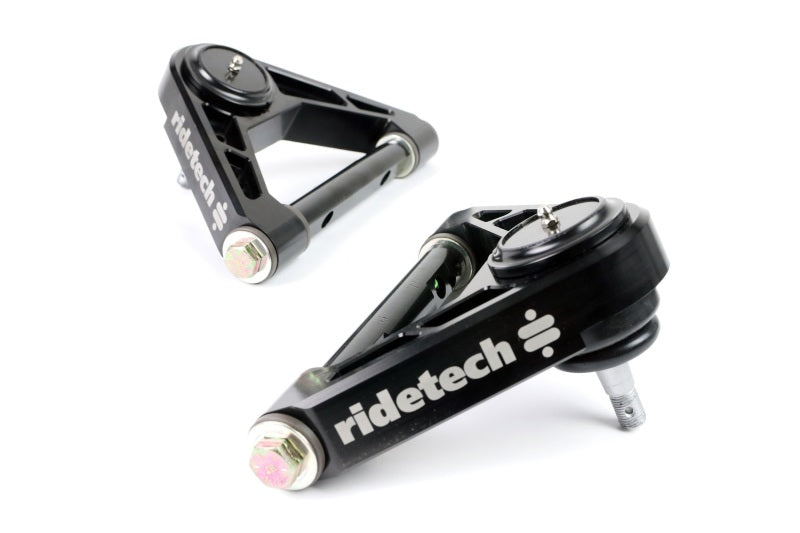

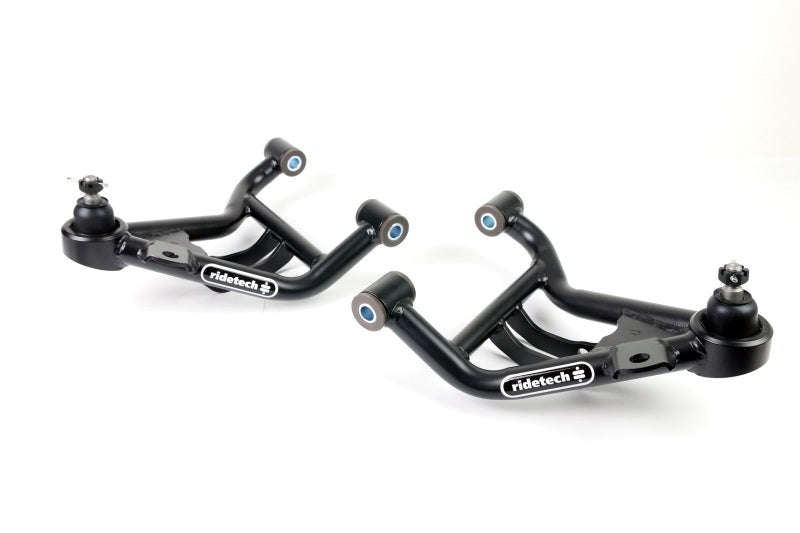

This bolt-in SLA (Short-Long-Arm) suspension system replaces the McPherson strut design with a billet aluminum upper control arm, tubular lower arm and spindles with S-550 Mustang hub's. This design greatly improves negative camber gain and overall suspension geometry. Available with either Ridetech Coil-Overs or Shockwave air suspension. (Sold separately)The factory strut design offers very little camber gain and poor overall geometry. This design incorporates an upper control arm to induce negative camber gain. This positions the tire perpendicular to the pavement through the corners without the need for excessive static camber. Caster, roll center and Ackerman angles were also optimized.The bolt-in frame surrounds create attachment points for the upper control arms and the shocks, this keeps all of the load on the frame rails. The upper and lower arms feature Delrin bushings to minimize stiction. The spindles utilize S550 Mustang hubs to prevent flex and are compatible with S550 or SN-95 Mustang brakes. (Sold separately)Camber gain is 1.25 deg./inch. Positive caster setting from 7-9 degree's. Bumpsteer is nearly eliminated, under .050". Tire clearance improved on lower arm to allow 30 degree’s of steering angle with up to a 275mm wide tire (minimum 17"). This system is compatible with the stock sway bar or most aftermarket sway bars. This system will fit most aftermarket k-members including Maximum Motorsports, Team Z, AJE and UPR.

This Part Fits:

Year Make Model Submodel
1979-1981 Ford Mustang Base
1981 Ford Mustang Cobra
1979-1981 Ford Mustang Ghia
1982-1983 Ford Mustang GL
1982-1983 Ford Mustang GLX
1982-1993 Ford Mustang GT
1984 Ford Mustang GT-350 20th Anniversary
1982-1984 Ford Mustang L
1984-1993 Ford Mustang LX
1984-1986 Ford Mustang SVO
1993 Ford Mustang SVT Cobra
1993 Ford Mustang SVT Cobra R
1983 Ford Mustang Turbo GT
