*item may differ from images
The new RAM HD trucks are more popular than ever and the ReadyLIFT 6" lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners? How about engineering a 6" solution for the RAM 3500 HD trucks? That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle? Well, that's exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember. Why go to all that trouble to achieve 6" Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-19630 6" lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road. Kit 49-19630 includes the new DIS re-positioning components, heavy-duty and great riding 6" lift front springs, 5" lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Bilstein 5100 series front/rear shocks. Standard 6.7L diesel with the 68RFE transmission - the transmission dipstick is on the right (passenger) side of the truck. (PN 49-19630) *Kit will not fit any models with the high output 6.7L diesel motor with Aisin transmission, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
ReadyLift 6" Big Lift Kit 2019-2023 Ram 3500 HD Standard Output Diesel 4WD 49-19630
Specifications:
| California Proposition 65 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. |
| Fitment | Direct Fitment |
| Front Lift Component | Coil Spring |
| Front Lift Height | 6 Inches |
| Front or Rear | Front and Rear |
| Front Shocks | Bilstein 5100 |
| Install Difficulty | Difficult Requires Professional Installation |
| Installation Time | 5+ Hours |
| Max Tire Size | 37 Inch |
| Prop65 Chem1 | Di(2-ethylhexyl)phthalate (DEHP) |
| Rear Lift Component | Block |
| Rear Lift Height | 4 Inches |
| Rear Shocks | Bilstein 5100 |
| 3097 | Yes |
| Description_INV | RL 6'' LIFT KIT SHOCKS RAM 3500 |
| Description_EXT | 6" Big Lift Kit 2019-2023 Ram 3500 HD Standard Output Diesel 4WD |
| Description_MKT | The new RAM HD trucks are more popular than ever and the ReadyLIFT 6" lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners? How about engineering a 6" solution for the RAM 3500 HD trucks? That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle? Well, that's exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember. Why go to all that trouble to achieve 6" Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-19630 6" lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road. Kit 49-19630 includes the new DIS re-positioning components, heavy-duty and great riding 6" lift front springs, 5" lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Bilstein 5100 series front/rear shocks. Standard 6.7L diesel with the 68RFE transmission - the transmission dipstick is on the right (passenger) side of the truck. (PN 49-19630) *Kit will not fit any models with the high output 6.7L diesel motor with Aisin transmission, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models. |

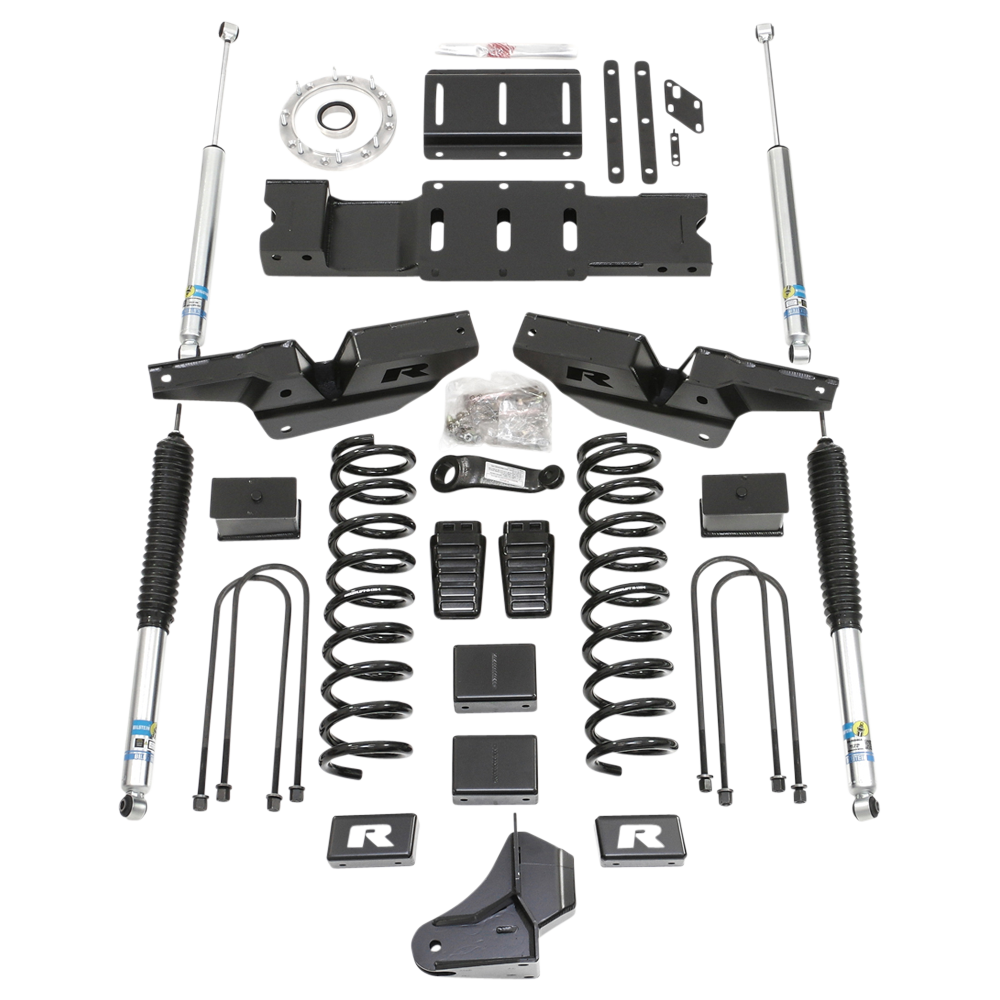

| Description_FAB | Allnew 20192023 Ram 3500 4WD HD 6" lift kit |
| Description_FAB | Includes 6" front lift springs with 5" rear spacers |
| Description_FAB | Fabricated steel radius arm drop brackets |
| Description_FAB | Track bar drop bracket |
| Description_FAB | New pitman arm |
| Description_FAB | Sway bar drop brackets |
| Description_FAB | Longer bump stops |
| Description_FAB | (4) Bilstein 5100 series shocks |
| Description_FAB | Allnew DIS transfer case clocking ring kit |
| Description_FAB | New transmission crossmember |
| Description_FAB | Does not work with HEMI Gasoline engine |
| Description_FAB | Not compatible with dually models |
| Description_FAB | Not compatible with Classic models |
| Description_FAB | Not compatible with automaticleveling rear air suspension models |
| Description_FAB | Only available for the 3500 HD |
| Description_FAB | All Allnew 20192023 Ram 3500 4WD HD 6" lift kit |
| Description_FAB | All Allnew DIS transfer case clocking ring kit |
| Description_FAB | Not compatible with automatic Not compatible with automaticleveling rear air suspension models |
| Description_DEF | Suspension Lift Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2019 | Ram | 3500 | ||
| 2020 | Ram | 3500 | ||
| 2021 | Ram | 3500 | ||
| 2022 | Ram | 3500 | ||
| 2023 | Ram | 3500 | ||
| 2024 | Ram | 3500 |
