*item may differ from images

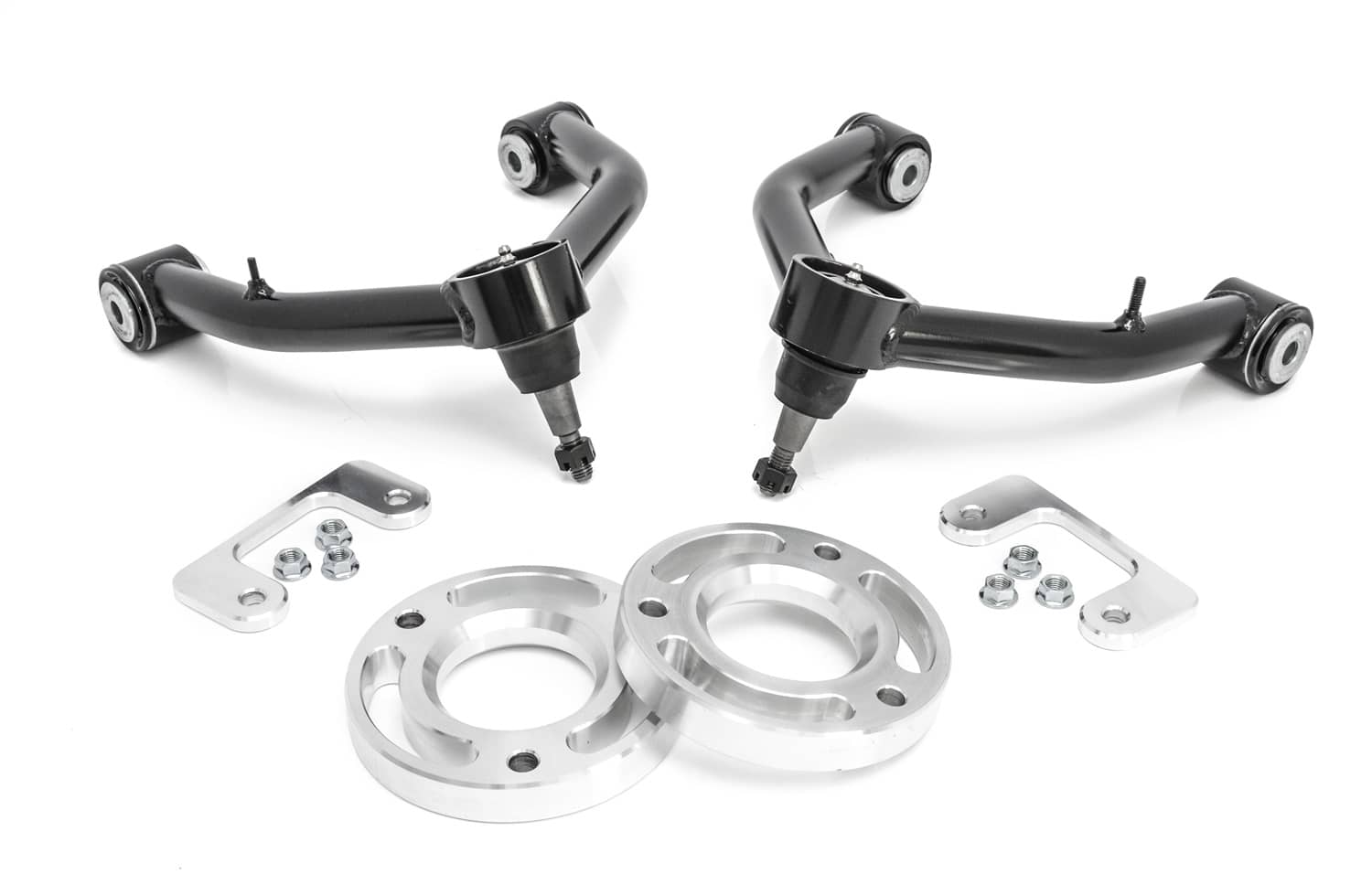

ReadyLIFT offers a solution for leveling 2014-2018 GM 1500 trucks. GM modified the upper control arms to stamped steel, which lacks support for the factory ball joint in lifted scenarios. GM prohibits lift or leveling kits for these vehicles. This kit is compatible with GM 1500 trucks with stamped steel or aluminum control arm suspension (not cast steel). You can identify your control arms [here](www.readylift.com/blog/2017/07/11/upper-control-arms). ReadyLIFT's solution includes a CNC machined billet aircraft-grade aluminum 2.25" leveling kit and durable DOM-tube steel upper control arms. These arms replace the factory stamped steel ones, featuring heavy-duty ball joints and maintenance-free anti-resistance bushings. This combination (PN 66-3086) levels 2017-2018 GM 1500 trucks, maintaining the factory ride and preventing stamped steel control arm failure. It allows up to 33x11.50 tires. Some vehicles may need the 15-3485 1/2" front wheel spacer with certain factory wheels. The kit includes CNC machined billet aluminum construction leveling kit, DOM tube steel upper control arms, heavy-duty ball joints, and maintenance-free bushings with "side biter" splined washers for alignment. To ensure proper fitment, measure from the wheel hub center to the fender's bottom edge at 12 o'clock while the wheels face forward. If it's over 22", the truck has pre-installed lift. Install the ReadyLIFT leveling kit without the lower horseshoe spacer for correct front lift height and suspension geometry. Incorrect use on trucks with over 22" may result in component interference and excessive wear. For more information, visit [here](www.readylift.com/blog/2017/07/11/upper-control-arms) or watch the [video](youtu.be/mGWolZSgu4k) about this kit. Some vehicles may require the 15-3485 1/2" front wheel spacer when using factory wheels, depending on wheel options and backspacing. To fit a 285 or larger tire on factory wheels, you may need 1/2" wheel spacers in front.
ReadyLift 2.25" Front Leveling Kit W/ Control Arms - GM 1500 Truck / SUV 6-Lug 2017-2018 66-3086
Specifications:
| California Proposition 65 | WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product. |
| Fitment | Direct Fitment |
| Front Lift Height | 2.25 Inches |
| Install Difficulty | Difficult Requires Professional Installation |
| Installation Time | 5+ Hours |
| Max Tire Size | 33 Inch |
| Prop65 Chem1 | Di(2-ethylhexyl)phthalate (DEHP) |
| Description_INV | RL 2.25'' LEVELING KIT - CHEVY/GMC |
| Description_EXT | 2.25" Front Leveling Kit W/ Control Arms - GM 1500 Truck / SUV 6-Lug 2017-2018 |
| Description_MKT | ReadyLIFT offers a solution for leveling 2014-2018 GM 1500 trucks. GM modified the upper control arms to stamped steel, which lacks support for the factory ball joint in lifted scenarios. GM prohibits lift or leveling kits for these vehicles. This kit is compatible with GM 1500 trucks with stamped steel or aluminum control arm suspension (not cast steel). You can identify your control arms [here](www.readylift.com/blog/2017/07/11/upper-control-arms). ReadyLIFT's solution includes a CNC machined billet aircraft-grade aluminum 2.25" leveling kit and durable DOM-tube steel upper control arms. These arms replace the factory stamped steel ones, featuring heavy-duty ball joints and maintenance-free anti-resistance bushings. This combination (PN 66-3086) levels 2017-2018 GM 1500 trucks, maintaining the factory ride and preventing stamped steel control arm failure. It allows up to 33x11.50 tires. Some vehicles may need the 15-3485 1/2" front wheel spacer with certain factory wheels. The kit includes CNC machined billet aluminum construction leveling kit, DOM tube steel upper control arms, heavy-duty ball joints, and maintenance-free bushings with "side biter" splined washers for alignment. To ensure proper fitment, measure from the wheel hub center to the fender's bottom edge at 12 o'clock while the wheels face forward. If it's over 22", the truck has pre-installed lift. Install the ReadyLIFT leveling kit without the lower horseshoe spacer for correct front lift height and suspension geometry. Incorrect use on trucks with over 22" may result in component interference and excessive wear. For more information, visit [here](www.readylift.com/blog/2017/07/11/upper-control-arms) or watch the [video](youtu.be/mGWolZSgu4k) about this kit. Some vehicles may require the 15-3485 1/2" front wheel spacer when using factory wheels, depending on wheel options and backspacing. To fit a 285 or larger tire on factory wheels, you may need 1/2" wheel spacers in front. |
| Description_FAB | Max lift of 2.25 inches |
| Description_FAB | Compatible with 20142018 Silverado/Sierra 1500 trucks |
| Description_FAB | High quality and welldesigned for proper leveling lift on new body style GM 1500 trucks |
| Description_FAB | Made from CNC machined aircraft 6061T6 billet construction |
| Description_FAB | Heavyduty tubular steel upper control arms with heavy duty ball joints and maintenance free bushings |
| Description_FAB | Not compatible with vehicles equipped with factory AirRide |
| Description_FAB | Vehicles with Magnetic Ride Control will require recalibration |
| Description_FAB | 1/2 inch wheel spacers may be required when using 285 or larger tires on factory wheels |
| Description_FAB | For use on 2017 and newer models with stamped steel upper control arms |
| Description_FAB | Compatible with 2014 Compatible with 20142018 Silverado/Sierra 1500 trucks |
| Description_FAB | High quality and well High quality and welldesigned for proper leveling lift on new body style GM 1500 trucks |
| Description_FAB | Made from CNC machined aircraft 6061 Made from CNC machined aircraft 6061T6 billet construction |
| Description_FAB | Heavy Heavyduty tubular steel upper control arms with heavy duty ball joints and maintenance free bushings |
| Description_FAB | Not compatible with vehicles equipped with factory Air Not compatible with vehicles equipped with factory AirRide |
| Description_FAB | Vehicles with Magnetic Ride Control will require re Vehicles with Magnetic Ride Control will require recalibration |
| Description_DEF | Suspension Leveling Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2016 | Cadillac | Escalade | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | Cadillac | Escalade | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | Cadillac | Escalade | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2019 | Cadillac | Escalade | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2016 | Cadillac | Escalade ESV | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | Cadillac | Escalade ESV | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | Cadillac | Escalade ESV | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2019 | Cadillac | Escalade ESV | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2016 | Chevrolet | Silverado 1500 | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | Chevrolet | Silverado 1500 | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | Chevrolet | Silverado 1500 | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2016 | Chevrolet | Suburban | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | Chevrolet | Suburban | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | Chevrolet | Suburban | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2019 | Chevrolet | Suburban | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2016 | Chevrolet | Tahoe | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | Chevrolet | Tahoe | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | Chevrolet | Tahoe | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2019 | Chevrolet | Tahoe | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2016 | GMC | Sierra 1500 | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | GMC | Sierra 1500 | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | GMC | Sierra 1500 | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2016 | GMC | Yukon | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | GMC | Yukon | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | GMC | Yukon | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2019 | GMC | Yukon | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2016 | GMC | Yukon XL | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2017 | GMC | Yukon XL | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2018 | GMC | Yukon XL | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" | |
| 2019 | GMC | Yukon XL | "Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33","Max Lift 2.25" - Max Tire Diameter 33" |
