*item may differ from images

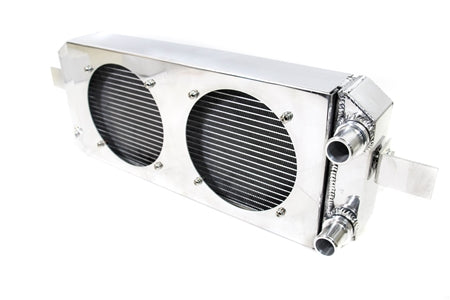

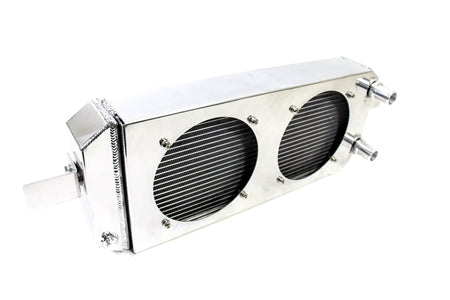

PLM Power Driven Aluminum Tucked Radiator is the best value on the market today.
A must have if you want to utilize all the engine space and tuck the radiator underneath the radiator support.
Why is ours better? Our design uses threaded inlet and outlet fittings, that means you can use AN sized or clamp-on style hoses. You can even use other adapter sizes such as 16AN to 20AN fitting. Our mounting brackets are not welded to the core so you can flip the brackets around or adjust it for more universal fitment.
Fits many Honda & Acura cars including B20B B20Z B16A B18C1 B18A B18B B18C5 K20 K24 K20A and more! Your choice of just getting the radiator or get it with the highest quality SPAL fans!
Features:
- Size: 24" x 9.5" x 3.5" (without fans)
- Size: 24" x 9.5" x 5.5" (with fans)
- Overall length: 30" with end brackets
- Drain plug size is 1/4 NPT
- Mounting brackets are removable & bolted on, so it can be used for other applications.
Applications:
- Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5
- Honda Acura K-Series K20 K24 K20A K20Z
- May also fit other cars (refer to size dimension above)
Includes:
- Two (2) x 16AN fittings.
- Two (2) x slip on fittings.
- Mounting brackets
- Brackets hardware
Installation Note: If you use it for other universal application, it is strongly recommended that you use a set of rubber grommets for vibration isolation. Excessive vibration on the bracket and/or mounting holes can cause breakage.
