*item may differ from images
NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz.

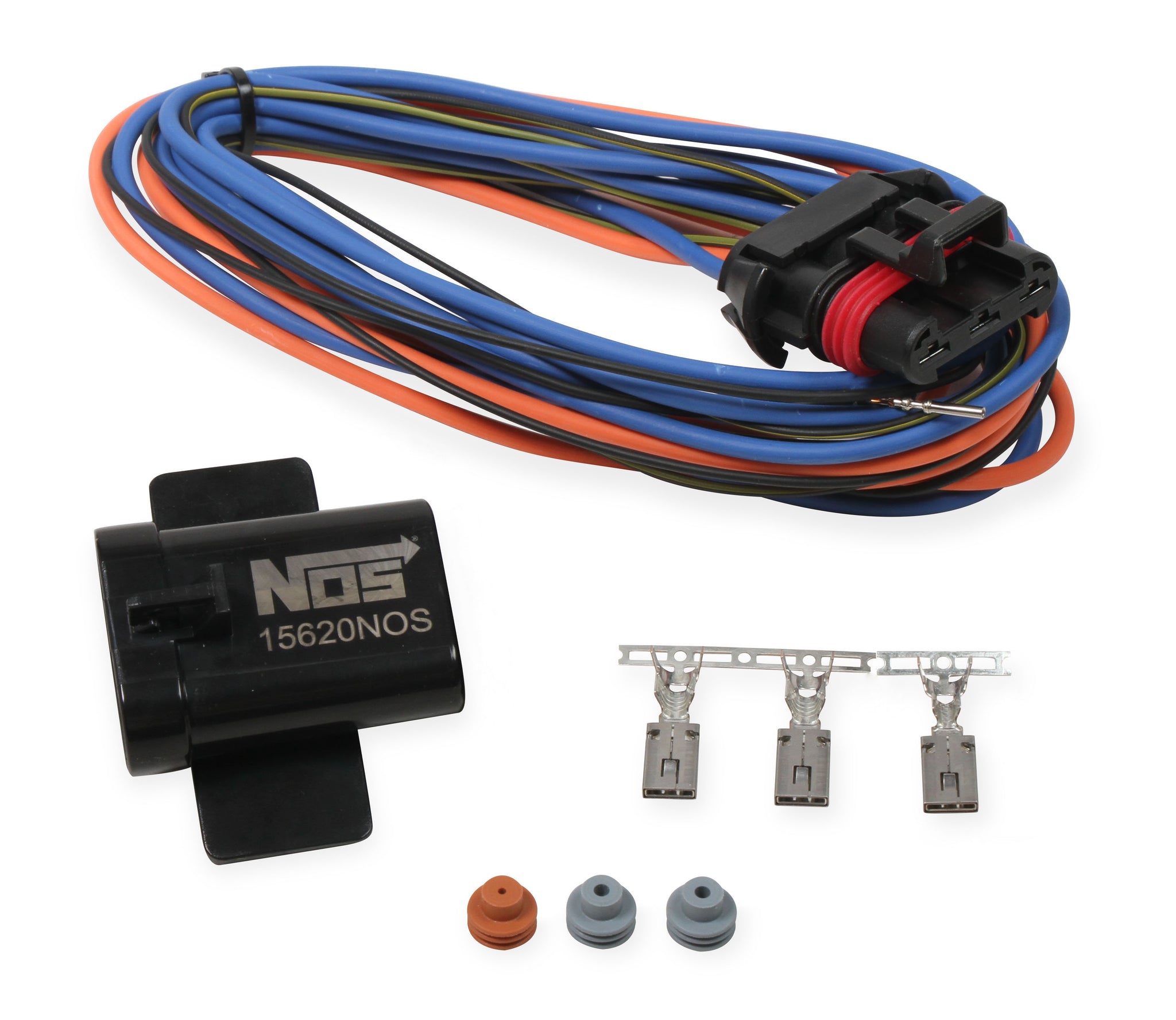

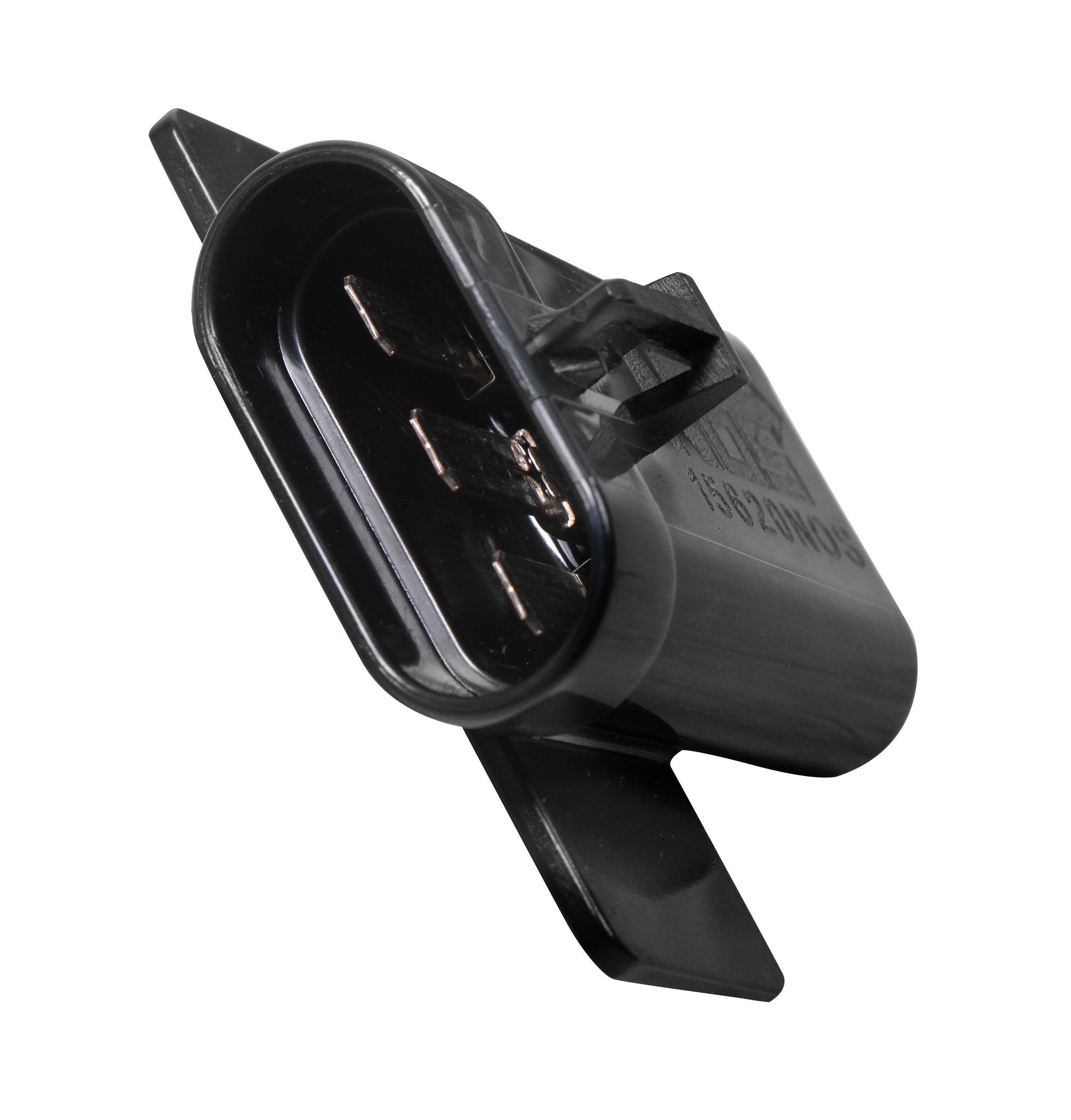

NOS/Nitrous Oxide System NOS Solid State Relay 15620NOS
Specifications:
| Brand | NOS |
| Category | Air and Fuel Delivery |
| Emission Code | 4 |
| Max Amp Load | 40 |
| Pack Qty | 1 |
| part type | Carburetor |
| Pig Tail Length | 24" |
| Product Type | Relay |
| Sub Category | Carburetion |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | NOSNITROUS |
| Description_SHO | Nitrous Oxide Relay |
| Description_INV | NITROUS SOLENOID DRIVER |
| Description_ASC | WARNING, CONNECTING BATTERY VOLTAGE TO THE BLUE WIRE WILL DAMAGE THE RELAY. VERIFY CONNECTIONS BEFORE APPLYING POWER 40amp maximum continuous load 20amp maximum Pulsed (PWM) load |
| Description_DES | NOS Solid State Relay |
| Description_EXT | High current solid state relay for use with on/off load as well as PWM applications. |
| Description_MKT | NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz. |

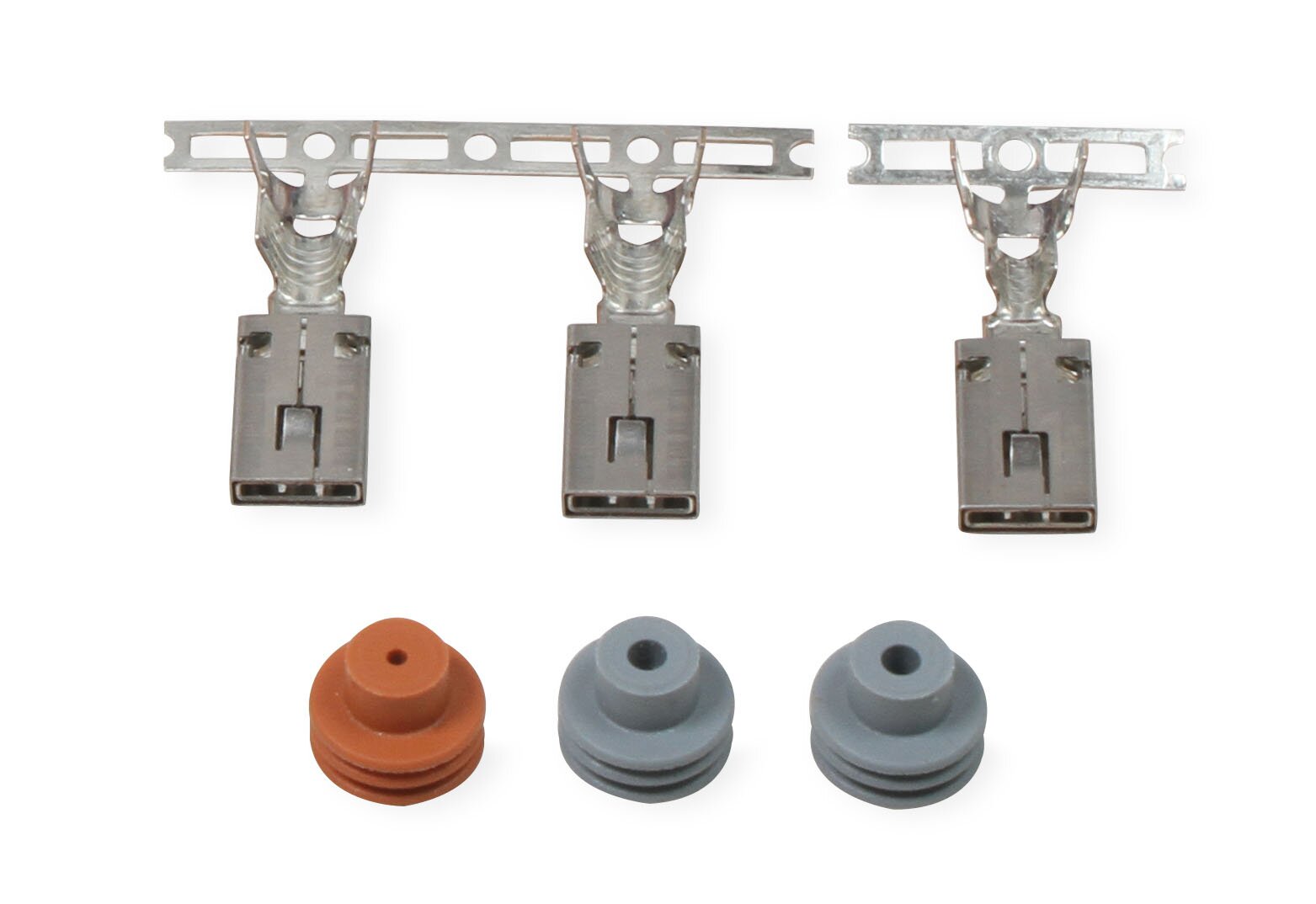

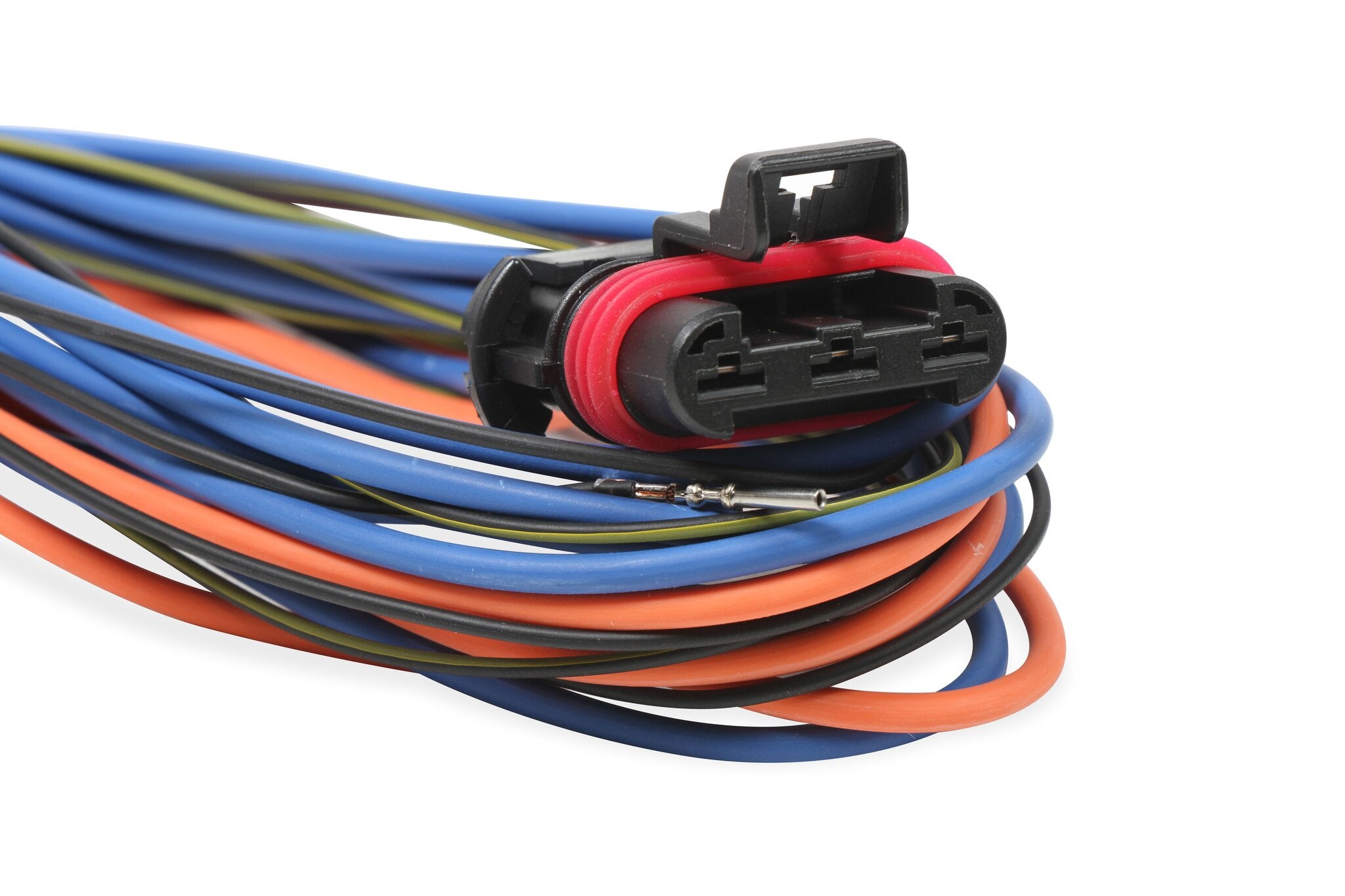

| Description_FAB | 5-20 volt DC Operation Rugged Solid State Circuitry Easy 3-Wire Connection Included Terminated Pigtail Included Extra Contacts for "Build-Your-Own“ Wiring Ultra-fast activation <16 microseconds Pulse Width Modulation (PWM) Compatible PWM 0-100% Up to 1000hz frequency Vibration Resistant Maximum Continuous Current = 40amps Maximum Switching Current = 20amps |
