Nitrous oxide is the easiest way to add big power to any engine and NOS is the #1 name in nitrous! NOS is proud to introduce a new nitrous solenoid to the lineup. The NOS Pro-Bigshot™ nitrous solenoid features a huge .250" orifice encased in a lightweight, clear anodized billet aluminum base that provides maximum flow for extreme applications. The Pro-Bigshot™ is a pressure balanced design that greatly reduces power draw, requiring only 4-6 amps during operation. Coming in at only 3.5" tall and 1.63" in diameter, the Pro-Bigshot™ nitrous solenoid makes installation easier on multiple stage systems compared to the trash can style solenoids.

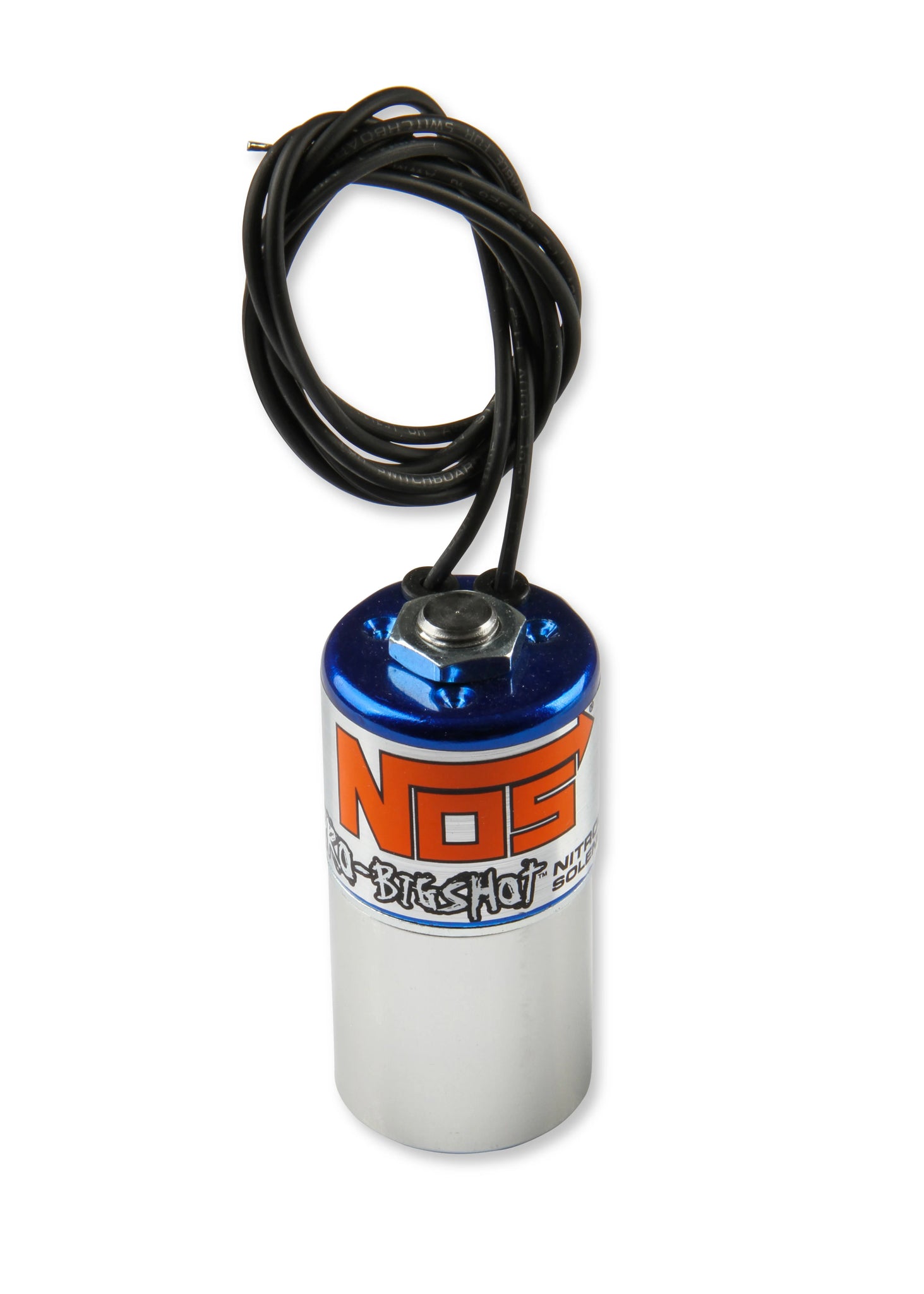

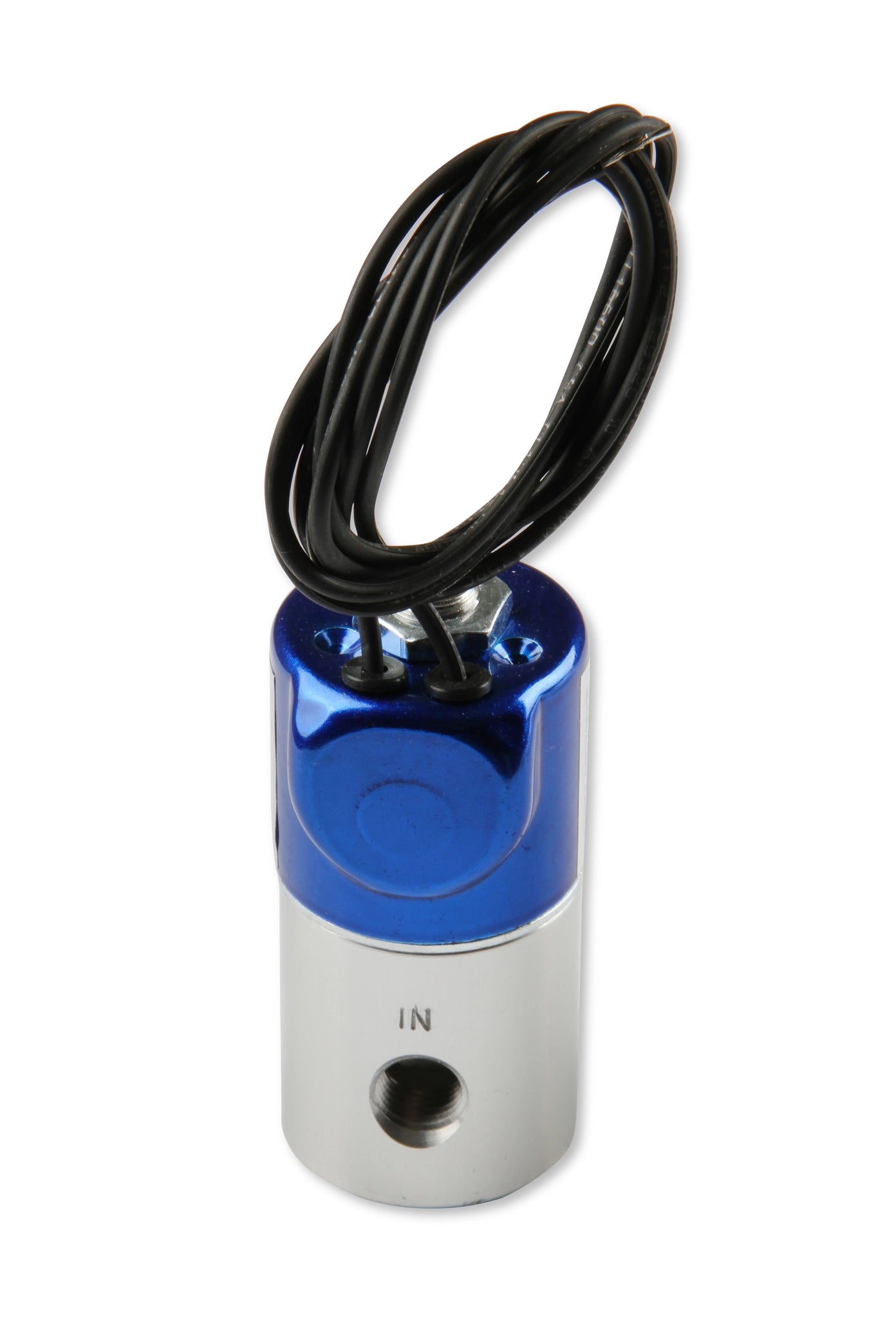

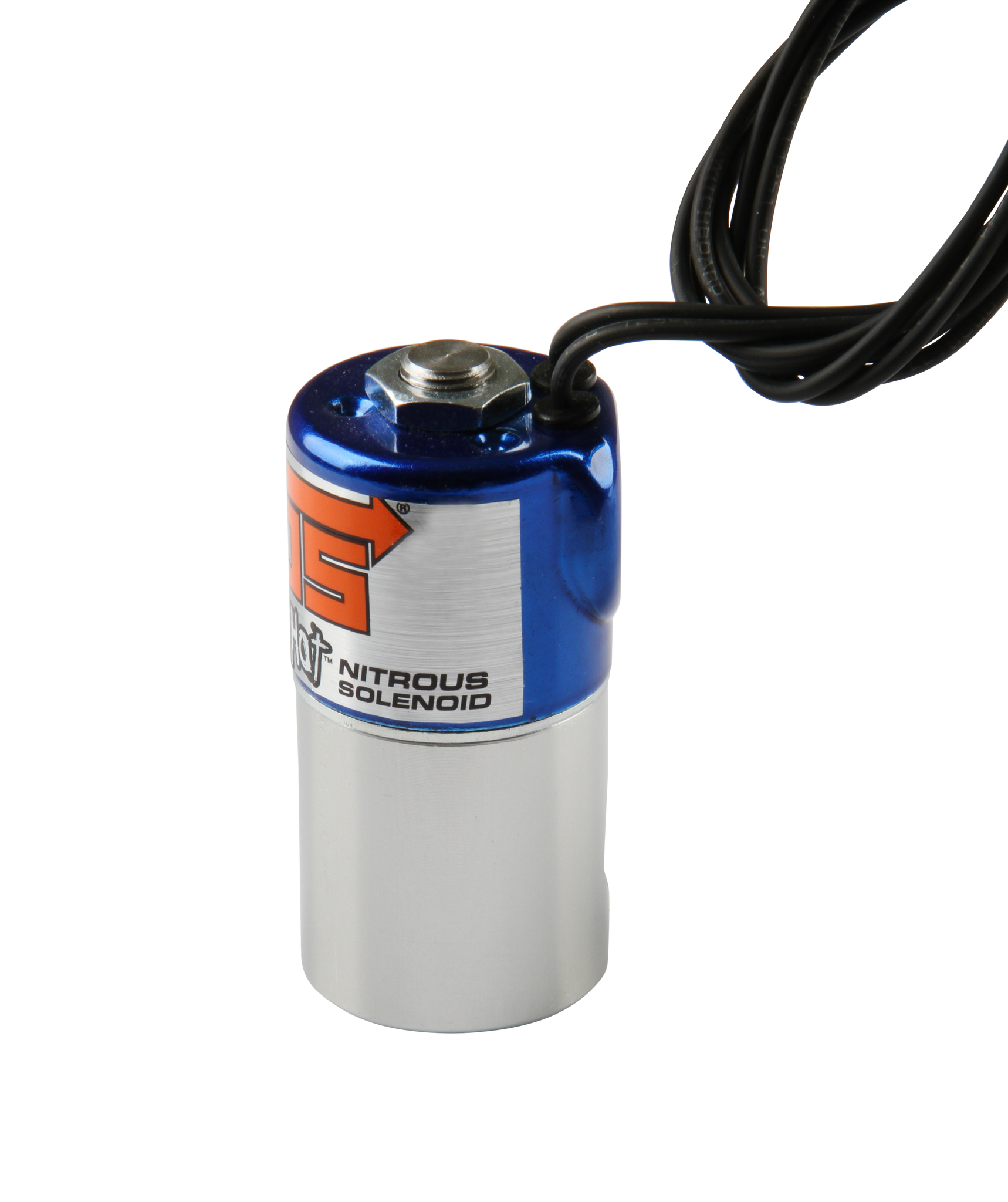

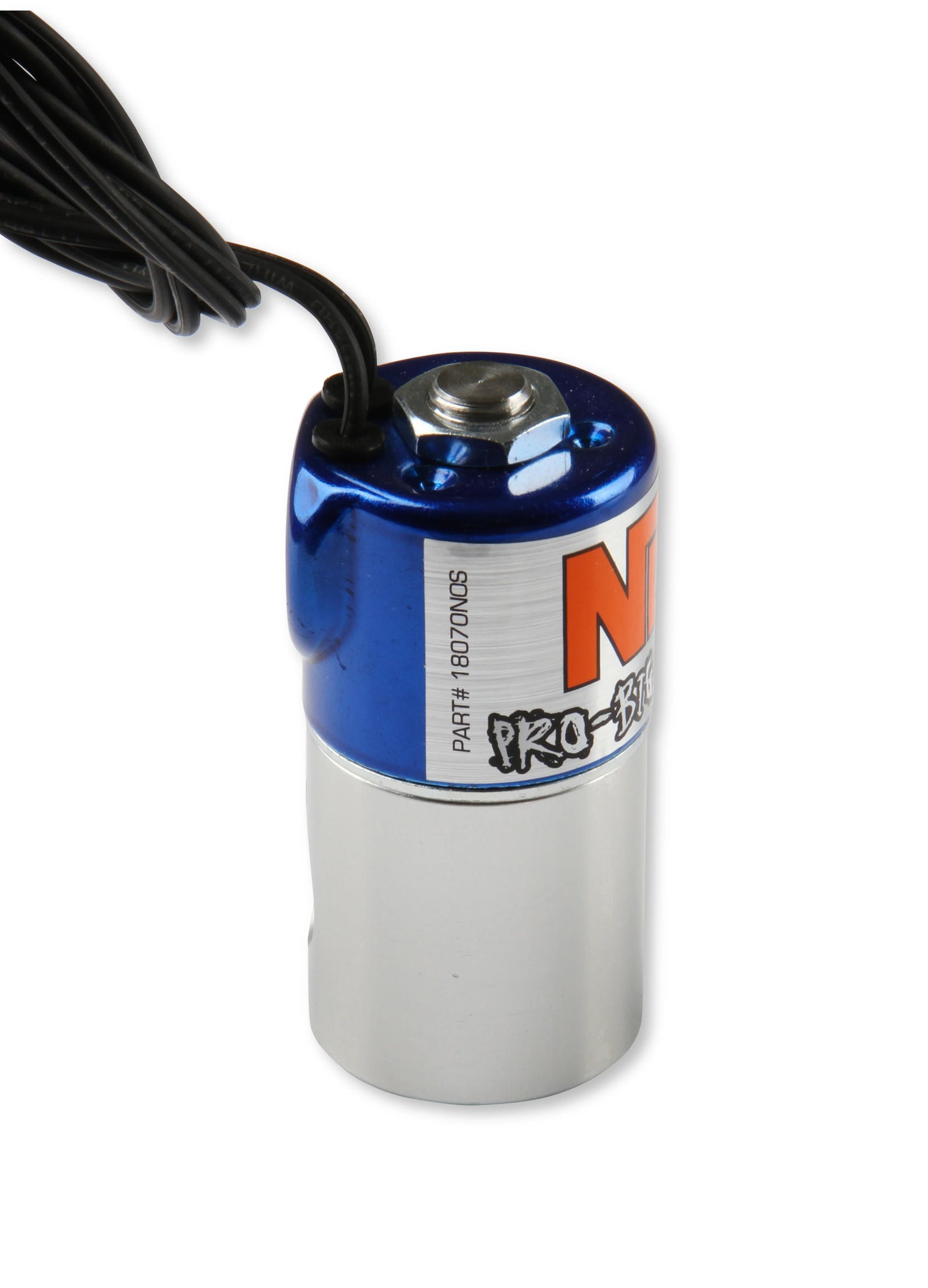

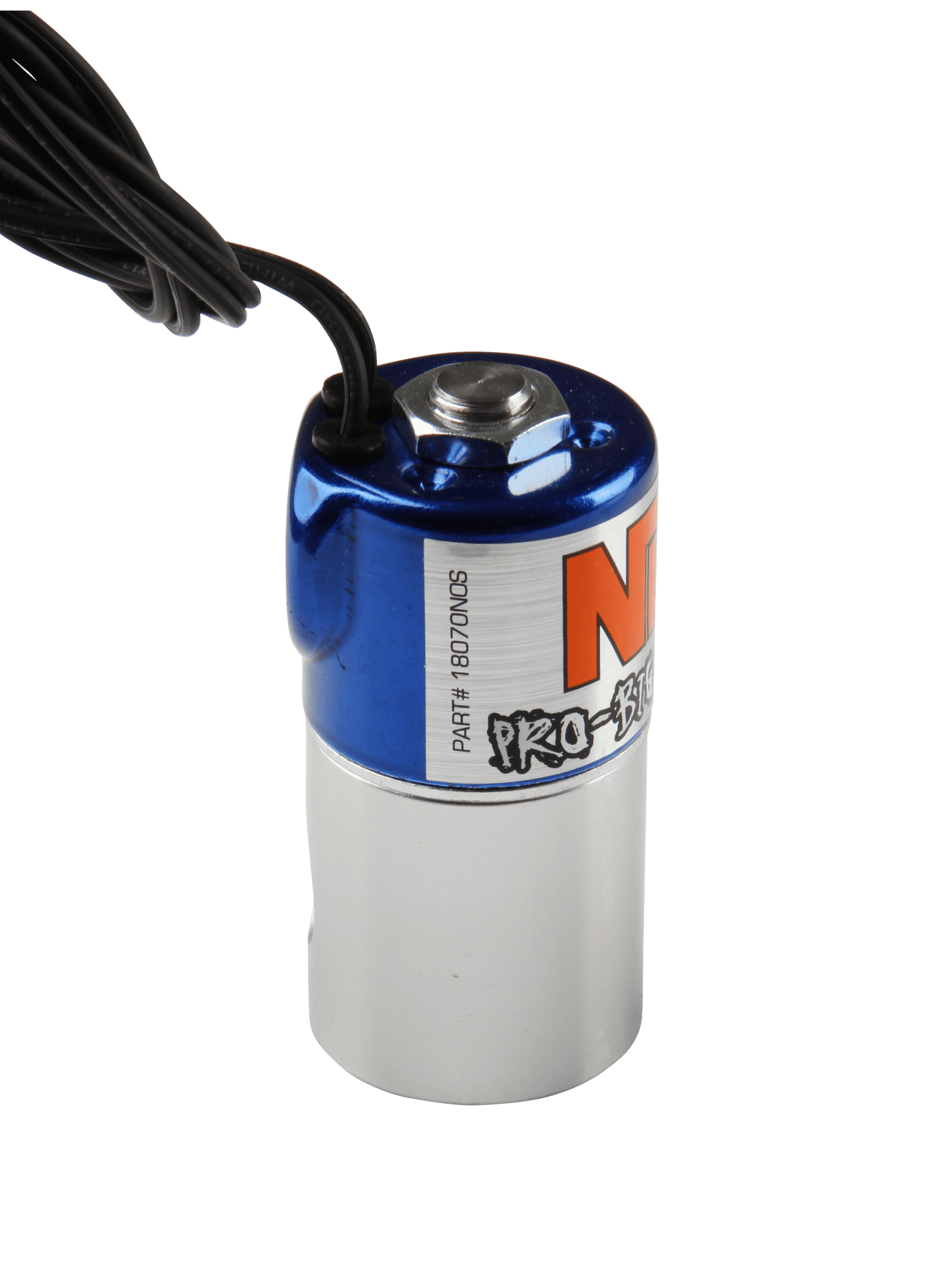

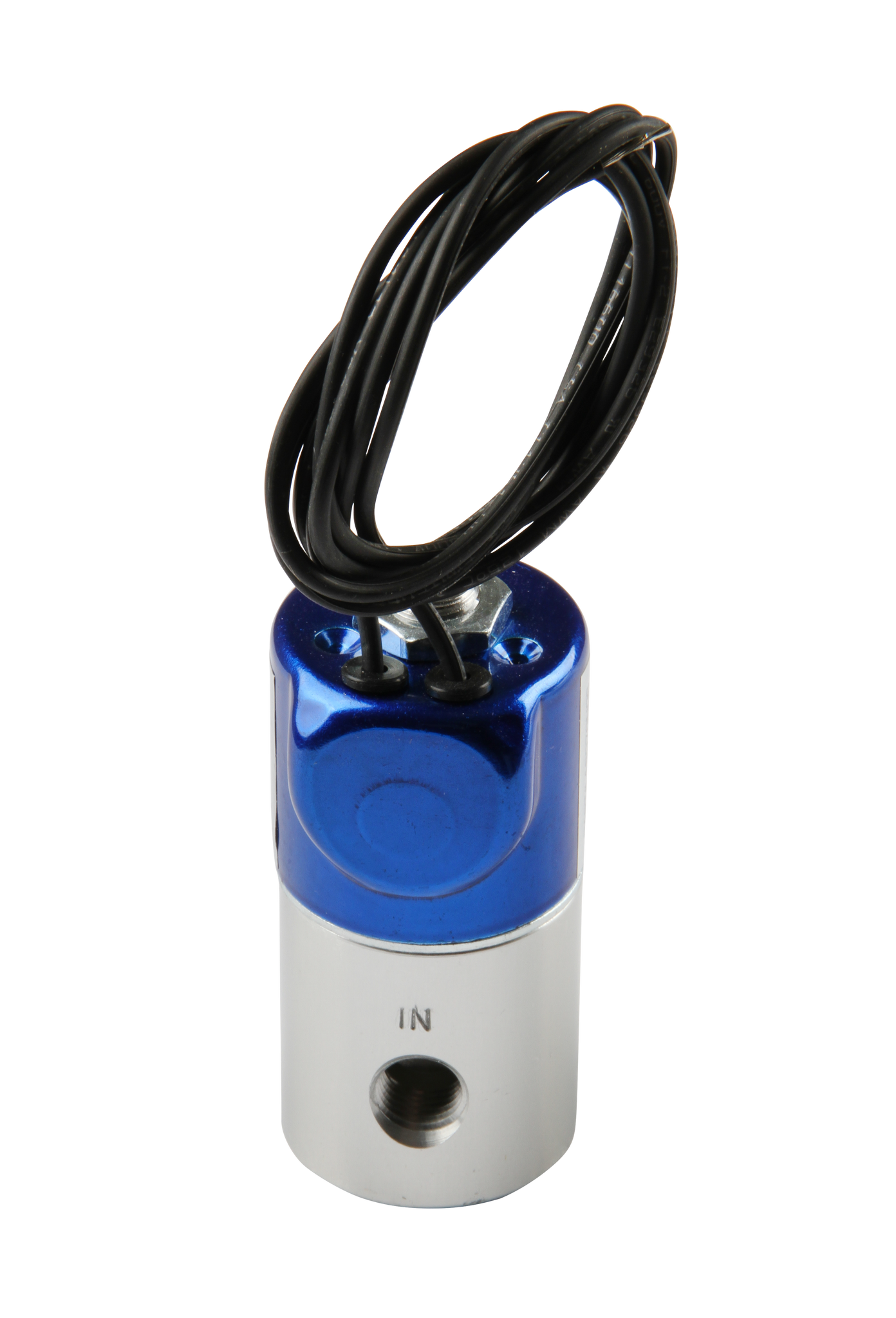

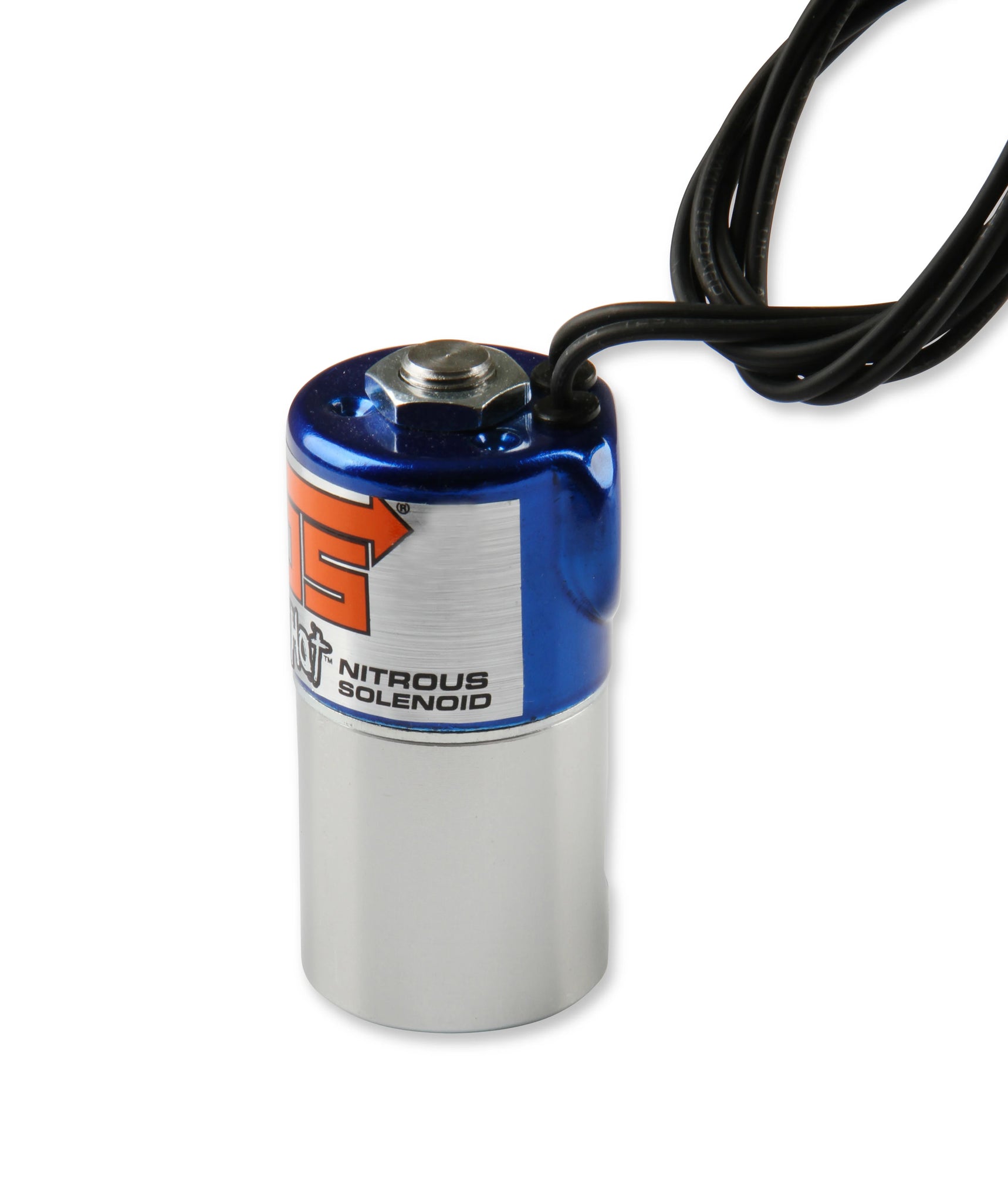

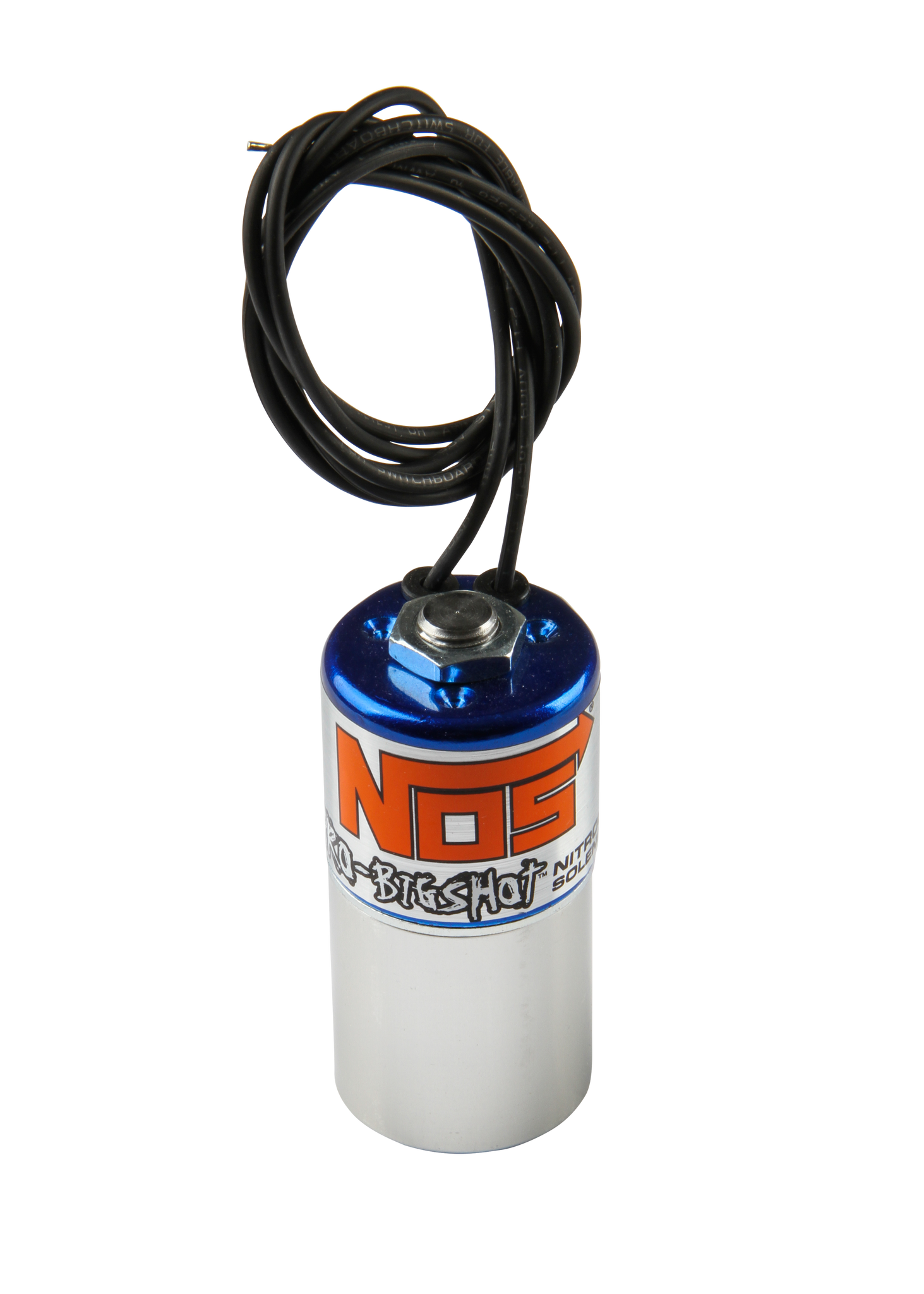

NOS/Nitrous Oxide System NOS Nitrous Solenoid - Blue 18070NOS
Specifications:
| AMP DRAW | 4 to 6A |
| Bracket(s) Included | No |
| Brand | NOS |
| Category | Air and Fuel Delivery |
| 17 | Blue |
| Emission Code | 5 |
| Finish | Natural |
| Fittings Included | No |
| Inlet | Side |
| Inlet Attachment | Female Threads |
| Inlet Thread | 1/4" NPT |
| 10 | Stainless Steel |
| Max Pressure | 1200 PSI |
| Orifice | 1/4" (0.250") |
| Outlet | Bottom |
| Outlet Attachment | Female Threads |
| Outlet Thread | 1/4" NPT |
| part type | Nitrous Oxide Solenoid |
| Product Line | Pro Bigshot |
| Product Type | Nitrous Solenoid |
| Purge Port | None |
| Solenoid Top Cover Color | Blue |
| Sub Category | Switches, Solenoids and Actuators |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | NOSNITROUS |
| Description_SHO | Nitrous Solenoid |
| Description_INV | PROBIGSHOT SOLENOID N2O |
| Description_ASC | NOTE: This solenoid is recommended for non-progressive nitrous applications that require absolute maximum solenoid flow, as well as installations that are trying to reduce overall electrical current. |
| Description_DES | NOS Nitrous Solenoid - Blue |
| Description_EXT | Pro Bigshot® Nitrous Solenoid |
| Description_MKT | Nitrous oxide is the easiest way to add big power to any engine and NOS is the #1 name in nitrous! NOS is proud to introduce a new nitrous solenoid to the lineup. The NOS Pro-Bigshot™ nitrous solenoid features a huge .250" orifice encased in a lightweight, clear anodized billet aluminum base that provides maximum flow for extreme applications. The Pro-Bigshot™ is a pressure balanced design that greatly reduces power draw, requiring only 4-6 amps during operation. Coming in at only 3.5" tall and 1.63" in diameter, the Pro-Bigshot™ nitrous solenoid makes installation easier on multiple stage systems compared to the trash can style solenoids. |
| Description_FAB | Easiest way to add power to any engine Features .250" orifice providing maximum flow for extreme applications Blue powder coated housing with a clear anodized aluminum base Makes installation easier on multi-stage systems Pressure balanced design reduces power draw Requires only 4-6 amps during operaton 1/4" NPT side inlet 1/4" NPT bottom outlet Cannot be use with a progressive controller |
