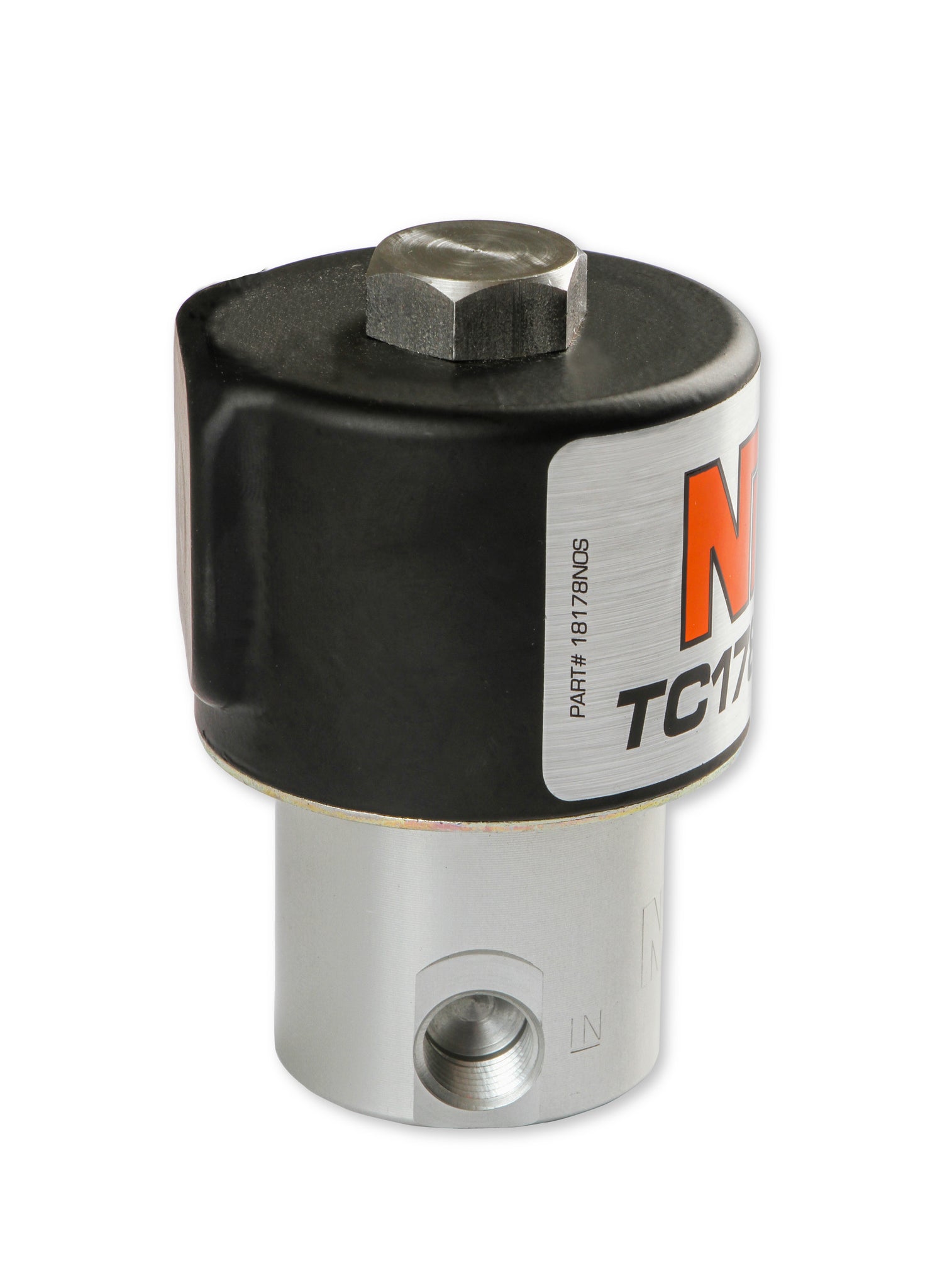

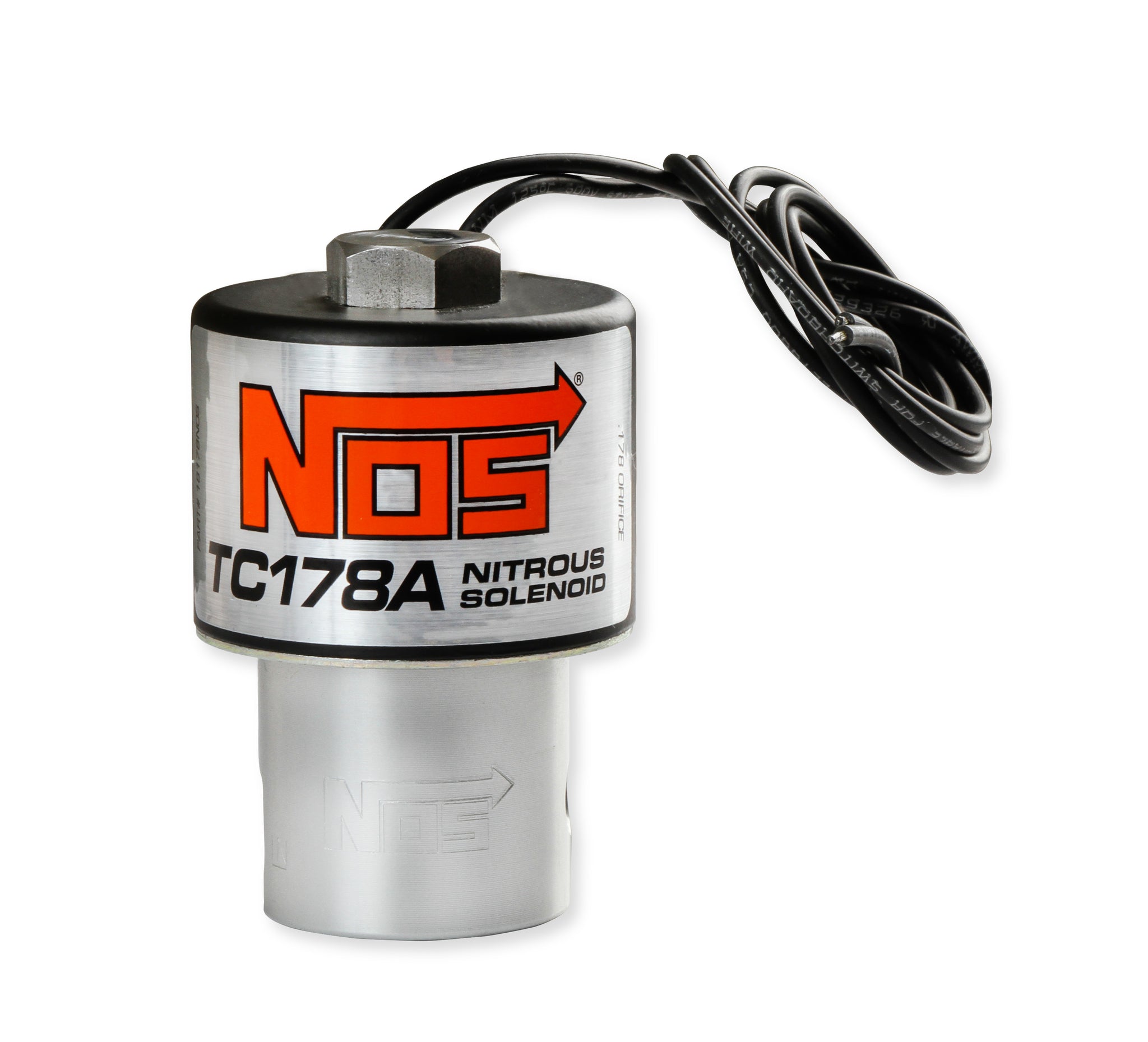

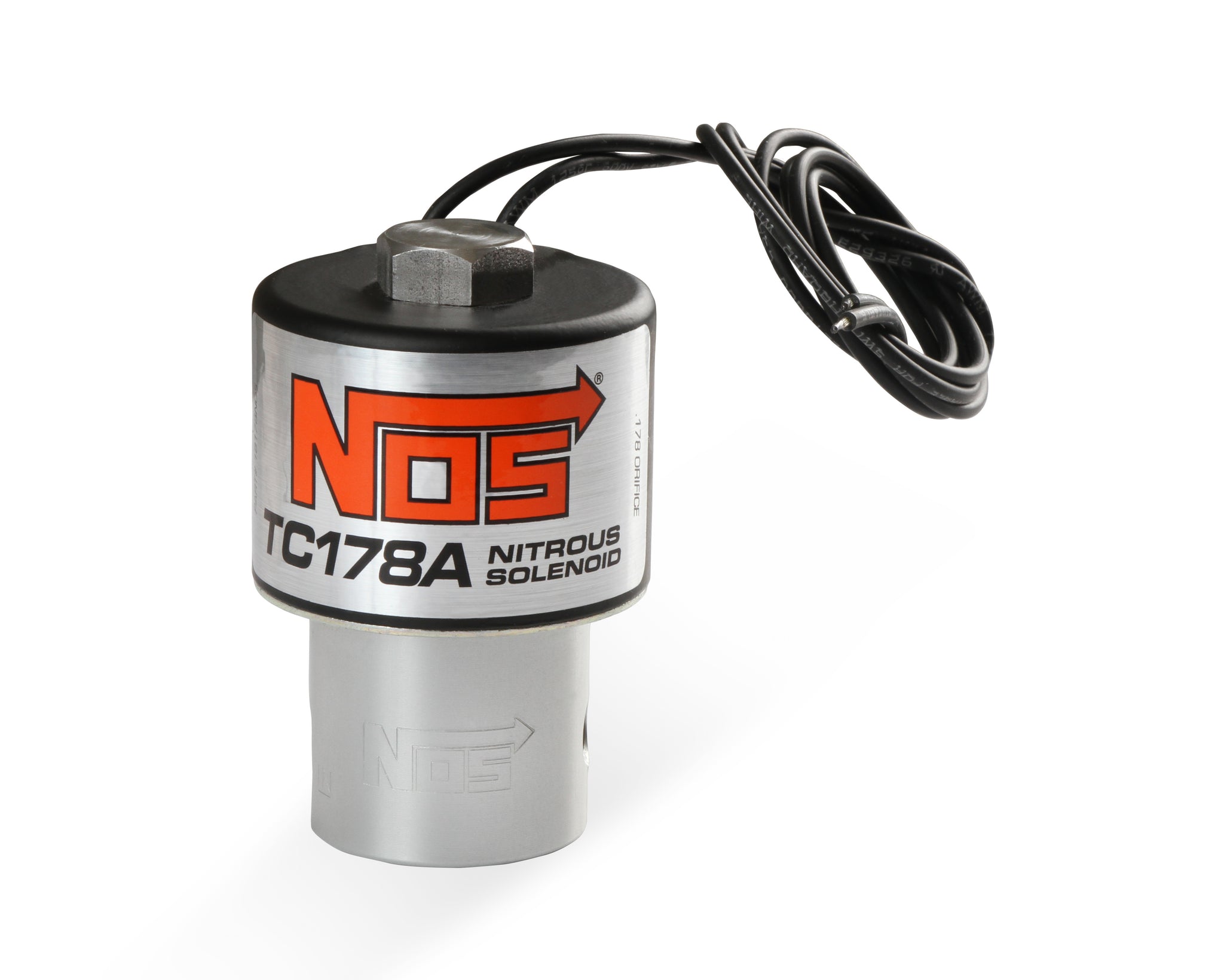

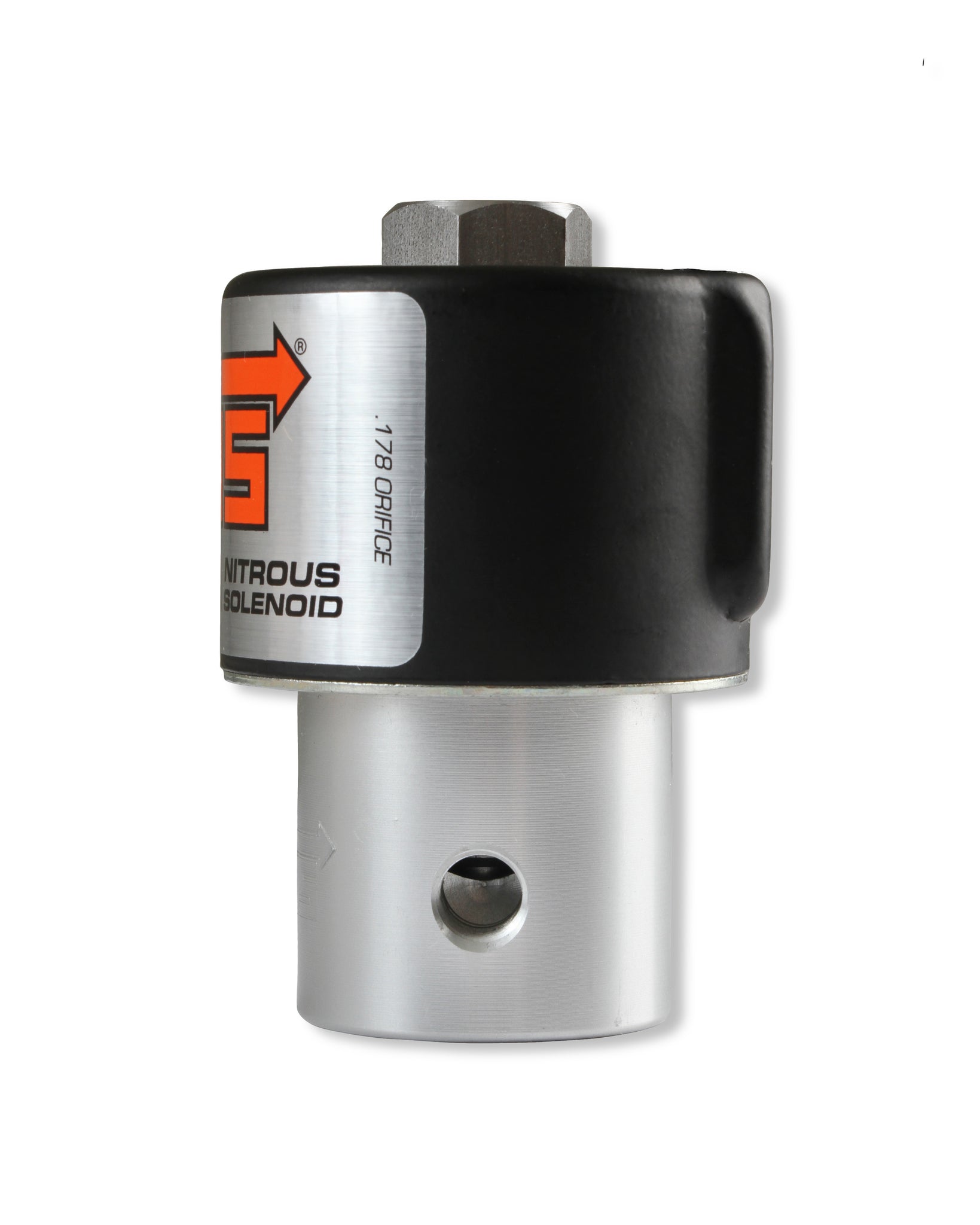

NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17 Current Draw is 20 Amps at 12 volts DC. This Solenoid can be used with a progressive controller
NOS/Nitrous Oxide System NOS Nitrous Solenoid - Black 18178BNOS
Specifications:
| AMP DRAW | 20A |
| Bracket(s) Included | No |
| Brand | NOS |
| Category | Air and Fuel Delivery |
| 17 | Black |
| Emission Code | 4 |
| Finish | Natural |
| Fittings Included | No |
| Inlet | Side |
| Inlet Attachment | Female Threads |
| Inlet Thread | 1/4" NPT |
| 10 | 6061-T6 Aluminum |
| Max Horsepower | 900 |
| Orifice | 0.178" |
| Outlet | Bottom |
| Outlet Attachment | Female Threads |
| Outlet Thread | 1/8" NPT |
| part type | Nitrous Oxide Solenoid |
| Plunger Material | PTFE |
| Product Line | TC178 |
| Product Type | Nitrous Solenoid |
| Purge Port | 1/8" NPT |
| Solenoid Top Cover Color | Black |
| Sub Category | Switches, Solenoids and Actuators |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | NOSNITROUS |
| Description_SHO | Nitrous Solenoid |
| Description_INV | NITROUS SOLENOID TC178 BLACK HOUSING |
| Description_ASC | The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. The side purge port must be plugged if not used. |
| Description_DES | NOS Nitrous Solenoid - Black |
| Description_EXT | TC178 High flow nitrous solenoid with a 0.178" outlet orifice and aluminum base. |
| Description_MKT | NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17 Current Draw is 20 Amps at 12 volts DC. This Solenoid can be used with a progressive controller |
| Description_FAB | Supports in excess of 900 horsepower Inlet Port Size - 1/4" NPT (Side) Outlet Port Size - 1/8" NPT (Bottom) Purge Port Size - 1/8" NPT (Side) Orifice - 0.178" Plunger - PTFE Light Weight Aluminum - 1.66 lbs. Material - 6061 Aluminum Saves 1/4 lb. over similar steel solenoids |
