*item may differ from images

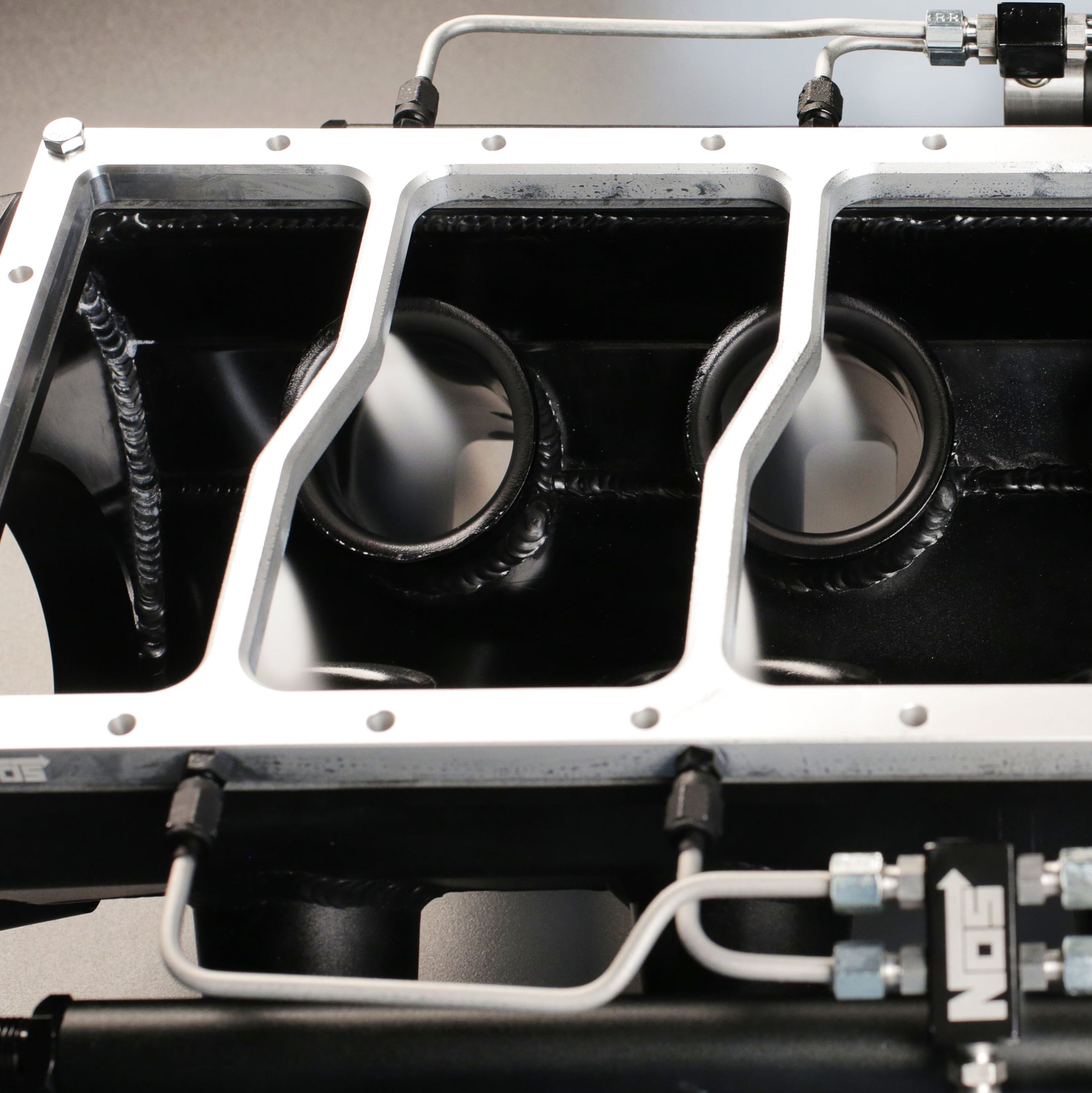

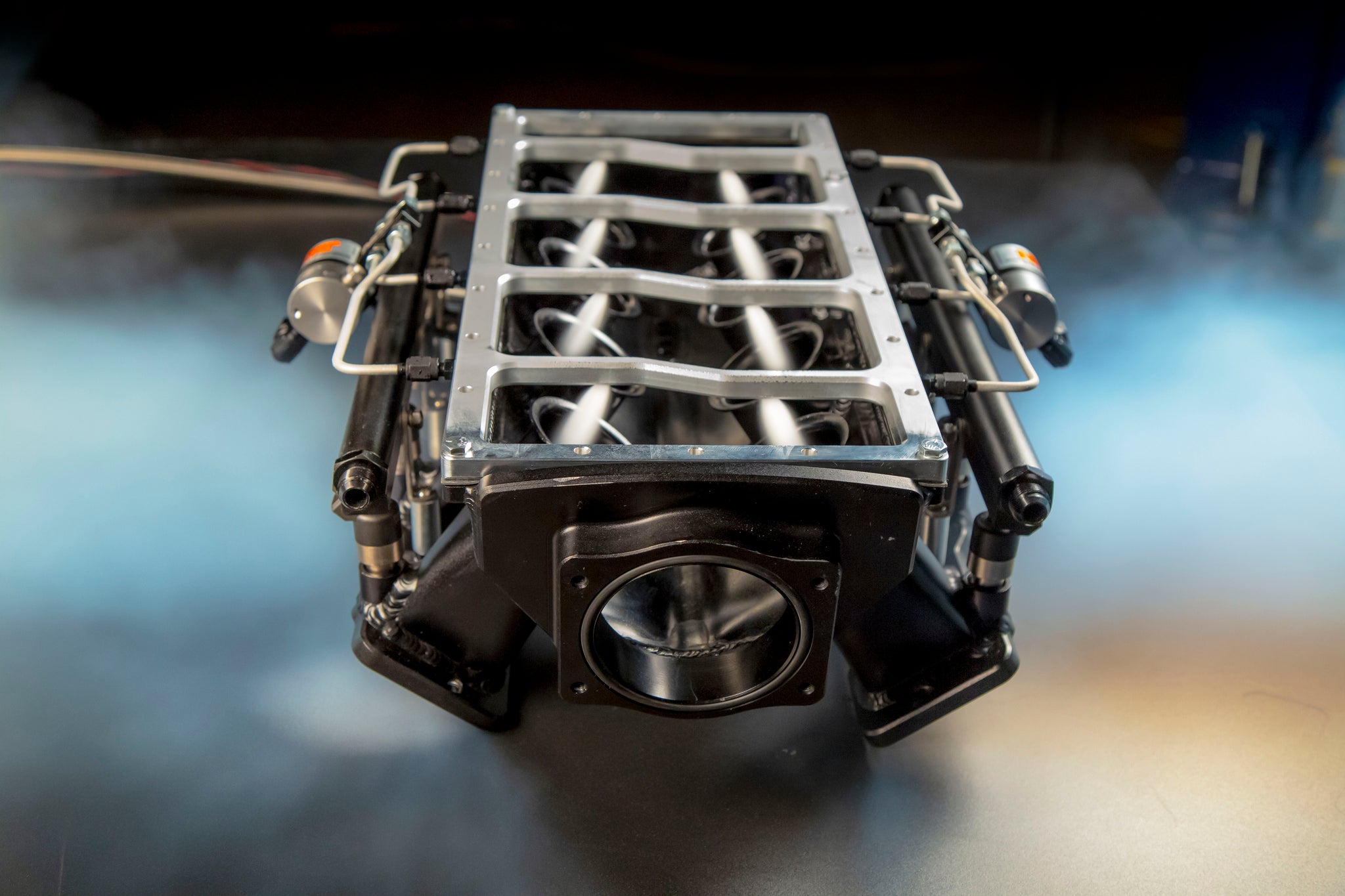

This NOS plate designed to bolt between the upper and lower intake manifold on Sniper EFI Fabricated Race Series LS manifolds. This sandwich-style plate gives you an easy way to add nitrous oxide to your Sniper EFI Race Intake equipped LS engine. Our plate is machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection.Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning. Includes NOS plate, gasket, jet holders, and jets.
NOS/Nitrous Oxide System Dry NOS Plate for Sniper EFI Fabricated Race Series LS Intake Manifolds-Silver 12536NOS
Specifications:
| Brand | NOS |
| Category | Air and Fuel Delivery |
| Emission Code | 4 |
| part type | Nitrous Oxide Plate |
| Product Type | Nitrous Plate |
| Sub Category | Nitrous Oxide Injection System |
| Warranty | Manufacturer's Limited 90 Day (1 Year with Warranty Registration) |
| Brand | NOS |
| Category | Air and Fuel Delivery |
| Emission Code | 4 |
| part type | Nitrous Oxide Plate |
| Product Type | Nitrous Plate |
| Sub Category | Nitrous Oxide Injection System |
| Warranty | Manufacturer's Limited 90 Day (1 Year with Warranty Registration) |
| Description_INV | OBS NOS SNPR LS RC MANI. PLATE ONLY KIT |
| Description_DES | Dry NOS Plate for Sniper EFI Fabricated Race Series LS Intake Manifolds-Silver |
| Description_EXT | 1-Piece Billet Aluminum Nitrous Plate with Silver Anodized Finish |
| Description_MKT | This NOS plate designed to bolt between the upper and lower intake manifold on Sniper EFI Fabricated Race Series LS manifolds. This sandwich-style plate gives you an easy way to add nitrous oxide to your Sniper EFI Race Intake equipped LS engine. Our plate is machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection.Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning. Includes NOS plate, gasket, jet holders, and jets. |
| Description_FAB | This dry single stage plate sandwiches between the bottom base and top plate on Sniper EFI Race Series intake manifolds |
| Description_FAB | Designed specifically for optimum nitrous distribution on LS-based engines |
| Description_FAB | Features a 0.125†(1/8â€) machined distribution orifice for each runner |
| Description_FAB | These eight machined orifices are designed to spray along the center axis of each runner for excellent distribution |
| Description_FAB | Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo |
| Description_FAB | Anodized black or clear for corrosion resistance and high quality appearance |
| Description_FAB | Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations |
| Description_FAB | Supports up to 1000+ horsepower (jets purchased separately) |

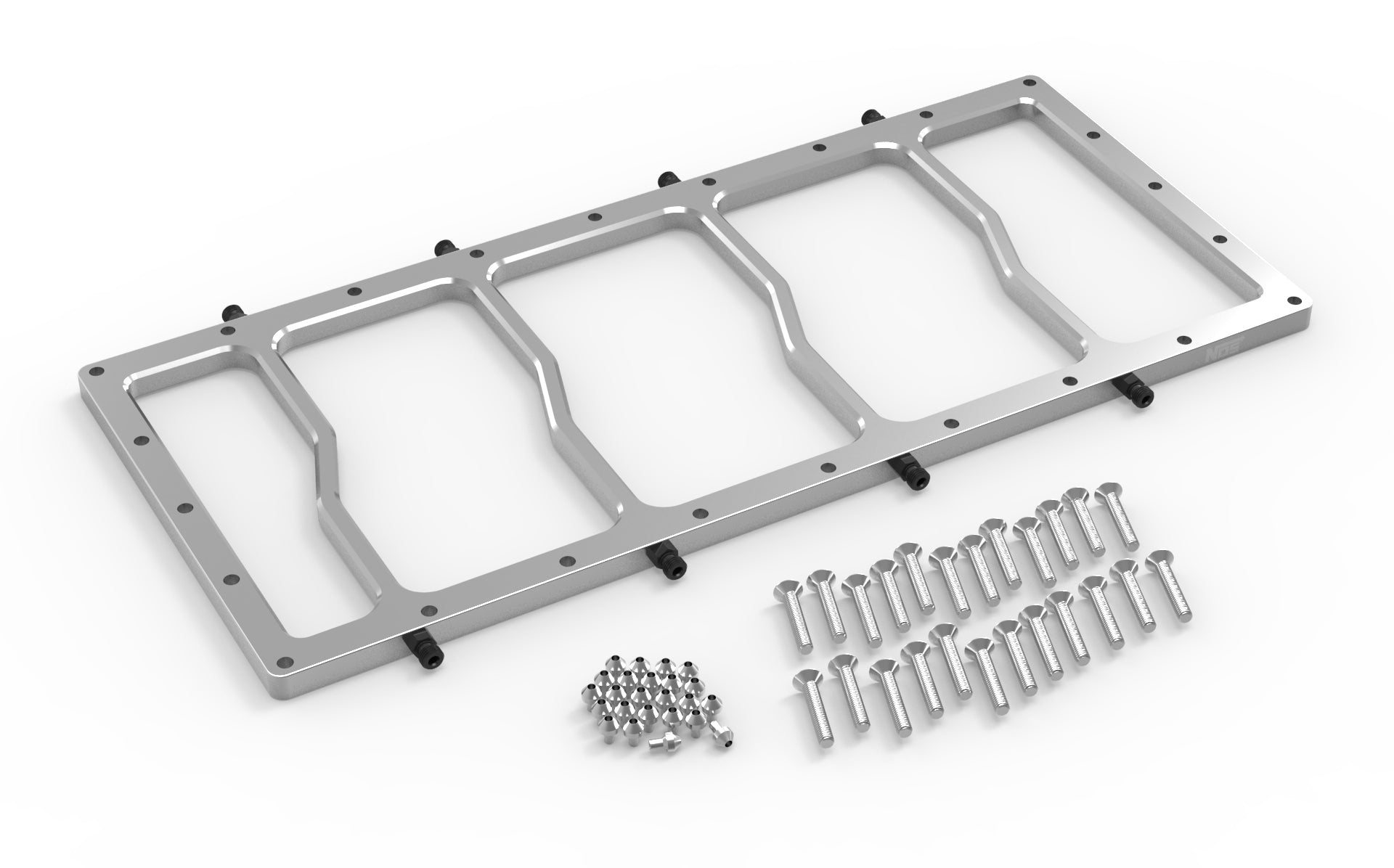

| Description_FAB | Includes Plate, Gasket, Hardware, Jet Holders, and Jetting for up to 250 horsepower |
| Description_INV | OBS NOS SNPR LS RC MANI. PLATE ONLY KIT |
| Description_DES | Dry NOS Plate for Sniper EFI Fabricated Race Series LS Intake Manifolds-Silver |
| Description_EXT | 1-Piece Billet Aluminum Nitrous Plate with Silver Anodized Finish |
| Description_MKT | This NOS plate designed to bolt between the upper and lower intake manifold on Sniper EFI Fabricated Race Series LS manifolds. This sandwich-style plate gives you an easy way to add nitrous oxide to your Sniper EFI Race Intake equipped LS engine. Our plate is machined from billet 6061-T6 aluminum, laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection.Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning. Includes NOS plate, gasket, jet holders, and jets. |
| Description_FAB | This dry single stage plate sandwiches between the bottom base and top plate on Sniper EFI Race Series intake manifolds |
| Description_FAB | Designed specifically for optimum nitrous distribution on LS-based engines |
| Description_FAB | Features a 0.125†(1/8â€) machined distribution orifice for each runner |
| Description_FAB | These eight machined orifices are designed to spray along the center axis of each runner for excellent distribution |
| Description_FAB | Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo |
| Description_FAB | Anodized black or clear for corrosion resistance and high quality appearance |
| Description_FAB | Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations |
| Description_FAB | Supports up to 1000+ horsepower (jets purchased separately) |
| Description_FAB | Includes Plate, Gasket, Hardware, Jet Holders, and Jetting for up to 250 horsepower |
