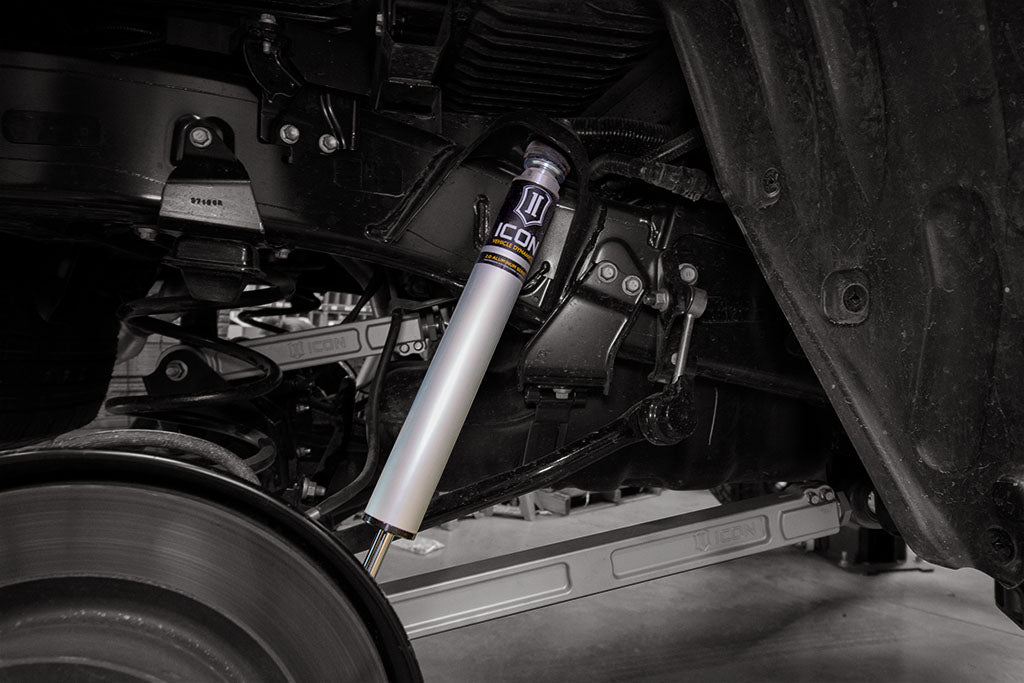

Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
ICON Vehicle Dynamics K53234T 23 SEQUOIA 3-4.5" STAGE 4 SUSPENSION SYSTEM TUBULAR
Specifications:
| Description_TLE | ICON 2023 Toyota Sequoia, 3-4.5" Lift, Stage 4 Suspension System, Tubular |
| Description_SHO | SUSPENSION SYSTEM |
| Description_INV | K53234T |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC | APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC | APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC | APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRA/SEQUOIA EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. |
| Description_ASC | APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO |
| Description_ASC | APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC | TECH NOTE: Most Sequoia sub-models will have front lift height range of 3-4.5” over stock |
| Description_DES | 23 SEQUOIA 3-4.5" STAGE 4 SUSPENSION SYSTEM TUBULAR |

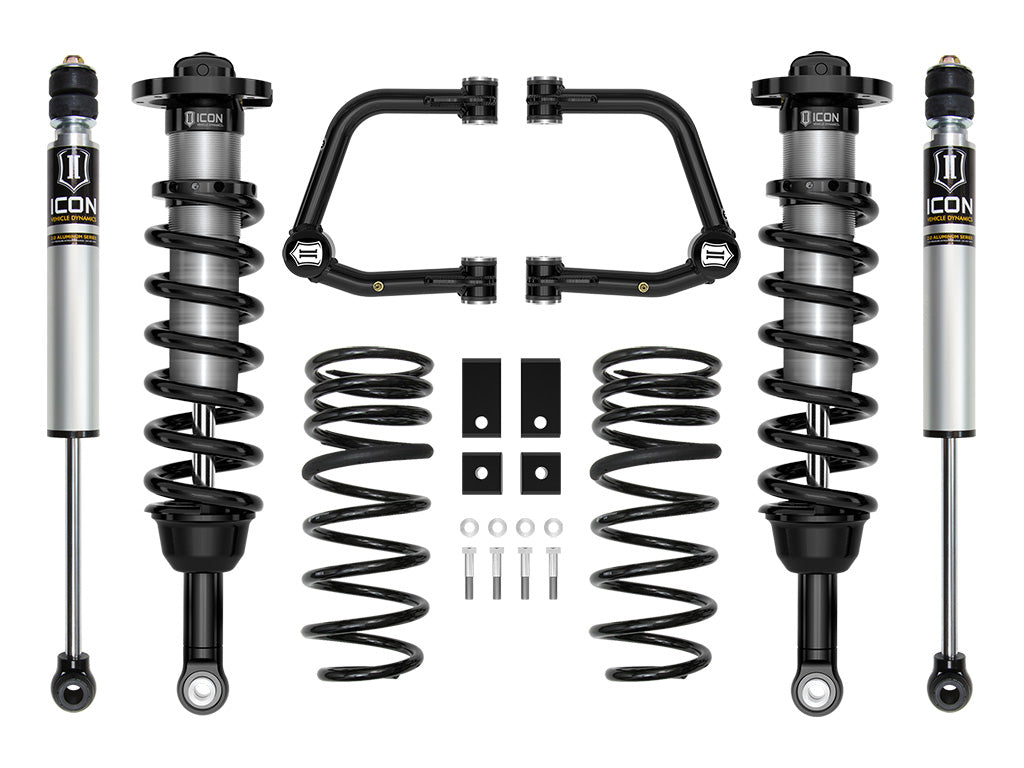

| Description_EXT | Stage 4 includes 2.5 Series coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. Tubular UCAs provide alignment correction and rear coils with 2.0 Series rear shocks balance the tuning from front to rear. |

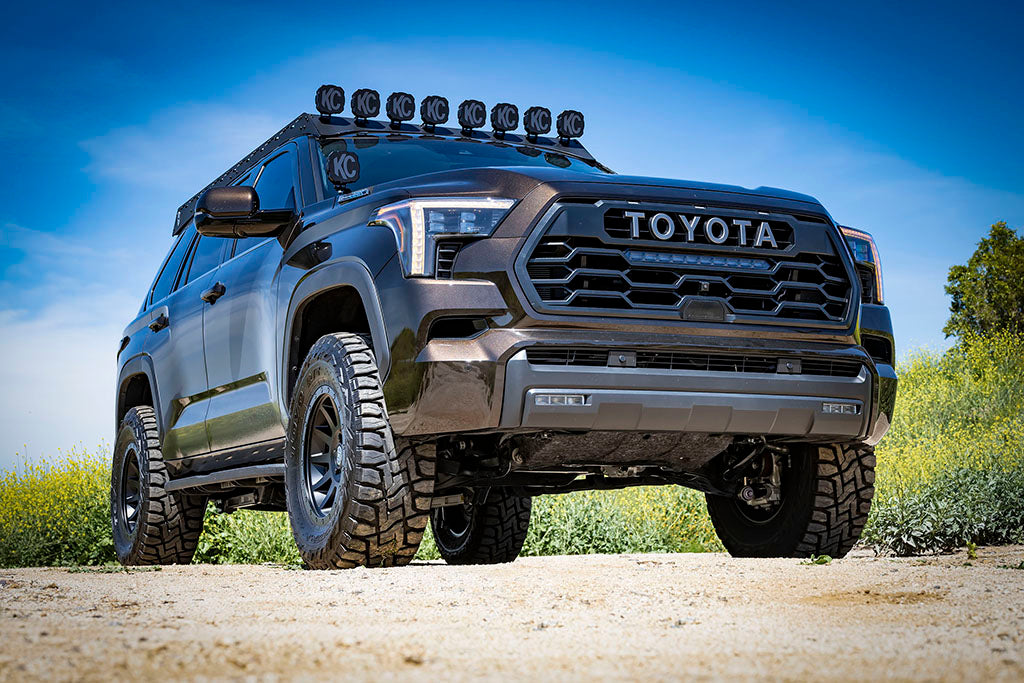

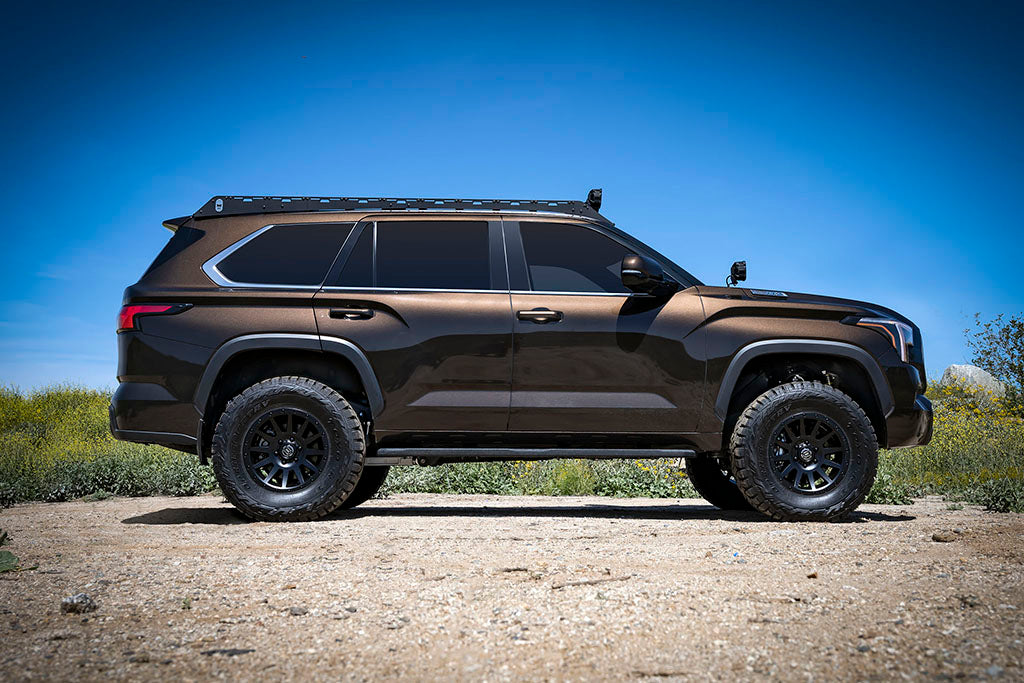

| Description_MKT | The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023 Toyota Sequoia builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear. |
| Description_MKT | This Stage 4 system features the 2023 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON tubular steel front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. |
| Description_MKT | The included ICON tubular upper control arm kit is designed to improve the overall performance of the 2023 Toyota Sequoia with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. |
| Description_MKT | The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components. |
| Description_MKT | The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 3” of rear lift height over stock allows a for level stance front to rear. |
| Description_MKT | Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia. |
| Description_FAB | Vehicle specific design for 2023 Toyota Sequoia |
| Description_FAB | 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control |
| Description_FAB | Adjustable front ride heights from 3-4.5” of front lift over stock |
| Description_FAB | Tubular UCAs for added strength, durability, and alignment correction for better drivability |
| Description_FAB | UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation |
| Description_FAB | Included sway bar drop brackets reduce bind in OE sway bar links |
| Description_FAB | Allows for full wheel travel without overstressing OE components |
| Description_FAB | Dual rate rear coil springs improve performance and ride quality while providing 3" of rear lift |
| Description_FAB | 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance |
| Description_FAB | All ICON shock absorbers are fully rebuildable and re-tunable |
| Description_DEF | Suspension Lift Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2023 | Toyota | Sequoia | Capstone | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset |
| 2023 | Toyota | Sequoia | Limited | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset |
| 2023 | Toyota | Sequoia | Platinum | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset |
| 2023 | Toyota | Sequoia | SR5 | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset |
| 2023 | Toyota | Sequoia | TRD Off-Road | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset |
