*item may differ from images

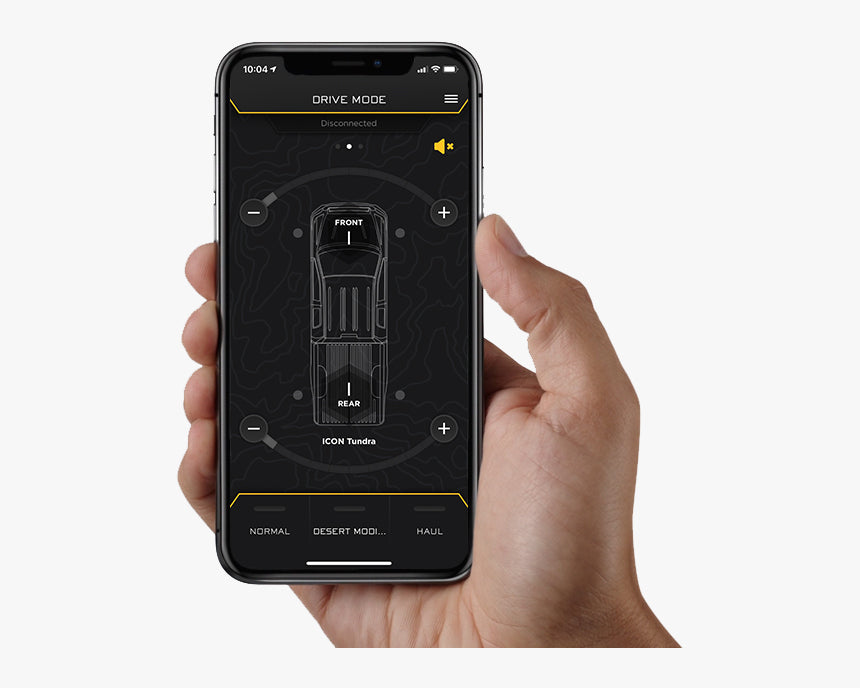

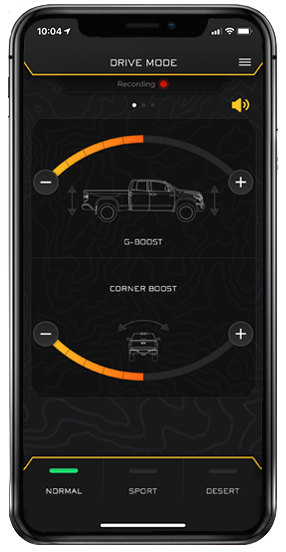

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These rear coilovers feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

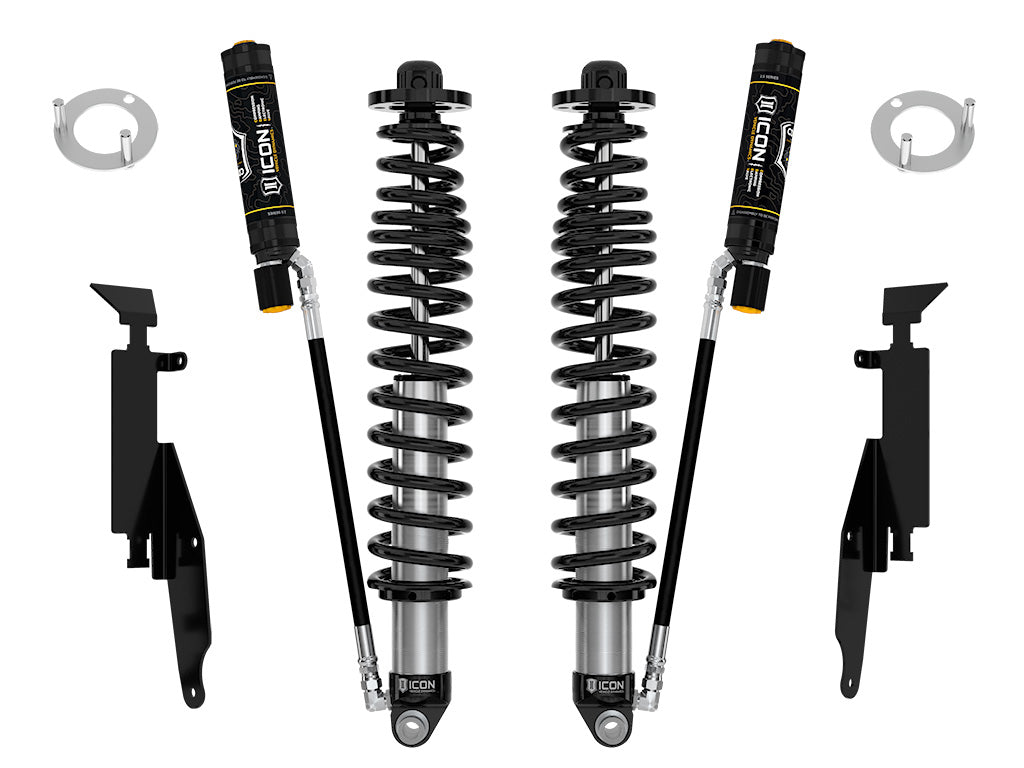

ICON Vehicle Dynamics 48710E 21-23 BRONCO REAR 2.5 VS RR CDEV COILOVER KIT
Specifications:
| Description_SHO | CDEV COILOVER KIT |
| Description_INV | 48710E |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) |
| Description_ASC | Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) |
| Description_ASC | APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR |

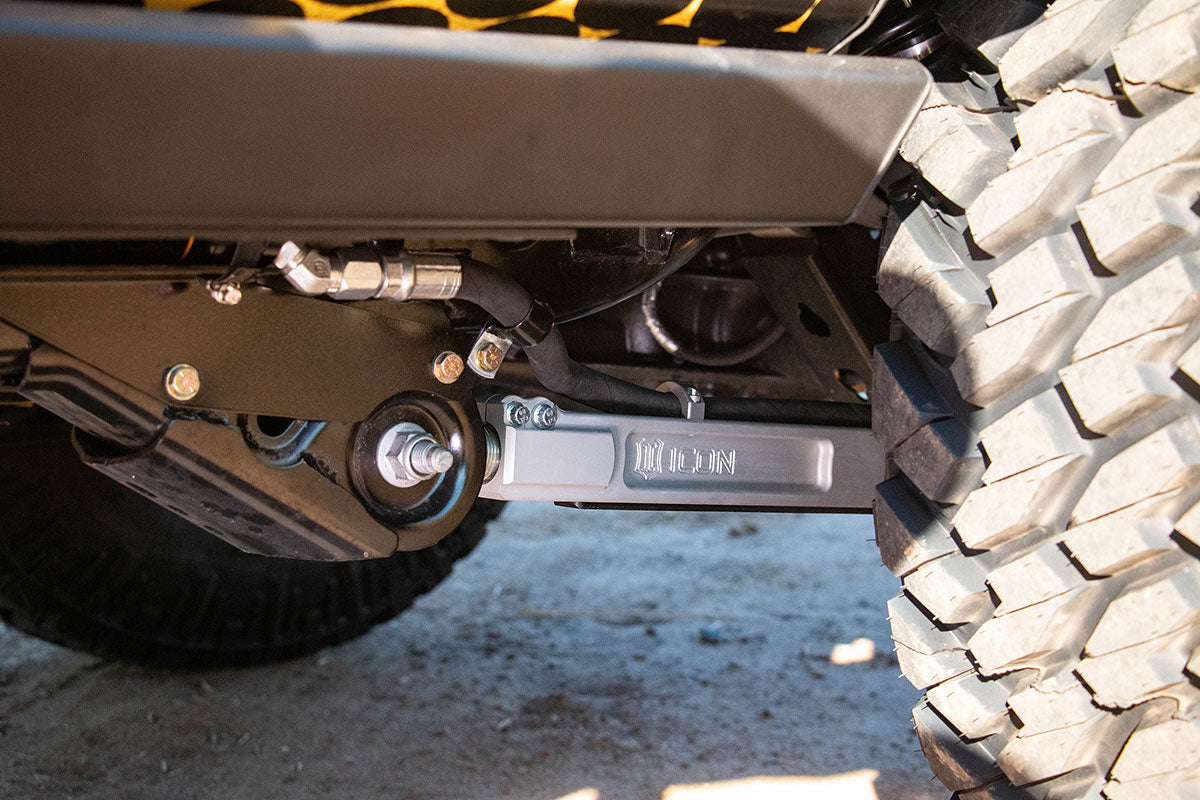

| Description_ASC | APPLICATION NOTE #136: WHEN RUNNING ICON TUBULAR LOWER LINKS USE PART #611073 |
| Description_ASC | APPLICATION NOTE #137: WHEN RUNNING FACTORY LOWER LINKS USE PART #611072 |
| Description_ASC | TECH NOTE: Also requires installation of part numbers 48700E and 43501 |
| Description_ASC | TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number 48711E. |
| Description_ASC | TECH NOTE: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock. |
| Description_ASC | TECH NOTE: Not compatible with Bronco Raptor |
| Description_DES | 21-23 BRONCO REAR 2.5 VS RR CDEV COILOVER KIT |
| Description_EXT | These ICON coilovers feature 2.5 Series shocks and coil springs optimized per application. These hardcore units are outfitted with remote reservoirs to stay cooler during intense wheeling and ICON’s CDEV for active compression adjustment |
| Description_MKT | ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These rear coilovers feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco. |
| Description_FAB | Increased wheel travel (up to 14”) and ride quality over stock |
| Description_FAB | Vehicle specific tuned for superior shock damping and control |
| Description_FAB | Remote reservoirs maintain cooler operating temperatures during extended off-road use |
| Description_FAB | ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) |

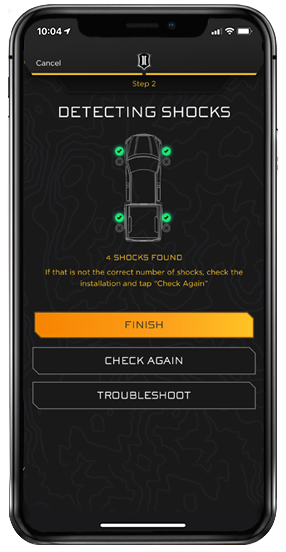

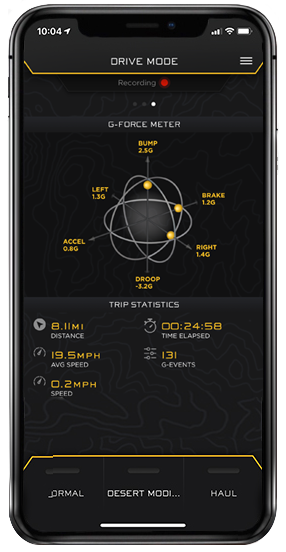

| Description_FAB | ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes |
| Description_FAB | Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos |
| Description_FAB | Unique ICON engineered triple rate coil springs |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | Fully rebuildable and re-tunable |
| Description_FAB | 100% Bolt-on - no drilling, cutting or welding necessary for installation |
| Description_TLE | ICON 2021-2023 Ford Bronco, Rear, 1.25-3” Lift, 2.5 VS RR/CDEV Coilover Kit |
| Description_DEF | Coilover Spring and Shock Assembly |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021 | Ford | Bronco | Badlands | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2021 | Ford | Bronco | Base | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2021 | Ford | Bronco | Big Bend | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2021 | Ford | Bronco | Black Diamond | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2022 | Ford | Bronco | Everglades | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2021 | Ford | Bronco | First Edition | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2023 | Ford | Bronco | Heritage Edition | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2023 | Ford | Bronco | Heritage Limited Edition | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2021 | Ford | Bronco | Outer Banks | Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
| 2021 | Ford | Bronco | Wildtrak | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Hose Routing Kit Part Number 611072 Recommended if Equipped with OE Rear Lower Control Arms; Hose Routing Kit Part Number 611073 Recommended if Equipped with ICON Tubular Rear Lower Control Arms |
