ICON Vehicle Dynamics 48700E 21-23 BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT

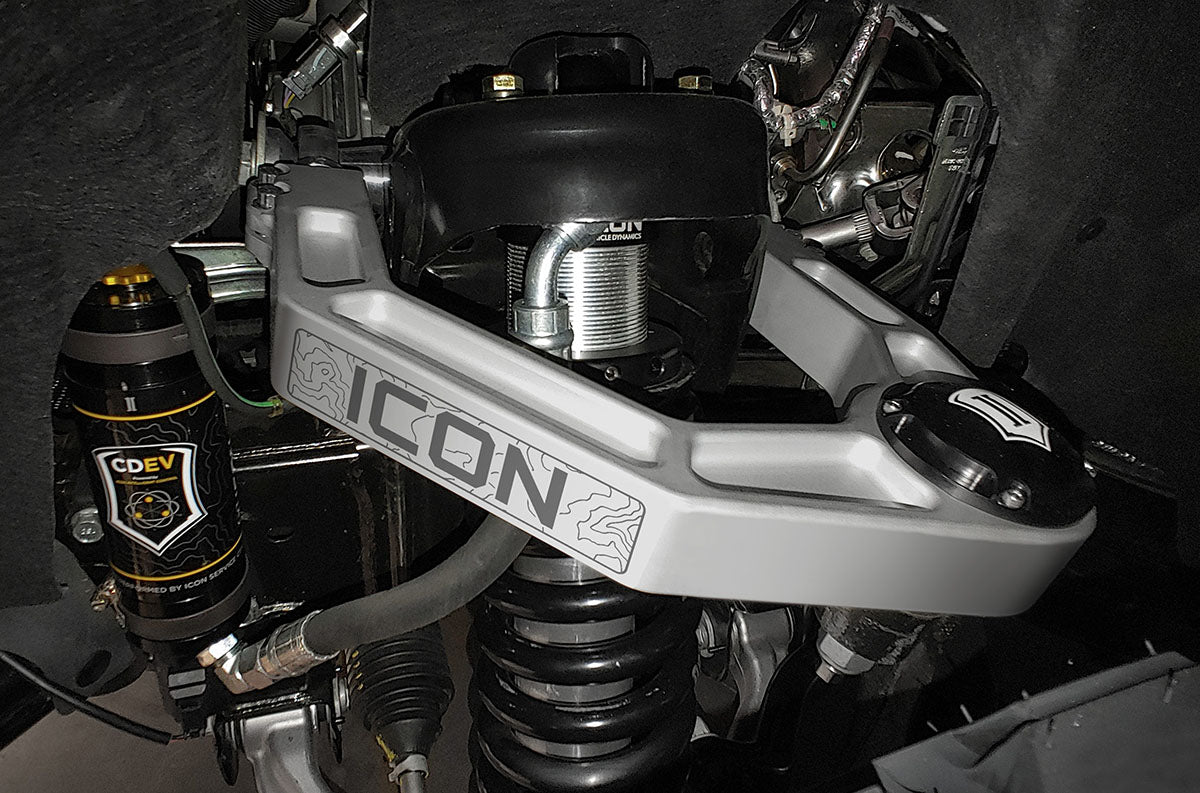

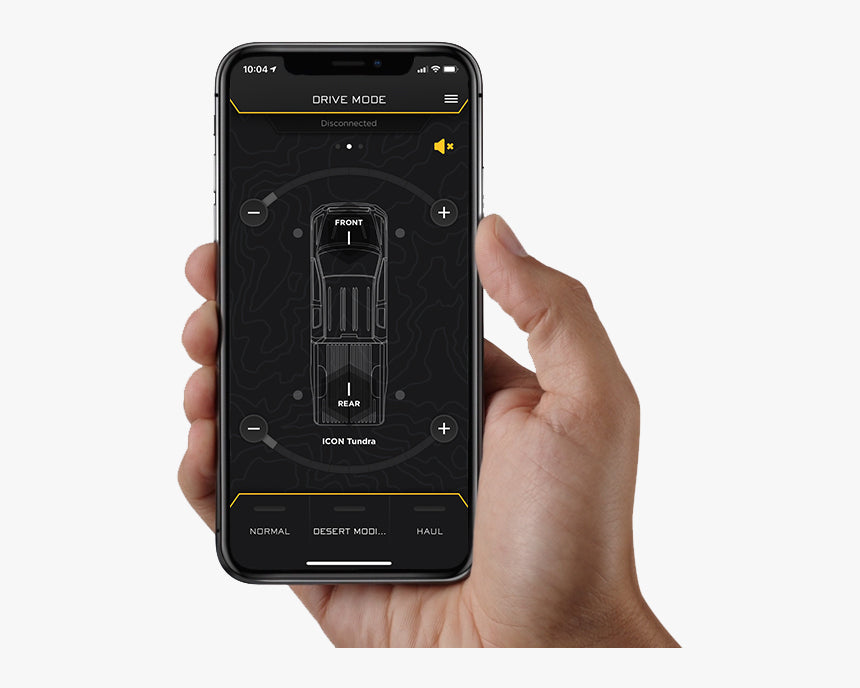

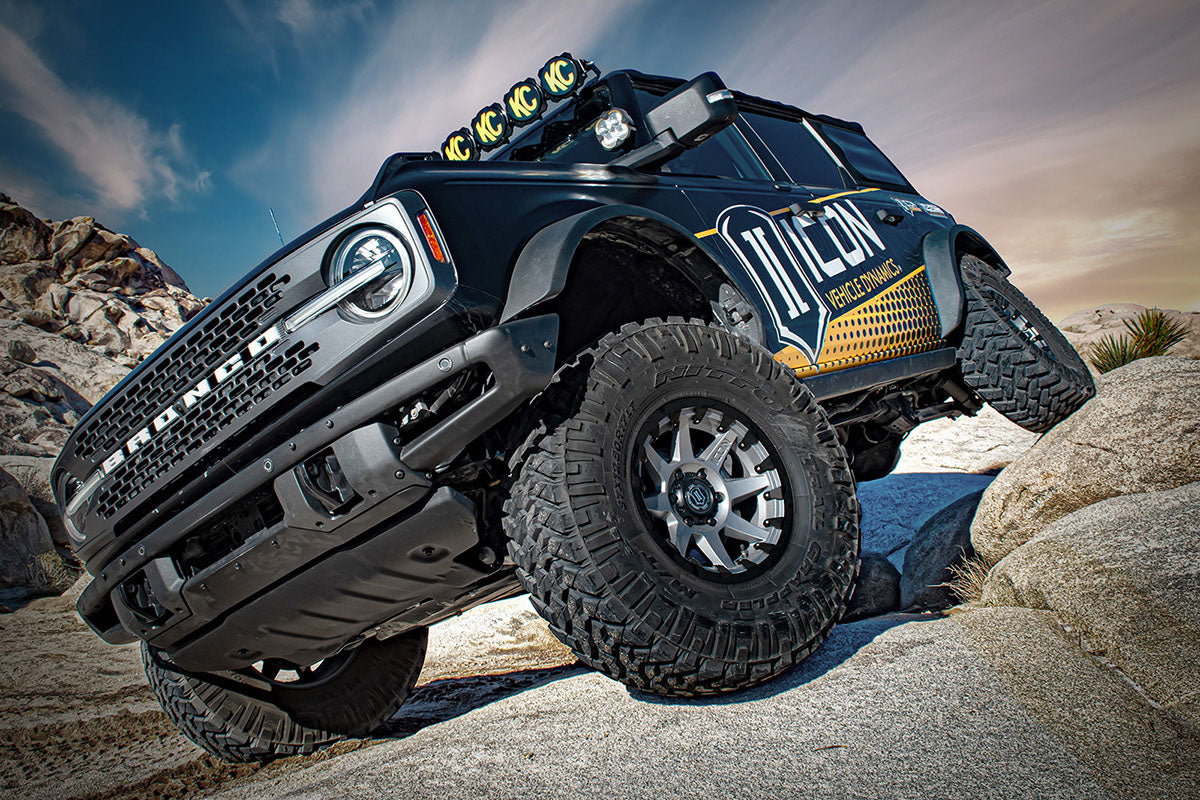

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

ICON Vehicle Dynamics 48700E 21-23 BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT

Specifications:

Description_SHO	CDEV COILOVER KIT
Description_INV	48700E
Description_ASC	OEM Wheels & Tires Fitment (With Sasquatch Package): Yes
Description_ASC	OEM Wheels & Tires Fitment (Without Sasquatch Package): No
Description_ASC	Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Description_ASC	Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Description_ASC	Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
Description_ASC	Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Description_ASC	APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.
Description_ASC	APPLICATION NOTE #132: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITERS PART #611075 IN THE FRONT
Description_ASC	APPLICATION NOTE #138: RECOMMENDED CRASH BARS PART #42000 ON NON-SASQUATCH EQUIPPED VEHICLES WHEN RUNNING 35" TIRES
Description_ASC	APPLICATION NOTE #139: WHEN RUNNING 37" TIRES CRASH BAR REMOVAL MAY BE REQUIRED BUT IS NOT RECOMMENDED
Description_ASC	TECH NOTE: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.
Description_ASC	TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
Description_ASC	TECH NOTE: Also requires installation of part numbers 48710E and 43501
Description_ASC	TECH NOTE: Bronco Everglades will have lift height range of 1.5-2.5" over stock
Description_ASC	TECH NOTE: Not compatible with Bronco Raptor
Description_DES	21-23 BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT

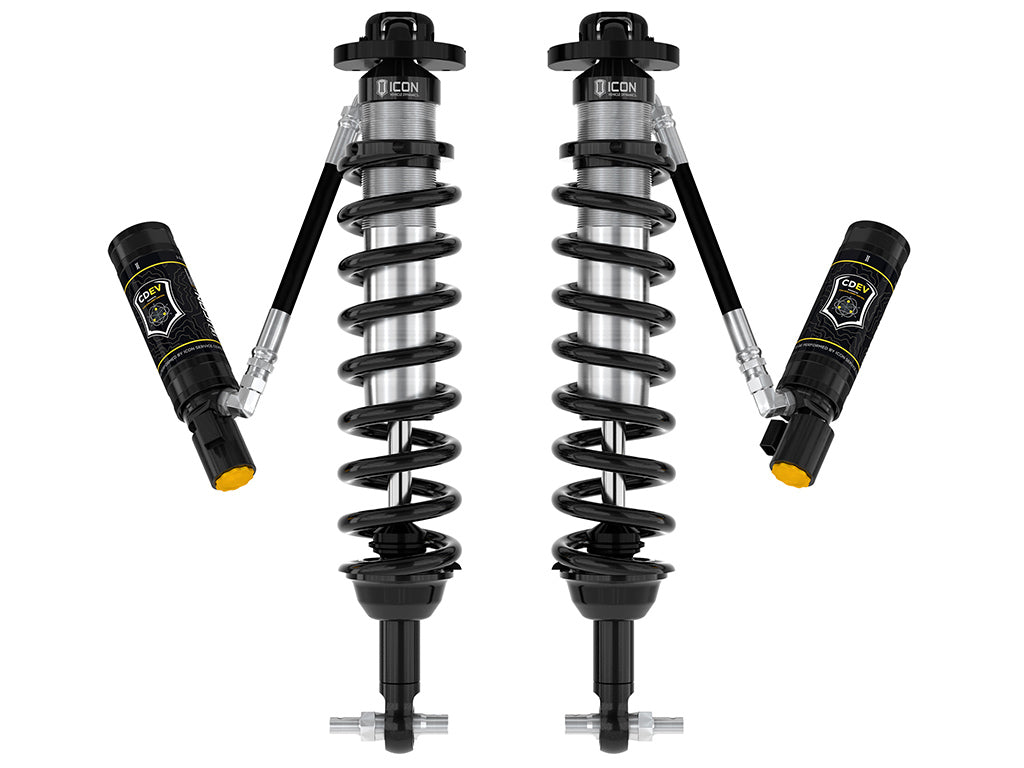

Description_EXT	These ICON coilovers feature 2.5 Series shocks and coil springs optimized per application. These hardcore units are outfitted with remote reservoirs to stay cooler during intense wheeling and ICON’s CDEV for active compression adjustment
Description_MKT	ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Description_FAB	Increased wheel travel (up to 11.5”) and ride quality over stock
Description_FAB	Vehicle specific tuned for superior shock damping and control
Description_FAB	Remote reservoirs maintain cooler operating temperatures during extended off-road use

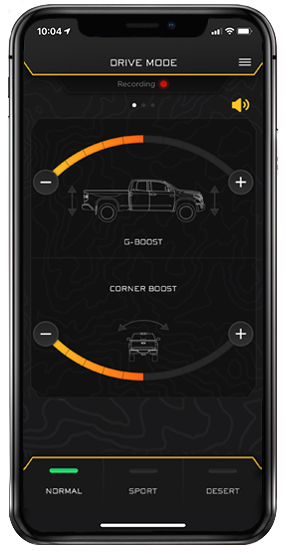

Description_FAB	ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

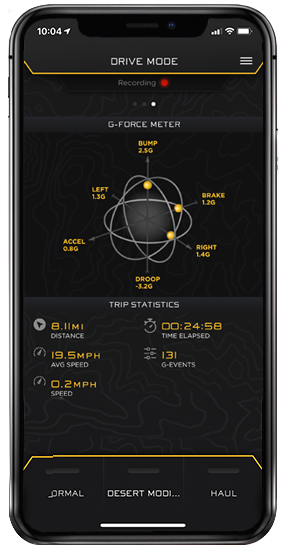

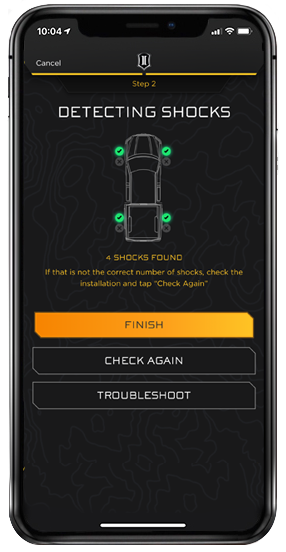

Description_FAB	ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Description_FAB	Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
Description_FAB	ICON engineered coil springs
Description_FAB	6061 Aircraft grade aluminum CNC machined components
Description_FAB	Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
Description_FAB	FK rod end bearings for extended longevity and minimal deflection
Description_FAB	High strength alloy CNC machined lower bar pin
Description_FAB	Fully rebuildable and re-tunable
Description_FAB	100% Bolt-on - no drilling, cutting or welding necessary for installation
Description_TLE	ICON 2021-2023 Ford Bronco, Front, 1.5-4” Lift, 2.5 VS RR/CDEV Coilover Kit
Description_DEF	Coilover Spring and Shock Assembly

This Part Fits:

Year	Make	Model	Submodel	Notes
2021	Ford	Bronco	Badlands	When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended; When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended; Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2021	Ford	Bronco	Base	When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended; When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended; Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2021	Ford	Bronco	Big Bend	When Running 35" Tires High Clearance Crash Bar Kit Part Number 42000 is Recommended; When Running 37" Tires Crash Bar Removal may be Required but is Not Recommended; Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2021	Ford	Bronco	Black Diamond	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2022	Ford	Bronco	Everglades	Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2021	Ford	Bronco	First Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2023	Ford	Bronco	Heritage Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2023	Ford	Bronco	Heritage Limited Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2021	Ford	Bronco	Outer Banks	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
2021	Ford	Bronco	Wildtrak	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset; Lift heights above 2.5" over stock may require aftermarket front upper control arms to maintain proper alignment. ICON part number 48400DJ or 48500DJ are recommended.
