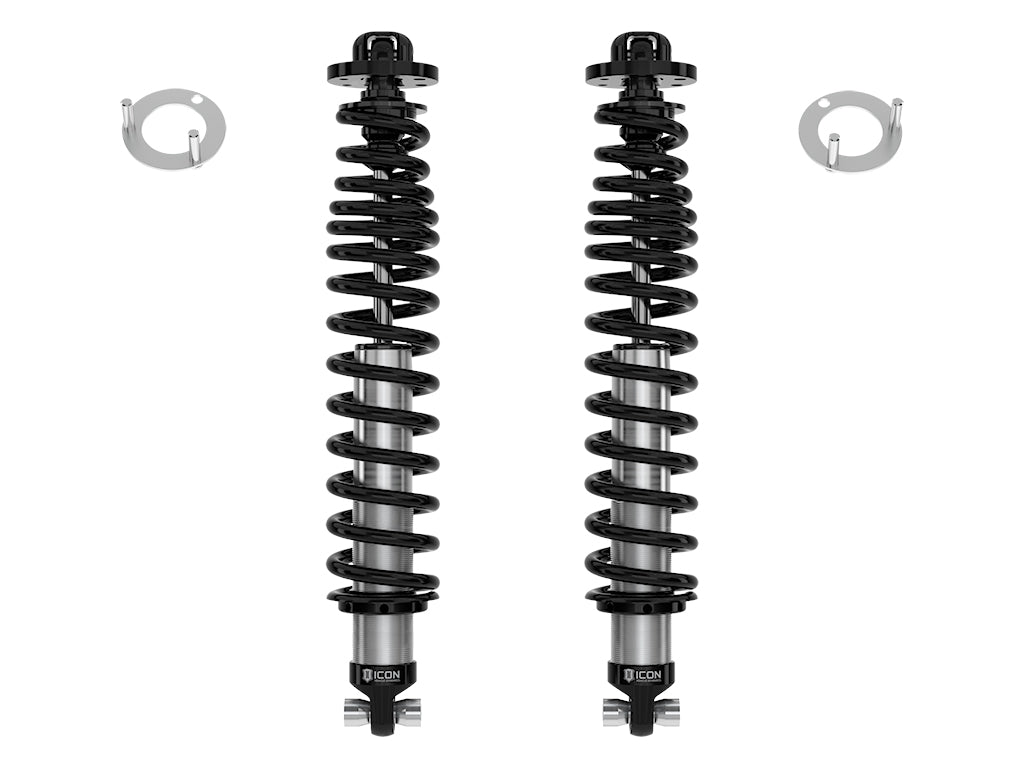

ICON Vehicle Dynamics 48610 21-23 BRONCO REAR 2.5 VS IR COILOVER KIT

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

ICON Vehicle Dynamics 48610 21-23 BRONCO REAR 2.5 VS IR COILOVER KIT

Specifications:

Description_SHO	COILOVER KIT
Description_INV	48610
Description_ASC	OEM Wheels & Tires Fitment: Yes
Description_ASC	Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
Description_ASC	Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Description_ASC	Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
Description_ASC	Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Description_ASC	Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
Description_ASC	APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR
Description_ASC	TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number 48613.
Description_ASC	TECH NOTE: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock.
Description_ASC	TECH NOTE: Not compatible with Bronco Raptor
Description_DES	21-23 BRONCO REAR 2.5 VS IR COILOVER KIT
Description_EXT	These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
Description_MKT	ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Description_FAB	Increased wheel travel (up to 14”) and ride quality over stock
Description_FAB	Vehicle specific tuned for superior shock damping and control
Description_FAB	Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
Description_FAB	Unique ICON engineered triple rate coil springs
Description_FAB	6061 Aircraft grade aluminum CNC machined components
Description_FAB	Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
Description_FAB	FK rod end bearings for extended longevity and minimal deflection
Description_FAB	Fully rebuildable and re-tunable
Description_FAB	100% Bolt-on - no drilling, cutting or welding necessary for installation
Description_TLE	ICON 2021-2023 Ford Bronco, Rear, 1.25-3” Lift, 2.5 VS IR Coilover Kit
Description_DEF	Coilover Spring and Shock Assembly

This Part Fits:

Year	Make	Model	Submodel	Notes
2021	Ford	Bronco	Badlands	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Base	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Big Bend	Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset
2021	Ford	Bronco	Black Diamond	Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset
2022	Ford	Bronco	Everglades	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	First Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2023	Ford	Bronco	Heritage Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2023	Ford	Bronco	Heritage Limited Edition	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
2021	Ford	Bronco	Outer Banks	Recommended Aftermarket Wheel Size: 17x8.5" with 5.75” Backspace / 25mm Offset
2021	Ford	Bronco	Wildtrak	Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset
