*item may differ from images

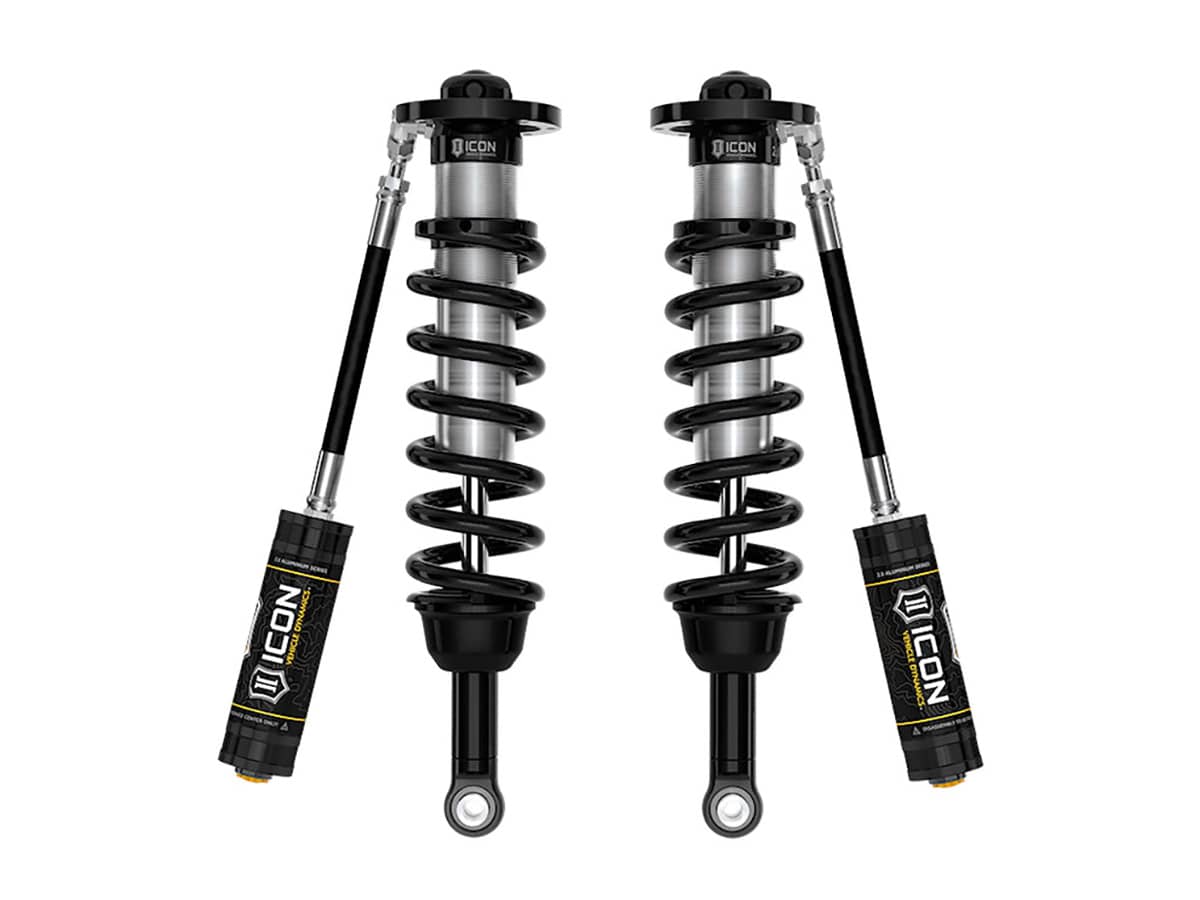

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra or 2023-2024 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
ICON Vehicle Dynamics 22-24 TUNDRA/23-24 SEQUOIA 2.5 VS RR COILOVER KIT 58770
Specifications:
| Dust Shield | No |
| 8703 | No |
| 51 | Yes |
| 3390 | Performance |
| 3085 | Single Tube |
| 48 | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3.5 |
| Minimum Lift | 1.25 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| 9476 | Yes |
| 10529 | No |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter | 0.875 |
| 409 | Top of Upper Mount Plate |
| 408 | Center of Eylet |
| Spring Color | Black |
| 2064 | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2022-2024 Toyota Tundra 1.25-3.5" Lift/2023-2024 Sequoia 3-4.5" Lift, V.S. 2.5 Series Front Coilover Kit, Remote Reservoir, Pair |
| 49 | Mounting Plate |
| 10526 | Digressive |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| 10530 | Passive |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 55156 - 22-24 TUNDRA/23-24 SEQUOIA DIFF DROP KIT |
| Add-On Part | 55164 - 22-24 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 55154 - 22-24 TUNDRA/23-24 SEQUOIA SWAY BAR DROP KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| 10527 | No |
| Adjustable Damping | NO |
| 2917 | Yes |
| 7233 | No |
| 52 | 2.5 |
| 50 | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| 5126 | Silver |
| Cylinder Finish | Cadmium Plated |
| 2329 | Steel |
| Damping Type | Oil |
| Description_SHO | COILOVER KIT |
| Description_INV | 58770 |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9" with 6.00” Backspace / 25mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC | APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. |
| Description_ASC | APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range. |
| Description_ASC | APPLICATION NOTE #146: Tundra SR5 Equipped With TRD Sport Package Lift Range Will Be 2.25-4.5" |
| Description_ASC | APPLICATION NOTE #148: ICON Does Not Recommend Lifting Above 2.25" (Tundra)/3.75" (Sequoia) Without An ICON Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4WD Models |
| Description_ASC | APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro. |
| Description_ASC | APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required |
| Description_ASC | APPLICATION NOTE #188: Not compatible with Sequoia TRD Pro stock front upper control arms. ICON Delta Joint Pro UCAs (part number 58461DJ or 58561DJ) are required for Sequoia TRD Pro fitment. |
| Description_ASC | TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional |
| Description_ASC | TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock |
| Description_ASC | TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock |
| Description_ASC | TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock |
| Description_ASC | TECH NOTE: Most Sequoia sub-models will have front lift height range of 3-4.5" over stock. Submodels equipped with TRD Off-Road Package or TRD Pro will have front lift height range of 1-2.5" over stock. |
| Description_ASC | TECH NOTE: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required. |
| Description_DES | 22-24 TUNDRA/23-24 SEQUOIA 2.5 VS RR COILOVER KIT |
| Description_EXT | ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. |
| Description_MKT | ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra or 2023-2024 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. |
| Description_FAB | Increased wheel travel and improved ride quality over stock |
| Description_FAB | Vehicle specific tuned for superior shock damping and control |
| Description_FAB | Adjustable up to 1.25-3.5" of front lift height over stock (Tundra) or 3-4.5" of lift over stock (Sequoia) |
| Description_FAB | Remote reservoirs maintain cooler operating temperatures during extended off-road use |
| Description_FAB | ICON engineered coil springs |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | Fully rebuildable and re-tunable |
| Description_FAB | 100% Bolt-on - no drilling, cutting or welding necessary for installation |
| Description_TLE | ICON 2022-2024 Toyota Tundra 1.25-3.5" Lift/2023-2024 Sequoia 3-4.5" Lift, V.S. 2.5 Series Front Coilover Kit, Remote Reservoir, Pair |
| Description_APS | ICON 22-24 TUNDRA/23-24 SEQUOIA 2.5 VS RR COILOVER KIT |
| Description_DEF | Coilover Spring and Shock Assembly |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2023 | Toyota | Sequoia | Capstone | |
| 2024 | Toyota | Sequoia | Capstone | |
| 2023 | Toyota | Sequoia | Limited | |
| 2024 | Toyota | Sequoia | Limited | |
| 2023 | Toyota | Sequoia | Platinum | |
| 2024 | Toyota | Sequoia | Platinum | |
| 2023 | Toyota | Sequoia | SR5 | |
| 2024 | Toyota | Sequoia | SR5 | |
| 2023 | Toyota | Sequoia | TRD Off-Road | |
| 2023 | Toyota | Sequoia | TRD Pro | |
| 2024 | Toyota | Sequoia | TRD Pro | |
| 2022 | Toyota | Tundra | 1794 Edition | |
| 2023 | Toyota | Tundra | 1794 Edition | |
| 2024 | Toyota | Tundra | 1794 Edition | |
| 2022 | Toyota | Tundra | Capstone | |
| 2023 | Toyota | Tundra | Capstone | |
| 2024 | Toyota | Tundra | Capstone | |
| 2022 | Toyota | Tundra | Limited | |
| 2023 | Toyota | Tundra | Limited | |
| 2024 | Toyota | Tundra | Limited | |
| 2022 | Toyota | Tundra | Limited TRD Off-Road | |
| 2022 | Toyota | Tundra | Platinum | |
| 2023 | Toyota | Tundra | Platinum | |
| 2024 | Toyota | Tundra | Platinum | |
| 2022 | Toyota | Tundra | Platinum 1794 Edition | |
| 2022 | Toyota | Tundra | SR | |
| 2023 | Toyota | Tundra | SR | |
| 2024 | Toyota | Tundra | SR | |
| 2022 | Toyota | Tundra | SR TRD Off-Road | |
| 2022 | Toyota | Tundra | SR5 | |
| 2023 | Toyota | Tundra | SR5 | |
| 2024 | Toyota | Tundra | SR5 | |
| 2022 | Toyota | Tundra | SR5 TRD Off-Road | |
| 2024 | Toyota | Tundra | TRD Off-Road | |
| 2022 | Toyota | Tundra | TRD Pro | |
| 2023 | Toyota | Tundra | TRD Pro | |
| 2024 | Toyota | Tundra | TRD Pro |
