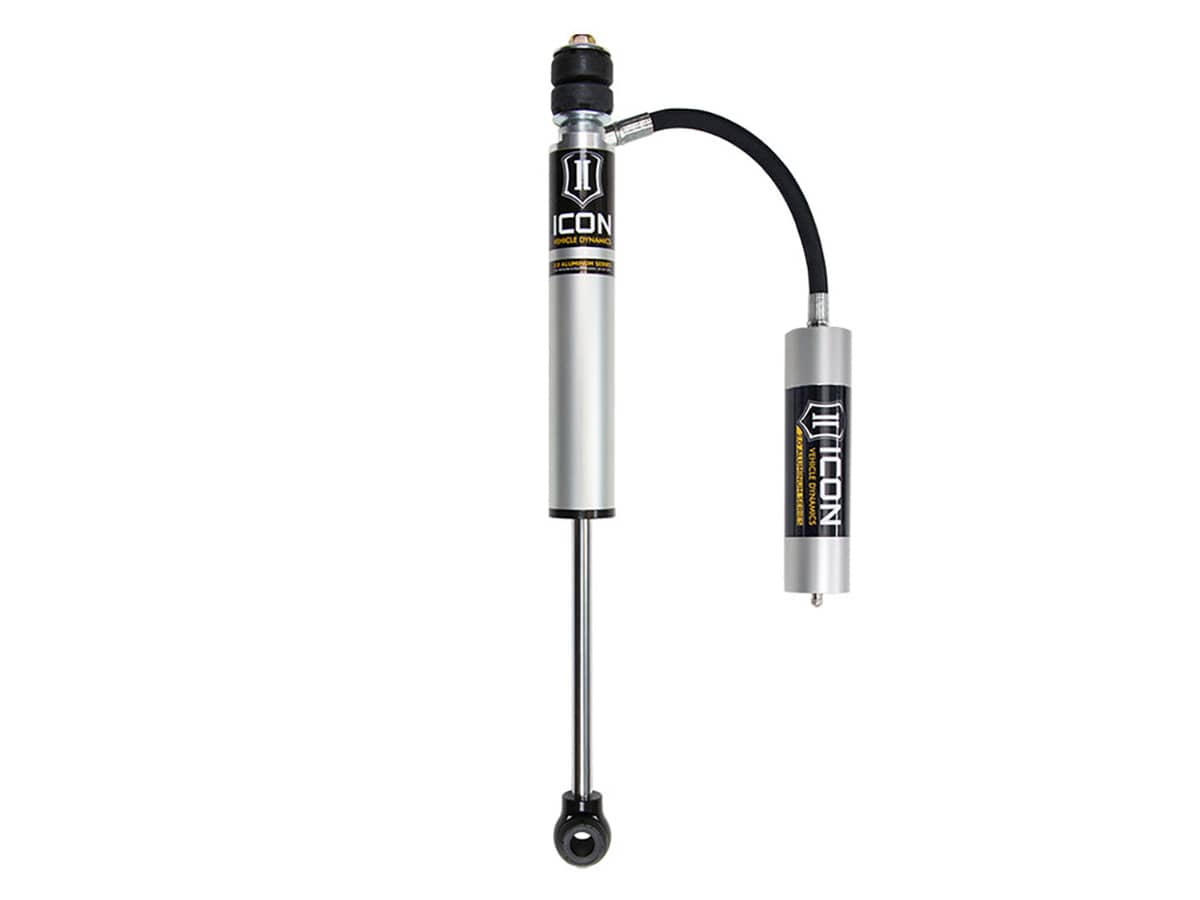

*item may differ from images
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
ICON Vehicle Dynamics 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 2.0 VS RR 56516R
Specifications:
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| 10530 | Passive |
| 10527 | No |
| Adjustable Damping | No |
| 7233 | No |
| 10528 | No |
| 1385 | Gray |
| 52 | 2 |
| 621 | Aluminum |
| 50 | Yes |
| Bore Diameter | 1.75 |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Bushing Material | Rubber |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| 9621 | No |
| 17 | Black |
| 17 | Silver |
| 17 | Gray |
| Configuration | Performance |
| 5126 | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| 3065 | 2 |
| Damping Type | Oil |
| Dust Boot Included | Yes |
| Dust Shield | No |
| 8703 | Yes |
| 9388 | Rubber |
| External Reservoir | Yes |
| 200 | Anodized |
| 51 | Yes |
| 3390 | Performance |
| 9792 | No |
| 9783 | No |
| 3085 | Single Tube |
| 9908 | Yes |
| 9444 | No |
| 48 | Eyelet |
| Material | Steel |
| Material | Aluminum |
| 10535 | 3 |
| 30 | Yes |
| Quantity | 1 |
| 9476 | Yes |
| 1183 | .625 |
| 10529 | No |
| Service Parts | 202003 - 2.0 REMOTE RESI REBUILD KIT |
| Shaft Diameter | 0.625 |
| 222 | Chrome |
| 409 | Shoulder of Stem |
| 9801 | 1.75 |
| 408 | Center of Eyelet |
| Suspension Type | Spring |
| Title | ICON 2022-2024 Toyota Tundra, 0-1.5" Lift/2023-2024 Sequoia, 0-4" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir |
| 49 | Stem |
| 10526 | Digressive |
| 10526 | Linear |
| Description_SHO | SHOCK ABSORBER |
| Description_INV | 56516R |
| Description_ASC | TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs |
| Description_ASC | TECH NOTE: Compatible with 0-3” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension |
| Description_ASC | TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias or 0-2" lift on TRD Sequoias |
| Description_ASC | TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional |
| Description_DES | 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 2.0 VS RR |
| Description_EXT | ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable. |
| Description_MKT | ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure. |
| Description_FAB | Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB | Nitrogen charged monotube design with remote reservoir |
| Description_FAB | One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB | 5/8” chrome plated hardened steel shaft resists corrosion and pits |
| Description_FAB | 6061 aluminum rod end, top cap, and internals ensure strength and durability |
| Description_FAB | Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment |
| Description_FAB | 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance |
| Description_FAB | Nitrile rubber top out bumper for noise free operation |
| Description_FAB | Fully rebuildable and re-tunable |
| Description_TLE | ICON 2022-2024 Toyota Tundra, 0-1.5" Lift/2023-2024 Sequoia, 0-4" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir |
| Description_APS | ICON 22-24 TUNDRA 0-1.5"/23-24 SEQUOIA 0-4" REAR 2.0 VS RR |
| Description_DEF | Suspension Shock Absorber |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2023 | Toyota | Sequoia | Capstone | |
| 2024 | Toyota | Sequoia | Capstone | |
| 2023 | Toyota | Sequoia | Limited | |
| 2024 | Toyota | Sequoia | Limited | |
| 2023 | Toyota | Sequoia | Platinum | |
| 2024 | Toyota | Sequoia | Platinum | |
| 2023 | Toyota | Sequoia | SR5 | |
| 2024 | Toyota | Sequoia | SR5 | |
| 2023 | Toyota | Sequoia | TRD Off-Road | |
| 2023 | Toyota | Sequoia | TRD Pro | |
| 2024 | Toyota | Sequoia | TRD Pro | |
| 2022 | Toyota | Tundra | 1794 Edition | |
| 2023 | Toyota | Tundra | 1794 Edition | |
| 2024 | Toyota | Tundra | 1794 Edition | |
| 2022 | Toyota | Tundra | Capstone | |
| 2023 | Toyota | Tundra | Capstone | |
| 2024 | Toyota | Tundra | Capstone | |
| 2022 | Toyota | Tundra | Limited | |
| 2023 | Toyota | Tundra | Limited | |
| 2024 | Toyota | Tundra | Limited | |
| 2022 | Toyota | Tundra | Limited TRD Off-Road | |
| 2022 | Toyota | Tundra | Platinum | |
| 2023 | Toyota | Tundra | Platinum | |
| 2024 | Toyota | Tundra | Platinum | |
| 2022 | Toyota | Tundra | Platinum 1794 Edition | |
| 2022 | Toyota | Tundra | SR | |
| 2023 | Toyota | Tundra | SR | |
| 2024 | Toyota | Tundra | SR | |
| 2022 | Toyota | Tundra | SR TRD Off-Road | |
| 2022 | Toyota | Tundra | SR5 | |
| 2023 | Toyota | Tundra | SR5 | |
| 2024 | Toyota | Tundra | SR5 | |
| 2022 | Toyota | Tundra | SR5 TRD Off-Road | |
| 2022 | Toyota | Tundra | TRD Pro | |
| 2023 | Toyota | Tundra | TRD Pro | |
| 2024 | Toyota | Tundra | TRD Pro |
