*item may differ from images
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) equipped shocks.

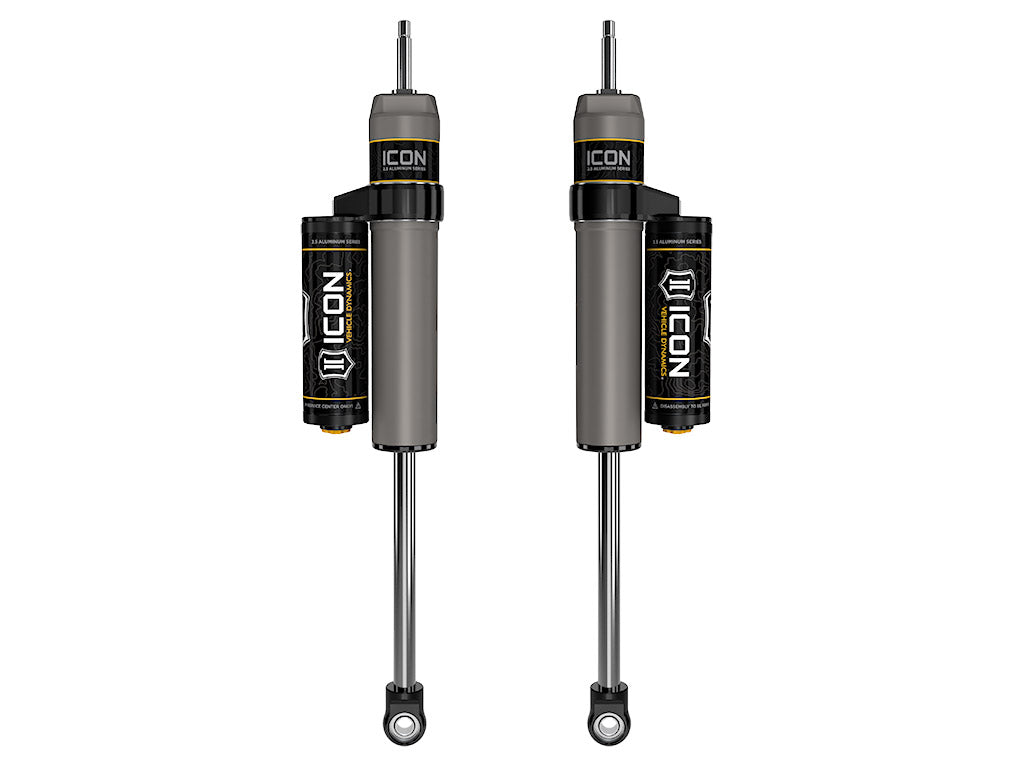

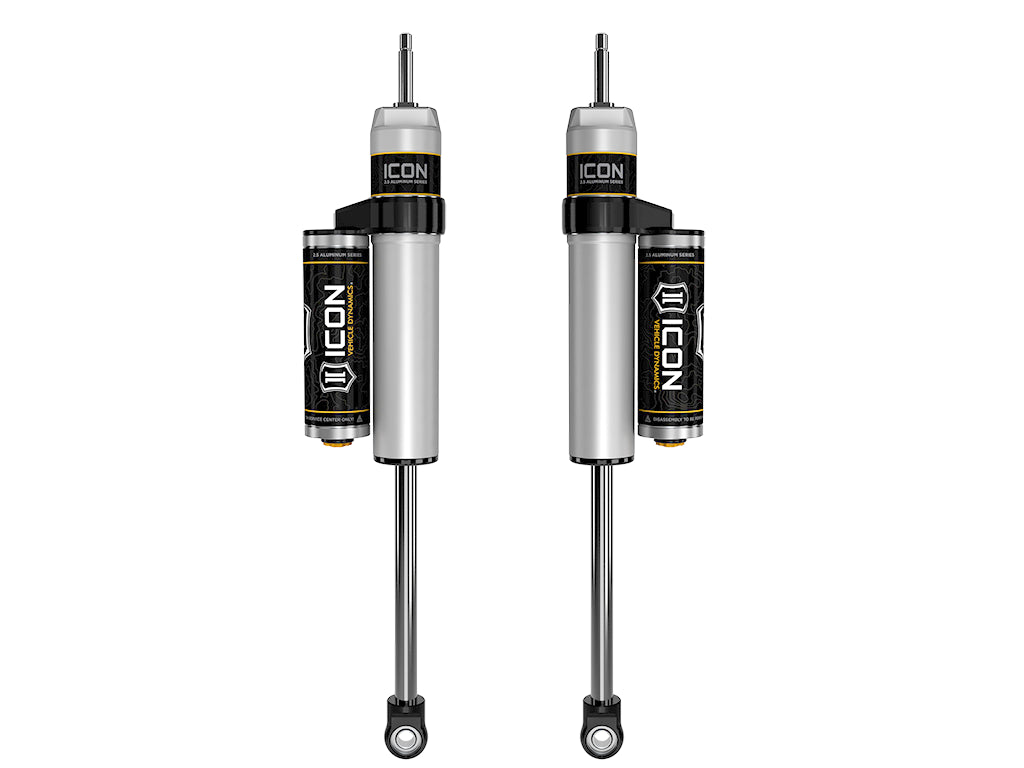

ICON Vehicle Dynamics 217716P 2019-UP RAM 1500 0-3" LIFT REAR 2.5 VS PIGGYBACK SHOCK PAIR
Specifications:
| Description_ASC | TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models. |
| Description_ASC | TECH NOTE: Not compatible with 2021-Up Ram 1500 TRX trims. |
| Description_DES | 19-UP RAM 1500 0-3" REAR 2.5 VS PB PAIR |
| Description_EXT | 2019-UP RAM 1500 0-3" LIFT REAR 2.5 VS PIGGYBACK SHOCK PAIR |
| Description_MKT | ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) equipped shocks. |
| Description_FAB | ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB | Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB | Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB | Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB | One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB | 7/8” diameter induction hardened, chrome plated shock shaft |
| Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB | 100% Rebuildable |
| Description_FAB | 100% Revalveable |
| Description_TLE | ICON 2019-Up Ram 1500, 0-3” Lift, Rear, 2.5 VS Piggyback Shocks, Pair |
| Description_SHO | REAR SHOCK ABSORBERS |
| Description_INV | 19-UP RAM 1500 0-3" REAR 2.5 VS PB PAIR |
| Description_DEF | Suspension Shock Absorber Set |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2019 | Ram | 1500 | ||
| 2021 | Ram | 1500 | Big Horn | |
| 2022 | Ram | 1500 | Big Horn | |
| 2021 | Ram | 1500 | Hemi Sport | |
| 2021 | Ram | 1500 | HFE | |
| 2022 | Ram | 1500 | HFE | |
| 2021 | Ram | 1500 | Laramie | |
| 2022 | Ram | 1500 | Laramie | |
| 2021 | Ram | 1500 | Laramie Longhorn | |
| 2021 | Ram | 1500 | Laramie Sport | |
| 2021 | Ram | 1500 | Limited | |
| 2022 | Ram | 1500 | Limited | |
| 2021 | Ram | 1500 | Limited Longhorn | |
| 2022 | Ram | 1500 | Limited Longhorn | |
| 2021 | Ram | 1500 | Lone Star | |
| 2022 | Ram | 1500 | Lone Star | |
| 2021 | Ram | 1500 | Longhorn | |
| 2021 | Ram | 1500 | Rebel | |
| 2022 | Ram | 1500 | Rebel | |
| 2021 | Ram | 1500 | SLT | |
| 2021 | Ram | 1500 | Sport | |
| 2022 | Ram | 1500 | Sport | |
| 2021 | Ram | 1500 | ST | |
| 2021 | Ram | 1500 | Tradesman | |
| 2022 | Ram | 1500 | Tradesman |
