*item may differ from images

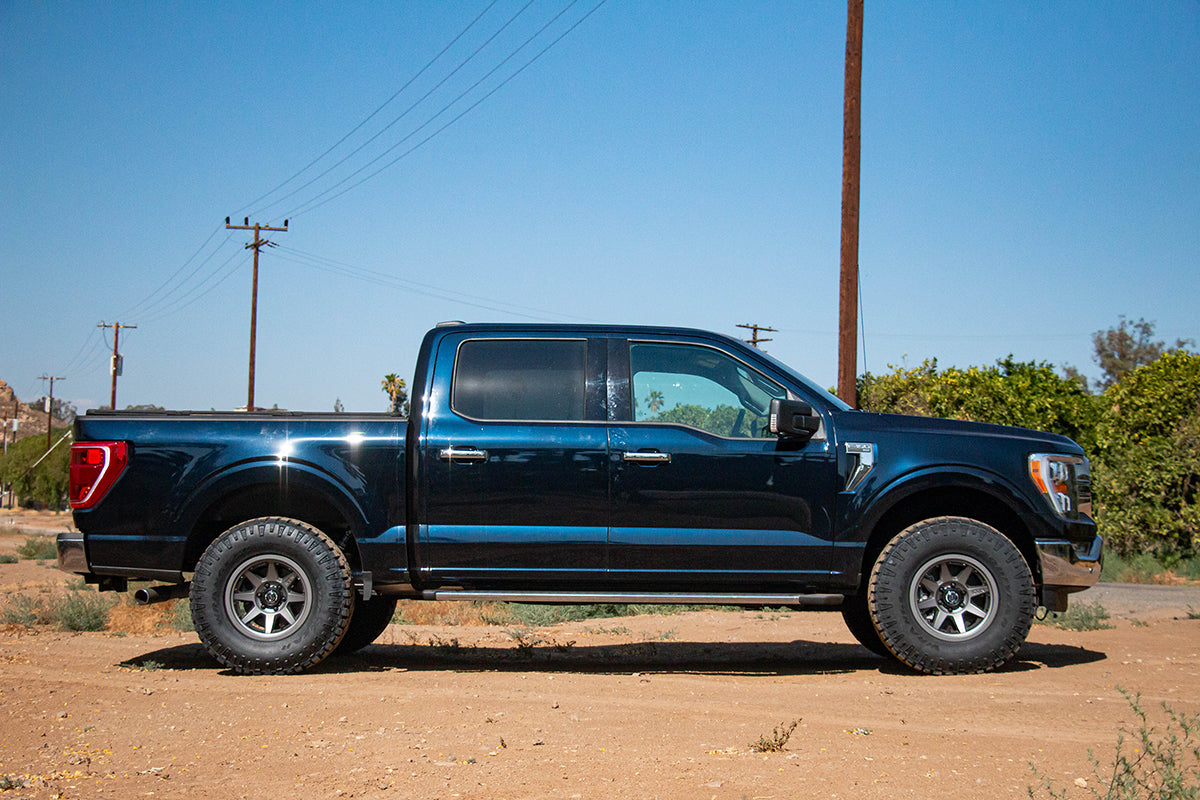

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDXS are an incredible upgrade for the front end of the 2021-2024 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2024 F-150 4WD.
ICON Vehicle Dynamics 21-24 F150 4WD 0-2.75" 2.5 VS RR CDXS COILOVER KIT 91823X
Specifications:
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| 10530 | Passive |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| 10527 | Yes |
| 7232 | Yes |
| 2917 | Yes |
| 7233 | No |
| 52 | 2.5 |
| 50 | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| 5126 | Silver |
| Cylinder Finish | Cadmium Plated |
| 2329 | Steel |
| Damping Adjustment Type | Dual Speed/Manual |
| Damping Type | Oil |
| Dust Shield | No |
| 8703 | No |
| 51 | Yes |
| 3390 | Performance |
| 3085 | Single Tube |
| 48 | BAR PIN |
| Material | Aluminum |
| Maximum Lift | 2.75 |
| Minimum Lift | 0 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| 9476 | Yes |
| Reservoir Style | Remote |
| 10529 | No |
| Service Parts | 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter | 0.875 |
| 409 | Top of Upper Mount Plate |
| 408 | Flat on Bar Pin |
| Spring Color | Black |
| 2064 | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2021-2024 Ford F-150 4WD, 0-2.75" Lift, Front, V.S. 2.5 Series Coilovers, Remote Reservoir w/ CDXS, Pair |
| 49 | Mounting Plate |
| 10526 | Digressive |
| Description_SHO | COILOVER KIT |
| Description_INV | 91823X |
| Description_ASC | OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC | APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. |
| Description_ASC | APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension. |
| Description_ASC | APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs. |
| Description_ASC | TECH NOTE: Only compatible with 4-wheel drive (4WD) models |
| Description_ASC | TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock |
| Description_ASC | TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock |
| Description_ASC | TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor |
| Description_ASC | TECH NOTE: Not compatible with models equipped with BlueCruise |
| Description_DES | 21-24 F150 4WD 0-2.75" 2.5 VS RR CDXS COILOVER KIT |
| Description_EXT | These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s 2.5” body and increased piston area improves damping and remote reservoirs with CDCV allow for compression damping adjustment. |
| Description_MKT | The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDXS are an incredible upgrade for the front end of the 2021-2024 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2024 F-150 4WD. |
| Description_FAB | Increased wheel travel and ride quality over stock |
| Description_FAB | Adjustable for 0-2.75" of front lift over stock |
| Description_FAB | Vehicle specific tuned for superior shock damping and control |
| Description_FAB | External reservoirs to attain cooler operating temperatures during extended off-road use |
| Description_FAB | ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness |
| Description_FAB | ICON engineered coil springs |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts |
| Description_FAB | High strength alloy CNC machined lower bar pins |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | 100% Bolt-on - no cutting or welding necessary for installation |
| Description_TLE | ICON 2021-2024 Ford F-150 4WD, 0-2.75" Lift, Front, V.S. 2.5 Series Coilovers, Remote Reservoir w/ CDXS, Pair |
| Description_APS | ICON 21-24 F150 4WD 0-2.75" 2.5 VS RR CDXS COILOVER KIT |
| Description_DEF | Coilover Spring and Shock Assembly |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2021 | Ford | F-150 | King Ranch | |
| 2022 | Ford | F-150 | King Ranch | |
| 2023 | Ford | F-150 | King Ranch | |
| 2021 | Ford | F-150 | Lariat | |
| 2022 | Ford | F-150 | Lariat | |
| 2023 | Ford | F-150 | Lariat | |
| 2021 | Ford | F-150 | Platinum | |
| 2022 | Ford | F-150 | Platinum | |
| 2023 | Ford | F-150 | Platinum | |
| 2021 | Ford | F-150 | Police Responder | |
| 2022 | Ford | F-150 | Police Responder | |
| 2023 | Ford | F-150 | Police Responder | |
| 2024 | Ford | F-150 | Police Responder | |
| 2021 | Ford | F-150 | SSV | |
| 2022 | Ford | F-150 | SSV | |
| 2023 | Ford | F-150 | SSV | |
| 2024 | Ford | F-150 | SSV | |
| 2021 | Ford | F-150 | XL | |
| 2022 | Ford | F-150 | XL | |
| 2023 | Ford | F-150 | XL | |
| 2024 | Ford | F-150 | XL | |
| 2021 | Ford | F-150 | XLT | |
| 2022 | Ford | F-150 | XLT | |
| 2023 | Ford | F-150 | XLT | |
| 2024 | Ford | F-150 | XLT |
