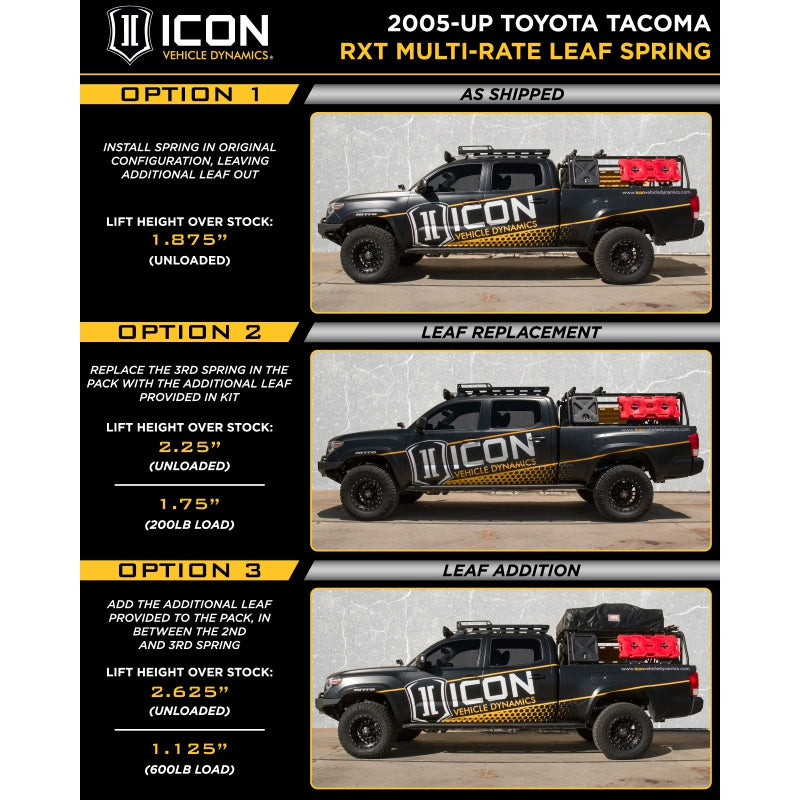

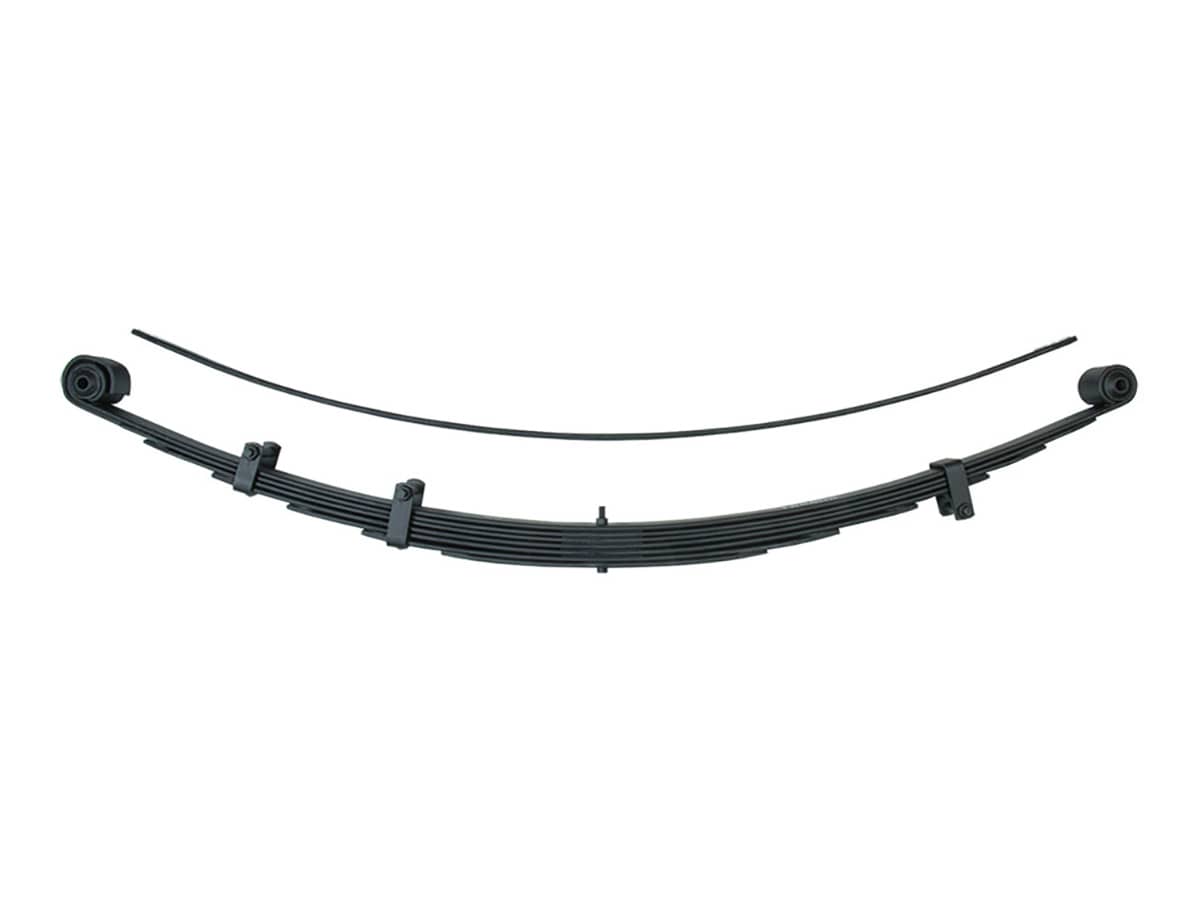

To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. A slight reduction in spring rate increases ride quality while gaining additional droop travel. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more "outfitted" vehicles.
ICON Vehicle Dynamics 158505 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
Specifications:
| Description_FAB | Potential for increased wheel travel (when used with RXT shock) without sacrificing up-travel |
| Description_FAB | “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability |
| Description_FAB | Direct bolt-in to OEM spring location makes for an easy install |
| Description_TLE | ICON 2005-2023 Toyota Tacoma, Multi Rate RXT Leaf Spring Pack w/Add In Leaf |
| Description_SHO | LEAF SPRING |
| Description_INV | 158505 |
| Description_ASC | TECH NOTE: For best results (and increased wheel travel), use in conjunction with ICON RXT rear shocks. |
| Description_ASC | TECH NOTE: These leaf springs are sold individually. A quantity of 2 are required per vehicle |
| Description_ASC | TECH NOTE: U-Bolt kit part # 52050 required for installation (sold separately) |
| Description_DES | 05-23 TACOMA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF |
| Description_EXT | This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength. |
| Description_MKT | To take advantage of the additional travel that the RXT Rear Suspension System offers, ICON engineers had to scrap the OE leaf springs and develop a replacement that addressed issues found in the R&D process. The result is a user-adjustable multi-rate leaf pack that offers a major performance gain for almost every Tacoma setup imaginable. Features like tip inserts and leaf separators reduce friction and increase ride comfort, while a military wrapped front eyelet improves the durability and strength of the leaf spring. A slight reduction in spring rate increases ride quality while gaining additional droop travel. While many Tacoma owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires and parts or other additions. Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding an additional 10% or 20% spring rate that will handle more "outfitted" vehicles. |
| Description_FAB | 3 user-adjustable spring rates for unique vehicle configurations |
| Description_FAB | Military wrap front eyelet for increased durability |
| Description_FAB | Galvanized leaf separators reduce friction and aid in corrosion resistance |
| Description_FAB | Leaf tip inserts reduce noise and increase ride comfort |
| Description_FAB | Includes additional leaf with 15% or 25% increase in spring rate for more laden "outfitted" vehicles |
| Description_DEF | Leaf Spring |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005,2022 | Toyota | Tacoma | Base | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset,Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2006 | Toyota | Tacoma | Base Prerunner | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2016 | Toyota | Tacoma | Edicion Especial | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2016 | Toyota | Tacoma | Limited | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2021 | Toyota | Tacoma | Nightshade | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2005 | Toyota | Tacoma | Pre Runner | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2017 | Toyota | Tacoma | Sport | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2016 | Toyota | Tacoma | SR | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2016 | Toyota | Tacoma | SR5 | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2006 | Toyota | Tacoma | SR5 Prerunner | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2021 | Toyota | Tacoma | Trail | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2023 | Toyota | Tacoma | Trail Special Edition | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2016 | Toyota | Tacoma | TRD Off-Road | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2015,2017 | Toyota | Tacoma | TRD Pro | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset,Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2010 | Toyota | Tacoma | TRD Sport | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
| 2006 | Toyota | Tacoma | TRD Sport Prerunner | Recommended Aftermarket Wheel Size: 17x8.5" with 4.75” Backspace / 0mm Offset |
