*item may differ from images

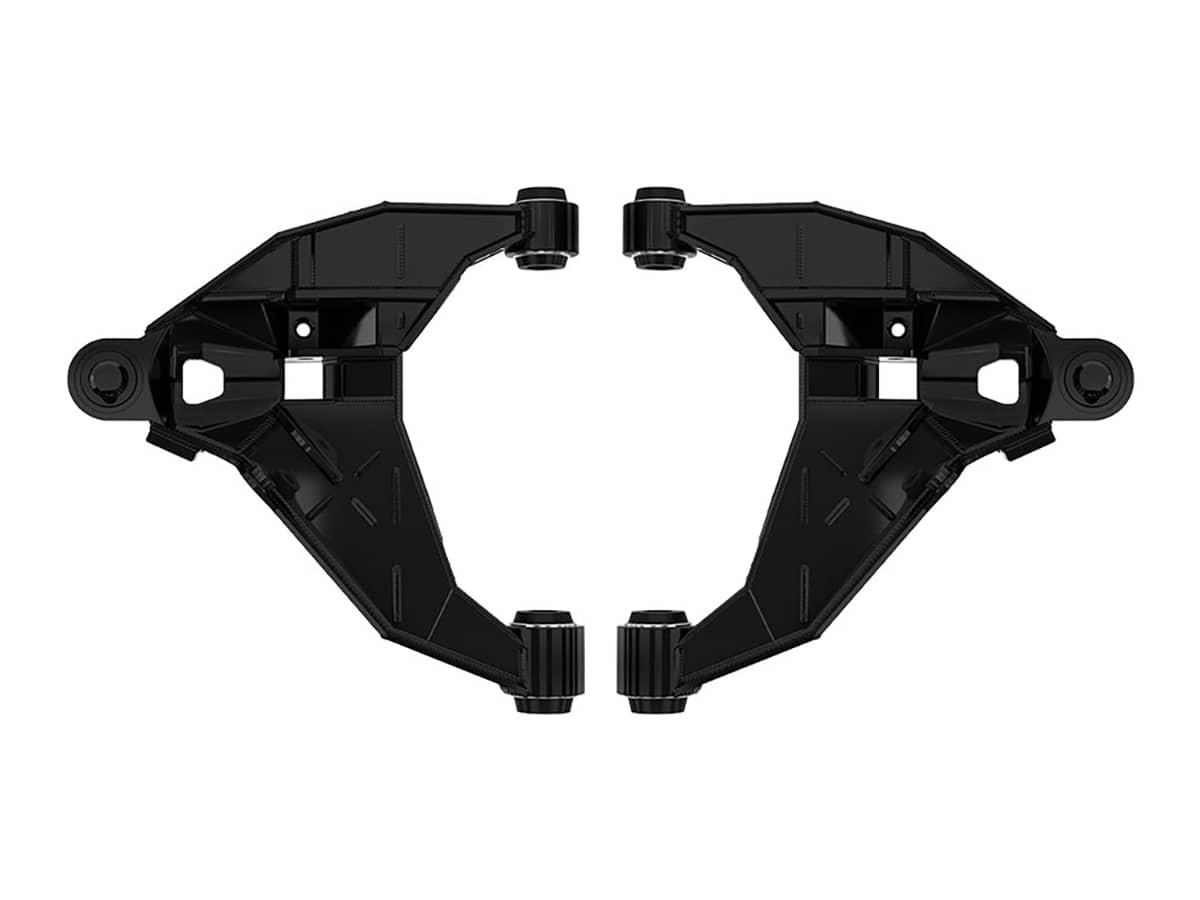

The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade. Their fully welded, boxed, CNC laser cut and brake formed steel plate construction is internally braced with multiple ribs to offer significantly improved strength over the stock Tacoma LCAs. Featuring a high ground clearance design, specially angled plates also allow the arms to easily slide over larger obstacles out on the trail. CNC machined forged steel ball joint housings maintain the highest possible ground clearance while also ensuring strength and appropriate CV boot clearance on 4WD Tacoma models. Rather than using traditional top mounted coilover mounting tabs, these LCAs utilize recessed coilover mounts, further increasing strength and provide race inspired styling. Their incorporated secondary shock mounting tabs tie seamlessly into the ICON S2 Secondary Shock System for a fully bolt-on installation of multiple secondary shock options to effectively double the shock damping ability of the front suspension and improve off-road performance. To make these arms as much at home on the street as they are on the trail, the lower ball joints are of a metal on metal and greaseable design to avoid the short service life and noises typically associated with uniballs while also being able to withstand the abuses of aggressive off-road use. The inner pivot bushings are bonded polyurethane to the outer sleeve and unbonded inner sleeve to minimize deflection and improve handling characteristics while allowing unhindered suspension movement though the entire travel range. Additionally, these specialty bushings do not require any greasing or other maintenance throughout their service life. With features like these, the ICON 2005-2023 Toyota Tacoma Lower Control Arm Kit would make an incredible addition to round out your Tacoma’s suspension system.
ICON Vehicle Dynamics 05-23 TACOMA LOWER CONTROL ARMS 54300
Specifications:
| 2330 | Yes |
| Quantity | Pair |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset |
| 1260 | Yes |
| 2354 | Performance |
| 9617 | Spring |
| Title | ICON 2005-2023 Toyota Tacoma, Front, Lower Control Arm Kit |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 59906P - S2 FRONT 2.5 OMEGA RR PAIR |
| Add-On Part | 59706CP - TOYOTA S2 SECONDARY 2.5 RR CDCV PAIR |
| Add-On Part | 59706P - TOYOTA S2 SECONDARY 2.5 VS RR PAIR |
| Add-On Part | 54302 - 05-15 TACOMA LCA HARDWARE KIT |
| Add-On Part | 56102 - 07-14 FJ/03-24 4RUNNER/05-23 TACOMA S2 SHOCK HOOP KIT |
| Add-On Part | 54301 - 16-23 TACOMA LCA HARDWARE KIT |
| 40 | No |
| 2384 | Yes |
| 2382 | Press In |
| 2383 | Threaded |
| Bushing Color | Black |
| 73 | Polyurethane |
| 2371 | Yes |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| 158 | Boxed |
| 4888 | Black |
| 2386 | Boxed |
| 2389 | Steel |
| End 1 Type | Bushing |
| End 2 Type | BALL JOINT |
| Finish | Powdercoated |
| 3390 | Performance |
| 2339 | yes |
| 10 | Steel |
| 30 | No |
| OEM Wheels & Tires Fitment | Yes |
| Description_SHO | LOWER CONTROL ARMS |
| Description_INV | 54300 |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | APPLICATION NOTE #167: 2005-2015 Tacoma also requires part # 54302 |
| Description_ASC | APPLICATION NOTE #168: 2016-2023 Tacoma also requires part # 54301 |
| Description_ASC | TECH NOTE: Fits 2005-2015 4WD and PreRunner and 2016-2023 2WD/4WD Toyota Tacoma models |
| Description_ASC | TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models |
| Description_ASC | TECH NOTE: Not compatible with OE front coilovers. Aftermarket coilovers with COM10 lower bearings are required. |
| Description_DES | 05-23 TACOMA LOWER CONTROL ARMS |
| Description_EXT | The ICON 05-23 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade. Featuring a fabricated, boxed, steel plate construction, a clearance design, and secondary shock compatibility. |
| Description_MKT | ***ADDITIONAL MODEL SPECIFIC HARDWARE KIT ALSO REQUIRED FOR INSTALL – SEE APPLICATION NOTES BELOW*** |
| Description_MKT | The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade. Their fully welded, boxed, CNC laser cut and brake formed steel plate construction is internally braced with multiple ribs to offer significantly improved strength over the stock Tacoma LCAs. Featuring a high ground clearance design, specially angled plates also allow the arms to easily slide over larger obstacles out on the trail. CNC machined forged steel ball joint housings maintain the highest possible ground clearance while also ensuring strength and appropriate CV boot clearance on 4WD Tacoma models. Rather than using traditional top mounted coilover mounting tabs, these LCAs utilize recessed coilover mounts, further increasing strength and provide race inspired styling. Their incorporated secondary shock mounting tabs tie seamlessly into the ICON S2 Secondary Shock System for a fully bolt-on installation of multiple secondary shock options to effectively double the shock damping ability of the front suspension and improve off-road performance. To make these arms as much at home on the street as they are on the trail, the lower ball joints are of a metal on metal and greaseable design to avoid the short service life and noises typically associated with uniballs while also being able to withstand the abuses of aggressive off-road use. The inner pivot bushings are bonded polyurethane to the outer sleeve and unbonded inner sleeve to minimize deflection and improve handling characteristics while allowing unhindered suspension movement though the entire travel range. Additionally, these specialty bushings do not require any greasing or other maintenance throughout their service life. With features like these, the ICON 2005-2023 Toyota Tacoma Lower Control Arm Kit would make an incredible addition to round out your Tacoma’s suspension system. |
| Description_FAB | High clearance, stock width design |
| Description_FAB | Fully welded boxed steel construction with internal ribs for maximum strength |
| Description_FAB | CNC laser cut and brake formed steel plate |
| Description_FAB | ICON secondary shock compatibility with ICON S2 Shock Hoops (sold separately) |
| Description_FAB | Recessed coilover mounting points |
| Description_FAB | Pocketed lower plates allow drainage and easy access to coilover mounting hardware |
| Description_FAB | Angled front plates and relocated steering stops help arms slide over obstacles and prevent trail hang ups |
| Description_FAB | CNC machined forged ball joint housings ensure strength and CV boot clearance |
| Description_FAB | Metal on metal, greaseable lower ball joints for longevity and noise free operation |
| Description_FAB | Maintenance free bonded polyurethane bushings |
| Description_FAB | Semi-gloss black powder coat finish for corrosion resistance |
| Description_FAB | Fabricated components covered by ICON’s Limited Lifetime Warranty |
| Description_TLE | ICON 2005-2023 Toyota Tacoma, Front, Lower Control Arm Kit |
| Description_APS | ICON 05-23 TACOMA LOWER CONTROL ARMS |
| Description_DEF | Suspension Control Arm Kit |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2016 | Toyota | Tacoma | ||
| 2017 | Toyota | Tacoma | ||
| 2018 | Toyota | Tacoma | ||
| 2019 | Toyota | Tacoma | ||
| 2020 | Toyota | Tacoma | ||
| 2021 | Toyota | Tacoma | ||
| 2022 | Toyota | Tacoma | ||
| 2023 | Toyota | Tacoma | ||
| 2005 | Toyota | Tacoma | Base | |
| 2006 | Toyota | Tacoma | Base | |
| 2007 | Toyota | Tacoma | Base | |
| 2008 | Toyota | Tacoma | Base | |
| 2009 | Toyota | Tacoma | Base | |
| 2010 | Toyota | Tacoma | Base | |
| 2011 | Toyota | Tacoma | Base | |
| 2012 | Toyota | Tacoma | Base | |
| 2013 | Toyota | Tacoma | Base | |
| 2014 | Toyota | Tacoma | Base | |
| 2015 | Toyota | Tacoma | Base | |
| 2006 | Toyota | Tacoma | Base Prerunner | |
| 2005 | Toyota | Tacoma | Pre Runner | |
| 2006 | Toyota | Tacoma | Pre Runner | |
| 2007 | Toyota | Tacoma | Pre Runner | |
| 2008 | Toyota | Tacoma | Pre Runner | |
| 2009 | Toyota | Tacoma | Pre Runner | |
| 2010 | Toyota | Tacoma | Pre Runner | |
| 2011 | Toyota | Tacoma | Pre Runner | |
| 2012 | Toyota | Tacoma | Pre Runner | |
| 2013 | Toyota | Tacoma | Pre Runner | |
| 2014 | Toyota | Tacoma | Pre Runner | |
| 2015 | Toyota | Tacoma | Pre Runner | |
| 2006 | Toyota | Tacoma | SR5 Prerunner | |
| 2007 | Toyota | Tacoma | SR5 Prerunner | |
| 2008 | Toyota | Tacoma | SR5 Prerunner | |
| 2009 | Toyota | Tacoma | SR5 Prerunner | |
| 2015 | Toyota | Tacoma | TRD Pro | |
| 2010 | Toyota | Tacoma | TRD Sport | |
| 2011 | Toyota | Tacoma | TRD Sport | |
| 2012 | Toyota | Tacoma | TRD Sport | |
| 2013 | Toyota | Tacoma | TRD Sport | |
| 2014 | Toyota | Tacoma | TRD Sport | |
| 2015 | Toyota | Tacoma | TRD Sport | |
| 2006 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2007 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2008 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2009 | Toyota | Tacoma | TRD Sport Prerunner |
