*item may differ from images

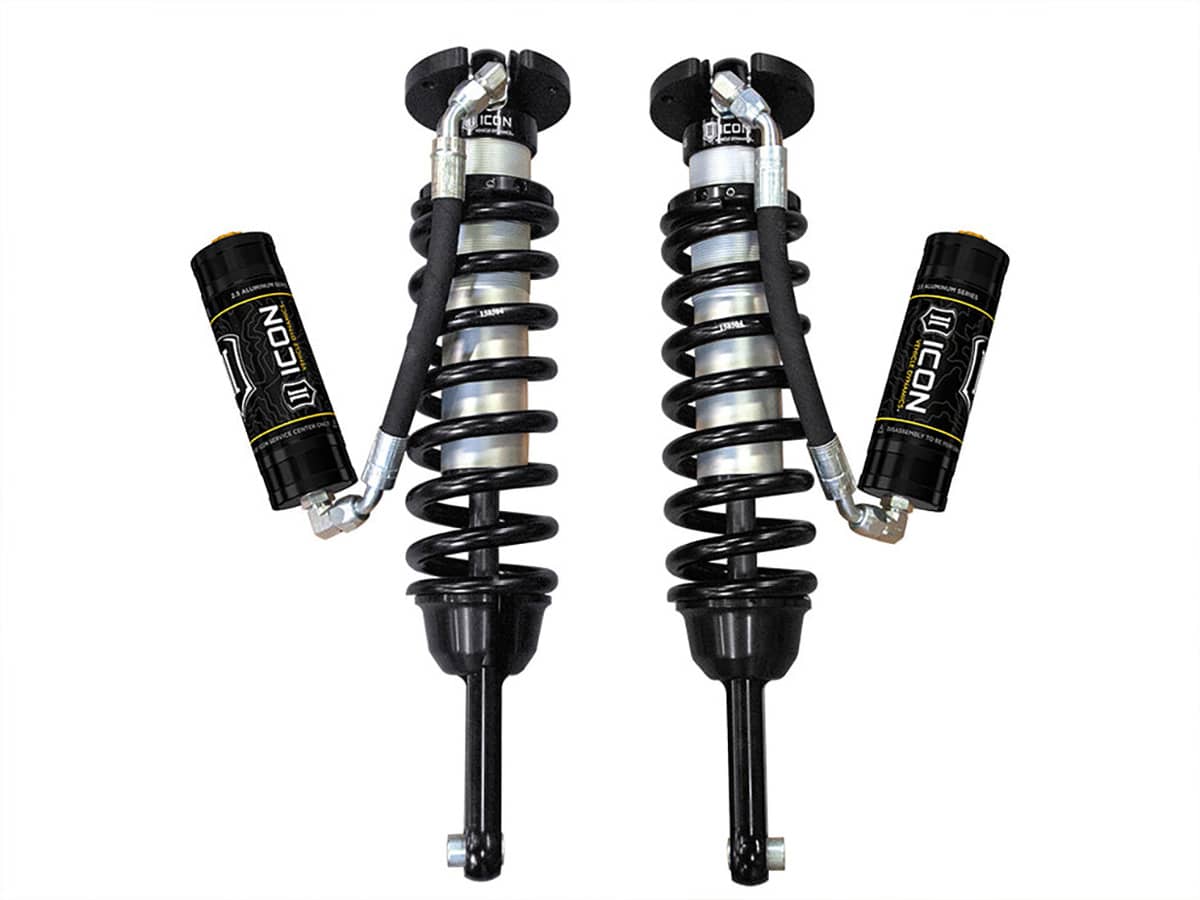

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
ICON Vehicle Dynamics 05-23 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 58735
Specifications:
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping | NO |
| 2917 | yes |
| 52 | 2.5 |
| 50 | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Damping Type | Oil |
| Dust Shield | No |
| 8703 | No |
| 51 | yes |
| 3390 | Performance |
| 48 | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3.5 |
| Minimum Lift | 0 |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | Recommended Aftermarket Tires: 33" x 11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| 9476 | Yes |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter | 0.875 |
| 409 | Top of Upper Mount Plate |
| 408 | Center of Eylet |
| Spring Color | Black |
| 2064 | Steel |
| 1078 | 650 |
| Spring Rate Type | Linear |
| Title | ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Remote Reservoir Coilover Kit |
| 49 | Mounting Plate |
| Description_SHO | TACOMA COILOVERS |
| Description_INV | 58735 |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only |
| Description_ASC | APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles |
| Description_ASC | APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle |
| Description_ASC | APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75” |
| Description_ASC | APPLICATION NOTE #110: Trimming Required For Recommended Tire Size |
| Description_ASC | APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum |
| Description_ASC | TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models |
| Description_ASC | TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock |
| Description_ASC | TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock |
| Description_DES | 05-23 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT |
| Description_EXT | These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the addition of aftermarket upper control arms. They feature remote reservoirs, are vehicle specific, 100% rebuildable, and 100% revalveable. |
| Description_MKT | ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. |
| Description_FAB | Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model |
| Description_FAB | Vehicle specific tuned for superior shock damping and control |
| Description_FAB | Extended Travel length requires installation of aftermarket front upper control arms |
| Description_FAB | Kit Includes Sway bar relocation brackets |
| Description_FAB | Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance |
| Description_FAB | CAD-plated threaded body |
| Description_FAB | Billet aluminum upper mount |
| Description_FAB | 5/8" PTFE-lined spherical bearing |
| Description_FAB | Completely re-buildable |
| Description_FAB | Hose Length Optimized for Increased Fluid Transfer |
| Description_FAB | External Reservoirs Ensures Maximum Cooling |
| Description_FAB | ICON engineered coil springs |
| Description_TLE | ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Remote Reservoir Coilover Kit |
| Description_APS | ICON 05-23 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT |
| Description_DEF | Coilover Spring and Shock Assembly |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Hilux | ||
| 2006 | Toyota | Hilux | ||
| 2007 | Toyota | Hilux | ||
| 2008 | Toyota | Hilux | ||
| 2009 | Toyota | Hilux | ||
| 2010 | Toyota | Hilux | ||
| 2011 | Toyota | Hilux | ||
| 2012 | Toyota | Hilux | ||
| 2013 | Toyota | Hilux | ||
| 2014 | Toyota | Hilux | ||
| 2015 | Toyota | Hilux | ||
| 2016 | Toyota | Hilux | ||
| 2017 | Toyota | Hilux | ||
| 2018 | Toyota | Hilux | ||
| 2019 | Toyota | Hilux | ||
| 2020 | Toyota | Hilux | ||
| 2021 | Toyota | Hilux | ||
| 2022 | Toyota | Hilux | ||
| 2023 | Toyota | Hilux | ||
| 2006 | Toyota | Tacoma | Base Prerunner | |
| 2016 | Toyota | Tacoma | Edicion Especial | |
| 2017 | Toyota | Tacoma | Edicion Especial | |
| 2018 | Toyota | Tacoma | Edicion Especial | |
| 2019 | Toyota | Tacoma | Edicion Especial | |
| 2020 | Toyota | Tacoma | Edicion Especial | |
| 2021 | Toyota | Tacoma | Edicion Especial | |
| 2022 | Toyota | Tacoma | Edicion Especial | |
| 2023 | Toyota | Tacoma | Edicion Especial | |
| 2016 | Toyota | Tacoma | Limited | |
| 2017 | Toyota | Tacoma | Limited | |
| 2018 | Toyota | Tacoma | Limited | |
| 2019 | Toyota | Tacoma | Limited | |
| 2020 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Limited | |
| 2022 | Toyota | Tacoma | Limited | |
| 2023 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Nightshade | |
| 2022 | Toyota | Tacoma | Nightshade | |
| 2023 | Toyota | Tacoma | Nightshade | |
| 2005 | Toyota | Tacoma | Pre Runner | |
| 2006 | Toyota | Tacoma | Pre Runner | |
| 2007 | Toyota | Tacoma | Pre Runner | |
| 2008 | Toyota | Tacoma | Pre Runner | |
| 2009 | Toyota | Tacoma | Pre Runner | |
| 2010 | Toyota | Tacoma | Pre Runner | |
| 2011 | Toyota | Tacoma | Pre Runner | |
| 2012 | Toyota | Tacoma | Pre Runner | |
| 2013 | Toyota | Tacoma | Pre Runner | |
| 2014 | Toyota | Tacoma | Pre Runner | |
| 2015 | Toyota | Tacoma | Pre Runner | |
| 2017 | Toyota | Tacoma | Sport | |
| 2018 | Toyota | Tacoma | Sport | |
| 2019 | Toyota | Tacoma | Sport | |
| 2020 | Toyota | Tacoma | Sport | |
| 2021 | Toyota | Tacoma | Sport | |
| 2022 | Toyota | Tacoma | Sport | |
| 2023 | Toyota | Tacoma | Sport | |
| 2016 | Toyota | Tacoma | SR | |
| 2017 | Toyota | Tacoma | SR | |
| 2018 | Toyota | Tacoma | SR | |
| 2019 | Toyota | Tacoma | SR | |
| 2020 | Toyota | Tacoma | SR | |
| 2021 | Toyota | Tacoma | SR | |
| 2022 | Toyota | Tacoma | SR | |
| 2023 | Toyota | Tacoma | SR | |
| 2016 | Toyota | Tacoma | SR5 | |
| 2017 | Toyota | Tacoma | SR5 | |
| 2018 | Toyota | Tacoma | SR5 | |
| 2019 | Toyota | Tacoma | SR5 | |
| 2020 | Toyota | Tacoma | SR5 | |
| 2021 | Toyota | Tacoma | SR5 | |
| 2022 | Toyota | Tacoma | SR5 | |
| 2023 | Toyota | Tacoma | SR5 | |
| 2006 | Toyota | Tacoma | SR5 Prerunner | |
| 2007 | Toyota | Tacoma | SR5 Prerunner | |
| 2008 | Toyota | Tacoma | SR5 Prerunner | |
| 2009 | Toyota | Tacoma | SR5 Prerunner | |
| 2021 | Toyota | Tacoma | Trail | |
| 2022 | Toyota | Tacoma | Trail | |
| 2023 | Toyota | Tacoma | Trail Special Edition | |
| 2016 | Toyota | Tacoma | TRD Off-Road | |
| 2017 | Toyota | Tacoma | TRD Off-Road | |
| 2018 | Toyota | Tacoma | TRD Off-Road | |
| 2019 | Toyota | Tacoma | TRD Off-Road | |
| 2020 | Toyota | Tacoma | TRD Off-Road | |
| 2021 | Toyota | Tacoma | TRD Off-Road | |
| 2022 | Toyota | Tacoma | TRD Off-Road | |
| 2023 | Toyota | Tacoma | TRD Off-Road | |
| 2010 | Toyota | Tacoma | TRD Sport | |
| 2011 | Toyota | Tacoma | TRD Sport | |
| 2012 | Toyota | Tacoma | TRD Sport | |
| 2013 | Toyota | Tacoma | TRD Sport | |
| 2014 | Toyota | Tacoma | TRD Sport | |
| 2015 | Toyota | Tacoma | TRD Sport | |
| 2016 | Toyota | Tacoma | TRD Sport | |
| 2017 | Toyota | Tacoma | TRD Sport | |
| 2018 | Toyota | Tacoma | TRD Sport | |
| 2019 | Toyota | Tacoma | TRD Sport | |
| 2020 | Toyota | Tacoma | TRD Sport | |
| 2021 | Toyota | Tacoma | TRD Sport | |
| 2022 | Toyota | Tacoma | TRD Sport | |
| 2023 | Toyota | Tacoma | TRD Sport | |
| 2006 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2007 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2008 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2009 | Toyota | Tacoma | TRD Sport Prerunner |
