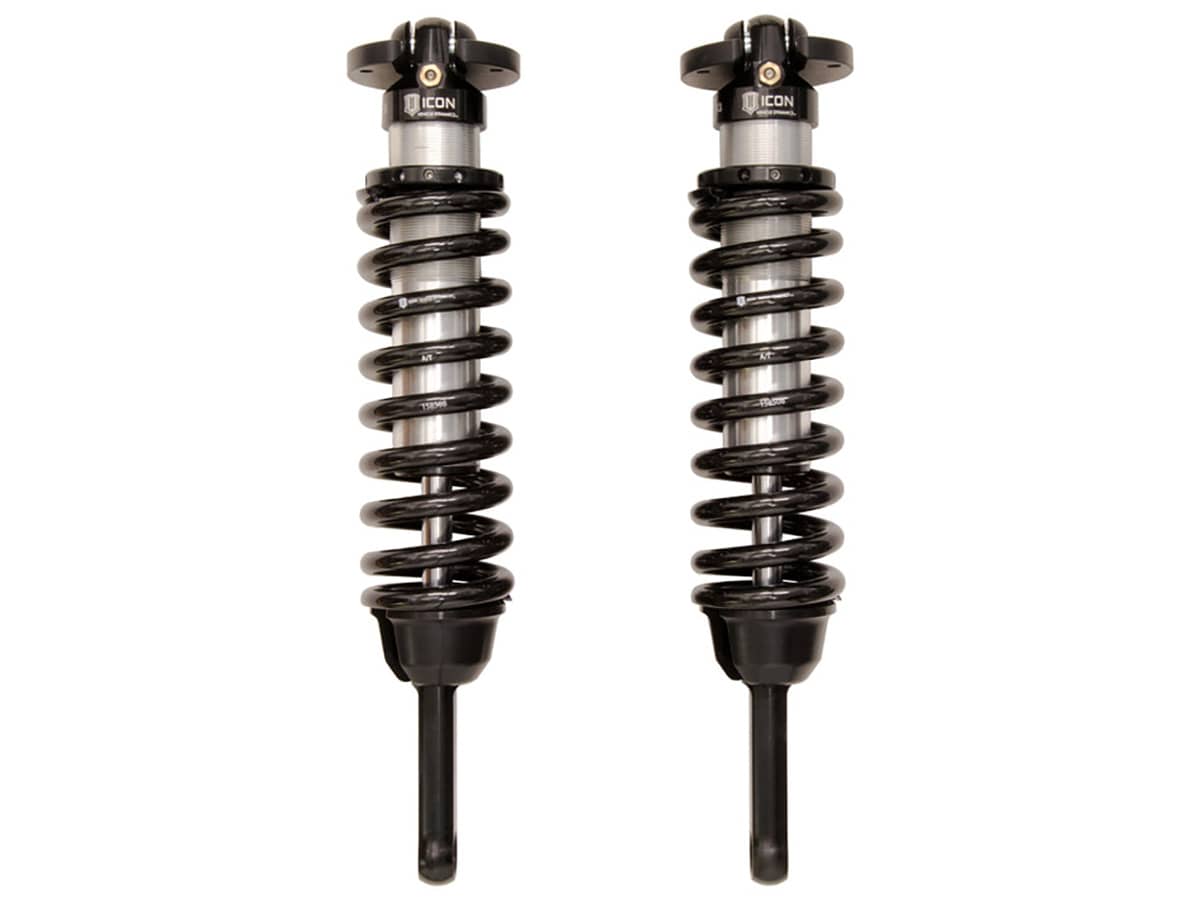

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
ICON Vehicle Dynamics 05-23 TACOMA 2.5 VS IR COILOVER KIT 58630
Specifications:
| 3390 | Performance |
| 48 | Eyelet |
| Material | Aluminum |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Shaft Diameter | 0.875 |
| 409 | Top of Upper Mount Plate |
| 408 | Center of Eylet |
| Spring Color | Black |
| 2064 | Steel |
| 1078 | 650 |
| Title | ICON 2005-2023 Toyota Tacoma, 2.5 VS Coilover Kit, Internal Reservoir |
| 49 | Mounting Plate |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping | NO |
| 2917 | yes |
| 52 | 2.5 |
| 50 | No |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Damping Type | Oil |
| 51 | yes |
| Description_SHO | TACOMA COILOVERS |
| Description_INV | 58630 |
| Description_ASC | OEM Wheels & Tires Fitment: Yes |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset |
| Description_ASC | Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC | APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles |
| Description_ASC | APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle |
| Description_ASC | APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75” |
| Description_ASC | APPLICATION NOTE #110: Trimming Required For Recommended Tire Size |
| Description_ASC | APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum |
| Description_ASC | TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models |
| Description_ASC | TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock |
| Description_ASC | TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock |
| Description_DES | 05-23 TACOMA 2.5 VS IR COILOVER KIT |
| Description_EXT | These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain. |
| Description_MKT | ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. |
| Description_FAB | Increased wheel travel and improved ride quality over stock |
| Description_FAB | Vehicle specific tuned for superior shock damping and control |
| Description_FAB | Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model |
| Description_FAB | ICON engineered coil springs |
| Description_FAB | 6061 Aircraft grade aluminum CNC machined components |
| Description_FAB | Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts |
| Description_FAB | FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB | Fully rebuildable and re-tunable |
| Description_TLE | ICON 2005-2023 Toyota Tacoma, 2.5 VS Coilover Kit, Internal Reservoir |
| Description_APS | ICON 05-23 TACOMA 2.5 VS IR COILOVER KIT |
| Description_DEF | Coilover Spring and Shock Assembly |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Hilux | ||
| 2006 | Toyota | Hilux | ||
| 2007 | Toyota | Hilux | ||
| 2008 | Toyota | Hilux | ||
| 2009 | Toyota | Hilux | ||
| 2010 | Toyota | Hilux | ||
| 2011 | Toyota | Hilux | ||
| 2012 | Toyota | Hilux | ||
| 2013 | Toyota | Hilux | ||
| 2014 | Toyota | Hilux | ||
| 2015 | Toyota | Hilux | ||
| 2016 | Toyota | Hilux | ||
| 2017 | Toyota | Hilux | ||
| 2018 | Toyota | Hilux | ||
| 2019 | Toyota | Hilux | ||
| 2020 | Toyota | Hilux | ||
| 2021 | Toyota | Hilux | ||
| 2022 | Toyota | Hilux | ||
| 2023 | Toyota | Hilux | ||
| 2006 | Toyota | Tacoma | Base Prerunner | |
| 2016 | Toyota | Tacoma | Edicion Especial | |
| 2017 | Toyota | Tacoma | Edicion Especial | |
| 2018 | Toyota | Tacoma | Edicion Especial | |
| 2019 | Toyota | Tacoma | Edicion Especial | |
| 2020 | Toyota | Tacoma | Edicion Especial | |
| 2021 | Toyota | Tacoma | Edicion Especial | |
| 2022 | Toyota | Tacoma | Edicion Especial | |
| 2023 | Toyota | Tacoma | Edicion Especial | |
| 2016 | Toyota | Tacoma | Limited | |
| 2017 | Toyota | Tacoma | Limited | |
| 2018 | Toyota | Tacoma | Limited | |
| 2019 | Toyota | Tacoma | Limited | |
| 2020 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Limited | |
| 2022 | Toyota | Tacoma | Limited | |
| 2023 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Nightshade | |
| 2022 | Toyota | Tacoma | Nightshade | |
| 2023 | Toyota | Tacoma | Nightshade | |
| 2005 | Toyota | Tacoma | Pre Runner | |
| 2006 | Toyota | Tacoma | Pre Runner | |
| 2007 | Toyota | Tacoma | Pre Runner | |
| 2008 | Toyota | Tacoma | Pre Runner | |
| 2009 | Toyota | Tacoma | Pre Runner | |
| 2010 | Toyota | Tacoma | Pre Runner | |
| 2011 | Toyota | Tacoma | Pre Runner | |
| 2012 | Toyota | Tacoma | Pre Runner | |
| 2013 | Toyota | Tacoma | Pre Runner | |
| 2014 | Toyota | Tacoma | Pre Runner | |
| 2015 | Toyota | Tacoma | Pre Runner | |
| 2017 | Toyota | Tacoma | Sport | |
| 2018 | Toyota | Tacoma | Sport | |
| 2019 | Toyota | Tacoma | Sport | |
| 2020 | Toyota | Tacoma | Sport | |
| 2021 | Toyota | Tacoma | Sport | |
| 2022 | Toyota | Tacoma | Sport | |
| 2023 | Toyota | Tacoma | Sport | |
| 2016 | Toyota | Tacoma | SR | |
| 2017 | Toyota | Tacoma | SR | |
| 2018 | Toyota | Tacoma | SR | |
| 2019 | Toyota | Tacoma | SR | |
| 2020 | Toyota | Tacoma | SR | |
| 2021 | Toyota | Tacoma | SR | |
| 2022 | Toyota | Tacoma | SR | |
| 2023 | Toyota | Tacoma | SR | |
| 2016 | Toyota | Tacoma | SR5 | |
| 2017 | Toyota | Tacoma | SR5 | |
| 2018 | Toyota | Tacoma | SR5 | |
| 2019 | Toyota | Tacoma | SR5 | |
| 2020 | Toyota | Tacoma | SR5 | |
| 2021 | Toyota | Tacoma | SR5 | |
| 2022 | Toyota | Tacoma | SR5 | |
| 2023 | Toyota | Tacoma | SR5 | |
| 2006 | Toyota | Tacoma | SR5 Prerunner | |
| 2007 | Toyota | Tacoma | SR5 Prerunner | |
| 2008 | Toyota | Tacoma | SR5 Prerunner | |
| 2009 | Toyota | Tacoma | SR5 Prerunner | |
| 2021 | Toyota | Tacoma | Trail | |
| 2022 | Toyota | Tacoma | Trail | |
| 2023 | Toyota | Tacoma | Trail Special Edition | |
| 2016 | Toyota | Tacoma | TRD Off-Road | |
| 2017 | Toyota | Tacoma | TRD Off-Road | |
| 2018 | Toyota | Tacoma | TRD Off-Road | |
| 2019 | Toyota | Tacoma | TRD Off-Road | |
| 2020 | Toyota | Tacoma | TRD Off-Road | |
| 2021 | Toyota | Tacoma | TRD Off-Road | |
| 2022 | Toyota | Tacoma | TRD Off-Road | |
| 2023 | Toyota | Tacoma | TRD Off-Road | |
| 2010 | Toyota | Tacoma | TRD Sport | |
| 2011 | Toyota | Tacoma | TRD Sport | |
| 2012 | Toyota | Tacoma | TRD Sport | |
| 2013 | Toyota | Tacoma | TRD Sport | |
| 2014 | Toyota | Tacoma | TRD Sport | |
| 2015 | Toyota | Tacoma | TRD Sport | |
| 2016 | Toyota | Tacoma | TRD Sport | |
| 2017 | Toyota | Tacoma | TRD Sport | |
| 2018 | Toyota | Tacoma | TRD Sport | |
| 2019 | Toyota | Tacoma | TRD Sport | |
| 2020 | Toyota | Tacoma | TRD Sport | |
| 2021 | Toyota | Tacoma | TRD Sport | |
| 2022 | Toyota | Tacoma | TRD Sport | |
| 2023 | Toyota | Tacoma | TRD Sport | |
| 2006 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2007 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2008 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2009 | Toyota | Tacoma | TRD Sport Prerunner |
