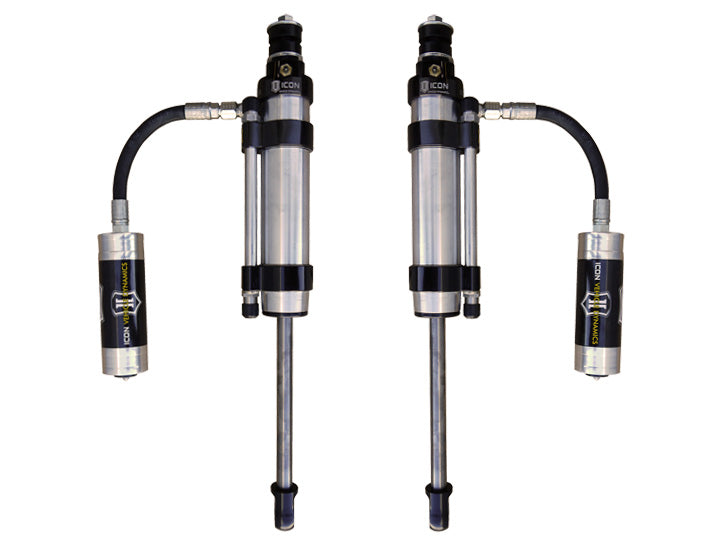

*item may differ from images
ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
ICON Vehicle Dynamics 05-23 TACOMA 0-1.5" REAR 2.5 OMEGA RR PAIR 59905P
Specifications:
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Damping | Yes |
| 50 | NO |
| 905 | 2.25 |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color | Gray |
| Cylinder Diameter | 2.5 |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| External Reservoir | Yes |
| 51 | Yes |
| 3390 | Performance |
| 48 | EYELET |
| 30 | Yes |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 611006 - 9/16 HD STEM BUSHING KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Shaft Diameter | 0.875 |
| Shaft Material | Chrome |
| 409 | Shoulder of Stem |
| 408 | Center of Eylet |
| Title | ICON 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, 2.5 Omega Bypass Remote Reservoir Shocks, Pair |
| 359 | 2.5 |
| 49 | Stem |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Description_SHO | SHOCK ABSORBER PAIR |
| Description_INV | 59905P |
| Description_ASC | TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models |
| Description_ASC | TECH NOTE: Compatible with 0-1.5" of rear lift over stock |
| Description_DES | 05-23 TACOMA 0-1.5" REAR 2.5 OMEGA RR PAIR |
| Description_EXT | ICON Omega Bypass shocks are designed to give your vehicle outstanding performance on and off-road. They are configured specifically for each application and allow the user to customize the ride through adjustment of the bypass valves. |
| Description_MKT | ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required. |
| Description_FAB | ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range |
| Description_FAB | Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning |
| Description_FAB | Bypass tubes are replaceable in the event of damage |
| Description_FAB | Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression |
| Description_FAB | Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB | Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB | One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB | 7/8” diameter induction hardened, chrome plated shock shaft |
| Description_FAB | Polyurethane bushings and forged steel mounting stems for OE factory type fitment |
| Description_FAB | PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB | 6061 aircraft grade aluminum CNC machined components |
| Description_FAB | One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB | 100% Rebuildable |
| Description_FAB | 100% Revalveable |
| Description_TLE | ICON 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, 2.5 Omega Bypass Remote Reservoir Shocks, Pair |
| Description_APS | ICON 05-23 TACOMA 0-1.5" REAR 2.5 OMEGA RR PAIR |
| Description_DEF | Suspension Shock Absorber Set |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2006 | Toyota | Tacoma | Base Prerunner | |
| 2016 | Toyota | Tacoma | Edicion Especial | |
| 2017 | Toyota | Tacoma | Edicion Especial | |
| 2018 | Toyota | Tacoma | Edicion Especial | |
| 2019 | Toyota | Tacoma | Edicion Especial | |
| 2020 | Toyota | Tacoma | Edicion Especial | |
| 2021 | Toyota | Tacoma | Edicion Especial | |
| 2022 | Toyota | Tacoma | Edicion Especial | |
| 2023 | Toyota | Tacoma | Edicion Especial | |
| 2016 | Toyota | Tacoma | Limited | |
| 2017 | Toyota | Tacoma | Limited | |
| 2018 | Toyota | Tacoma | Limited | |
| 2019 | Toyota | Tacoma | Limited | |
| 2020 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Limited | |
| 2022 | Toyota | Tacoma | Limited | |
| 2023 | Toyota | Tacoma | Limited | |
| 2021 | Toyota | Tacoma | Nightshade | |
| 2022 | Toyota | Tacoma | Nightshade | |
| 2023 | Toyota | Tacoma | Nightshade | |
| 2005 | Toyota | Tacoma | Pre Runner | |
| 2006 | Toyota | Tacoma | Pre Runner | |
| 2007 | Toyota | Tacoma | Pre Runner | |
| 2008 | Toyota | Tacoma | Pre Runner | |
| 2009 | Toyota | Tacoma | Pre Runner | |
| 2010 | Toyota | Tacoma | Pre Runner | |
| 2011 | Toyota | Tacoma | Pre Runner | |
| 2012 | Toyota | Tacoma | Pre Runner | |
| 2013 | Toyota | Tacoma | Pre Runner | |
| 2014 | Toyota | Tacoma | Pre Runner | |
| 2015 | Toyota | Tacoma | Pre Runner | |
| 2017 | Toyota | Tacoma | Sport | |
| 2018 | Toyota | Tacoma | Sport | |
| 2019 | Toyota | Tacoma | Sport | |
| 2020 | Toyota | Tacoma | Sport | |
| 2021 | Toyota | Tacoma | Sport | |
| 2022 | Toyota | Tacoma | Sport | |
| 2023 | Toyota | Tacoma | Sport | |
| 2016 | Toyota | Tacoma | SR | |
| 2017 | Toyota | Tacoma | SR | |
| 2018 | Toyota | Tacoma | SR | |
| 2019 | Toyota | Tacoma | SR | |
| 2020 | Toyota | Tacoma | SR | |
| 2021 | Toyota | Tacoma | SR | |
| 2022 | Toyota | Tacoma | SR | |
| 2023 | Toyota | Tacoma | SR | |
| 2016 | Toyota | Tacoma | SR5 | |
| 2017 | Toyota | Tacoma | SR5 | |
| 2018 | Toyota | Tacoma | SR5 | |
| 2019 | Toyota | Tacoma | SR5 | |
| 2020 | Toyota | Tacoma | SR5 | |
| 2021 | Toyota | Tacoma | SR5 | |
| 2022 | Toyota | Tacoma | SR5 | |
| 2023 | Toyota | Tacoma | SR5 | |
| 2006 | Toyota | Tacoma | SR5 Prerunner | |
| 2007 | Toyota | Tacoma | SR5 Prerunner | |
| 2008 | Toyota | Tacoma | SR5 Prerunner | |
| 2009 | Toyota | Tacoma | SR5 Prerunner | |
| 2021 | Toyota | Tacoma | Trail | |
| 2022 | Toyota | Tacoma | Trail | |
| 2023 | Toyota | Tacoma | Trail Special Edition | |
| 2016 | Toyota | Tacoma | TRD Off-Road | |
| 2017 | Toyota | Tacoma | TRD Off-Road | |
| 2018 | Toyota | Tacoma | TRD Off-Road | |
| 2019 | Toyota | Tacoma | TRD Off-Road | |
| 2020 | Toyota | Tacoma | TRD Off-Road | |
| 2021 | Toyota | Tacoma | TRD Off-Road | |
| 2022 | Toyota | Tacoma | TRD Off-Road | |
| 2023 | Toyota | Tacoma | TRD Off-Road | |
| 2010 | Toyota | Tacoma | TRD Sport | |
| 2011 | Toyota | Tacoma | TRD Sport | |
| 2012 | Toyota | Tacoma | TRD Sport | |
| 2013 | Toyota | Tacoma | TRD Sport | |
| 2014 | Toyota | Tacoma | TRD Sport | |
| 2015 | Toyota | Tacoma | TRD Sport | |
| 2016 | Toyota | Tacoma | TRD Sport | |
| 2017 | Toyota | Tacoma | TRD Sport | |
| 2018 | Toyota | Tacoma | TRD Sport | |
| 2019 | Toyota | Tacoma | TRD Sport | |
| 2020 | Toyota | Tacoma | TRD Sport | |
| 2021 | Toyota | Tacoma | TRD Sport | |
| 2022 | Toyota | Tacoma | TRD Sport | |
| 2023 | Toyota | Tacoma | TRD Sport | |
| 2006 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2007 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2008 | Toyota | Tacoma | TRD Sport Prerunner | |
| 2009 | Toyota | Tacoma | TRD Sport Prerunner |
