ICON 23-24 Toyota Sequoia TRD PRO 2.5in Stage 10 Suspension System - Billet

MyPartsGuy SKU: ICOK53400
ICON
$13,201.41 CAD
$13,201.41 CAD

✓ CAD pricing ✓ No duties ✓ No brokerage fees
✓ Authorized dealer ✓ Warranty honoured

Oversize / Overweight Items Will Be Assessed a Surcharge

Available Items Are Processed and Leave Ottawa Warehouse In 3-10 Business Days depending on if a STORE TRANSFER was required. Some Items may take longer.

This is a special order part. We will order it for you from the manufacturer. Special orders can take 2-8++ weeks. Contact us if you have a deadline.➀

🗙

What does "Special Ordered" mean?

This means that we do not have the product in our warehouse. We only order "Special Order" products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items.

"Special Order" products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process."

✓ CAD pricing ✓ No duties ✓ No brokerage fees ✓ Authorized dealer ✓ Warranty honoured

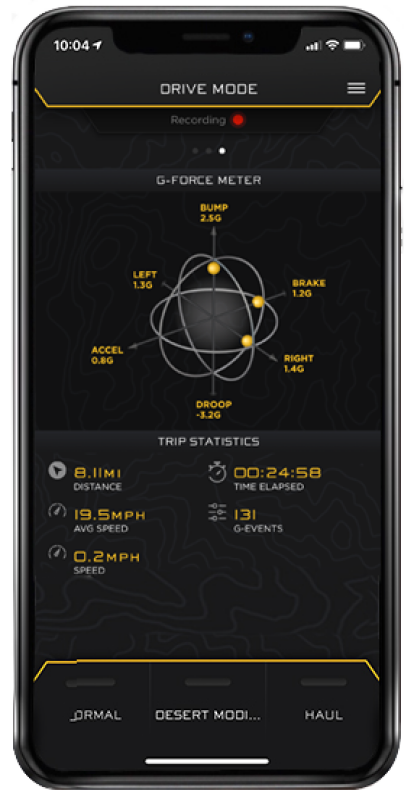

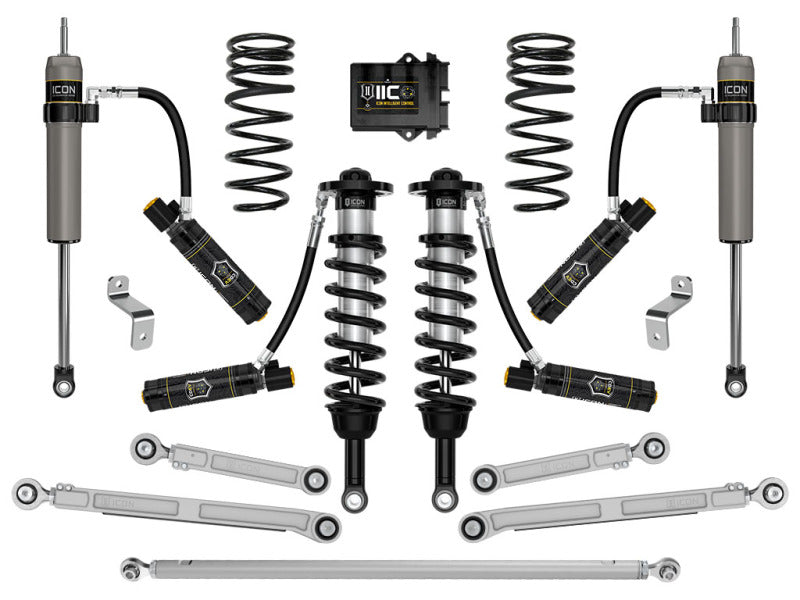

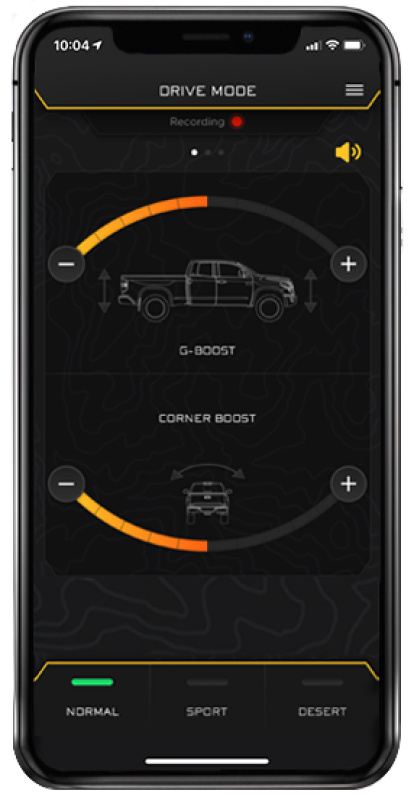

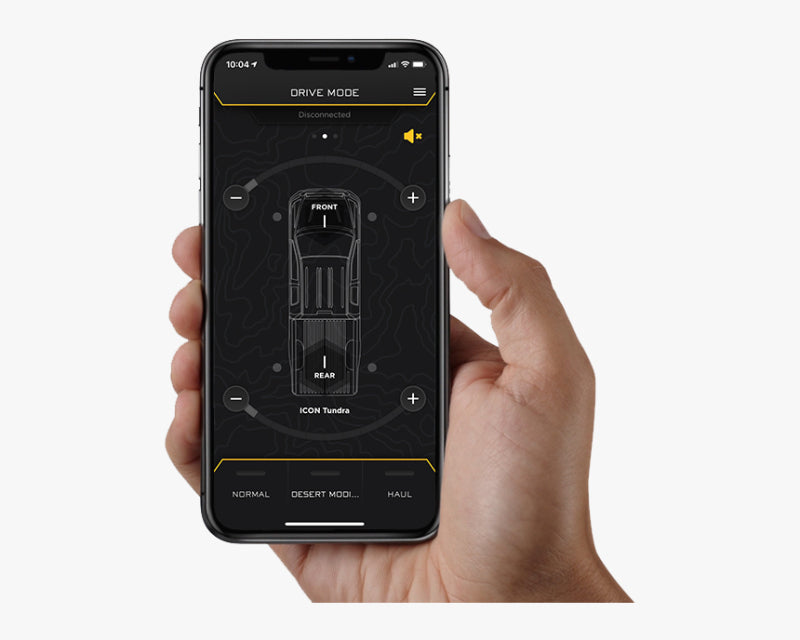

The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2023-2026 Toyota Sequoia TRD Pro is specifically designed to retain the stock billet aluminum front upper control arms found on Sequoia TRD Pro while providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features 2.5 Series remote reservoir coilover shocks with CDEV for the front of the truck along with dual rate coil springs, billet rear upper and lower links, adjusable rear track bar, and our proven 2.5 Aluminum Series shocks with remote reservoirs and CDEV for the rear. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
  • On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
  • 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
  • Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
  • Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
  • Allows for increased wheel travel without overstressing OE components
  • Adjustable front ride heights from 1-2.5” of front lift over stock
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • Vehicle specific design for 2023-2026 Toyota Sequoia TRD Pro

This Part Fits:

Year Make Model Submodel
2023-2026 Toyota Sequoia TRD Pro
