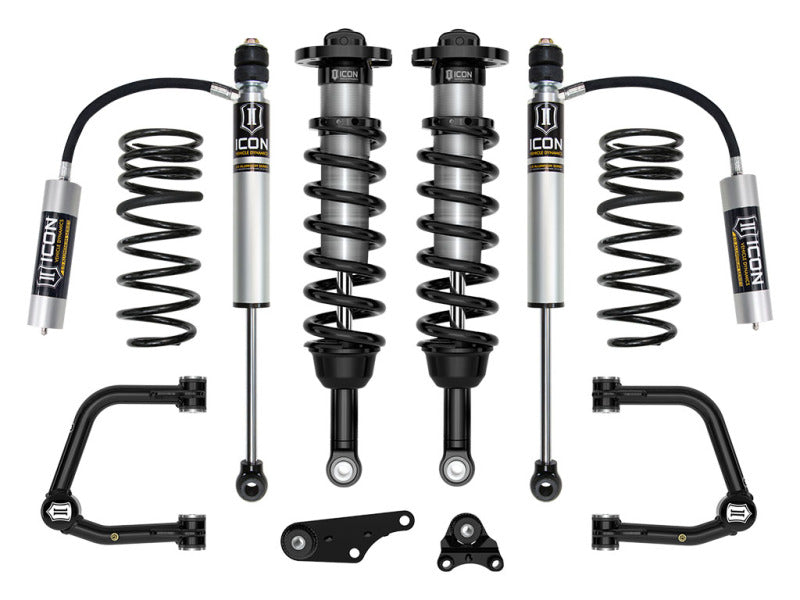

ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series remote reservoir rear shocks provide improved cooling ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Installation Instructions- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
- Adjustable coilovers provide 1.25-3" front lift height over stock
- Increased wheel travel and improved ride quality over stock
- 6061 aircraft grade aluminum CNC machined components
- ICON engineered front and rear coil springs
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024 | Toyota | Tacoma | Limited |
| 2024-2025 | Toyota | Tacoma | SR5 |
| 2024-2025 | Toyota | Tacoma | TRD Off-Road |
| 2024-2025 | Toyota | Tacoma | TRD Sport |
