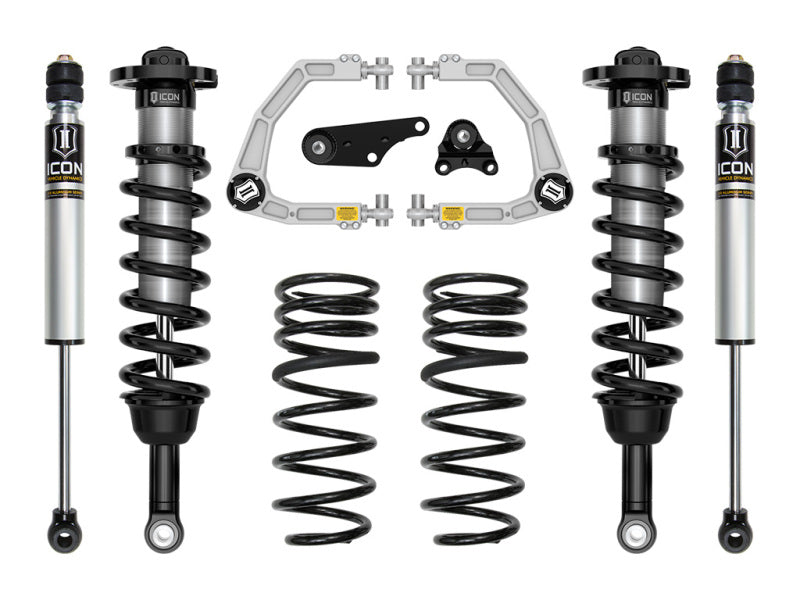

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Land Cruiser with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Land Cruiser 250 Series Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
- Adjustable coilovers provide 1.25-3" front lift height over stock
- FK Rod End bearings for extended longevity and minimal deflection
- Increased wheel travel and improved ride quality over stock
- 6061 aircraft grade aluminum CNC machined components
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024-2026 | Toyota | Land Cruiser | 1958 |
| 2024-2026 | Toyota | Land Cruiser | Base |
| 2024 | Toyota | Land Cruiser | First Edition |
