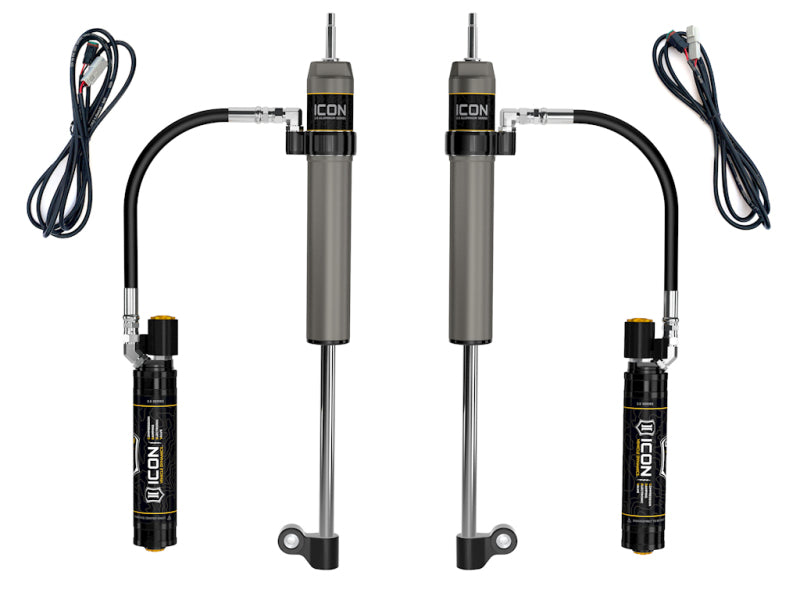

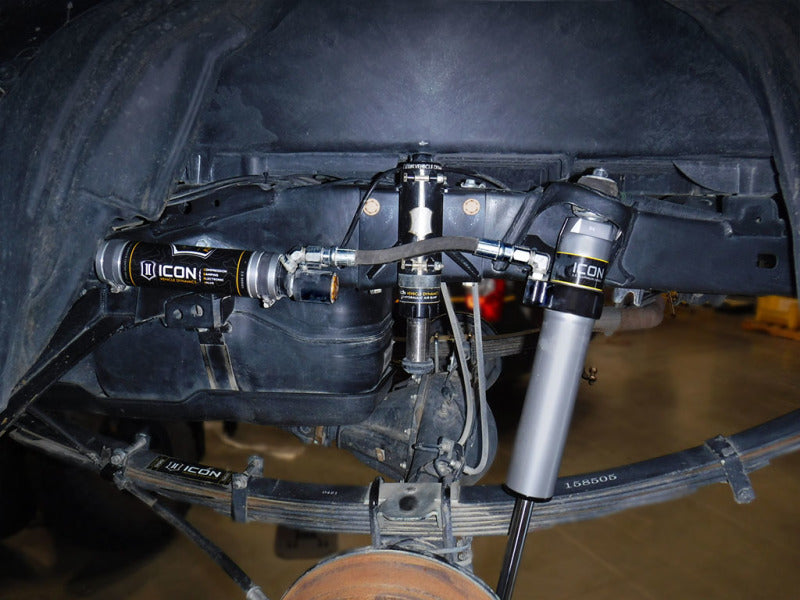

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.
Installation InstructionsInstallation Instructions
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- PTFE lined spherical bearings and application specific mounting hardware
- 7/8” diameter induction hardened, chrome plated shock shaft
- Nitrogen charged monotube design with piggyback reservoir
- 6061 aircraft grade aluminum CNC machined components
- 100% Revalveable
- 100% Rebuildable
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005-2015 | Toyota | Tacoma | Base |
| 2016-2023 | Toyota | Tacoma | Limited |
| 2005-2015 | Toyota | Tacoma | Pre Runner |
| 2016-2023 | Toyota | Tacoma | SR |
| 2016-2023 | Toyota | Tacoma | SR5 |
| 2021 | Toyota | Tacoma | Trail |
| 2023 | Toyota | Tacoma | Trail Special Edition |
| 2016-2023 | Toyota | Tacoma | TRD Off-Road |
| 2015,2017-2023 | Toyota | Tacoma | TRD Pro |
| 2016-2023 | Toyota | Tacoma | TRD Sport |
