Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
Installation Instructions- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations

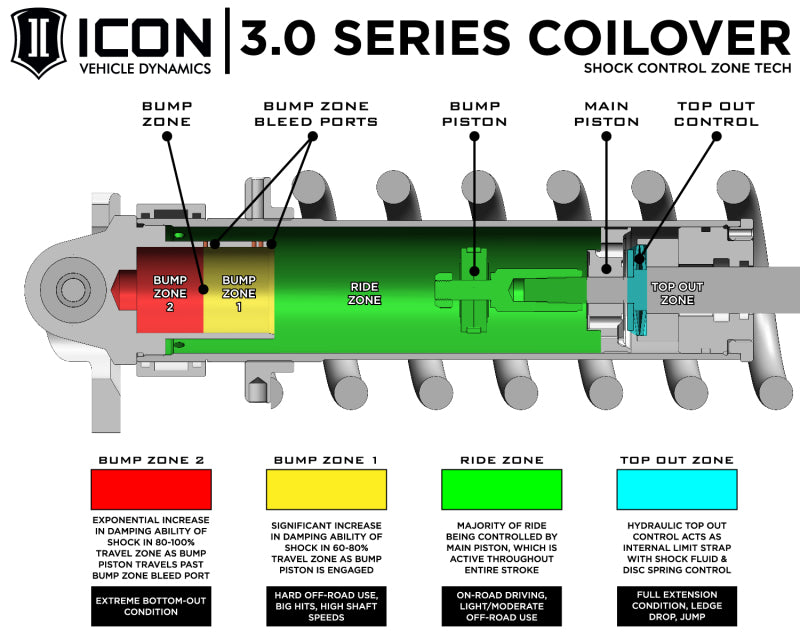

- ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
- 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Significant increase in damping ability for excellent performance in extreme off-road conditions
- High quality ICON-engineered Eibach springs offer increased travel and performance
- PTFE lined COM12 spherical bearings ensure maximum strength and durability
- Multi stage CAD plated shock body with hard anodized piston and top cap
- Direct bolt-in to OEM shock location makes for an easy install
- Adjustable coilovers provide 2.25-3.5” of front lift height
- Heavy duty 1” CNC machined shock shafts
- Fully serviceable
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008-2011,2013-2021 | Toyota | Land Cruiser | Base |
| 2020-2021 | Toyota | Land Cruiser | Heritage Edition |
