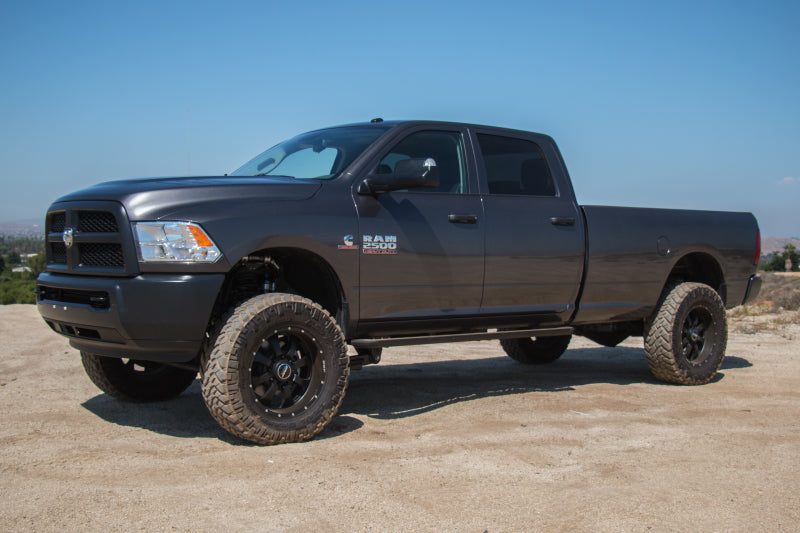

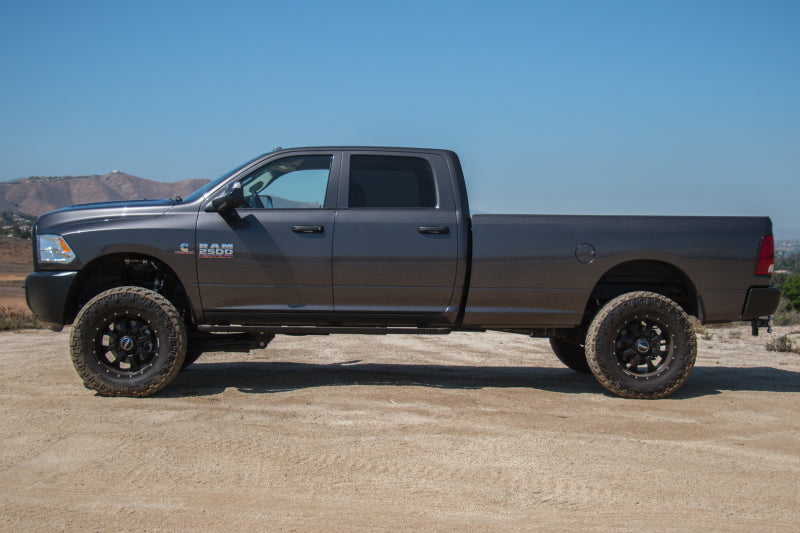

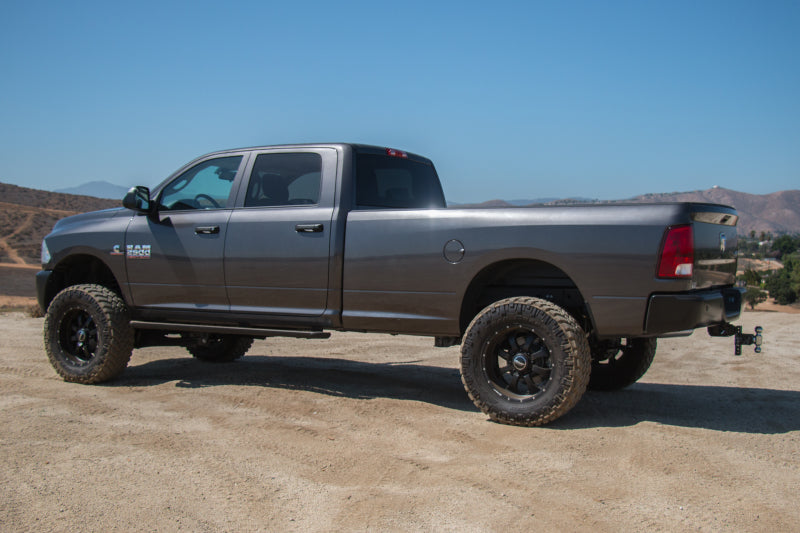

ICON 14-18 Ram 2500 4WD 4.5in Stage 2 Suspension System (Air Ride)

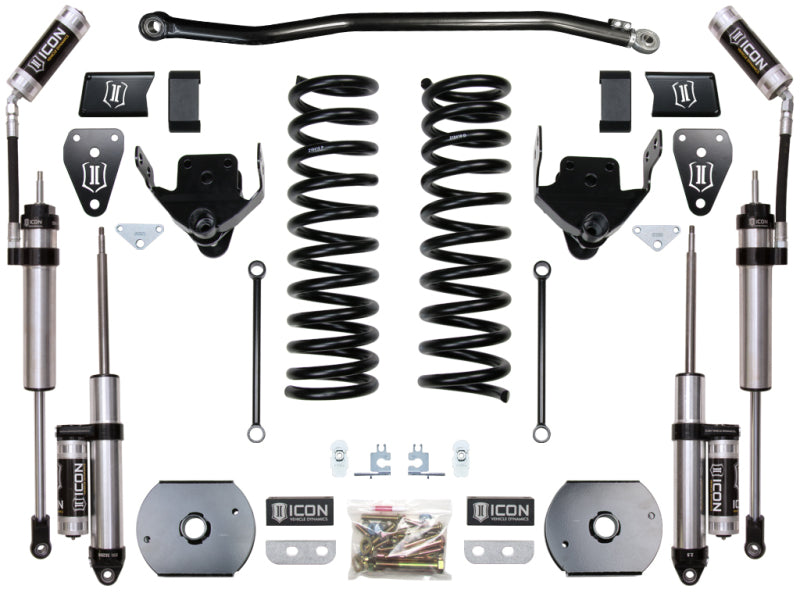

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 2 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, making the Stage 2 system a great choice for any 2014-UP Ram 2500 4WD that's used for daily driving, towing, and recreational off-road driving. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.

• Fabricated rear air bag spacers and sensor linkages allow use of stock rear air springs and provide 3.75" of rear lift over stock
• ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
• Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• Increased wheel travel and suspension performance over stock with no change in towing capacity
• Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
• Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
• Adjustable front track bar realigns front axle and improves strength
• Level stance from front to rear of vehicle
