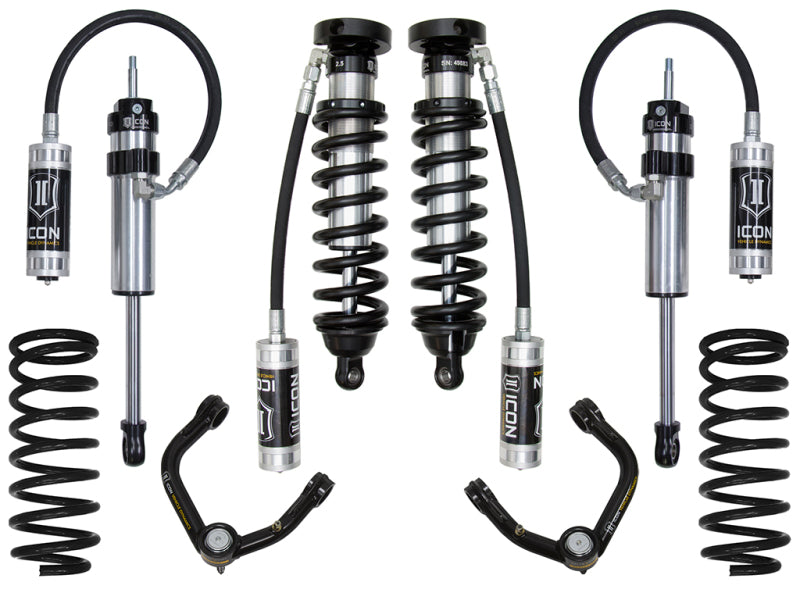

With the ICON Stage 4 suspension system on and off-road performance is significantly improved with 2.5 Series Extended Travel Remote Reservoir Coilovers and 2.5 Aluminum Series Remote Reservoir Rear Shocks that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The addition of an ICON tubular steel upper control arm kit provides increased wheel travel over stock while also offering alignment correction for improved overall handling. ICON engineered rear coil springs increase rear suspension performance while also providing 1" of rear end lift. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 4 suspension system is an excellent choice for those drivers looking to drastically improve the performance and handling characteristics of their 3rd Gen on the road as well as in the dirt.
Installation InstructionsInstallation Instructions
Installation Instructions
Installation Instructions
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- ICON engineered rear coils provide 1" of lift and improved performance
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Tubular steel upper control arms feature ICON Delta Joints
- CNC machined 6061 aircraft-grade aluminum components
- Increased wheel travel and ride quality over stock
- Coilovers are adjustable from 0-3" of lift height
- Bolt-on design makes for straightforward install
- Shocks are fully rebuildable and revalveable
- Decreased body roll
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996-2001 | Toyota | 4Runner | Base |
| 1996-2002 | Toyota | 4Runner | Limited |
| 1996-2002 | Toyota | 4Runner | SR5 |
