*item may differ from images

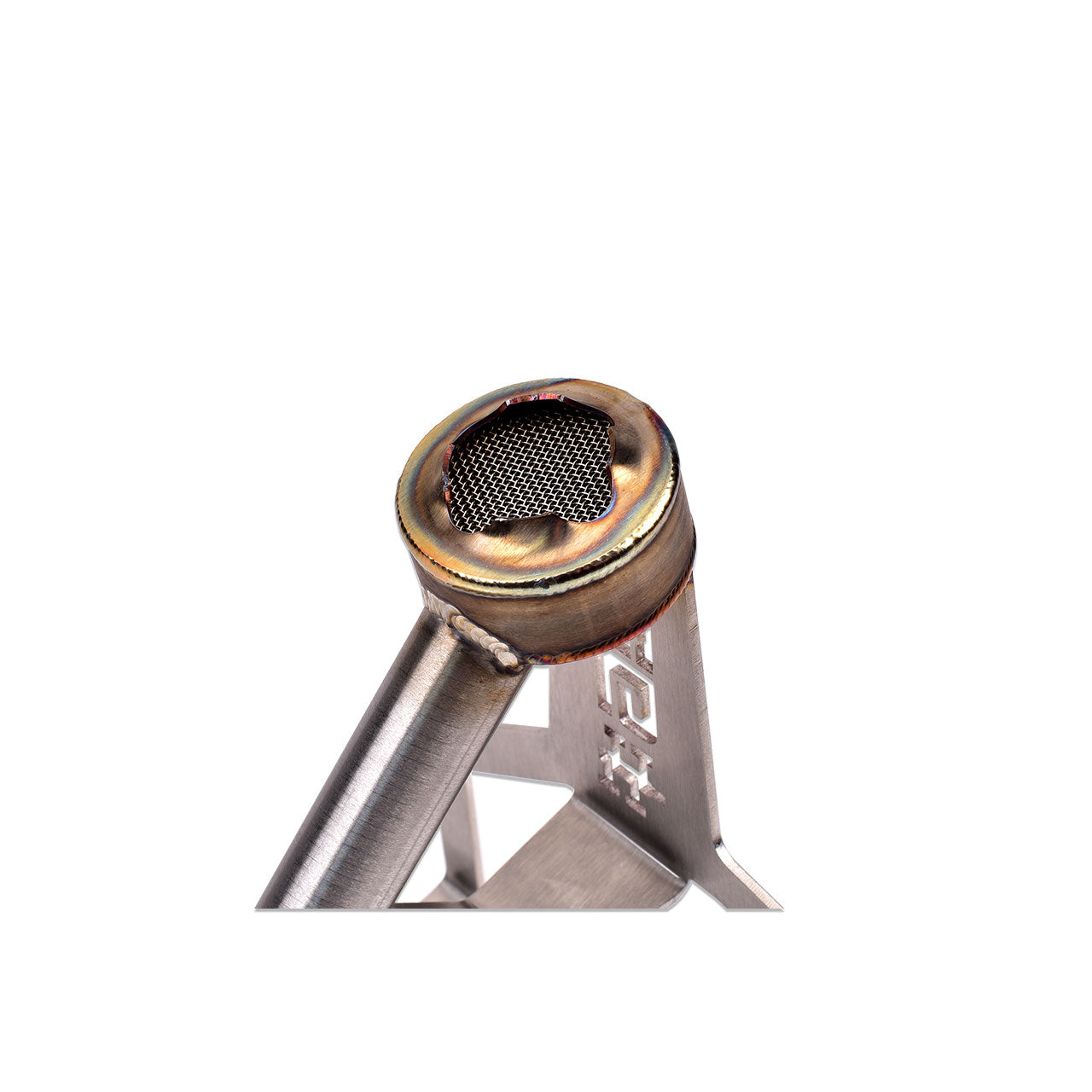

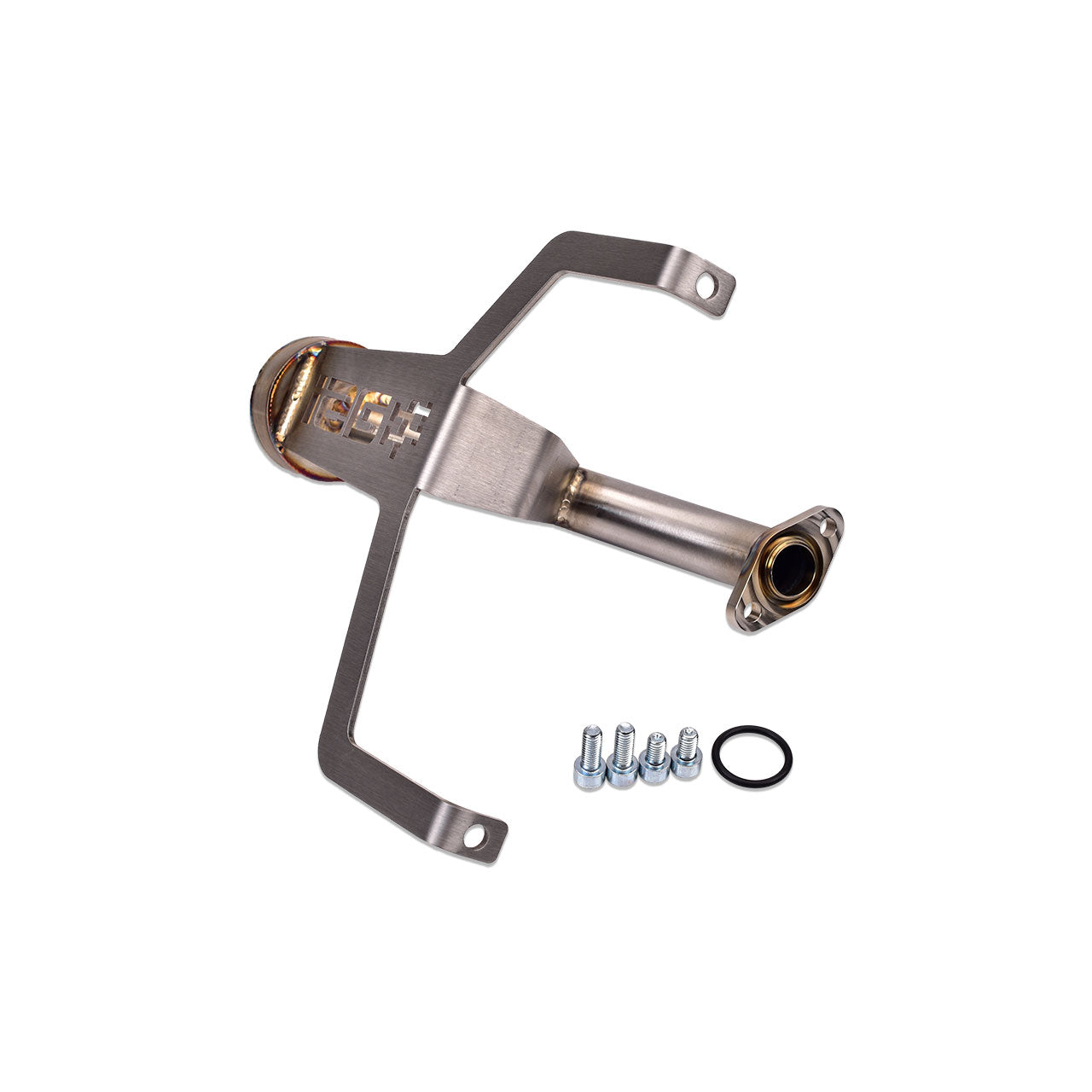

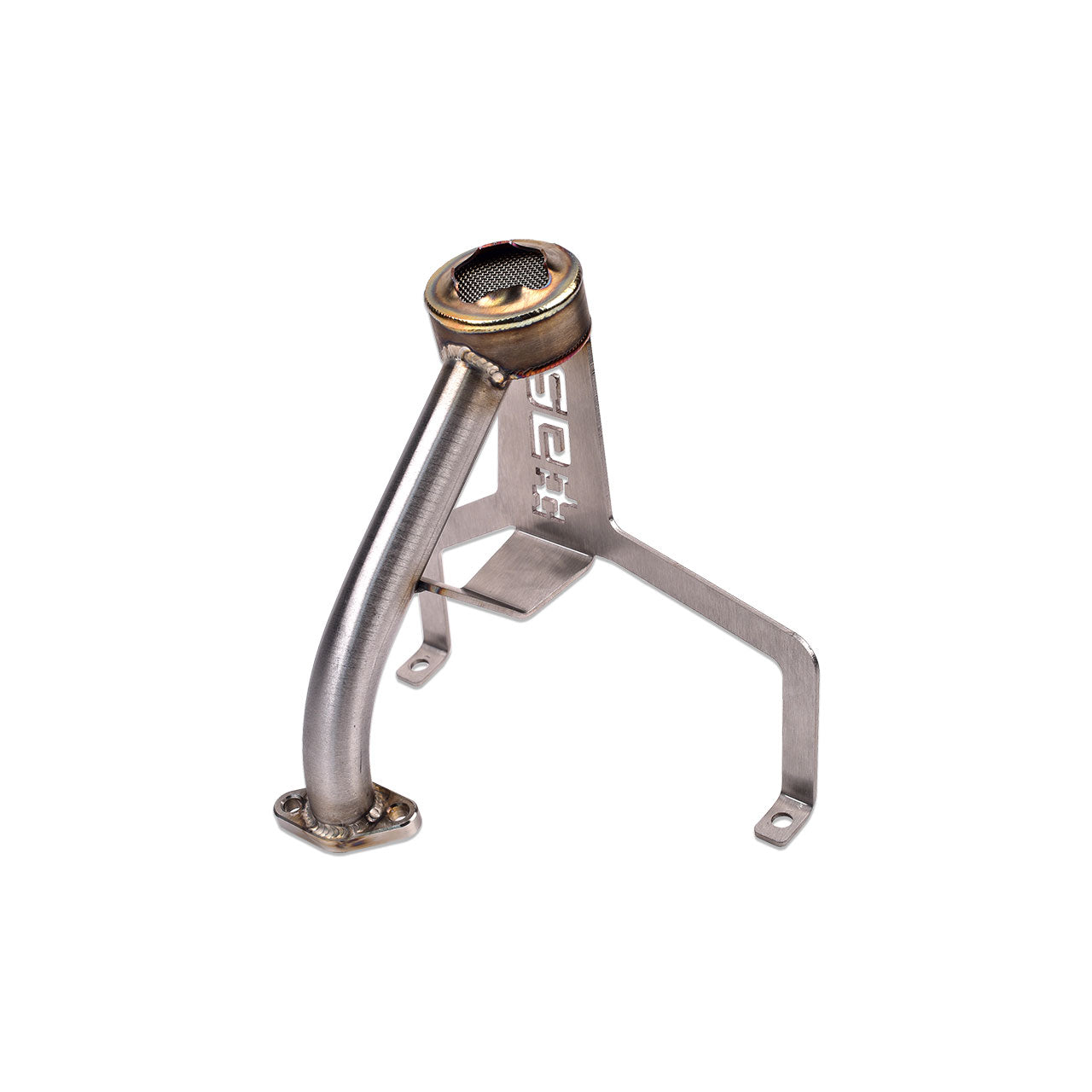

IAG offers our Version 2 Oil Pickup, Baffle and Windage Tray as a complete package and even better at a reduced price instead of buying the items separately. About IAG Oil Pickup:The IAG Performance V2 Subaru WRX / STI oil pickup replaces the OEM EJ25 oil pickup which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which in most cases destroys your motor from lack of oil pressure. The original IAG Performance pickup design has been improved in this all-new stainless steel version. To avoid the cracking failures seen in the OEM oil pickup tubes, the oil pickup is manufactured from stainless steel tubing that is 2x thicker than OEM. Additionally, it features a flange machined from 3/8" stainless steel to mate with the block, sealed with a Viton O-ring. The integrated heavy-duty stainless steel mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration.The TIG-welded oil pickup increased material thickness matched with the two-point heavy-duty mounting bracket helps ensure it does not fatigue and fail over time like an OEM unit. The IAG V2 Subaru EJ25 Oil Pickup is manufactured proudly in the United States at the IAG facility in Westminster, Maryland.

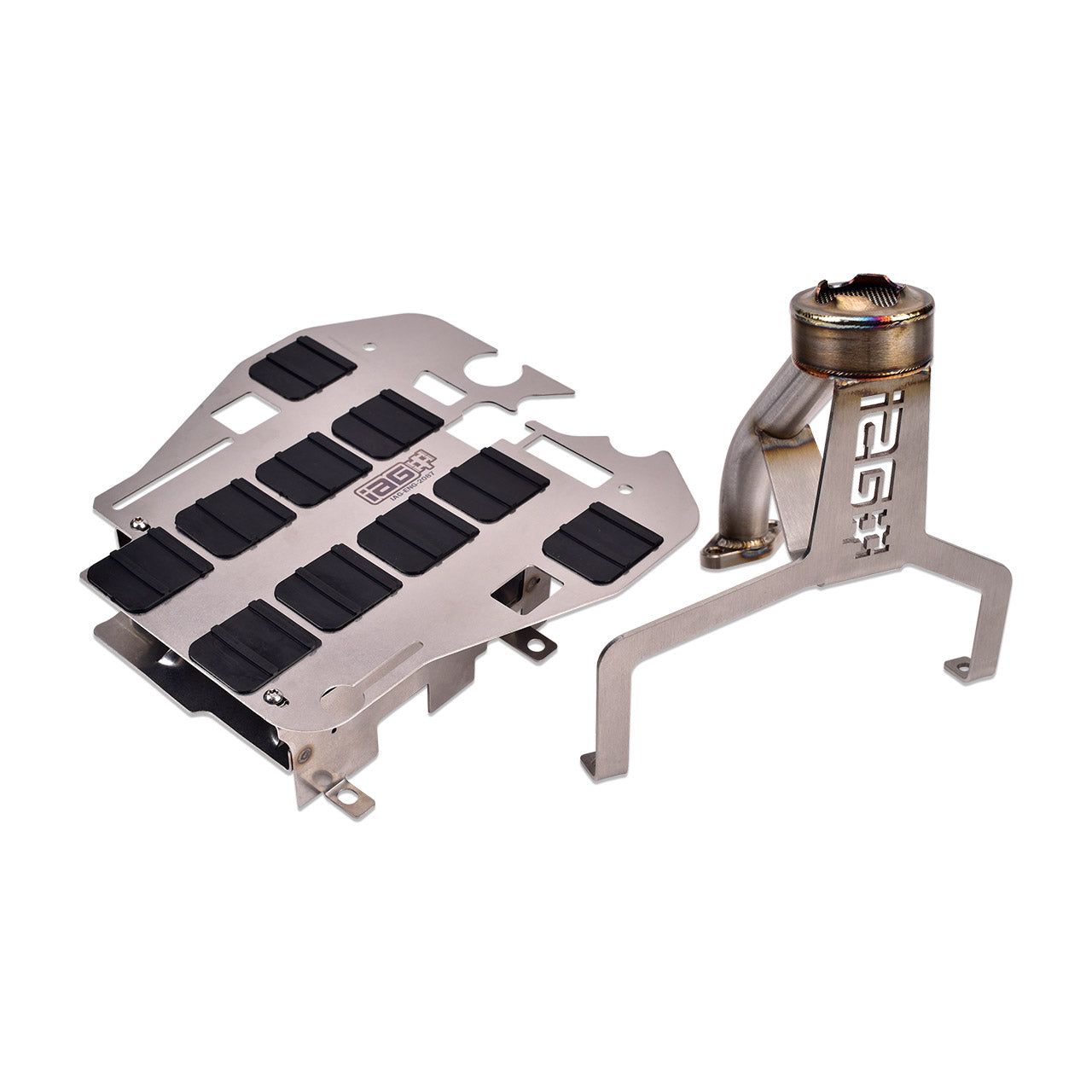

IAG Performance Oil Control Baffle, Windage Tray & V2 Oil Pickup Combo IAG-ENG-2101
Specifications:
| Description_ASC | Package Includes: (x1) V2 Stainless Steel Oil Pickup, (x1) IAG Oil Control Baffle, (x1) IAG Windage Tray, All necessary hardware required for install |
| Description_ASC | 2002-2005 EJ20 WRX requires 2.5L oil pan for fitment. 2004-05 FXT & 05 LGT Check Pan For Fitment Before Ordering. Does not work with Moroso oil pans |

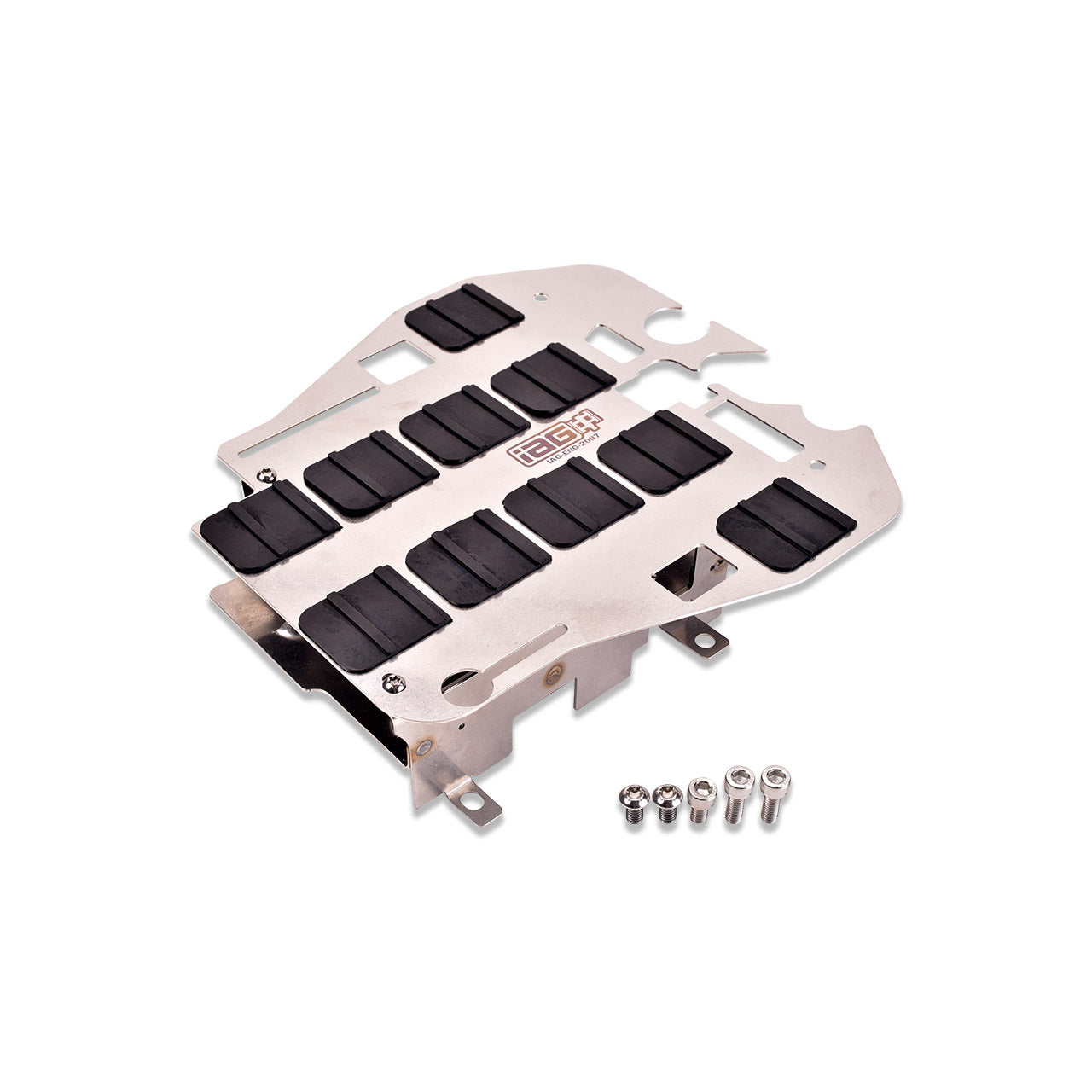

| Description_ASC | The IAG Oil Control Baffle and Windage Tray System is designed to limit potential blow-by and prevent oil starvation in your Subaru's WRX / STI EJ engine during high rpm and high g-force driving. Through the use of Viton one-way flapper valves on our baffle and louvers in our windage tray, oil is prevented from reentering the upper crankcase area and is directed down into the oil pan to ensure plentiful supply to the oil pickup. IAG's integrated two-piece Oil Control Baffle and Windage Tray System is designed to work with our own oil pickup, as well as other oil pickups. The baffle fits neatly in the engine crankcase area, allowing normal installation of the OEM oil pan and popular aftermarket pans. EJ Oil Control: Comprehensive multi-part design improves oil control and supply Oil control in a Subaru EJ horizontally opposed engine is critical for normal operation, but especially so when modified for higher performance. Keeping the oil in the oil pan area so that the oil pickup has a constant supply of fresh oil to feed the oil pump is one of the most crucial aspects of a healthy engine. This is where the IAG Oil Control Baffle & Windage Tray System comes in. |

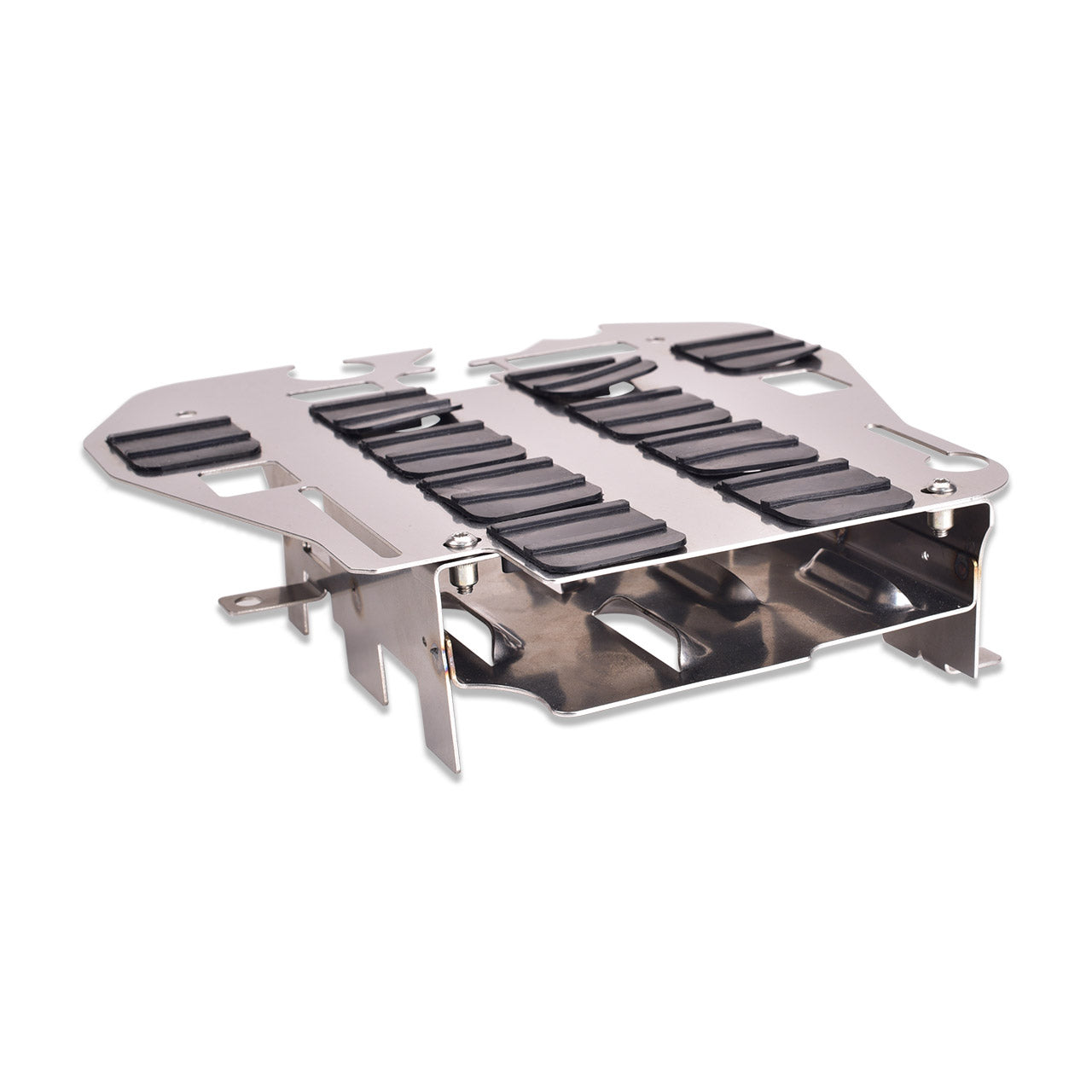

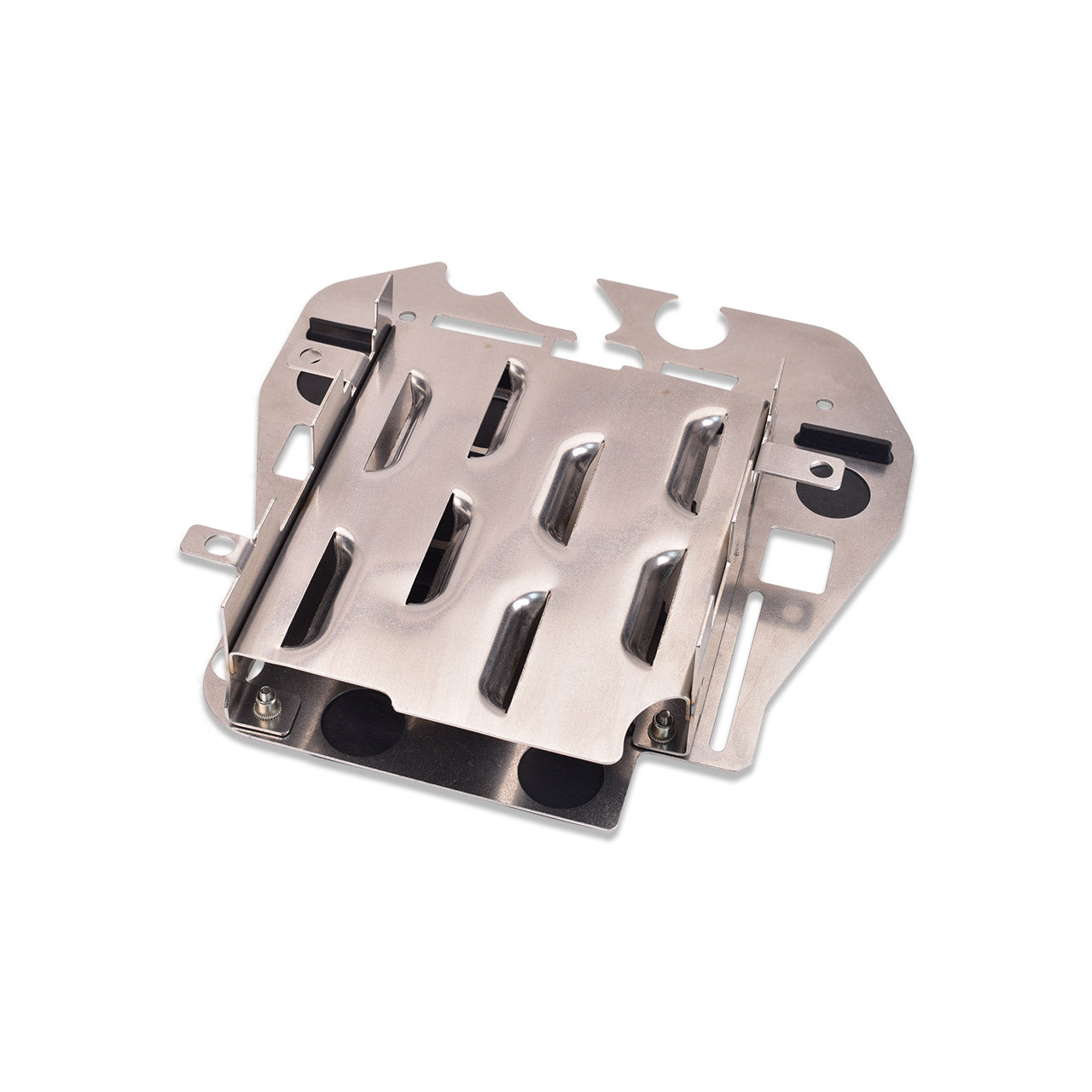

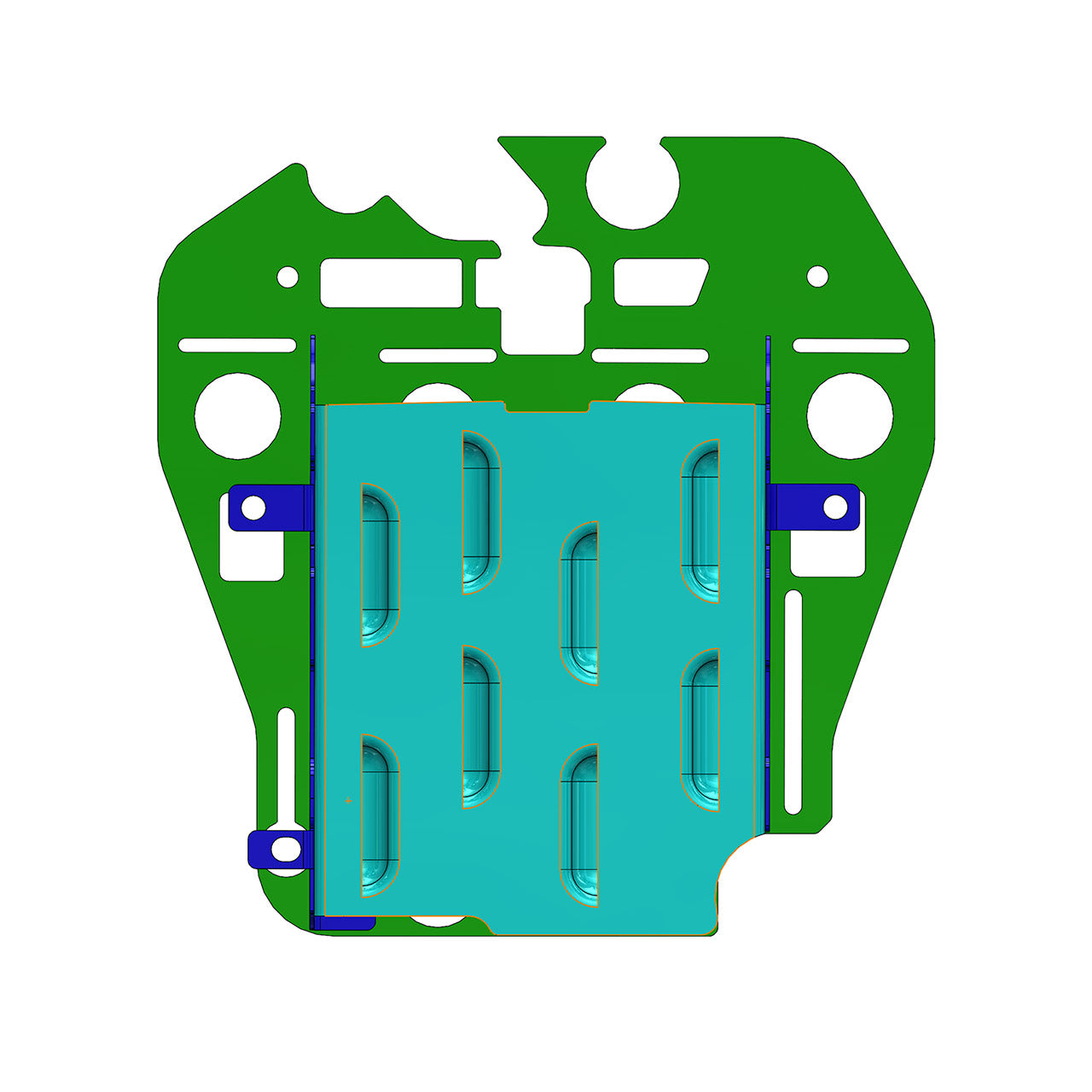

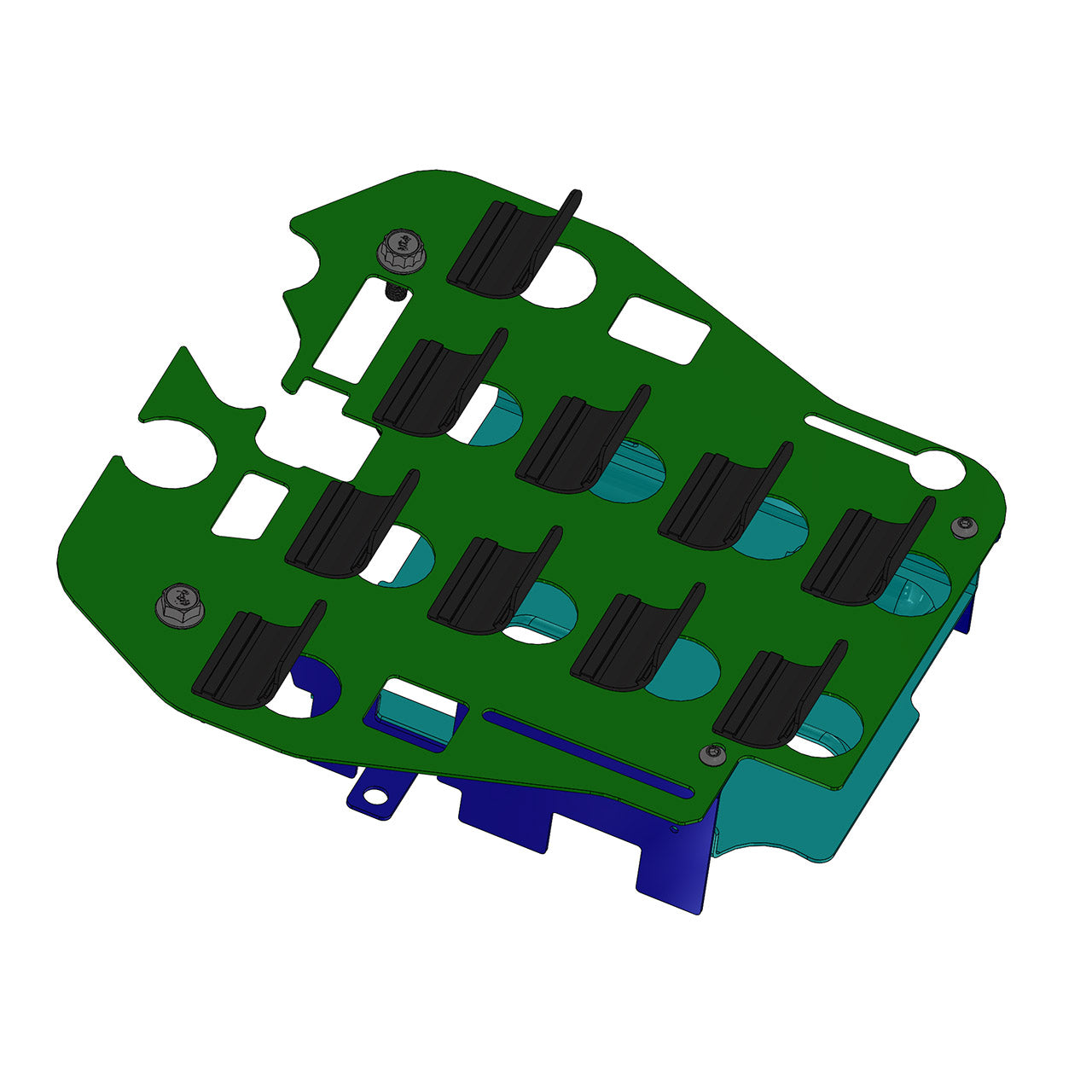

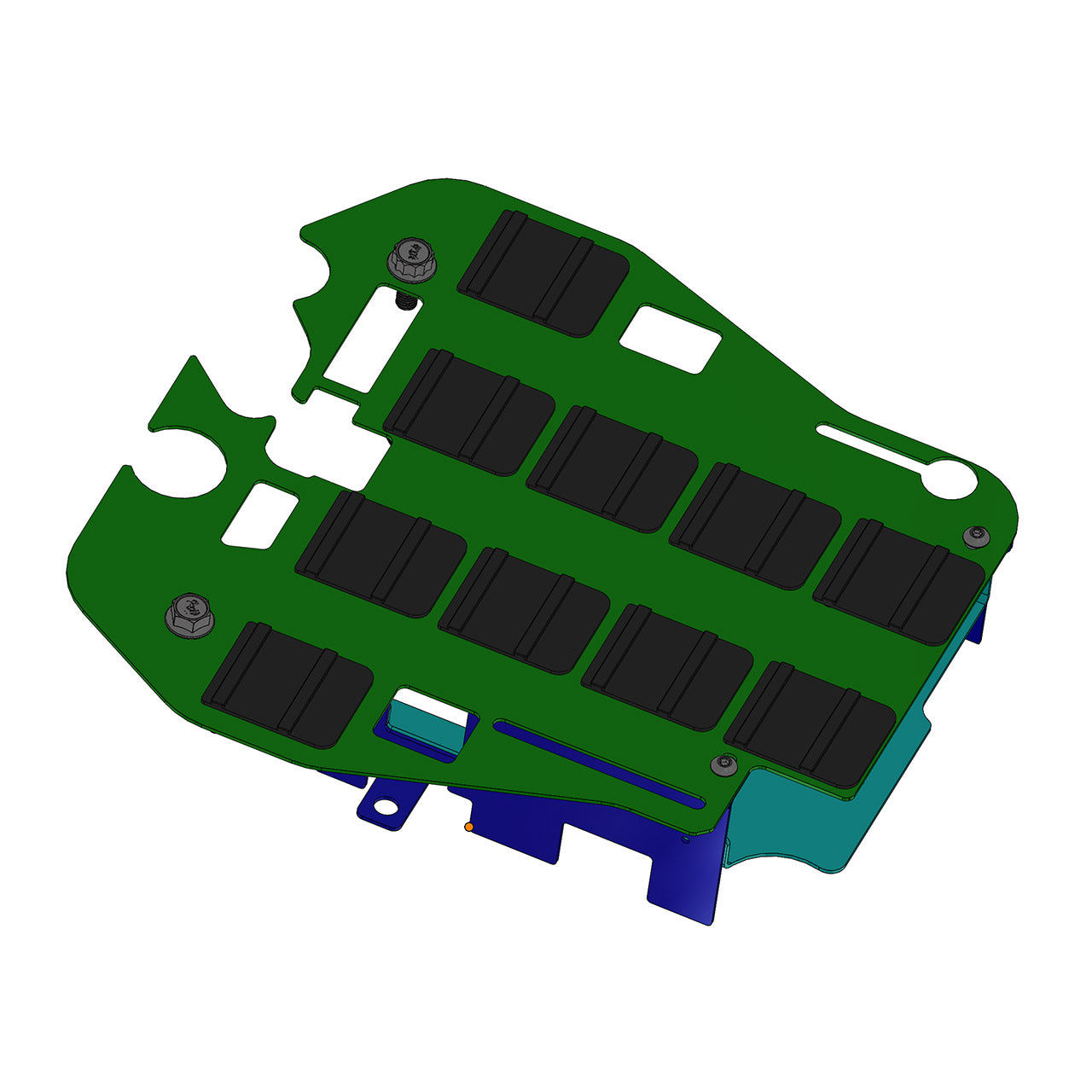

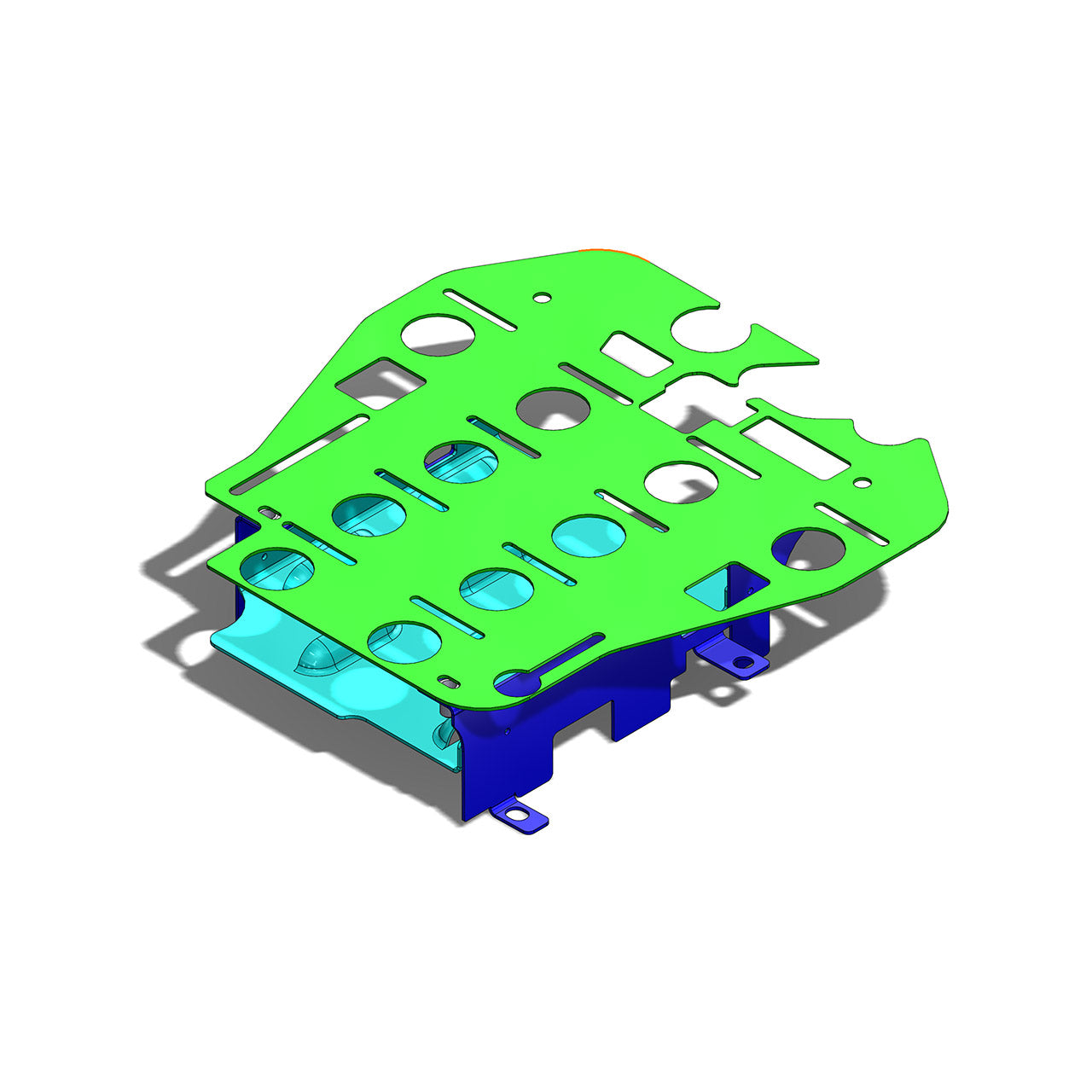

| Description_ASC | Windage Tray: Louver design prevents sloshing The job of the windage tray is to help direct oil from the upper crankcase down into the lower crankcase and oil pan area. The precision-formed louvers direct oil downwards and help to prevent oil that is draining from the cylinder heads in the lower crankcase area from sloshing upwards into the path of the crankshaft and connecting rods, thus reducing aeration. Oil Baffle: Integrated one-way valves: Viton flappers open allowing oil flow under normal operation. Oil flow with Viton flappers closed due to acceleration or cornering forces. The IAG oil baffle features Viton Rubber oil flaps that are resistant to oil as well as high temperatures. The flaps serve as a "one-way valve" only allowing the oil to flow downwards into the oil pan area and preventing oil from flowing upwards. During Acceleration and cornering forces any oil trying to travel up past the oil baffle causes the flaps to close, keeping the oil where it is needed. Construction & Fitment: Precise fitment does not require sandwiching between the block and pan Designed to work with the IAG Oil Pickup and some other popular oil pickups (See fitment/install notes). |

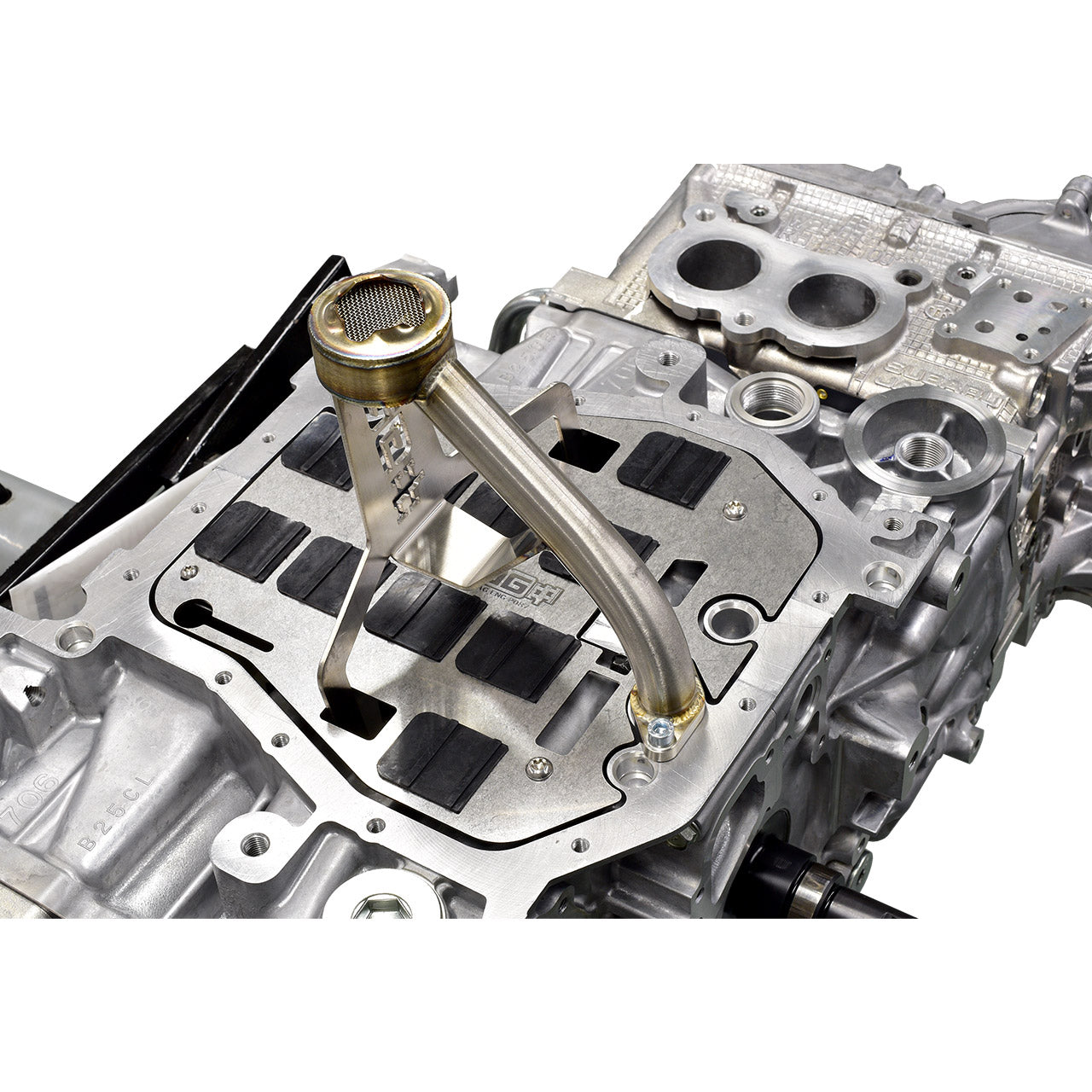

| Description_ASC | The IAG Oil Control Baffle is manufactured from stainless steel with precision clearance around the outside edge of the baffle allowing excess oil that may otherwise pool on top of the baffle plate during cornering to instead flow down into the oil pan area, unlike other baffles that are sandwiched between the oil pan and the engine block. Because the baffle resides entirely inside of the oil pan there are no additional sealing surfaces and thus no additional areas that can leak oil. The Baffle and Windage Tray is designed with oil pickup cutouts to work with the IAG Oil Pickup as well as an OEM pickup or other popular commercially available pickups. |
| Description_ASC | Flaps should be inspected every 12-24 months depending on use. |
| Description_KSW | IAG Performance |
| Description_LAB | Oil Control Baffle, Windage Tray & V2 Oil Pickup Combo |
| Description_DES | Oil Control Baffle, Windage Tray & V2 Oil Pickup Combo |
| Description_APS | Subaru: Forester 2004 - 2013, Subaru: Impreza 2002 - 2014, Subaru: Legacy 2005 - 2009, Subaru: WRX STI 2015 - 2021 |
| Description_EXT | IAG Oil Control Baffle, Windage Tray & V2 Oil Pickup Combo for 2002-14 Subaru WRX, 04-21 STI, 05-09 LGT, 04-13 FXT. |
| Description_MKT | IAG offers our Version 2 Oil Pickup, Baffle and Windage Tray as a complete package and even better at a reduced price instead of buying the items separately. About IAG Oil Pickup:The IAG Performance V2 Subaru WRX / STI oil pickup replaces the OEM EJ25 oil pickup which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which in most cases destroys your motor from lack of oil pressure. The original IAG Performance pickup design has been improved in this all-new stainless steel version. To avoid the cracking failures seen in the OEM oil pickup tubes, the oil pickup is manufactured from stainless steel tubing that is 2x thicker than OEM. Additionally, it features a flange machined from 3/8" stainless steel to mate with the block, sealed with a Viton O-ring. The integrated heavy-duty stainless steel mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration.The TIG-welded oil pickup increased material thickness matched with the two-point heavy-duty mounting bracket helps ensure it does not fatigue and fail over time like an OEM unit. The IAG V2 Subaru EJ25 Oil Pickup is manufactured proudly in the United States at the IAG facility in Westminster, Maryland. |
| Description_FAB | Keeps oil down in the pan, preventing aeration. |
| Description_FAB | Replaces the factory failure prone oil pickup |
| Description_TLE | IAG Performance Oil Control Baffle, Windage Tray & V2 Oil Pickup Combo for 2002-14 Subaru WRX, 04-21 STI, 05-09 LGT, 04-13 FXT. |
| Description_SHO | Oil Baffle & Pickup |
| Description_INV | IAG Performance Oil Baffle & Pickup |
| Description_DEF | Engine Oil Pan |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2004 | Subaru | Forester | XT | |
| 2011 | Subaru | Forester | XT Premium | |
| 2002 | Subaru | Impreza | WRX | |
| 2003 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX | |
| 2005 | Subaru | Impreza | WRX | |
| 2006 | Subaru | Impreza | WRX | |
| 2007 | Subaru | Impreza | WRX | |
| 2008 | Subaru | Impreza | WRX | |
| 2009 | Subaru | Impreza | WRX | |
| 2010 | Subaru | Impreza | WRX | |
| 2011 | Subaru | Impreza | WRX | |
| 2012 | Subaru | Impreza | WRX | |
| 2013 | Subaru | Impreza | WRX | |
| 2014 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX STI | |
| 2005 | Subaru | Impreza | WRX STI | |
| 2006 | Subaru | Impreza | WRX STI | |
| 2007 | Subaru | Impreza | WRX STI | |
| 2008 | Subaru | Impreza | WRX STI | |
| 2009 | Subaru | Impreza | WRX STI | |
| 2010 | Subaru | Impreza | WRX STI | |
| 2011 | Subaru | Impreza | WRX STI | |
| 2012 | Subaru | Impreza | WRX STI | |
| 2013 | Subaru | Impreza | WRX STI | |
| 2014 | Subaru | Impreza | WRX STI | |
| 2005 | Subaru | Legacy | GT | |
| 2006 | Subaru | Legacy | GT | |
| 2007 | Subaru | Legacy | GT | |
| 2008 | Subaru | Legacy | GT | |
| 2009 | Subaru | Legacy | GT spec.B | |
| 2015 | Subaru | WRX STI | ||
| 2016 | Subaru | WRX STI | ||
| 2017 | Subaru | WRX STI | ||
| 2018 | Subaru | WRX STI | ||
| 2019 | Subaru | WRX STI | ||
| 2020 | Subaru | WRX STI | ||
| 2021 | Subaru | WRX STI |
