*item may differ from images

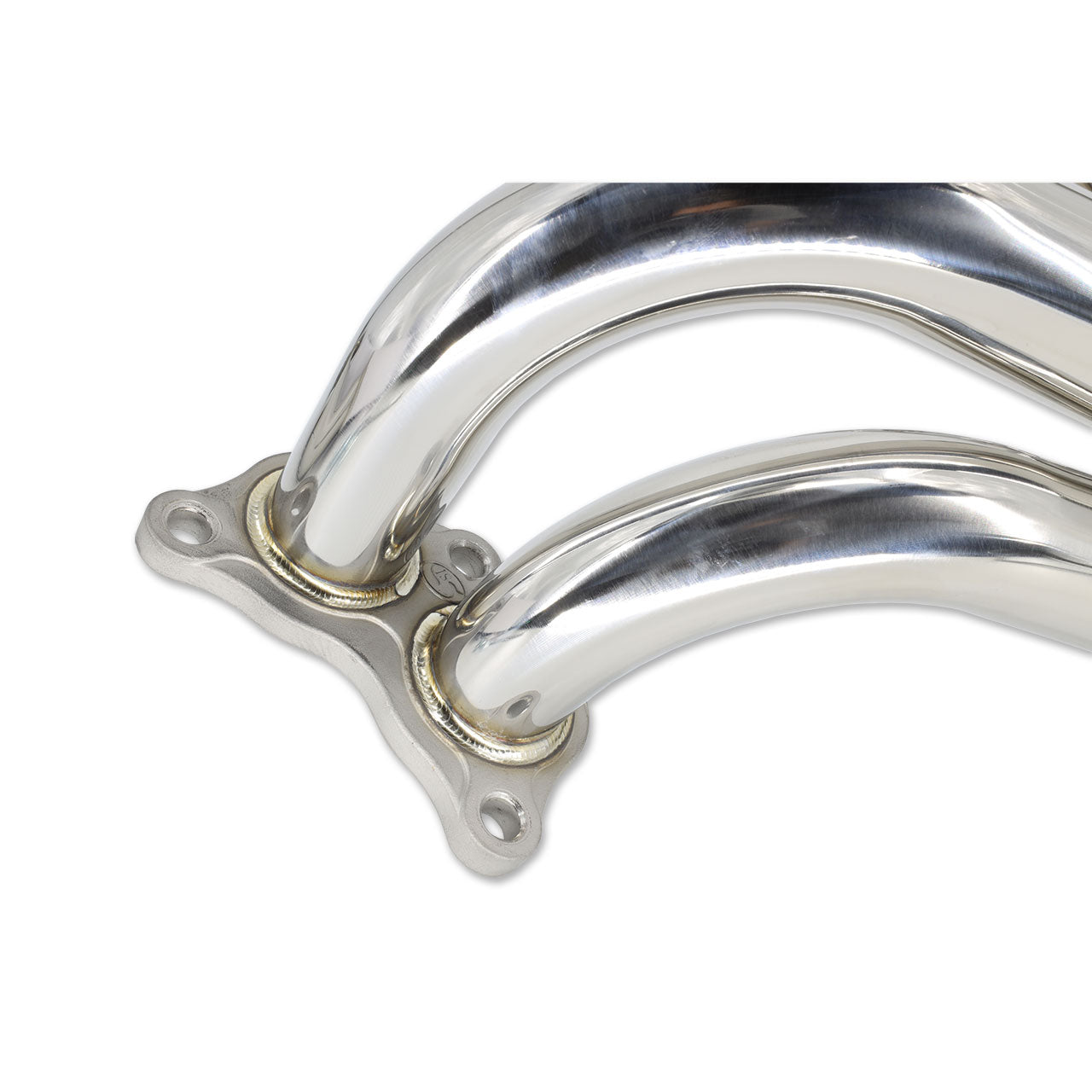

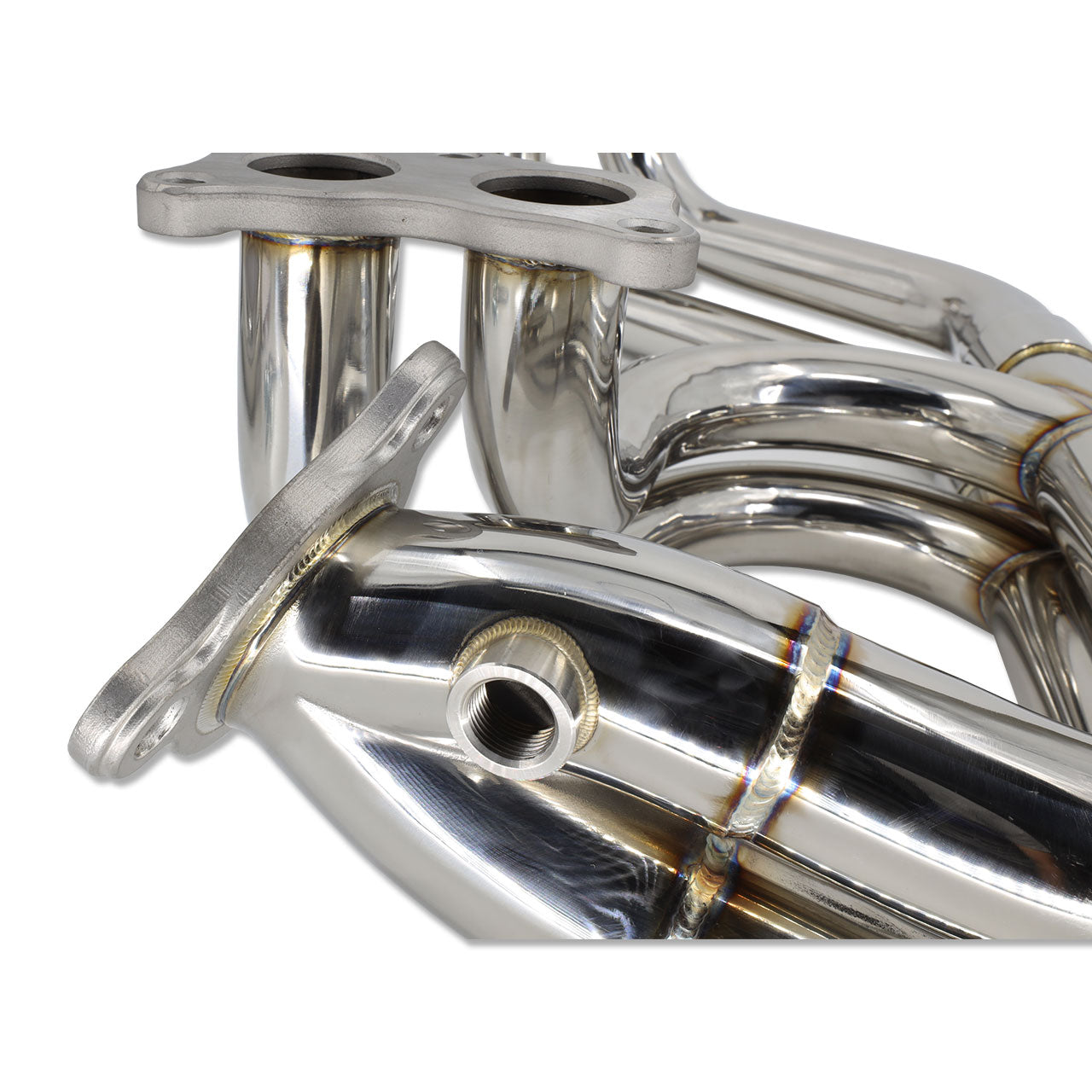

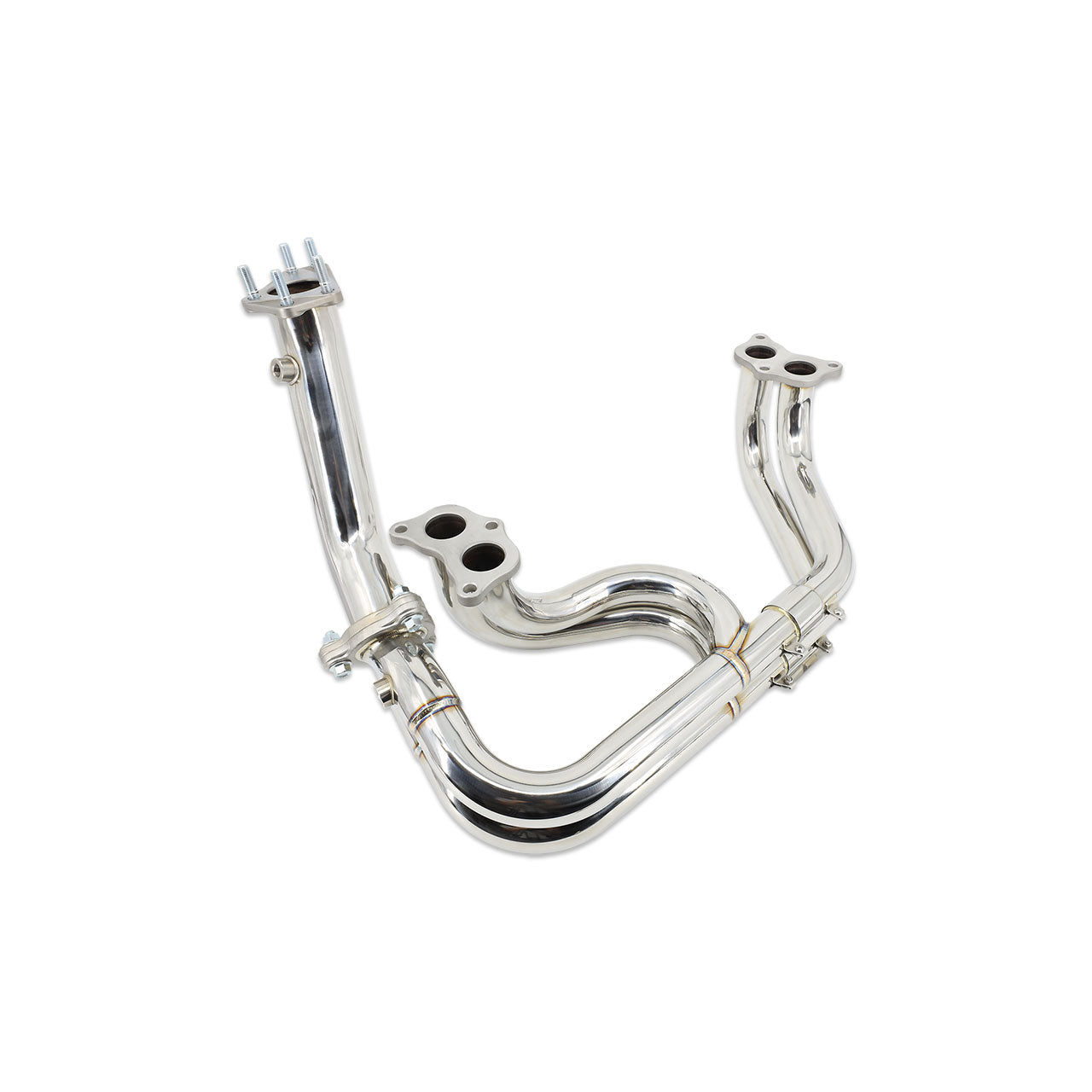

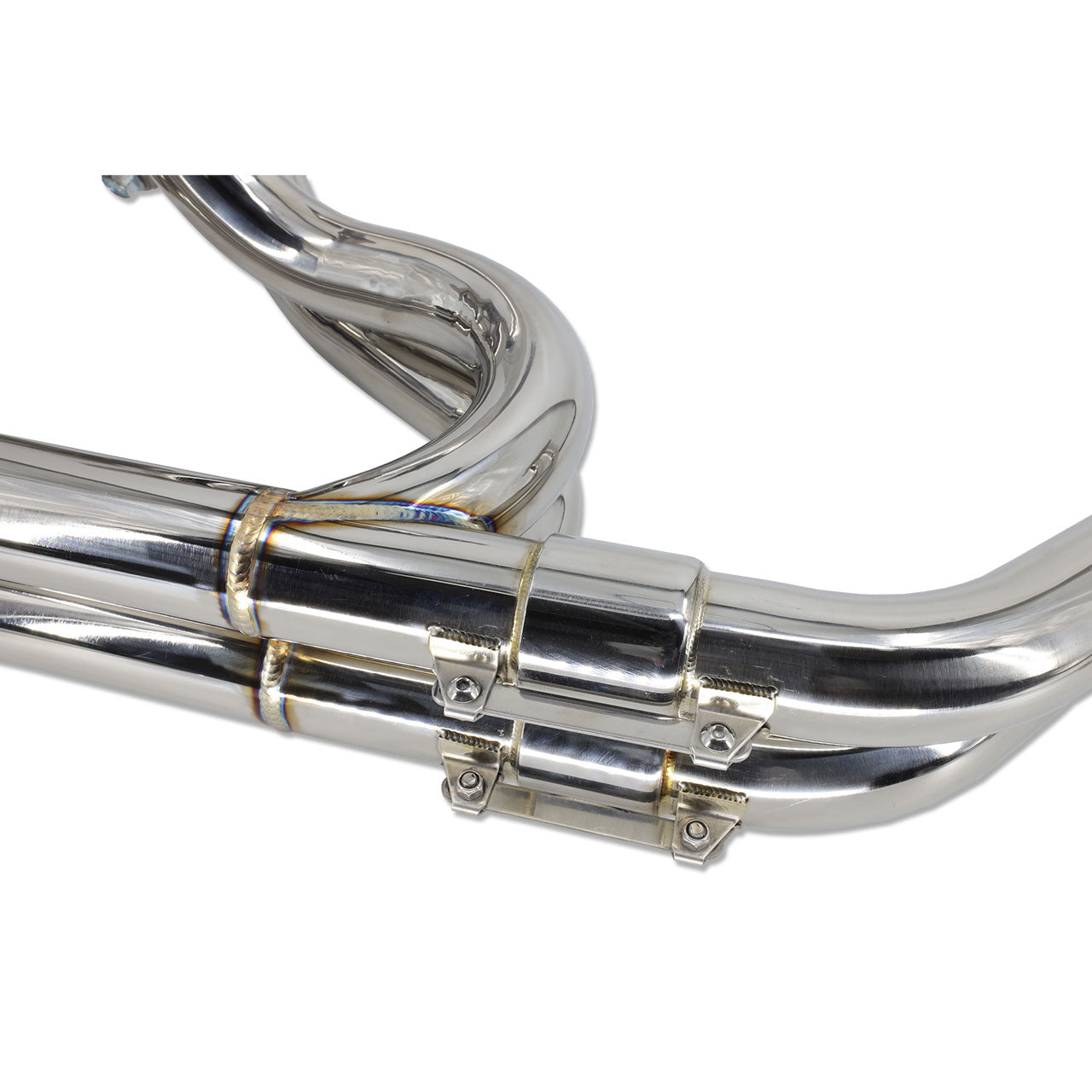

IAG's Equal Length Headers are the perfect way to add more performance to your Subaru WRX STI. By implementing a 4-2-1 configuration with equal-length tubing and merged collector, IAG is able to improve your turbo spool up by 300rpm. Due to the free-flowing design of this header, you will see gains across the entire RPM range, as exhaust flow is vastly improved. The IAG headers are fully constructed of 304 stainless steel, including cast stainless flanges! The equal length headers feature a 45mm pipe diameter for maximum flow and performance. The header also features a slip-joint expansion section to accommodate for flex caused by heat cycling. Each IAG header is fully TIG welded for maximum strength. Each header package includes the IAG 60mm uppipe that utilizes a 3-bolt cast flange and multi-layer gasket between the manifold and uppipe, providing a stable connection without exhaust leaks. The IAG Header & Uppipe adds all of the hardware and high quality, multi-layer gaskets needed for installation including specialty copper exhaust nuts, which are proven to maintain their torque even in the extreme conditions of heat cycling present at the exhaust flange. Due to the equal length design, these headers will alter the exhaust tone from the distinct "boxer rumble" to a smoother exhaust note.
IAG Performance IAG Equal Length 3-Bolt Header & Uppipe IAG-EXT-1001
Specifications:
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Title | IAG Performance Equal Length 3-Bolt Header & Uppipe for 02-14 WRX, 04-21 STI, 05-09 LGT, 04-08 FXT. |
| 17 | Silver |
| 353 | Yes |
| 10 | 304 Stainless Steel |
| 30 | Yes |
| 1895 | 3-Bolt Flange |
| 10091 | No |
| 200 | Polished |
| 3390 | Performance |
| 2878 | No |
| 10092 | 45 |
| Description_SHO | EL Exhaust header |
| Description_INV | IAG Performance Exhaust header |

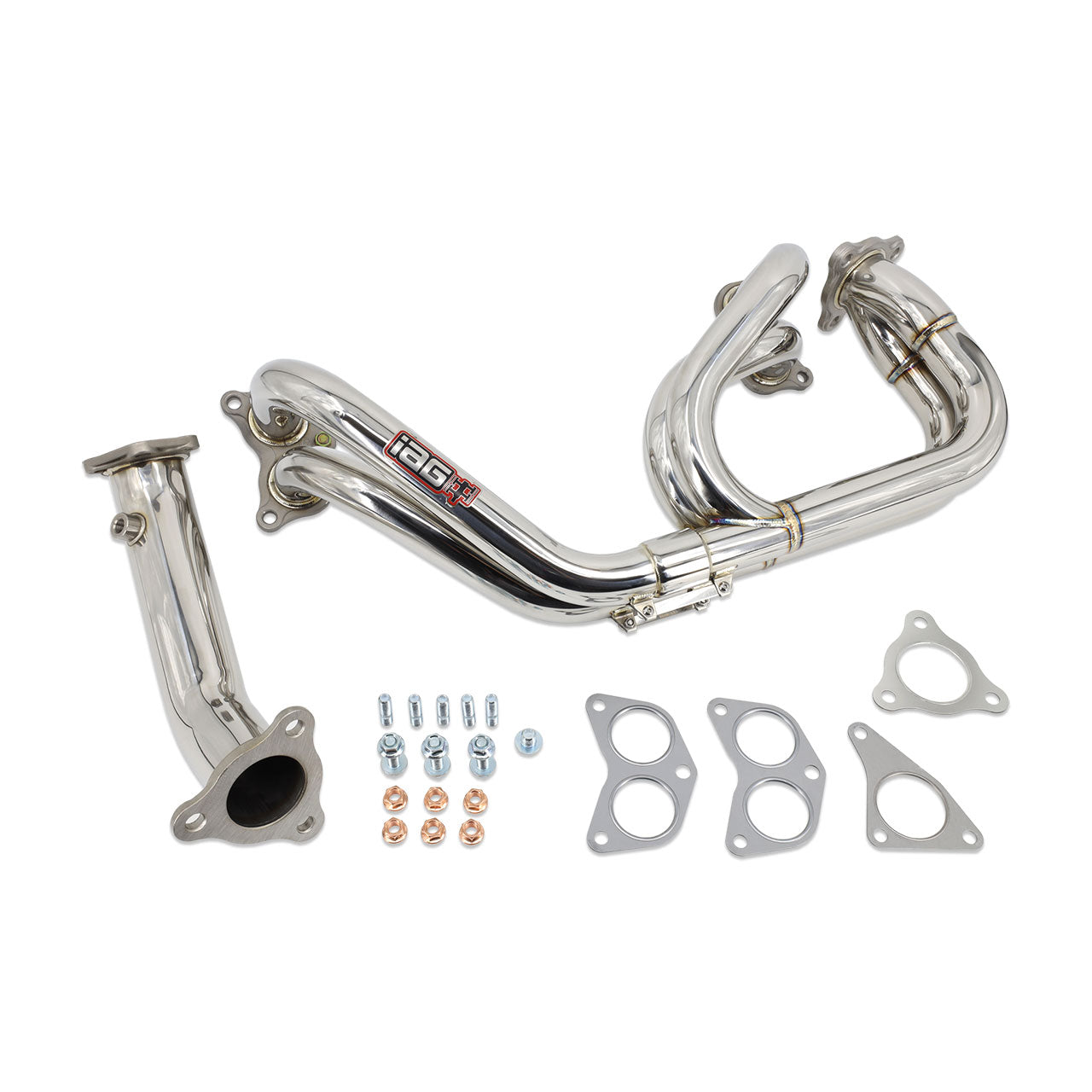

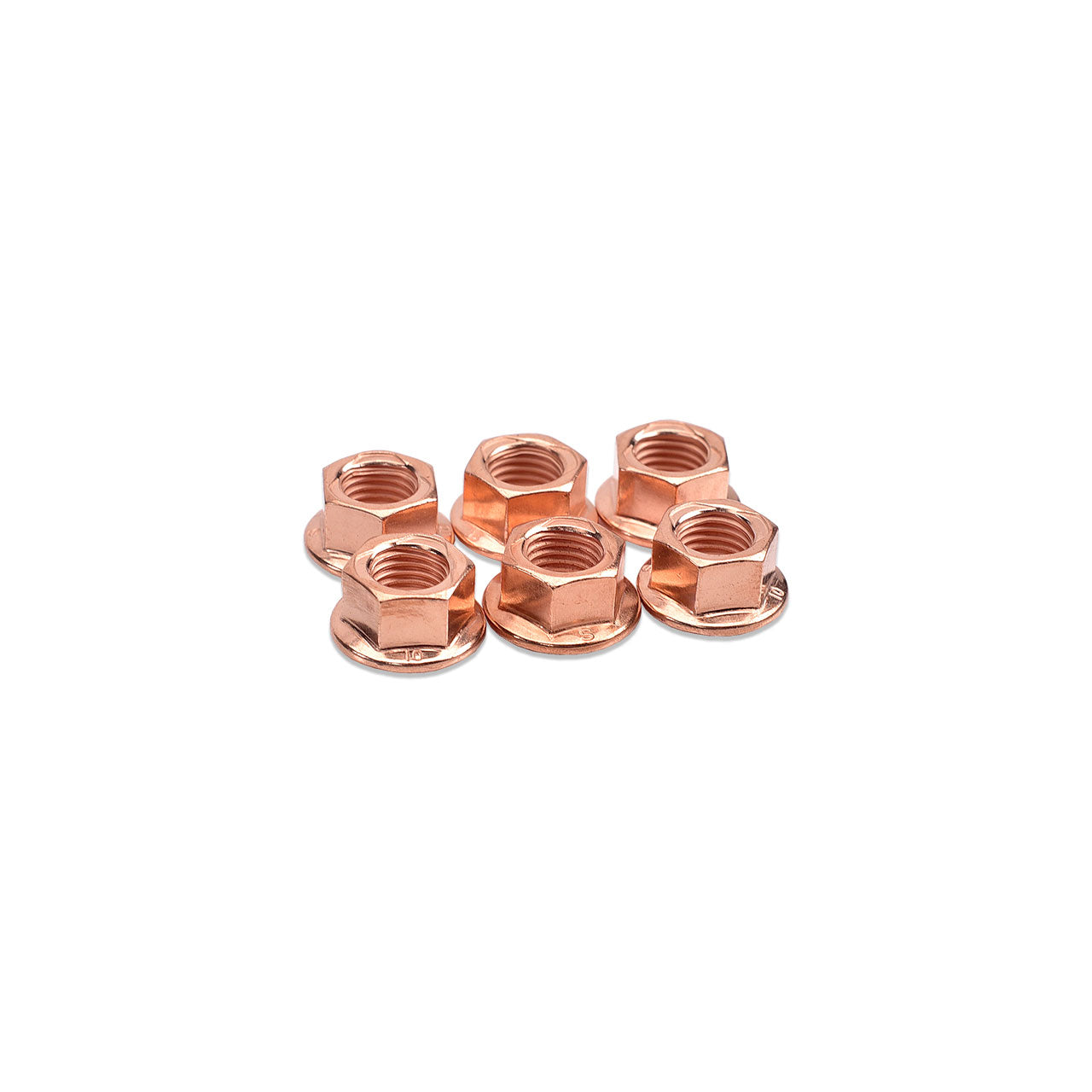

| Description_ASC | Kit includes: (x1) Equal Length Stainless Steel Header, (x1) 3 Bolt Stainless Steel Uppipe, (x1) 3 Bolt Uppipe Gasket, (x3) Uppipe to Manifold Zinc Plated Bolts and Nuts, (x5) Uppipe to Turbo Threaded Studs, (x1) EGT Plug, (x6) Copper Flange Nuts (Manifold to Head), (x2) Manifold to Cylinder Head Gaskets, (x1) Uppipe to Turbo Gasket |
| Description_ASC | Fitment Notes: This header will remove the "Boxer" rumble when installed. 2002-05 WRX Requires 2.5L STI Oil Pan. 2006-07 WRX Requires STI Oil Cooler and STI Oil Pan |
| Description_KSW | IAG Performance |
| Description_LAB | Equal Length 3-Bolt Header & Uppipe |
| Description_DES | IAG Equal Length 3-Bolt Header & Uppipe |
| Description_APS | Subaru: Forester 04 - 08 XT / XT Limited |
| Description_EXT | IAG Equal Length 3-Bolt Header & Uppipe for 02-14 WRX, 04-21 STI, 05-09 LGT, 04-08 FXT. |
| Description_MKT | IAG's Equal Length Headers are the perfect way to add more performance to your Subaru WRX STI. By implementing a 4-2-1 configuration with equal-length tubing and merged collector, IAG is able to improve your turbo spool up by 300rpm. Due to the free-flowing design of this header, you will see gains across the entire RPM range, as exhaust flow is vastly improved. The IAG headers are fully constructed of 304 stainless steel, including cast stainless flanges! The equal length headers feature a 45mm pipe diameter for maximum flow and performance. The header also features a slip-joint expansion section to accommodate for flex caused by heat cycling. Each IAG header is fully TIG welded for maximum strength. Each header package includes the IAG 60mm uppipe that utilizes a 3-bolt cast flange and multi-layer gasket between the manifold and uppipe, providing a stable connection without exhaust leaks. The IAG Header & Uppipe adds all of the hardware and high quality, multi-layer gaskets needed for installation including specialty copper exhaust nuts, which are proven to maintain their torque even in the extreme conditions of heat cycling present at the exhaust flange. Due to the equal length design, these headers will alter the exhaust tone from the distinct "boxer rumble" to a smoother exhaust note. |
| Description_FAB | Improves horsepower and eliminates the traditional "Boxer rumble" |
| Description_TLE | IAG Performance Equal Length 3-Bolt Header & Uppipe for 02-14 WRX, 04-21 STI, 05-09 LGT, 04-08 FXT. |
| Description_DEF | Exhaust Header |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2004 | Subaru | Forester | XT | |
| 2005,2008 | Subaru | Forester | XT | |
| 2006 | Subaru | Forester | XT Limited | |
| 2007 | Subaru | Forester | XT Limited | |
| 2002 | Subaru | Impreza | WRX | |
| 2003 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX | |
| 2005 | Subaru | Impreza | WRX | |
| 2006 | Subaru | Impreza | WRX | |
| 2007 | Subaru | Impreza | WRX | |
| 2008 | Subaru | Impreza | WRX | |
| 2009 | Subaru | Impreza | WRX | |
| 2010 | Subaru | Impreza | WRX | |
| 2011 | Subaru | Impreza | WRX | |
| 2012 | Subaru | Impreza | WRX | |
| 2013 | Subaru | Impreza | WRX | |
| 2014 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX STI | |
| 2005 | Subaru | Impreza | WRX STI | |
| 2006 | Subaru | Impreza | WRX STI | |
| 2007 | Subaru | Impreza | WRX STI | |
| 2008 | Subaru | Impreza | WRX STI | |
| 2009 | Subaru | Impreza | WRX STI | |
| 2010 | Subaru | Impreza | WRX STI | |
| 2011 | Subaru | Impreza | WRX STI | |
| 2012 | Subaru | Impreza | WRX STI | |
| 2013 | Subaru | Impreza | WRX STI | |
| 2014 | Subaru | Impreza | WRX STI | |
| 2005 | Subaru | Legacy | GT | |
| 2006 | Subaru | Legacy | GT | |
| 2007 | Subaru | Legacy | GT | |
| 2008 | Subaru | Legacy | GT | |
| 2009 | Subaru | Legacy | GT spec.B | |
| 2015 | Subaru | WRX STI | ||
| 2016 | Subaru | WRX STI | ||
| 2017 | Subaru | WRX STI | ||
| 2018 | Subaru | WRX STI | ||
| 2019 | Subaru | WRX STI | ||
| 2020 | Subaru | WRX STI | ||
| 2021 | Subaru | WRX STI |
