IAG Performance Fire-Lock Head Gaskets (1 Pair w/ Fire-Lock Rings) for EJ25/EJ257, 100mm, .051" IAG-ENG-1740

MyPartsGuy SKU: JGJS_IAG-ENG-1740

Manufacturer Part Number: IAG-ENG-1740

Vendor: IAG Performance
Regular price: $428.99 CAD
Sale price: $428.99 CAD
Regular price: ~~$428.99 CAD~~
Unit price: per

✓ CAD pricing ✓ No duties ✓ No brokerage fees

✓ Authorized dealer ✓ Warranty honoured

Oversize / Overweight Items Will Be Assessed a Surcharge
Available Items Are Processed and Leave Ottawa Warehouse In 3-10 Business Days depending on if a STORE TRANSFER was required. Some Items may take longer.

Quantity to Purchase

Quantity must be 1 or more

This is a special order part. We will order it for you from the manufacturer. Special orders can take 2-8++ weeks and cannot be cancelled once placed. Contact us if you have a deadline.➀

🗙

This is a special order item

Did you notice the bold red text stating this item is a special order?

What does SPECIAL ORDER mean?

This means that we do not have the product in our warehouse. We only order "Special Order" products from the supplier when you order them from us. Generally, we do not intend to keep an inventory of these items.

"Special Order" products could be shipped directly from the supplier or they could be shipped to us first. Then, we would ship it to you. The available shipping options will be provided during the checkout process.

Special order items cannot be cancelled once the order has been placed.

✓ CAD pricing ✓ No duties ✓ No brokerage fees ✓ Authorized dealer ✓ Warranty honoured

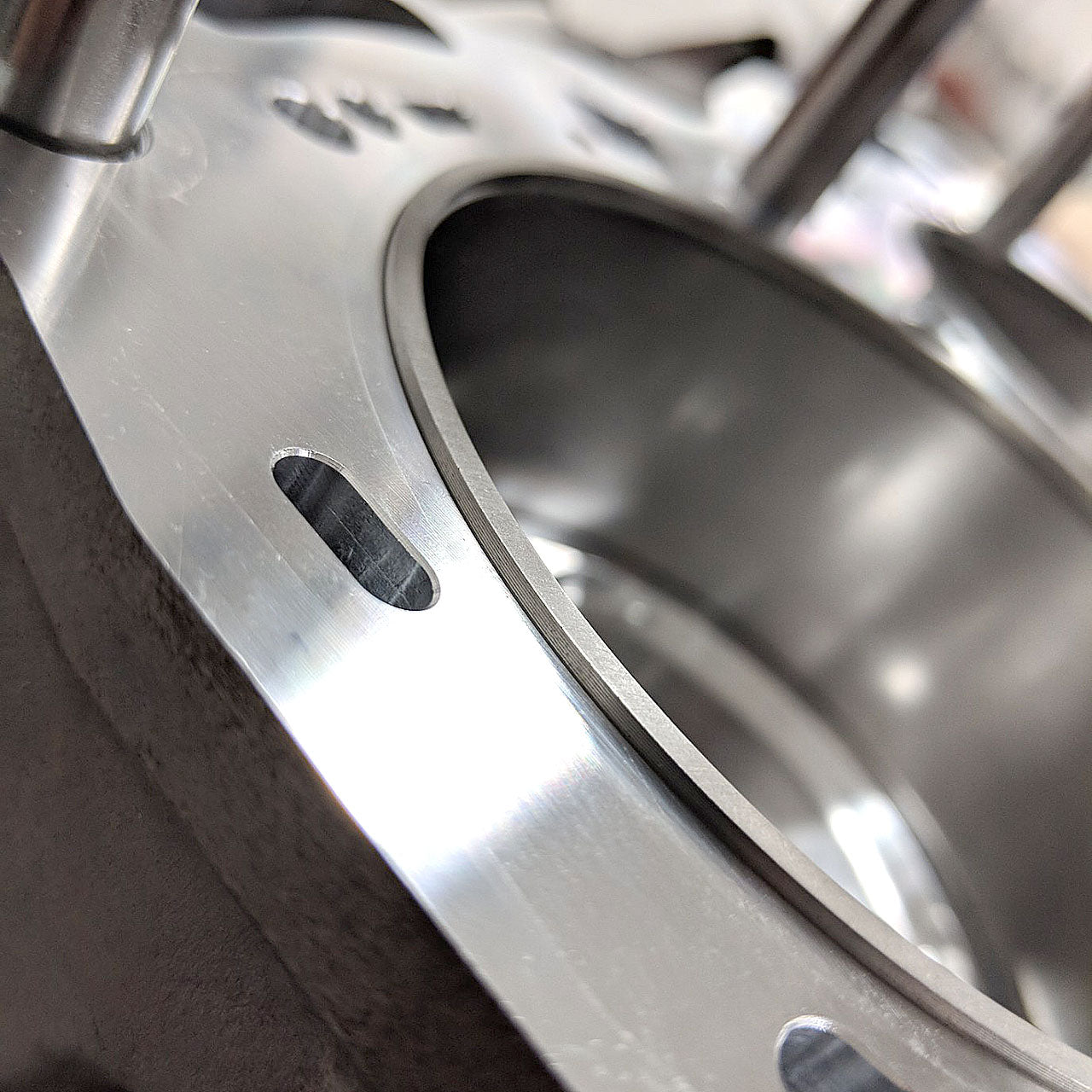

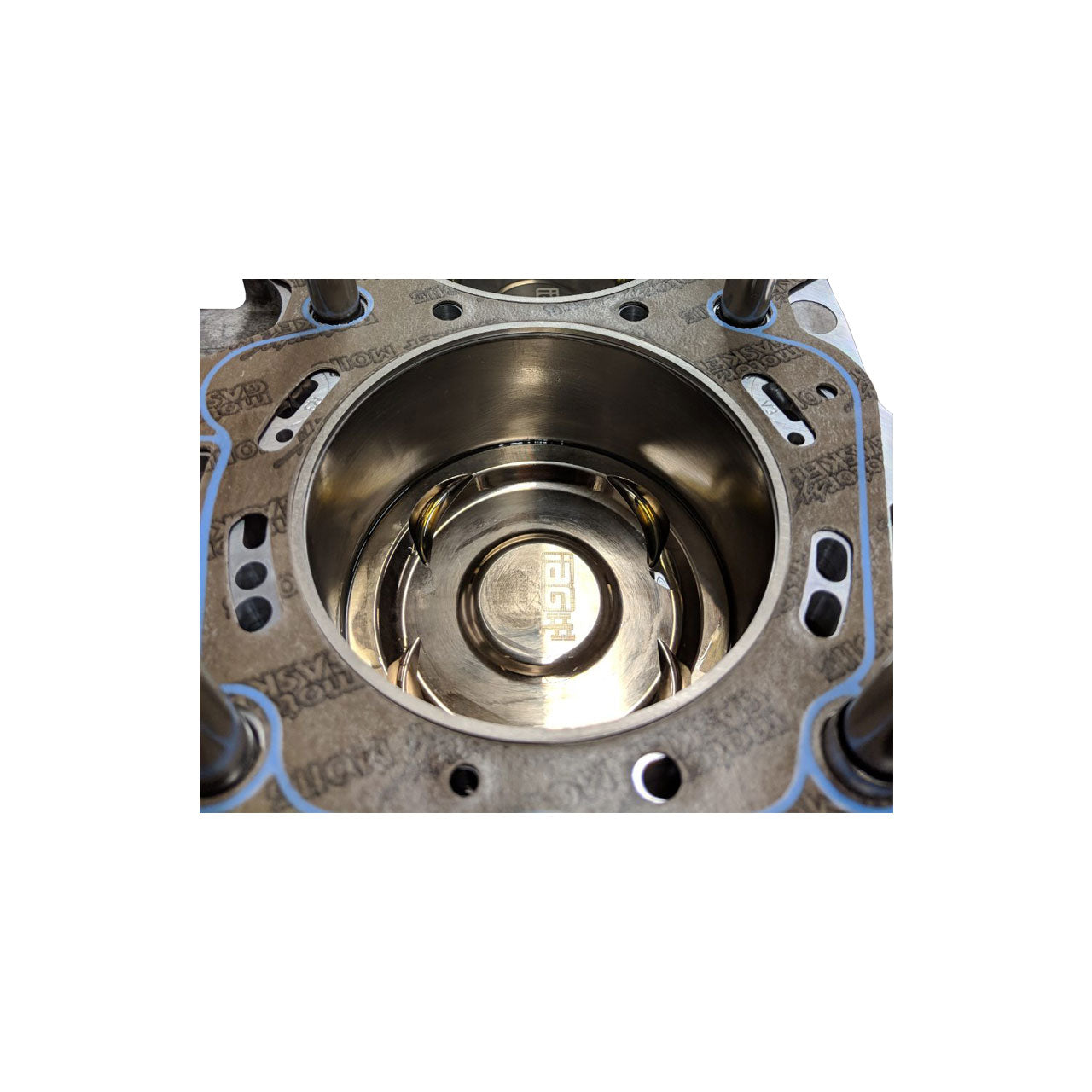

IAG Fire-Lock 2.5L Head Gaskets (1 Pair with Fire-Lock Rings) For 14mm Head Studs Only- Note Machine Work with IAG is REQUIRED. After years of research and development testing, the IAG Performance Fire-Lock head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ25 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ25 turbocharged engine. Features: Composite Material, IAG-Spec Alloy Ring, Specifically designed for 14mm Head Studs, Silicone Beading, 100mm Bore, .051" Thickness, Intended for High Horsepower, High Boost applications.

IAG Performance Fire-Lock Head Gaskets (1 Pair w/ Fire-Lock Rings) for EJ25/EJ257, 100mm, .051" IAG-ENG-1740

Specifications:

Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Title	IAG Fire-Lock Head Gaskets (1 Pair w/ Fire-Lock Rings) for Subaru EJ25 / EJ257, 100mm, .051in, for 14mm Head Studs.
17	Gray
1721	Two Piece
10	Composite with Silicone Beading
3753	Alloy
4098	100
9022	No
3390	Performance
19	0.051
Description_DES	Fire-Lock Head Gaskets (1 Pair w/ Fire-Lock Rings) for EJ25/EJ257, 100mm, .051"
Description_APS	Subaru: Baja 2004 - 2006, Subaru: Forester 2004 - 2013, Subaru: Impreza 2004 - 2014, Subaru: Legacy 2005 - 2013, Subaru: Outback 2005 - 2009, Subaru: WRX 2012 - 2016, Subaru: WRX STI 2013 - 2021
Description_EXT	IAG Fire-Lock Head Gaskets (1 Pair w/ Fire-Lock Rings) for Subaru EJ25 / EJ257, 100mm, .051", for 14mm Head Studs.
Description_MKT	IAG Fire-Lock 2.5L Head Gaskets (1 Pair with Fire-Lock Rings) For 14mm Head Studs Only- Note Machine Work with IAG is REQUIRED. After years of research and development testing, the IAG Performance Fire-Lock head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ25 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ25 turbocharged engine. Features: Composite Material, IAG-Spec Alloy Ring, Specifically designed for 14mm Head Studs, Silicone Beading, 100mm Bore, .051" Thickness, Intended for High Horsepower, High Boost applications.
Description_FAB	Unique Fire-Lock Rings help contain extreme cylinder pressures. Cylinder liners must be machined to accept the fire-lock rings.
Description_TLE	IAG Performance Fire-Lock Head Gaskets (1 Pair w/ Fire-Lock Rings) for Subaru EJ25 / EJ257, 100mm, .051", for 14mm Head Studs.
Description_SHO	Cylinder Head Gasket
Description_INV	IAG Performance Cylinder Head Gasket

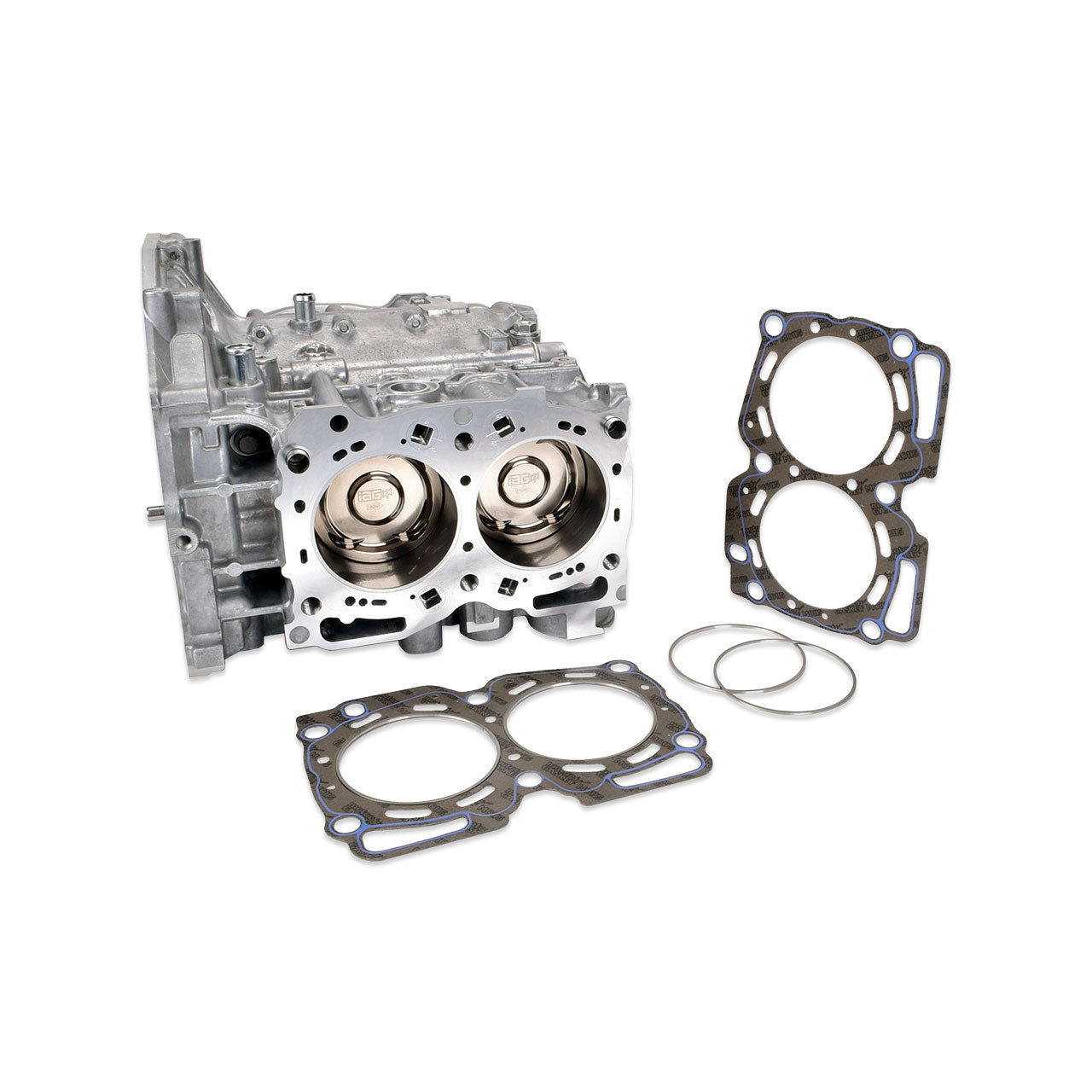

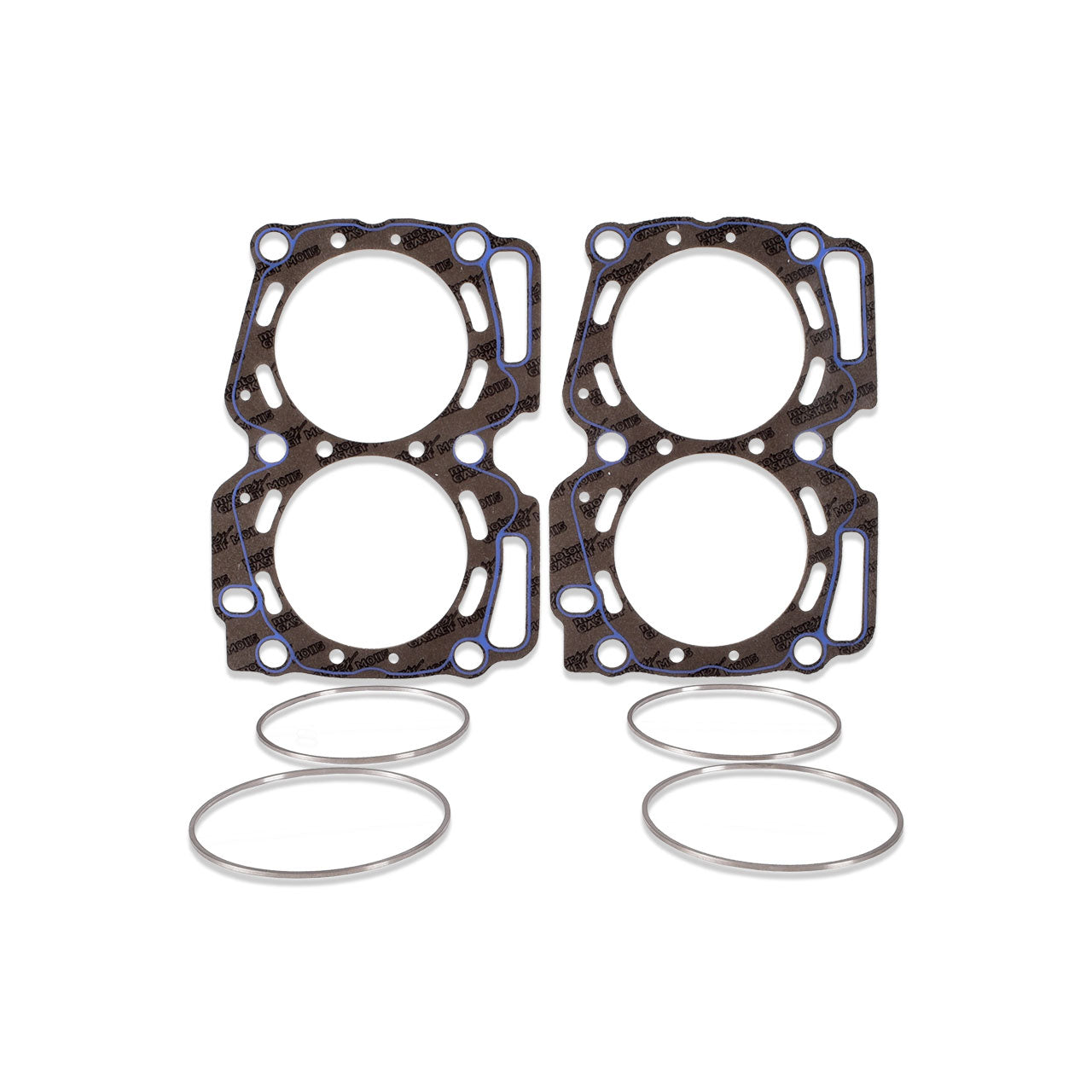

Description_ASC	Kit Includes: (2x) Fire-lock gaskets, (4x) Fire-lock rings
Description_ASC	The IAG Fire-Lock gaskets require machine work for installation and are recommended for use with 14mm head stud hardware.
Description_ASC	IAG ARP 14mm Head Studs Required
Description_ASC	The gaskets are sold in pairs with four Fire-lock rings.
Description_ASC	If a block or cylinder head was previously o-ringed the groove must be filled and resurfaced before using this type of gasket
Description_ASC	These gaskets require IAG ARP 14mm head studs to achieve the required torque necessary for proper installation. Due to the required torque, any block that was previously honed will need to go to the next size overbore. Future servicing will require cylinder head resurfacing due to an imprint left from the Fire-lock rings.
Description_KSW	IAG Performance
Description_LAB	Fire-Lock Head Gaskets (1 Pair w/ Fire-Lock Rings) for EJ25/EJ257, 100mm, .051"
Description_DEF	Engine Cylinder Head Gasket

This Part Fits:

Year	Make	Model	Submodel
2004	Subaru	Baja	Turbo
2005	Subaru	Baja	Turbo
2006	Subaru	Baja	Turbo
2008	Subaru	Forester	2.5 XT
2008	Subaru	Forester	Sports 2.5 XT
2004	Subaru	Forester	XT
2010	Subaru	Forester	XT Sports
2011	Subaru	Forester	XT Sports
2012	Subaru	Forester	XT Sports
2011	Subaru	Forester	XT Touring
2012	Subaru	Forester	XT Touring
2013	Subaru	Forester	XT Touring
2009	Subaru	Impreza	2.5 GT
2010	Subaru	Impreza	2.5 GT
2006	Subaru	Impreza	WRX
2007	Subaru	Impreza	WRX
2008	Subaru	Impreza	WRX
2009	Subaru	Impreza	WRX
2010	Subaru	Impreza	WRX
2011	Subaru	Impreza	WRX
2012	Subaru	Impreza	WRX
2013	Subaru	Impreza	WRX
2014	Subaru	Impreza	WRX
2010	Subaru	Impreza	WRX GT
2009	Subaru	Impreza	WRX Premium
2010	Subaru	Impreza	WRX Premium
2011	Subaru	Impreza	WRX Premium
2012	Subaru	Impreza	WRX Premium
2013	Subaru	Impreza	WRX Premium
2014	Subaru	Impreza	WRX Premium
2010	Subaru	Impreza	WRX SE
2004	Subaru	Impreza	WRX STI
2005	Subaru	Impreza	WRX STI
2006	Subaru	Impreza	WRX STI
2007	Subaru	Impreza	WRX STI
2008	Subaru	Impreza	WRX STI
2009	Subaru	Impreza	WRX STI
2010	Subaru	Impreza	WRX STI
2011	Subaru	Impreza	WRX STI
2012	Subaru	Impreza	WRX STI
2013	Subaru	Impreza	WRX STI
2014	Subaru	Impreza	WRX STI
2010	Subaru	Impreza	WRX STI Special Edition
2006	Subaru	Impreza	WRX TR
2007	Subaru	Impreza	WRX TR
2010	Subaru	Legacy	2.5GT
2011	Subaru	Legacy	2.5GT
2012	Subaru	Legacy	2.5GT
2009	Subaru	Legacy	GT Limited
2006	Subaru	Legacy	GT spec.B
2007	Subaru	Legacy	GT spec.B
2008	Subaru	Legacy	GT spec.B
2009	Subaru	Legacy	GT spec.B
2008	Subaru	Outback	2.5 XT
2005	Subaru	Outback	XT
2006	Subaru	Outback	XT
2007	Subaru	Outback	XT
2008	Subaru	Outback	XT
2005	Subaru	Outback	XT Limited
2006	Subaru	Outback	XT Limited
2007	Subaru	Outback	XT Limited
2008	Subaru	Outback	XT Limited
2009	Subaru	Outback	XT Limited
2013	Subaru	WRX	Base
2014	Subaru	WRX	Base
2013	Subaru	WRX	Limited
2014	Subaru	WRX	Limited
2012	Subaru	WRX	STI
2013	Subaru	WRX	STI
2014	Subaru	WRX	STI
2015	Subaru	WRX	STI
2016	Subaru	WRX	STI
2013	Subaru	WRX STI	Base
2014	Subaru	WRX STI	Base
2015	Subaru	WRX STI	Base
2016	Subaru	WRX STI	Base
2017	Subaru	WRX STI	Base
2018	Subaru	WRX STI	Base
2019	Subaru	WRX STI	Base
2020	Subaru	WRX STI	Base
2021	Subaru	WRX STI	Base
2020	Subaru	WRX STI	Kanrai Edition
2015	Subaru	WRX STI	Launch Edition
2015	Subaru	WRX STI	Limited
2016	Subaru	WRX STI	Limited
2017	Subaru	WRX STI	Limited
2018	Subaru	WRX STI	Limited
2019	Subaru	WRX STI	Limited
2020	Subaru	WRX STI	Limited
2021	Subaru	WRX STI	Limited
2019	Subaru	WRX STI	S209
2016	Subaru	WRX STI	Series.HyperBlue
2017	Subaru	WRX STI	Sport
2018	Subaru	WRX STI	Sport
2019	Subaru	WRX STI	Sport
2020	Subaru	WRX STI	Sport
2020	Subaru	WRX STI	Sport-tech
2018	Subaru	WRX STI	STI
2019	Subaru	WRX STI	STI
2020	Subaru	WRX STI	STI
2014	Subaru	WRX STI	Tsurugi Edition
2018	Subaru	WRX STI	Type RA
