*item may differ from images

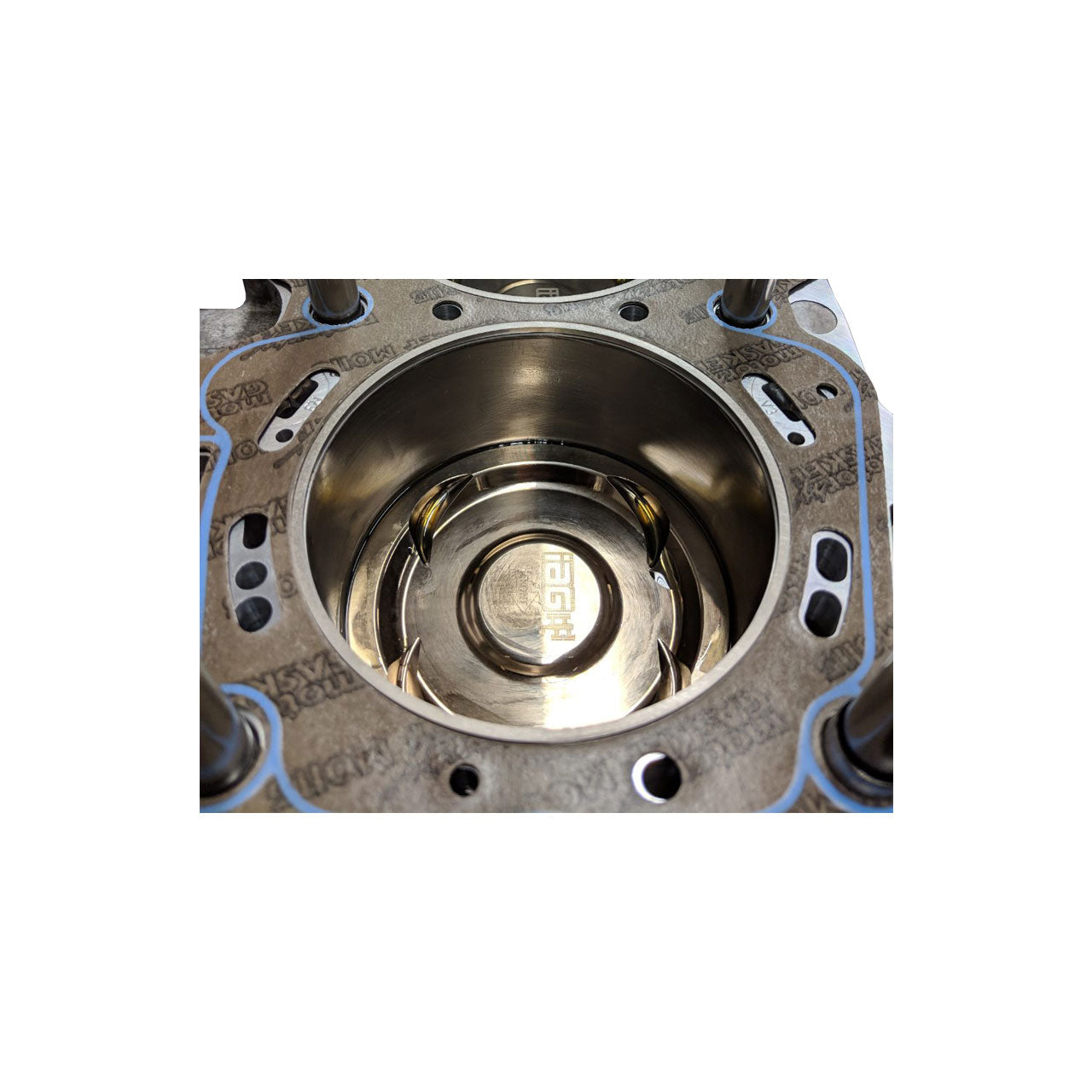

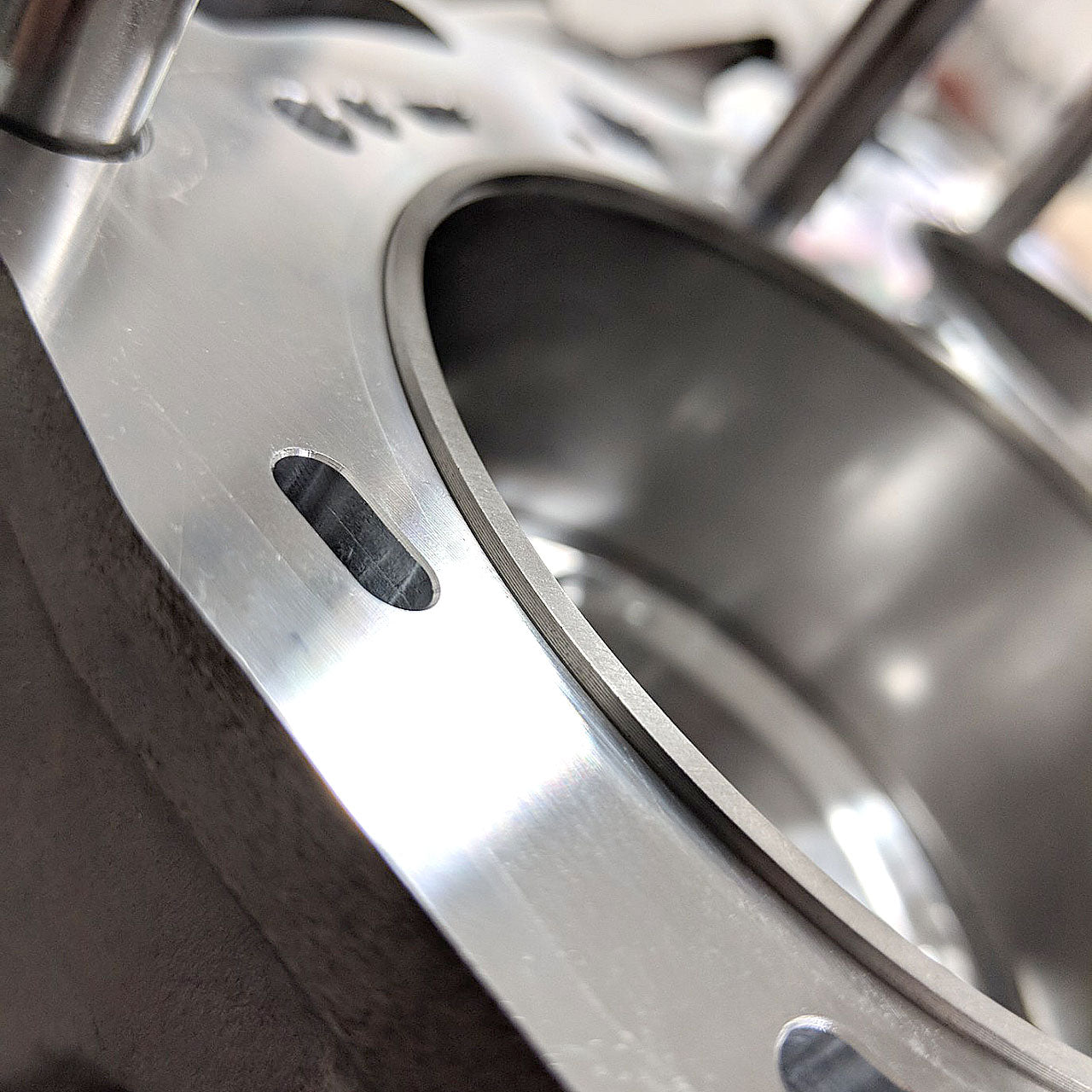

IAG Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) For 14mm Head Studs Only- Note Machine Work with IAG is REQUIRED. After years of research and development testing, the IAG Performance Fire-Lock head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ20 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ20 turbocharged engine. Features: Composite Material IAG-Spec Alloy Ring Specifically designed for 14mm Head Studs, Silicone Beading, 100mm Bore, .051" Thickness, Intended for High Horsepower, High Boost applications .
IAG Performance Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) IAG-ENG-1745
Specifications:
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Title | IAG Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) for 14mm Head Studs Only. |
| 17 | Gray |
| 1721 | Two Piece |
| 10 | Composite |
| 3753 | Alloy |
| 4098 | 93.50 |
| 9022 | No |
| 3390 | Performance |
| 19 | 0.051 |
| Description_SHO | Cylinder Head Gasket |
| Description_INV | IAG Performance Cylinder Head Gasket |

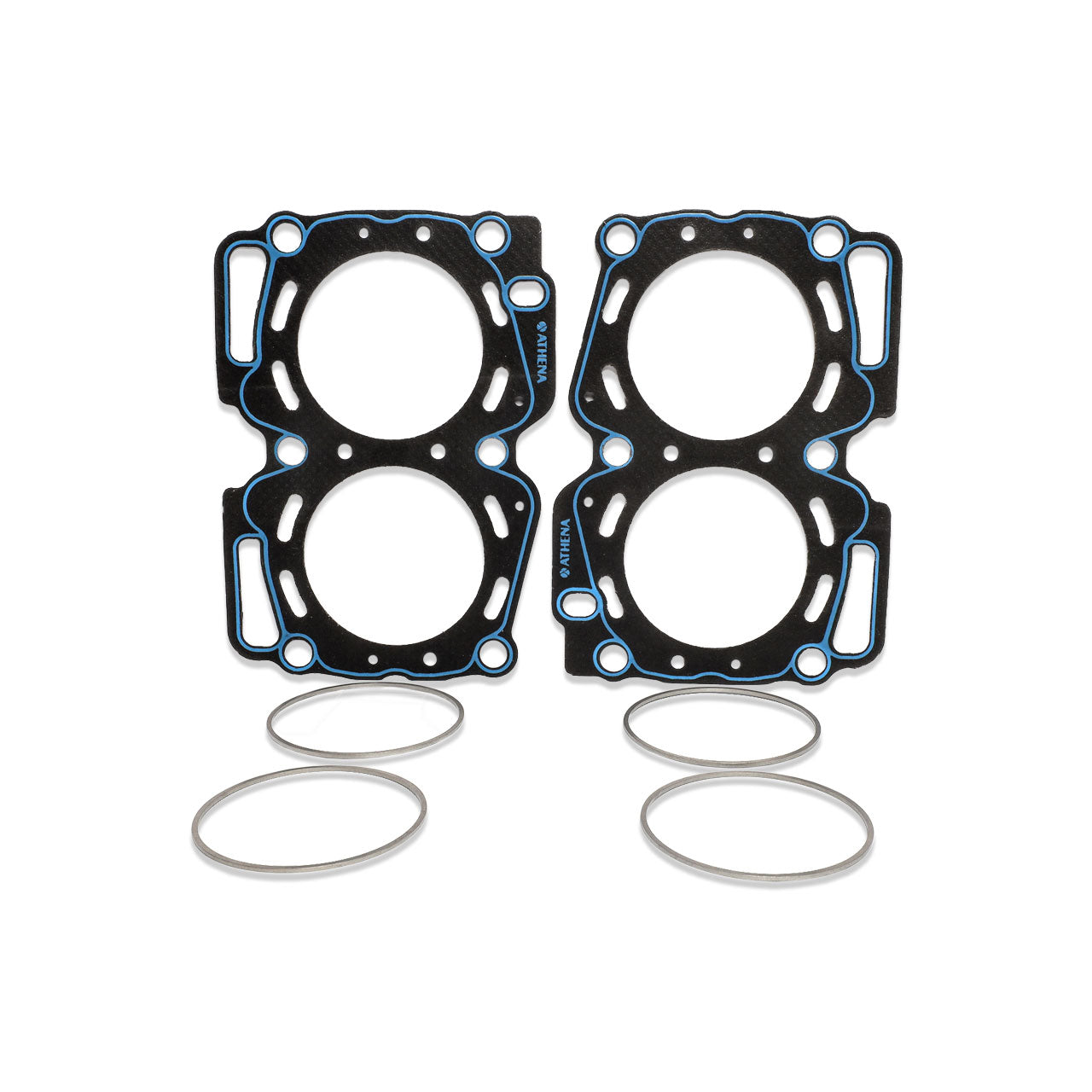

| Description_ASC | Kit Includes: (2x) Fire-lock gaskets, (4x) Fire-lock rings |
| Description_ASC | The IAG Fire-Lock gaskets require machine work for installation and are recommended for use with 14mm head stud hardware. |
| Description_ASC | IAG ARP 14mm Head Studs Required |
| Description_ASC | The gaskets are sold in pairs with four Fire-lock rings. |
| Description_ASC | If a block or cylinder head was previously o-ringed the groove must be filled and resurfaced before using this type of gasket |
| Description_ASC | These gaskets require IAG ARP 14mm head studs to achieve the required torque necessary for proper installation. Due to the required torque, any block that was previously honed will need to go to the next size overbore. Future servicing will require cylinder head resurfacing due to an imprint left from the Fire-lock rings. |
| Description_ASC | Note Machine Work with IAG is REQUIRED |
| Description_KSW | IAG-ENG-1745,2002,2003,2004,2005,wrx,ej20,headgasket,14mm,head,stud,headstud, |
| Description_LAB | Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) |
| Description_DES | Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) |
| Description_APS | Saab: 9-2X 2005 - 2005, Subaru: Impreza 2002 - 2005 |
| Description_EXT | IAG Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) for 14mm Head Studs Only. |
| Description_MKT | IAG Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) For 14mm Head Studs Only- Note Machine Work with IAG is REQUIRED. After years of research and development testing, the IAG Performance Fire-Lock head gasket is the newest solution to preventing head gasket failure on high horsepower and high boost Subaru EJ20 engines. This solution is loosely derived from diesel technology where a counterbore step is machined around each cylinder bore allowing specially sized fire rings to drop into the machined area and head gasket bores. The shims are designed to create a compression seal once the heads are installed and torqued into place. IAG fire rings are manufactured to a very strict tolerance from a proprietary alloy and are then put through a heat treatment process. The gaskets are manufactured from an asbestos-free composite raw material and feature a silicone based beading applied to critical areas to improve sealing around all water and oil passages. The combination of the alloy compression shims and gaskets assure maximum sealing for a Subaru EJ20 turbocharged engine. Features: Composite Material IAG-Spec Alloy Ring Specifically designed for 14mm Head Studs, Silicone Beading, 100mm Bore, .051" Thickness, Intended for High Horsepower, High Boost applications . |
| Description_FAB | Unique Fire-Lock Rings help contain extreme cylinder pressures. Cylinder liners must be machined to accept the fire-lock rings. |
| Description_TLE | IAG Performance Fire-Lock 2.0L Head Gaskets (1 Pair with Fire-Lock Rings) for 14mm Head Studs Only. |
| Description_DEF | Engine Cylinder Head Gasket |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2005 | Saab | 9-2X | Aero | |
| 2002 | Subaru | Impreza | WRX | |
| 2003 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX | |
| 2005 | Subaru | Impreza | WRX |
