*item may differ from images
IAG Performance is proud to offer 3mm phenolic grade CE spacers for your 2.0L and 2.5L engine. This is a simple, cost-effective way to maximize the power of your current set-up. The 3mm spacer is thick enough to provide superior thermal insulation to the factory steel gasket but thin enough to avoid clearance issues that can arise with the 8mm spacer. The concept behind the phenolic spacer is simple: isolate the heat produced by the engine from the entire intake tract. This results in a cooler path for the intake air. This leads to a lower and more stable intake air temperature (IATs). Lower IATs mean you have the capability to make more power with your current set-up. IAG phenolic spacers are engineered and manufactured at our facility in Westminster, MD. The spacer was designed using the factory Subaru head. Each spacer is then CNC machined from a single piece of phenolic. We include 4 custom-made nitrile gaskets with your phenolic spacers - one to go on each side of the spacer. Our intake manifold gaskets are not layered with paper like the factory gasket. They are engineered to stay intact when removed from your cylinder head. This prevents you from having to clean up residue that sticks to the cylinder head after years of use.
IAG Performance 3mm Thick Phenolic Spacers (1 PAIR) IAG-AFD-3103
Specifications:
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Title | IAG 3mm Thick Phenolic Spacers for 2002-14 SUBARU WRX, 04-21 STI, 05-12 LGT, 04-13 FXT (1 PAIR). |
| 10 | Phenolic |
| Gaskets and Seals Included | Yes |
| Hardware Included | Yes |
| 17 | Red |
| 3390 | Performance |
| 356 | 8 |
| 24 | 5 |
| Description_SHO | Phenolic Spacer |
| Description_INV | IAG Performance Phenolic Spacer |

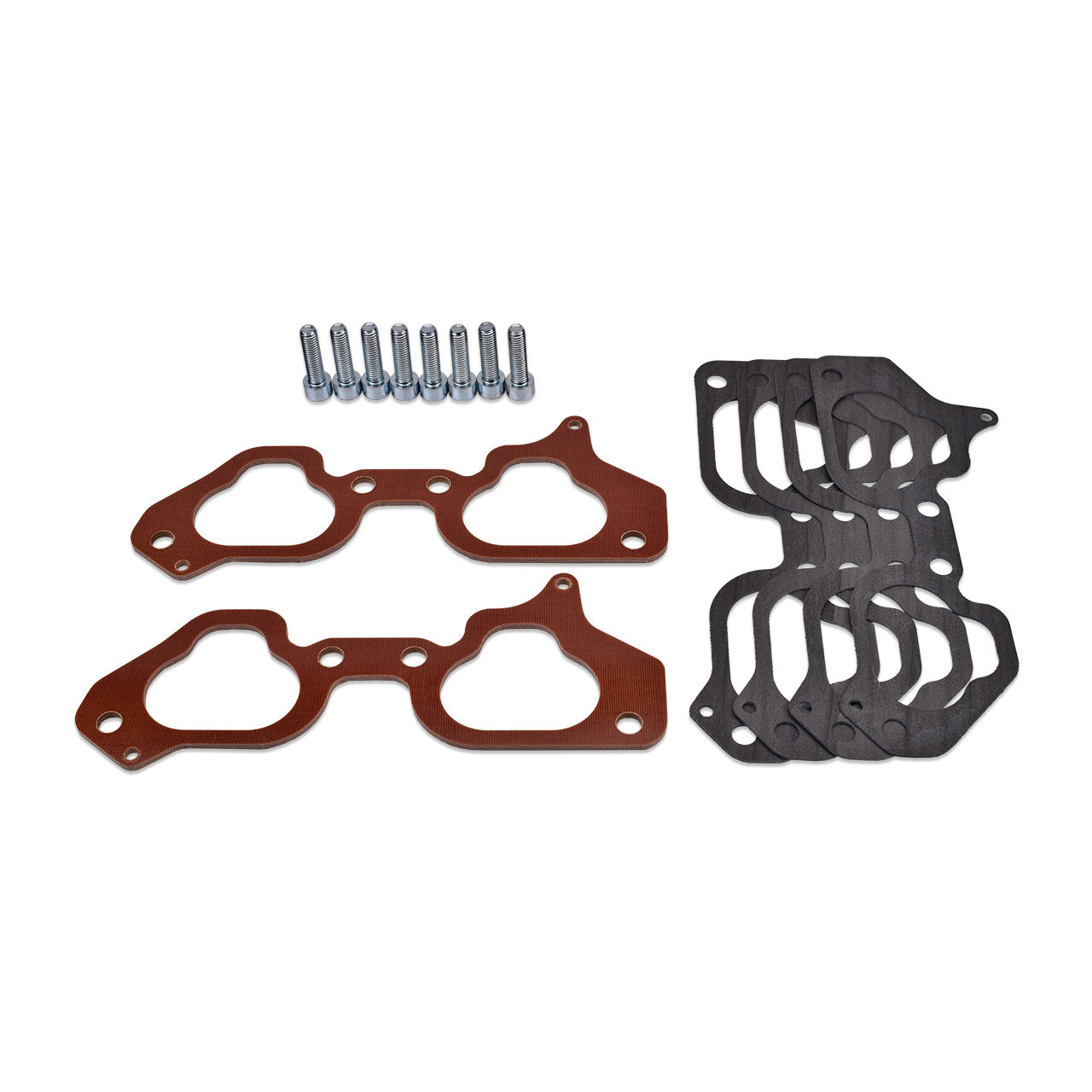

| Description_ASC | Kit includes: (x2) 3mm Phenolic Spacers, (x4) Nitrile Intake Gaskets, (x8) M8x30mm Socket Head Zinc Plate Screws |
| Description_ASC | (Fits IAG V2 & V3 TGV) Hardware Included is for IAG V2 & V3 Top Feed TGV's Only. If you require hardware for IAG V1 TGV's or like products it is available separately (Part# IAG-RPL-AFD-3000-HDW-38 |
| Description_KSW | 2002,2003,2004,2005,2006,2007,2008,2009,2010,2011 |
| Description_KSW | 2012,2013,2014,2015,2016,2017,2018,2019,2020 ,2019,2020,2020 |
| Description_KSW | Subaru,legacy,gt,spec b,forester,xt,impreza,IAG-AFD-3040,IAG-AFD-3010 |
| Description_LAB | 3mm Thick Phenolic Spacers (1 PAIR) |
| Description_DES | 3mm Thick Phenolic Spacers (1 PAIR) |
| Description_APS | Subaru: Forester 2004 - 2013, Subaru: Impreza 2002 - 2014, Subaru: Legacy 2005 - 2012, Subaru: WRX STI 2015 - 2021 |
| Description_EXT | IAG 3mm Thick Phenolic Spacers for 2002-14 SUBARU WRX, 04-20 STI, 05-12 LGT, 04-13 FXT (1 PAIR). |
| Description_MKT | IAG Performance is proud to offer 3mm phenolic grade CE spacers for your 2.0L and 2.5L engine. This is a simple, cost-effective way to maximize the power of your current set-up. The 3mm spacer is thick enough to provide superior thermal insulation to the factory steel gasket but thin enough to avoid clearance issues that can arise with the 8mm spacer. The concept behind the phenolic spacer is simple: isolate the heat produced by the engine from the entire intake tract. This results in a cooler path for the intake air. This leads to a lower and more stable intake air temperature (IATs). Lower IATs mean you have the capability to make more power with your current set-up. IAG phenolic spacers are engineered and manufactured at our facility in Westminster, MD. The spacer was designed using the factory Subaru head. Each spacer is then CNC machined from a single piece of phenolic. We include 4 custom-made nitrile gaskets with your phenolic spacers - one to go on each side of the spacer. Our intake manifold gaskets are not layered with paper like the factory gasket. They are engineered to stay intact when removed from your cylinder head. This prevents you from having to clean up residue that sticks to the cylinder head after years of use. |
| Description_FAB | Reduces intake air temperature |
| Description_TLE | IAG Performance 3mm Thick Phenolic Spacers for 2002-14 Subaru WRX, 04-21 STI, 05-12 LGT, 04-13 FXT (1 PAIR) (For IAG V2 & V3 Top Feed TGV's Only) |
| Description_DEF | Engine Intake Manifold Spacer |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2004 | Subaru | Forester | XT | |
| 2011 | Subaru | Forester | XT Premium | |
| 2002 | Subaru | Impreza | WRX | |
| 2003 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX | |
| 2005 | Subaru | Impreza | WRX | |
| 2006 | Subaru | Impreza | WRX | |
| 2007 | Subaru | Impreza | WRX | |
| 2008 | Subaru | Impreza | WRX | |
| 2009 | Subaru | Impreza | WRX | |
| 2010 | Subaru | Impreza | WRX | |
| 2011 | Subaru | Impreza | WRX | |
| 2012 | Subaru | Impreza | WRX | |
| 2013 | Subaru | Impreza | WRX | |
| 2014 | Subaru | Impreza | WRX | |
| 2004 | Subaru | Impreza | WRX STI | |
| 2005 | Subaru | Impreza | WRX STI | |
| 2006 | Subaru | Impreza | WRX STI | |
| 2007 | Subaru | Impreza | WRX STI | |
| 2008 | Subaru | Impreza | WRX STI | |
| 2009 | Subaru | Impreza | WRX STI | |
| 2010 | Subaru | Impreza | WRX STI | |
| 2011 | Subaru | Impreza | WRX STI | |
| 2012 | Subaru | Impreza | WRX STI | |
| 2013 | Subaru | Impreza | WRX STI | |
| 2014 | Subaru | Impreza | WRX STI | |
| 2009 | Subaru | Legacy | GT spec.B | |
| 2015 | Subaru | WRX STI | ||
| 2016 | Subaru | WRX STI | ||
| 2017 | Subaru | WRX STI | ||
| 2018 | Subaru | WRX STI | ||
| 2019 | Subaru | WRX STI | ||
| 2020 | Subaru | WRX STI | ||
| 2021 | Subaru | WRX STI |
