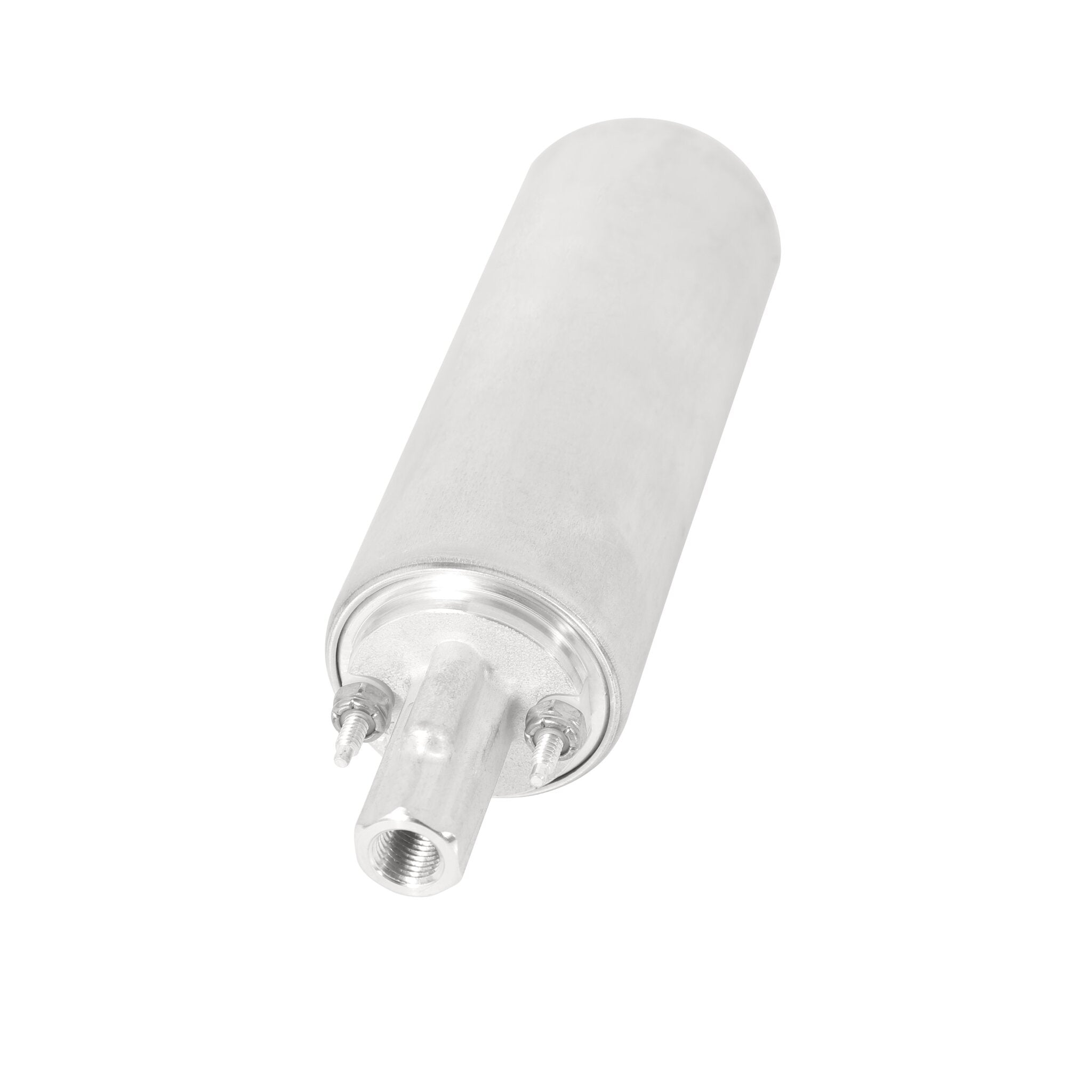

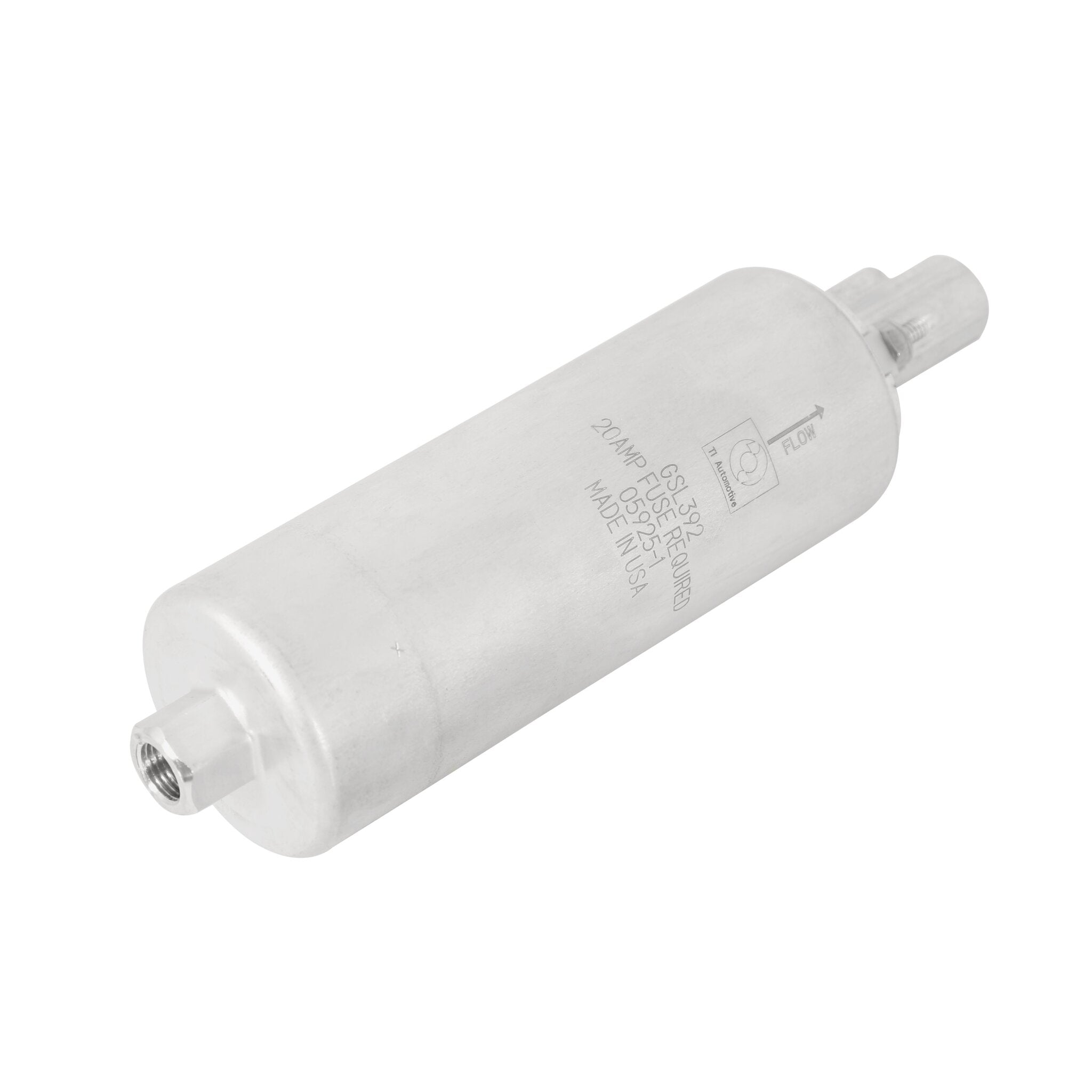

The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.
Holley Street/Strip EFI Applications Compatible with Gasoline only 12-920
Specifications:
| Description_ABR | 80 GPH |
| Description_SHO | 80 GPH Inline Univ |
| Description_INV | FUEL PUMP-INLINE HIGH OUTPUT |

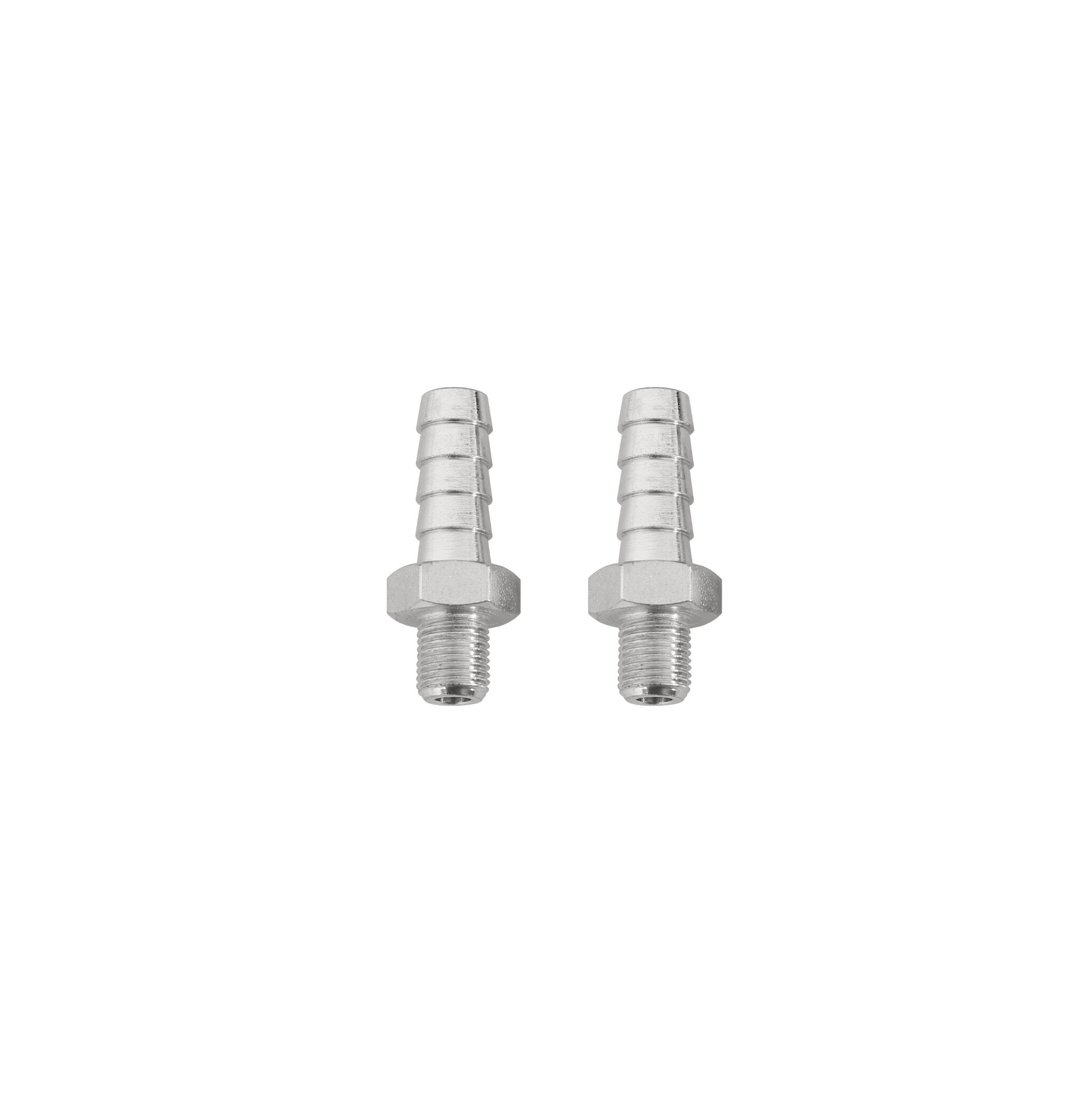

| Description_ASC | Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180 |
| Description_DES | 80 GPH In-line Universal Electric Fuel Pump |
| Description_EXT | Street/Strip EFI Applications Compatible with Gasoline only |
| Description_MKT | The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours. |
| Description_FAB | Draws 5 amps at 15 psi |
| Description_FAB | Will feed up to 800 horsepower throttle body EFI units |
| Description_FAB | Will feed up to 700 horsepower multipoint units |
| Description_FAB | Will feed up to 600 horsepower forced induction multipoint units |
| Description_FAB | OE proven design |
| Description_FAB | Lightweight and compact |

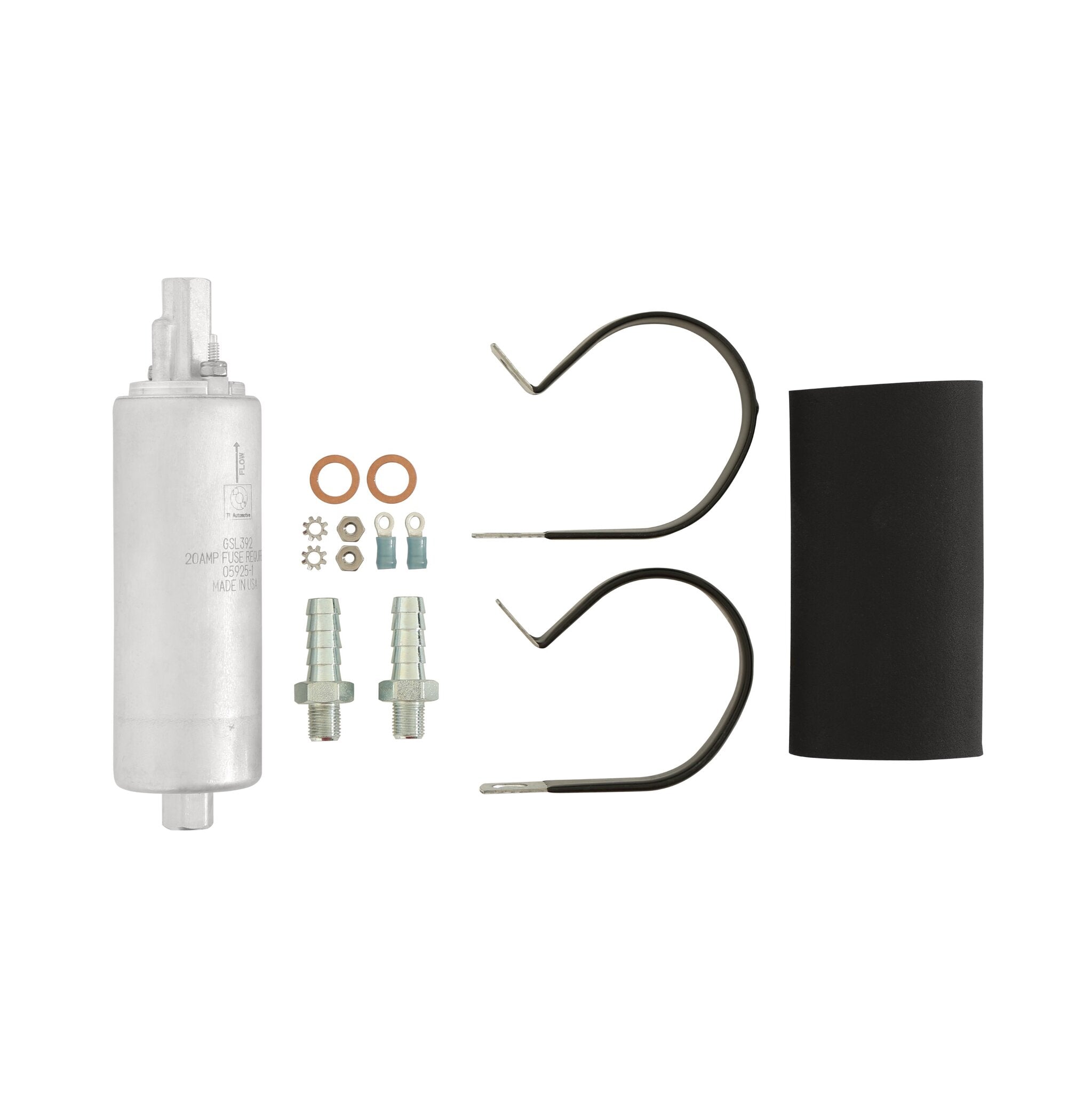

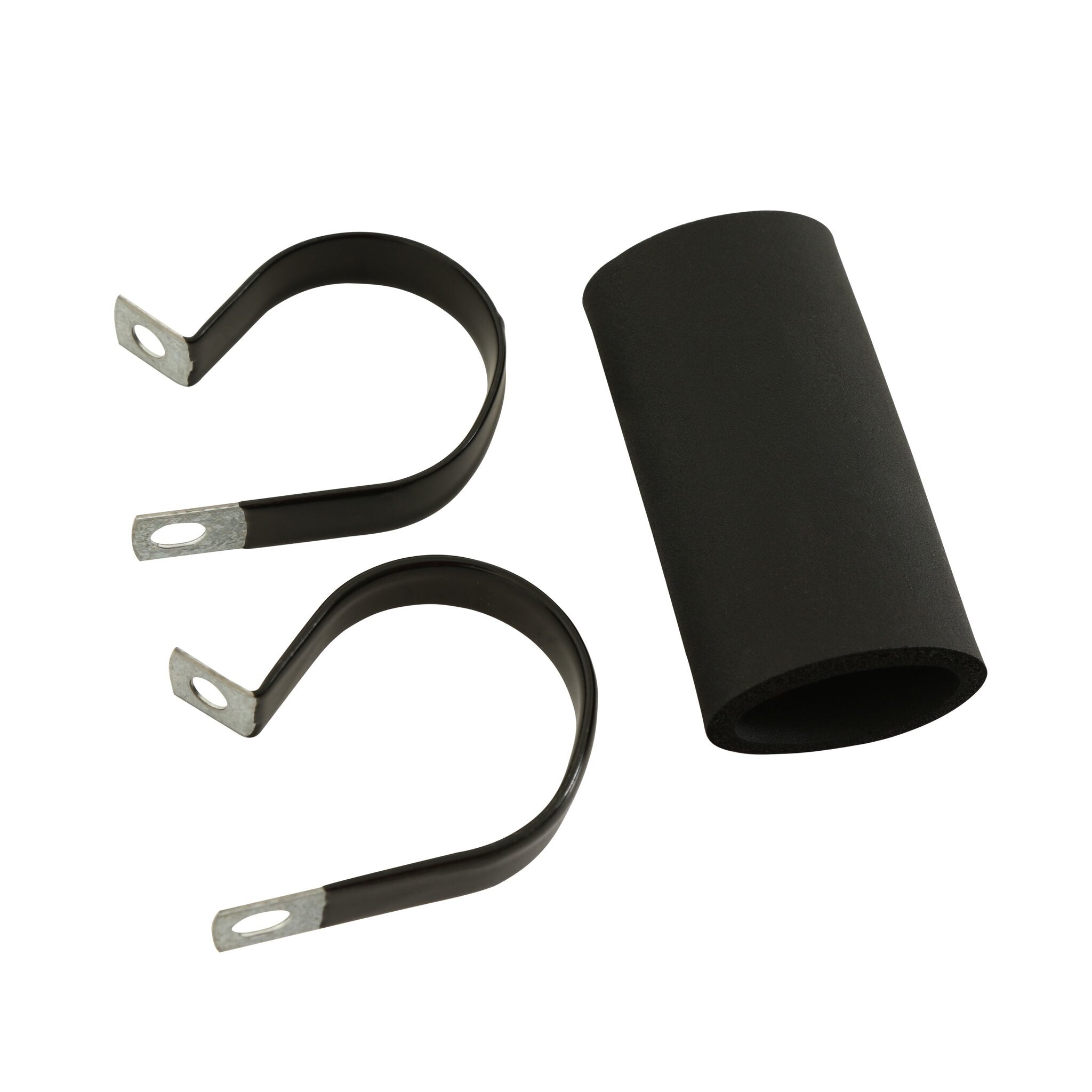

| Description_FAB | Rubber isolator, mounting clamps and electrical hardware included |
| Description_FAB | 3/8" barbed fittings included |
| Description_FAB | Not designed for use on aircraft of any type. |
| Description_ABR | 80 GPH |
| Description_SHO | 80 GPH Inline Univ |
| Description_INV | FUEL PUMP-INLINE HIGH OUTPUT |
| Description_ASC | Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180 |
| Description_DES | 80 GPH In-line Universal Electric Fuel Pump |
| Description_EXT | Street/Strip EFI Applications Compatible with Gasoline only |
| Description_MKT | The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours. |
| Description_FAB | Draws 5 amps at 15 psi |
| Description_FAB | Will feed up to 800 horsepower throttle body EFI units |
| Description_FAB | Will feed up to 700 horsepower multipoint units |
| Description_FAB | Will feed up to 600 horsepower forced induction multipoint units |
| Description_FAB | OE proven design |
| Description_FAB | Lightweight and compact |
| Description_FAB | Rubber isolator, mounting clamps and electrical hardware included |
| Description_FAB | 3/8" barbed fittings included |
| Description_FAB | Not designed for use on aircraft of any type. |
| 1153 | No |
| 3390 | Performance |
| 353 | No |
| Application | Universal |
| Bracket Color | Black |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 3 |
| Forced Induction HP@43PSI | 600 |
| 6806 | Fuel Injection |
| 6806 | Carburetor |
| Fuel System | Carbureted |
| Fuel System | EFI |
| Fuel Type | Gasoline |

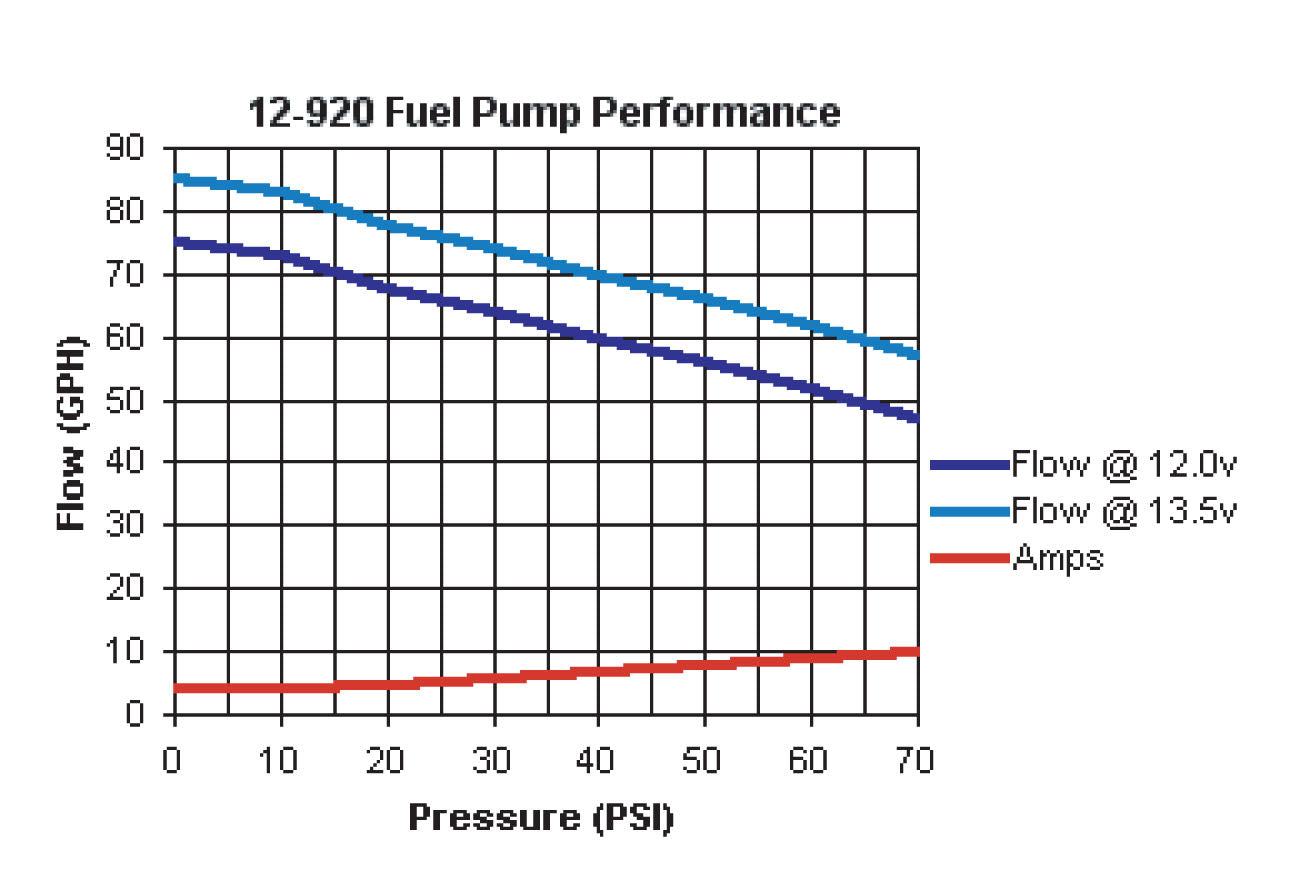

| GPH@15PSI | 80 |
| GPH@43PSI | 67 |
| GPH@60PSI | 62 |
| GPH@8PSI | 85 |
| Inlet Fitting Thread Size | 10x1.0 |
| Inlet Size | 10mm x 1.0 |
| 2183 | External |
| LPH@15PSI | 302 |
| LPH@43PSI | 254 |
| LPH@60PSI | 235 |
| LPH@8PSI | 322 |
| Material | Steel |
| 517 | 85 |
| 280 | 60 |
| Naturally Aspirated HP@15PSI | 800 |
| Naturally Aspirated HP@43PSI | 700 |
| Naturally Aspirated HP@8PSI | 850 |
| 1154 | Yes |
| Outlet Fitting Thread Size | 10x1.0 |
| 623 | 1 |
| Outlet Size | 10mm x 1.0 |
| part type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Silver |
| 235 | No |
| Sub Category | Fuel Pumps and Related Components |
| 3145 | Universal |
| 123 | 12 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 338 | 2 |
| Coast Guard Approved | Yes |
| 1153 | No |
| 3390 | Performance |
| 353 | No |
| 30 | Yes |
| 518 | No |
| 488 | No |
| Application | Universal |
| Bracket Color | Black |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 3 |
| Forced Induction HP@43PSI | 600 |
| 6806 | Fuel Injection |
| 6806 | Carburetor |
| Fuel System | Carbureted |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| GPH@15PSI | 80 |
| GPH@43PSI | 67 |
| GPH@60PSI | 62 |
| GPH@8PSI | 85 |
| Inlet Fitting Thread Size | 10x1.0 |
| Inlet Size | 10mm x 1.0 |
| 2183 | External |
| LPH@15PSI | 302 |
| LPH@43PSI | 254 |
| LPH@60PSI | 235 |
| LPH@8PSI | 322 |
| Material | Steel |
| 517 | 85 |
| 280 | 60 |
| Naturally Aspirated HP@15PSI | 800 |
| Naturally Aspirated HP@43PSI | 700 |
| Naturally Aspirated HP@8PSI | 850 |
| 1154 | Yes |
| Outlet Fitting Thread Size | 10x1.0 |
| 623 | 1 |
| Outlet Size | 10mm x 1.0 |
| part type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Silver |
| 235 | No |
| Sub Category | Fuel Pumps and Related Components |
| 3145 | Universal |
| 123 | 12 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 338 | 2 |
| Coast Guard Approved | Yes |
