*item may differ from images

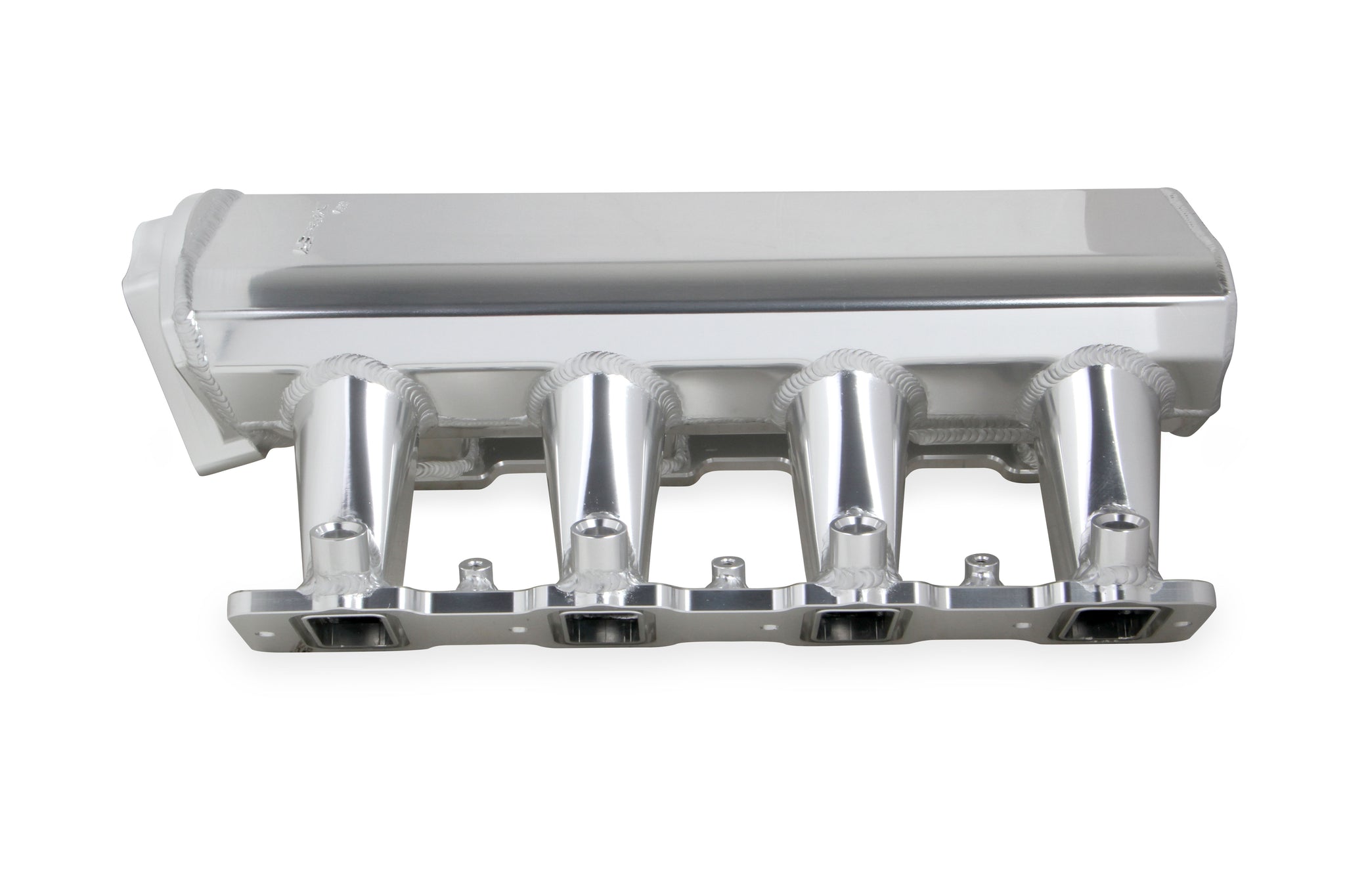

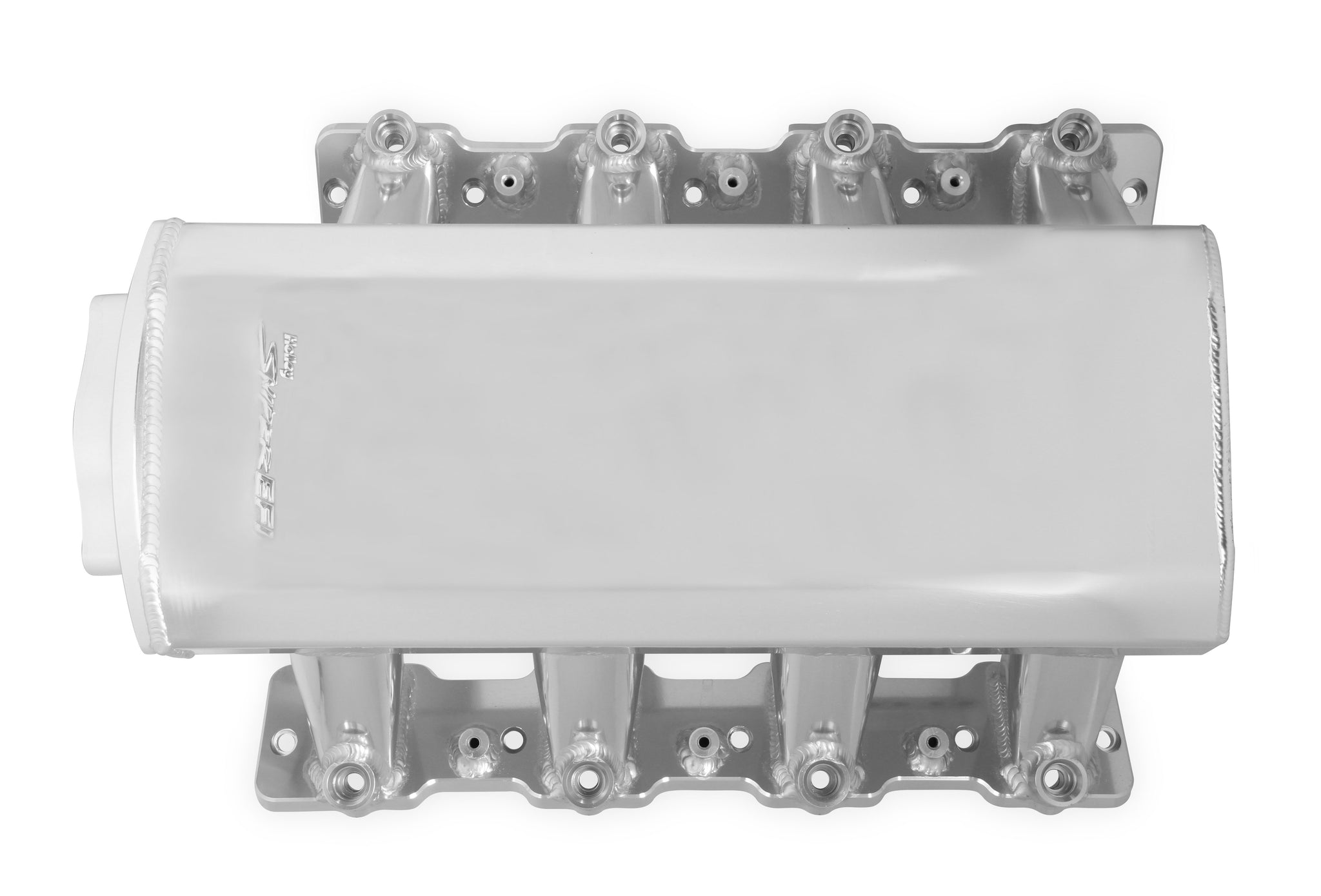

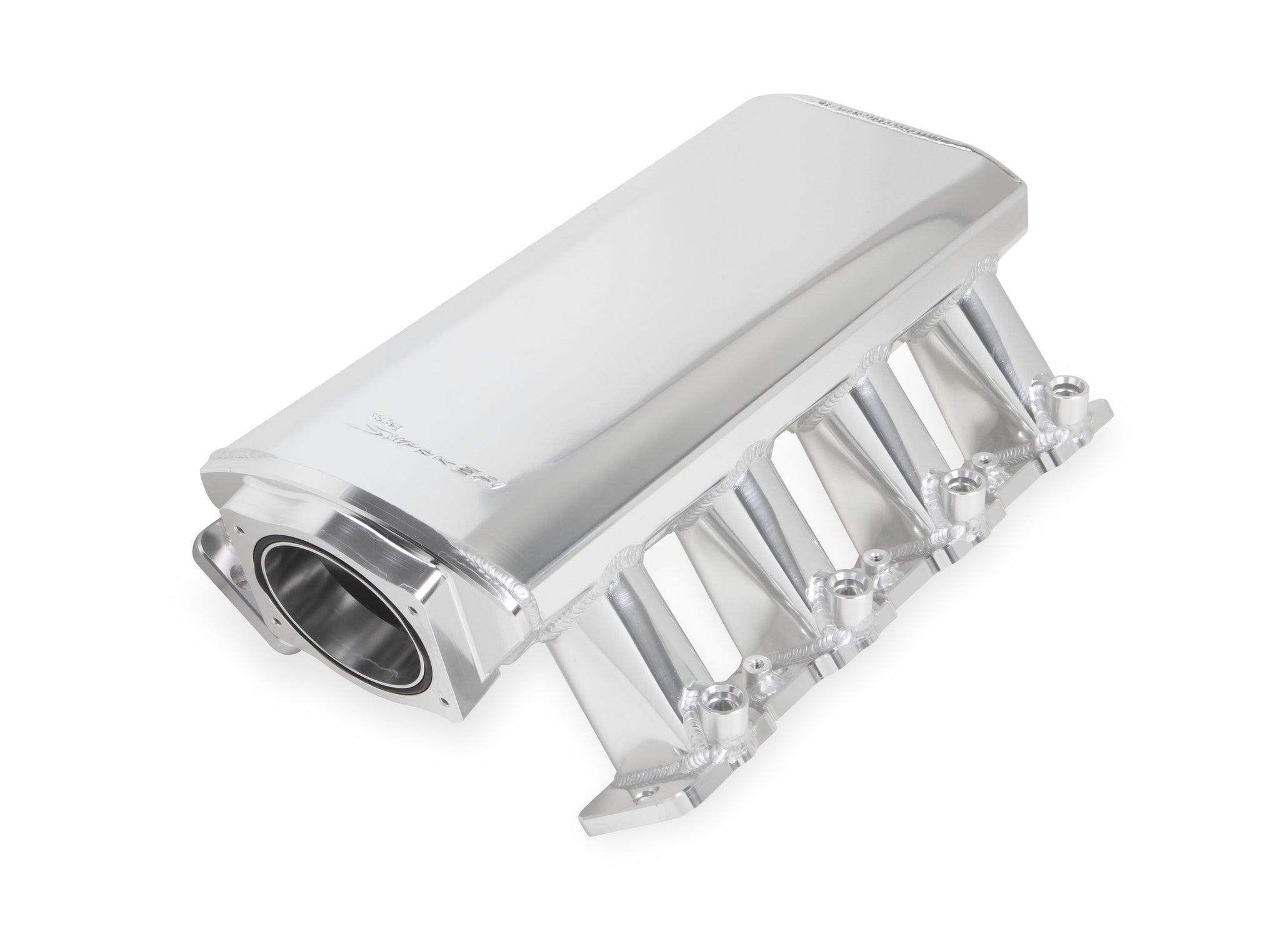

Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Holley Sniper EFI Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS7 830041-1
Specifications:
| Basic Operating RPM Range | 2500-7000 |
| Brand | Holley Sniper EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| 10652 | No |
| Category | Engine |
| 9063 | No |
| 17 | Silver |
| 158 | Fabricated |
| 5337 | Raised Rectangle |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 4 |
| Engine | GM LS7 |
| Flange Style | N/A |
| 6643 | 7.362 |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | No |
| 3390 | Performance |
| Injector Style Provision | EV1 |
| 10651 | Yes |
| Manifold Type | Fabricated |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| 10647 | Polished |
| Product Type | Intake Manifold |
| 6645 | 6.85 |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | No |
| Runner Length | 4.921" (125mm) |
| 6642 | Single Plane |
| Style | EFI |
| Sub Category | Cylinder Block Components |
| 10646 | 102 |
| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Throttle Bore | 102mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Basic Operating RPM Range | 2500-7000 |
| Brand | Holley Sniper EFI |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| 10652 | No |
| Category | Engine |
| 9063 | No |
| 17 | Silver |
| 158 | Fabricated |
| 5337 | Raised Rectangle |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 4 |
| Engine | GM LS7 |
| Flange Style | N/A |
| 6643 | 7.362 |
| 906 | No |
| 10644 | Yes |
| Fuel System Type | EFI |
| 353 | No |
| 3390 | Performance |
| Injector Style Provision | EV1 |
| 10651 | Yes |
| Manifold Type | Fabricated |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| 10647 | Polished |
| Product Type | Intake Manifold |
| 6645 | 6.85 |
| Recommended Use | Forced Induction |
| 10645 | No |
| 10649 | No |
| Runner Length | 4.921" (125mm) |
| 6642 | Single Plane |
| Style | EFI |
| Sub Category | Cylinder Block Components |
| 10646 | 102 |
| Throttle Body Gasket Included | Yes |
| 10626 | No |
| Throttle Bore | 102mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | SNIPER EFI L |
| Description_SHO | SNIPER EFI SHEET |
| Description_INV | SNIPER EFI LS7 FABRICATED IM 102MM |

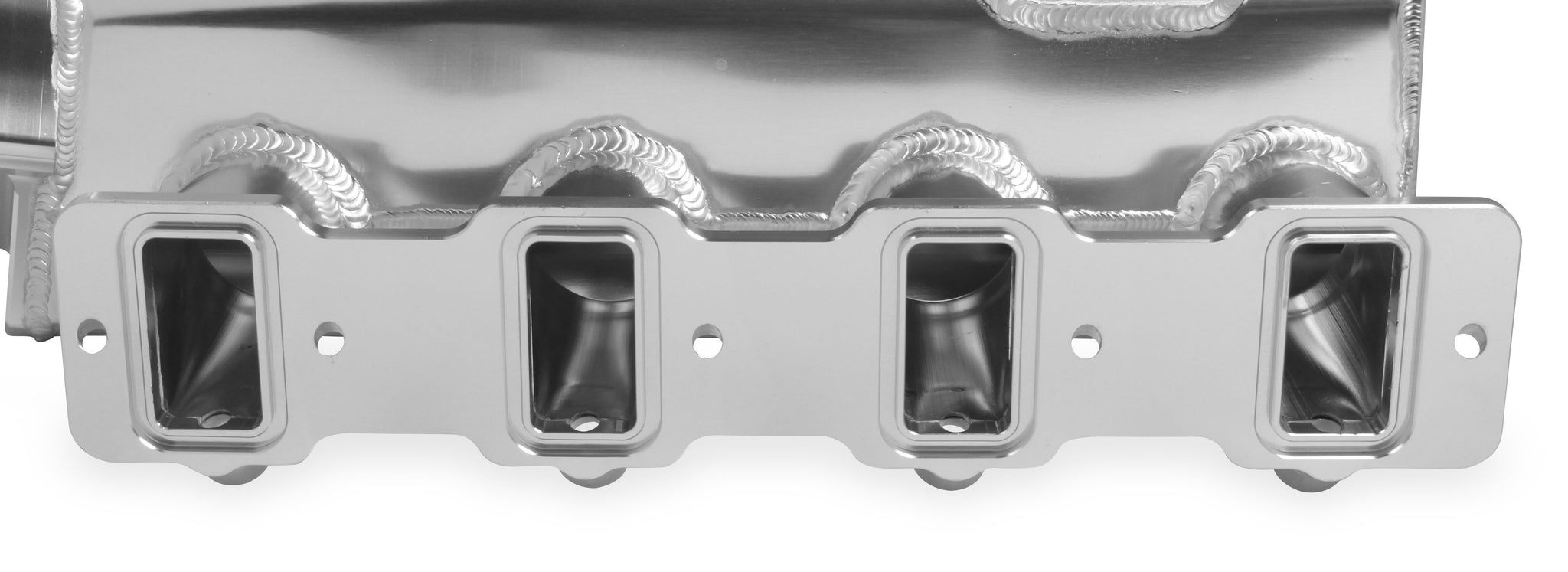

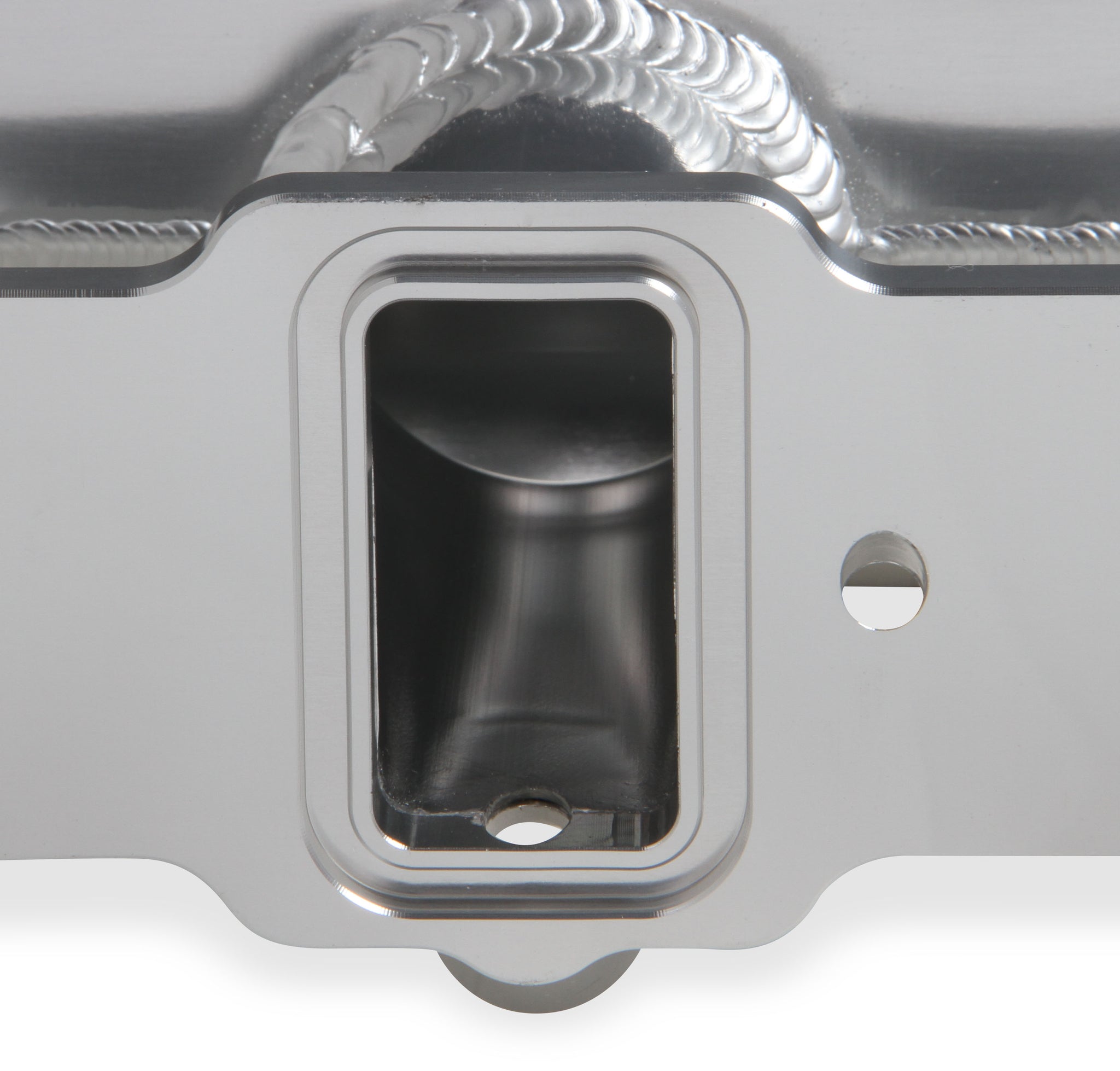

| Description_ASC | *** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment *** |
| Description_DES | Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS7 |
| Description_EXT | Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent. |
| Description_MKT | Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! |
| Description_FAB | Silver finish creates high impact under-hood styling |
| Description_FAB | 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability |

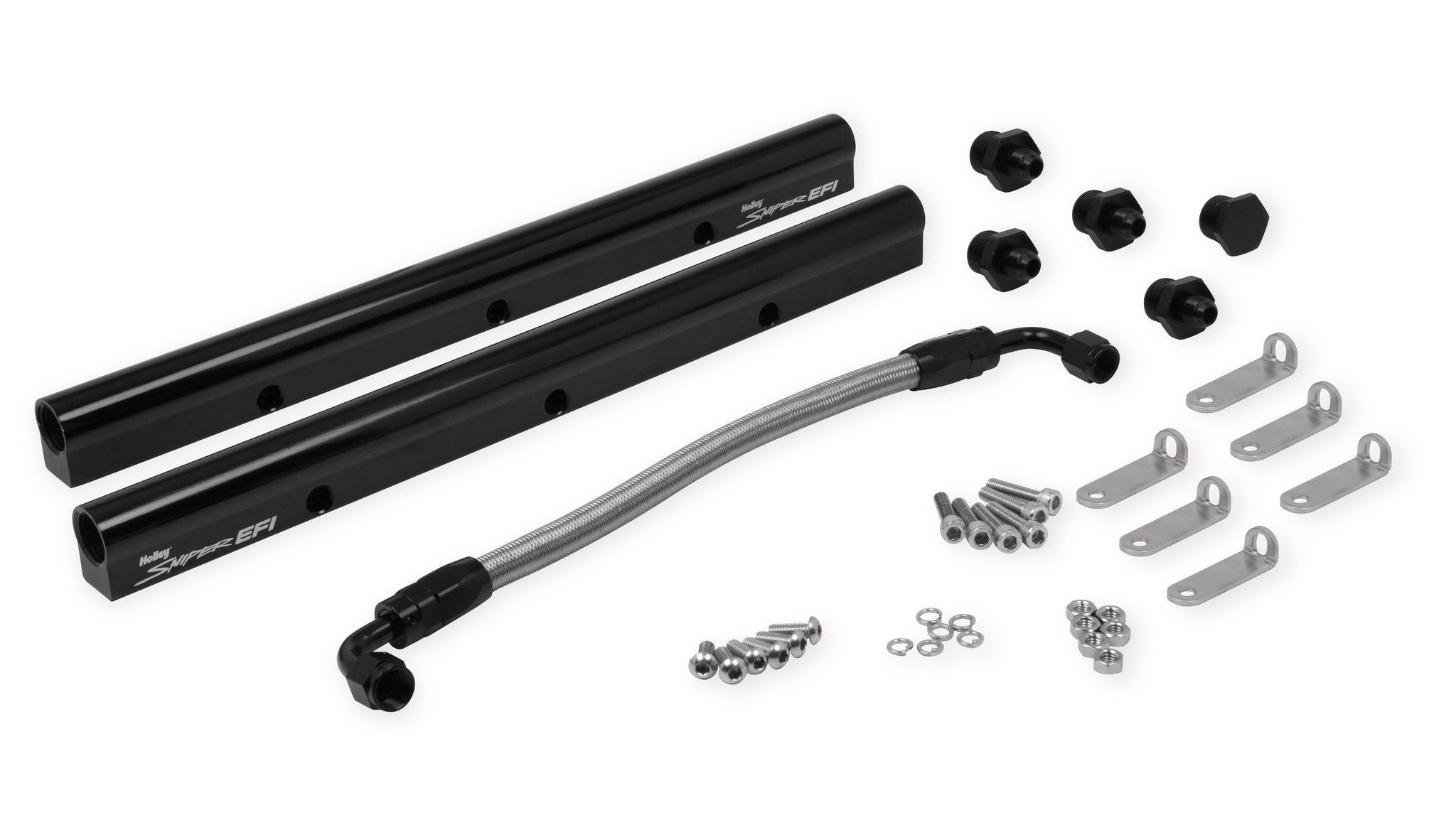

| Description_FAB | Includes 3/8" Fuel rail kits (Sniper logo laser engraved) |

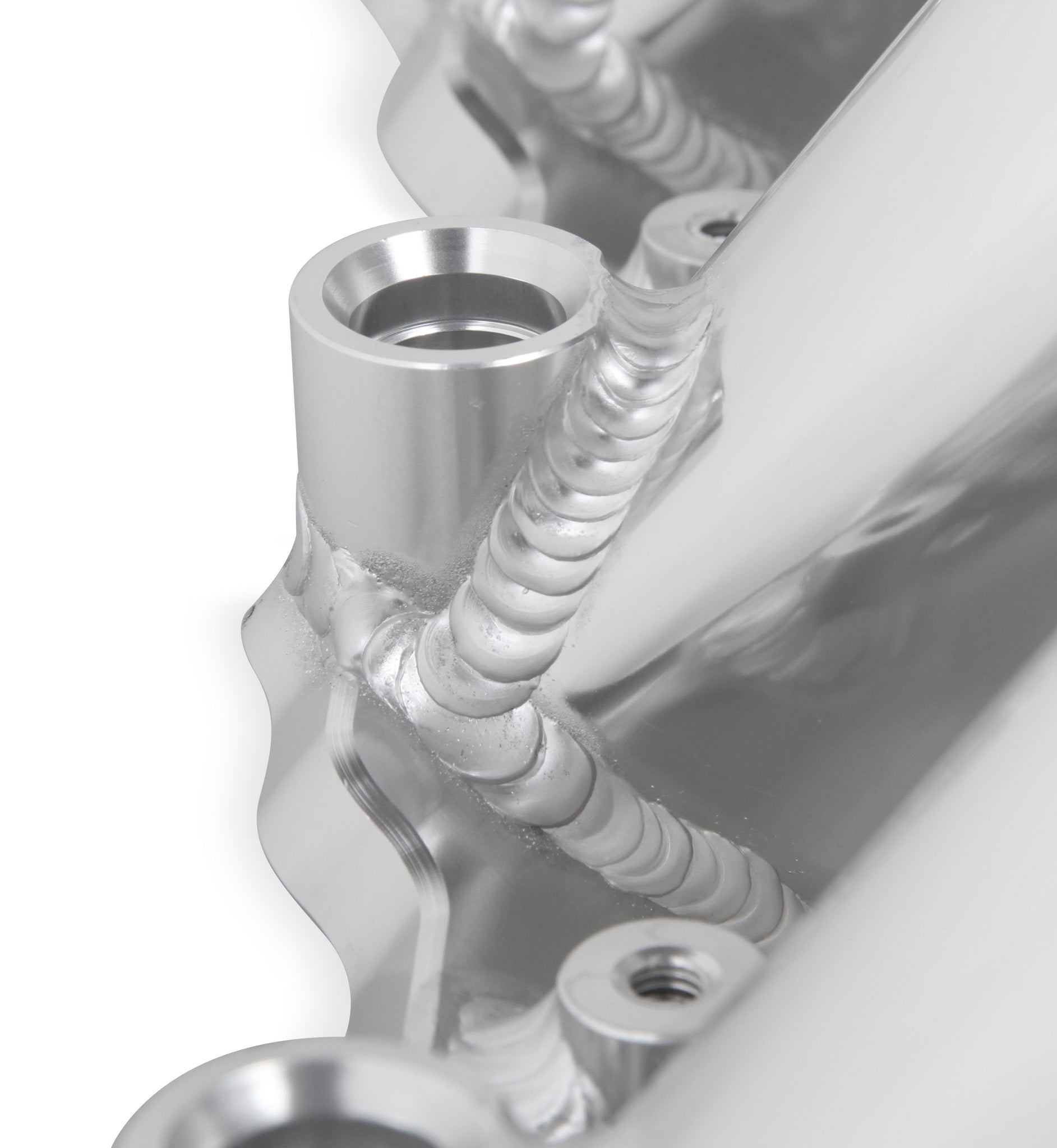

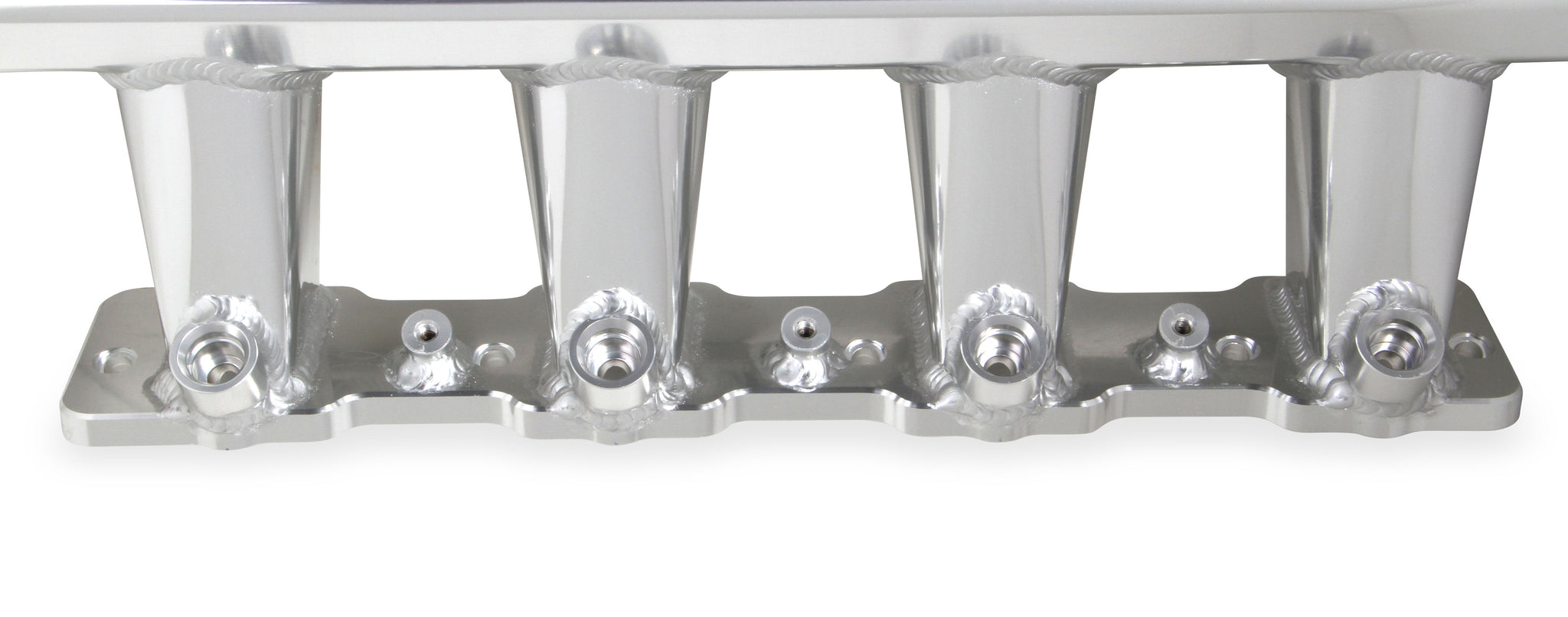

| Description_FAB | 100% TIG welded for strength and durability |
| Description_FAB | Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response |
| Description_FAB | The Sniper intake will only accept EV1 style injectors. |

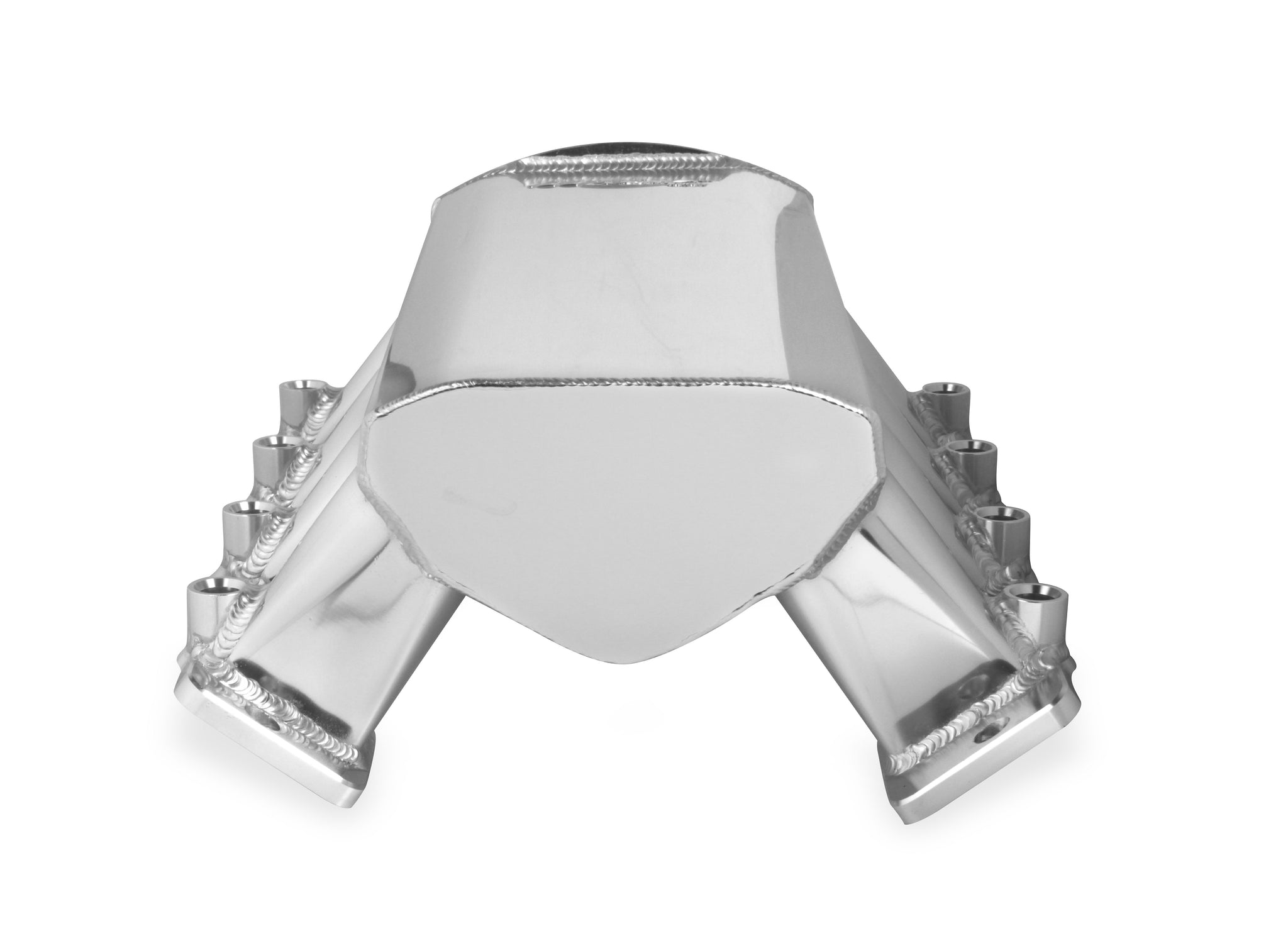

| Description_FAB | Provision for MAP sensor located on rear of plenum |

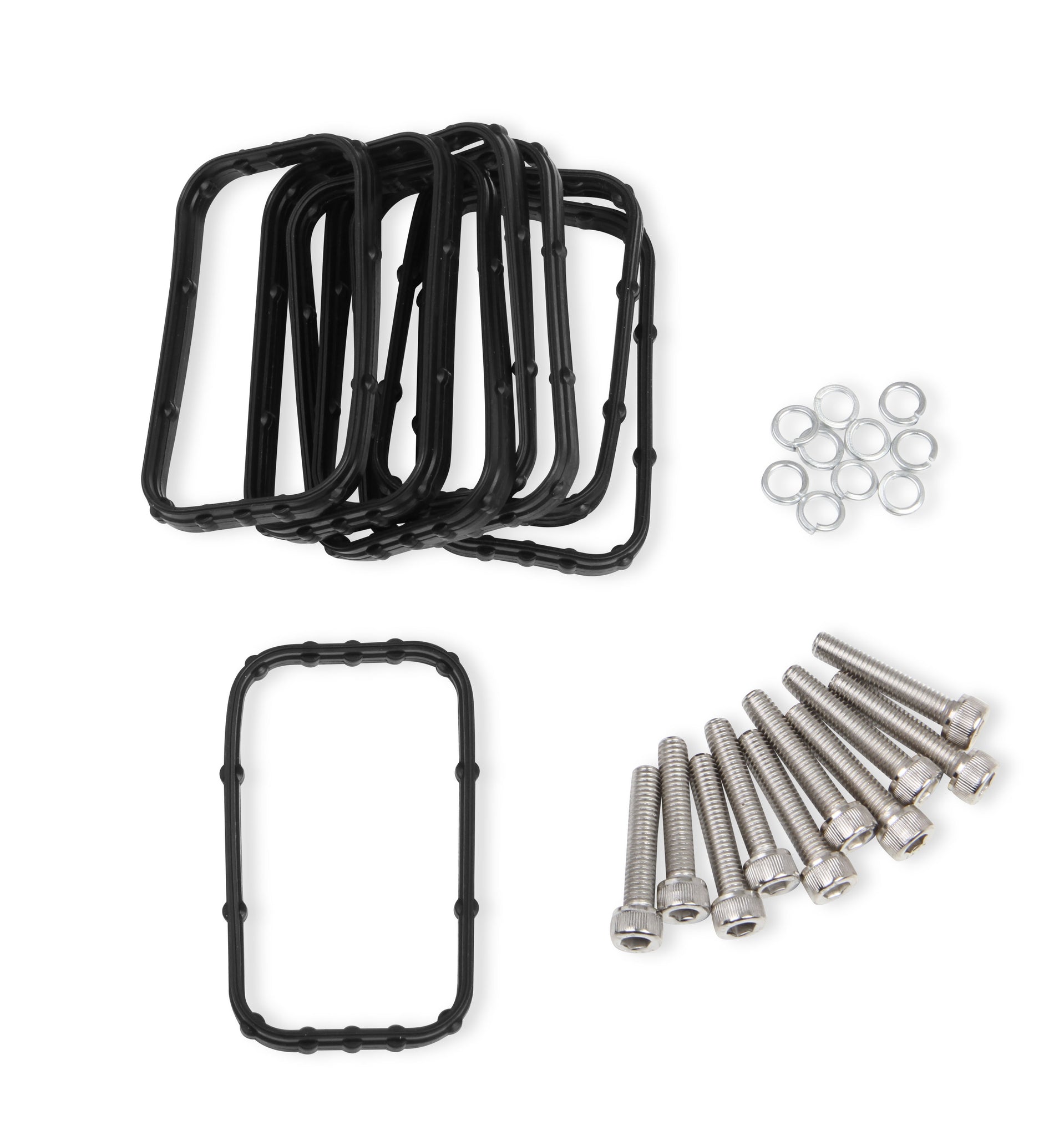

| Description_FAB | Product includes all gaskets and hardware for a hassle-free installation |

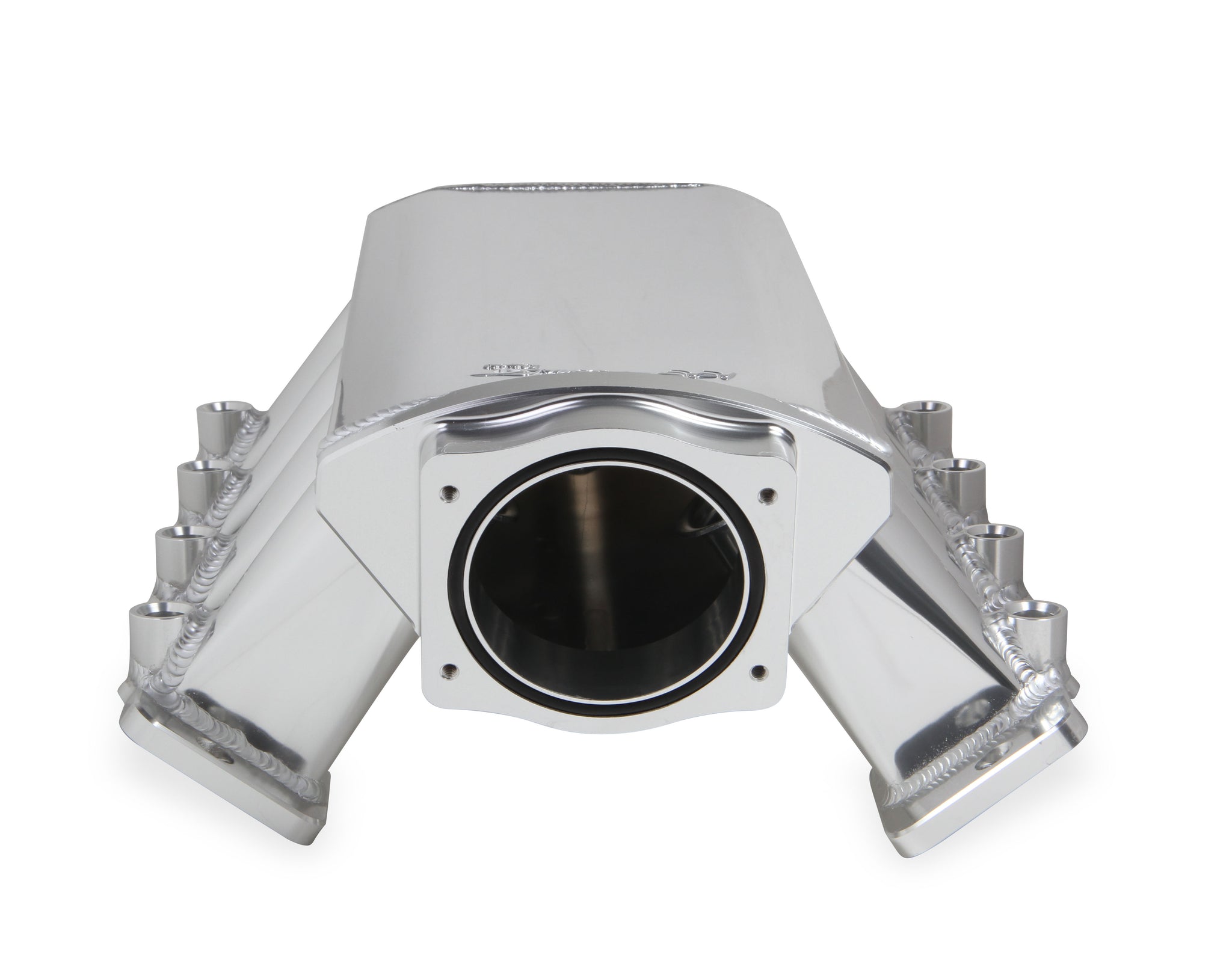

| Description_FAB | 102mm throttle bore opening for increased air flow |
