*item may differ from images

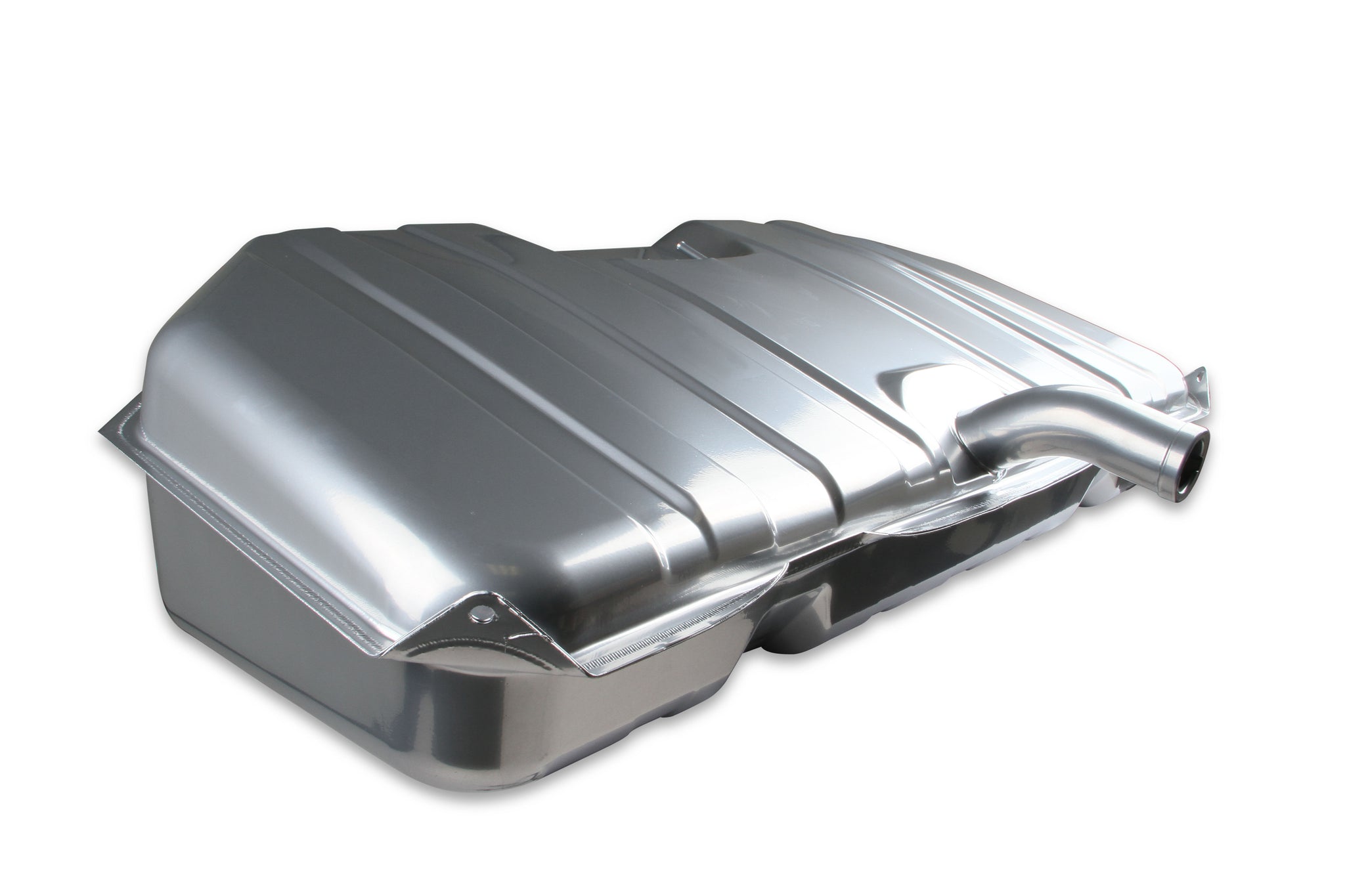

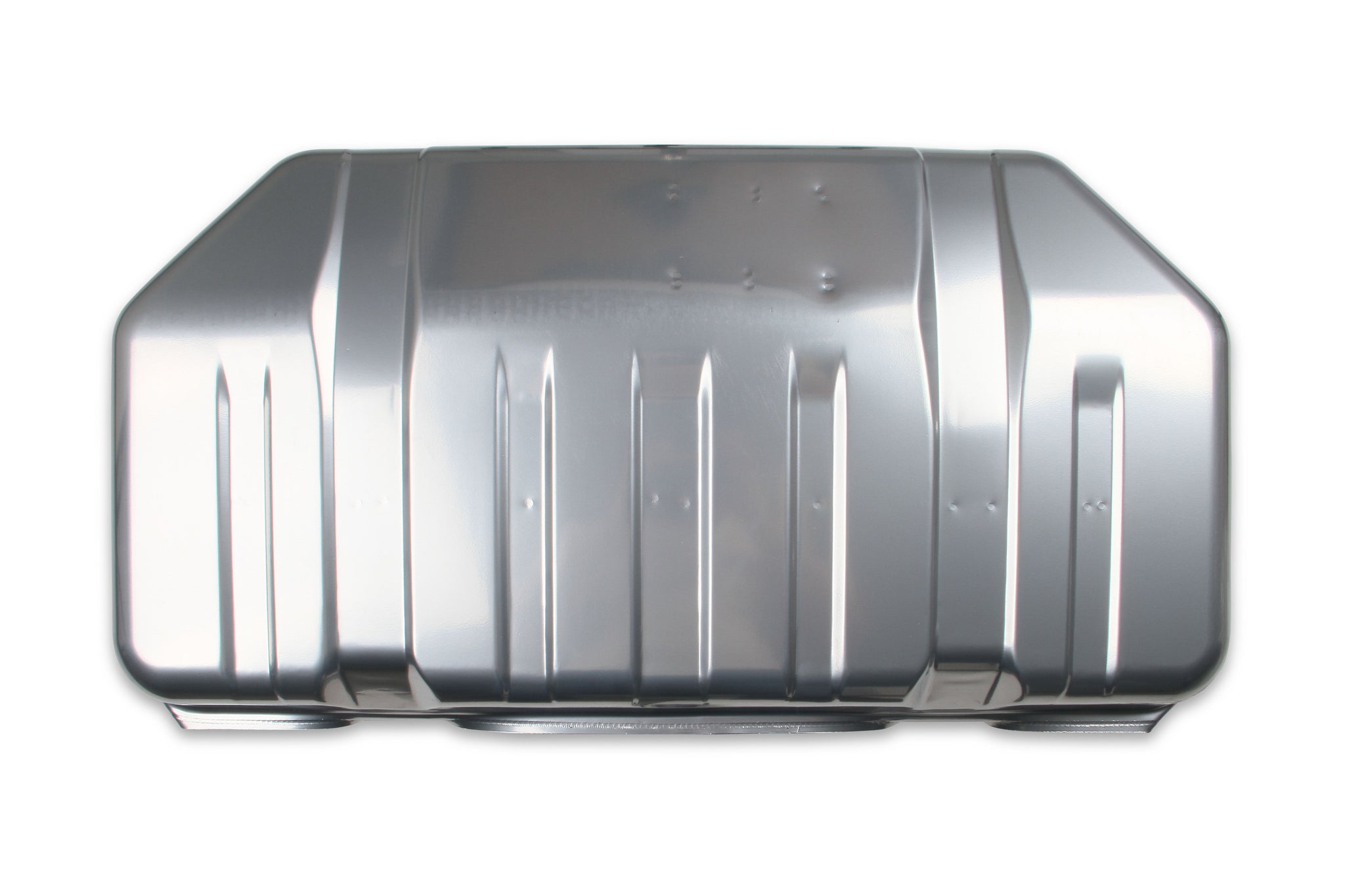

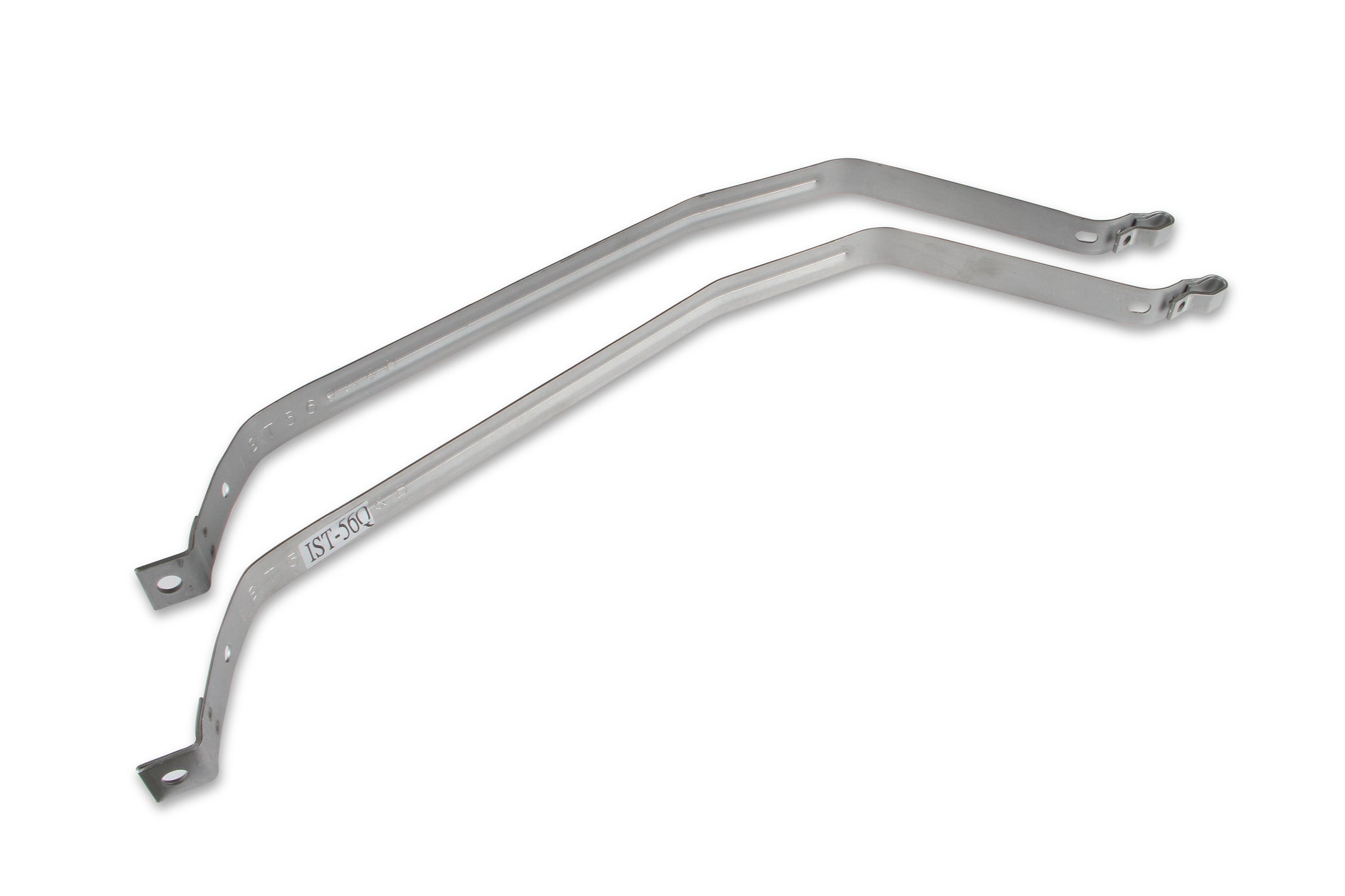

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 255 LPH fuel pump supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).
Holley Sniper EFI 1969 Chevy Camaro / Firebird with notched front corners 19-103
Specifications:
| Application | 1969 Chevrolet Camaro/Pontiac Firebird |
| 8920 | Yes |
| 8919 | Yes |
| Brand | Holley Sniper EFI |
| Category | Air and Fuel Delivery |
| Color | Silver |
| Drain Plug | No |
| Emission Code | 4 |
| 4297 | No |
| Finish | Powdercoated |
| Free Flow LPH | 255 |
| Fuel Sending Unit Ohms | 0-90 Ohms |
| 8918 | Electronic Fuel Injection |
| Fuel System Type | Gasoline |
| 8917 | Powder Coated |
| Gallon Capacity | 18 |
| 3390 | Performance |
| 4284 | Yes |
| Material | Steel |
| Maximum Flow Rating | 255 LPH |
| 4295 | No |
| New Straps Included | Yes |
| 8137 | Yes |
| part type | Fuel Tank and Pump Assembly Combination |
| Product Type | Fuel Tank |
| Resistance Ohms Empty | 0 82 |
| Resistance Ohms Full | 90 82 |
| 4296 | Yes |
| Sub Category | Fuel Pumps and Related Components |
| Tank Capacity | 18 GA |
| 1918 | Gray |
| 305 | Steel |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Application | 1969 Chevrolet Camaro/Pontiac Firebird |
| 8920 | Yes |
| 8919 | Yes |
| Brand | Holley Sniper EFI |
| Category | Air and Fuel Delivery |
| Color | Silver |
| Drain Plug | No |
| Emission Code | 4 |
| 4297 | No |
| Finish | Powdercoated |
| Free Flow LPH | 255 |
| Fuel Sending Unit Ohms | 0-90 Ohms |
| 8918 | Electronic Fuel Injection |
| Fuel System Type | Gasoline |
| 8917 | Powder Coated |
| Gallon Capacity | 18 |
| 3390 | Performance |
| 4284 | Yes |
| Material | Steel |
| Maximum Flow Rating | 255 LPH |
| 4295 | No |
| New Straps Included | Yes |
| 8137 | Yes |
| part type | Fuel Tank and Pump Assembly Combination |
| Product Type | Fuel Tank |
| Resistance Ohms Empty | 0 82 |
| Resistance Ohms Full | 90 82 |
| 4296 | Yes |
| Sub Category | Fuel Pumps and Related Components |
| Tank Capacity | 18 GA |
| 1918 | Gray |
| 305 | Steel |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_INV | 1969 CHEVY CAMARO/FIREBIRD NARROW CORN E |
| Description_ASC | When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank. |
| Description_DES | Sniper EFI Fuel Tank System 255 LPH |
| Description_EXT | 1969 Chevy Camaro / Firebird with notched front corners |
| Description_MKT | Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 255 LPH fuel pump supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw). |
| Description_FAB | Tanks are galvanized steel then powder coated silver for total corrosion protection. |

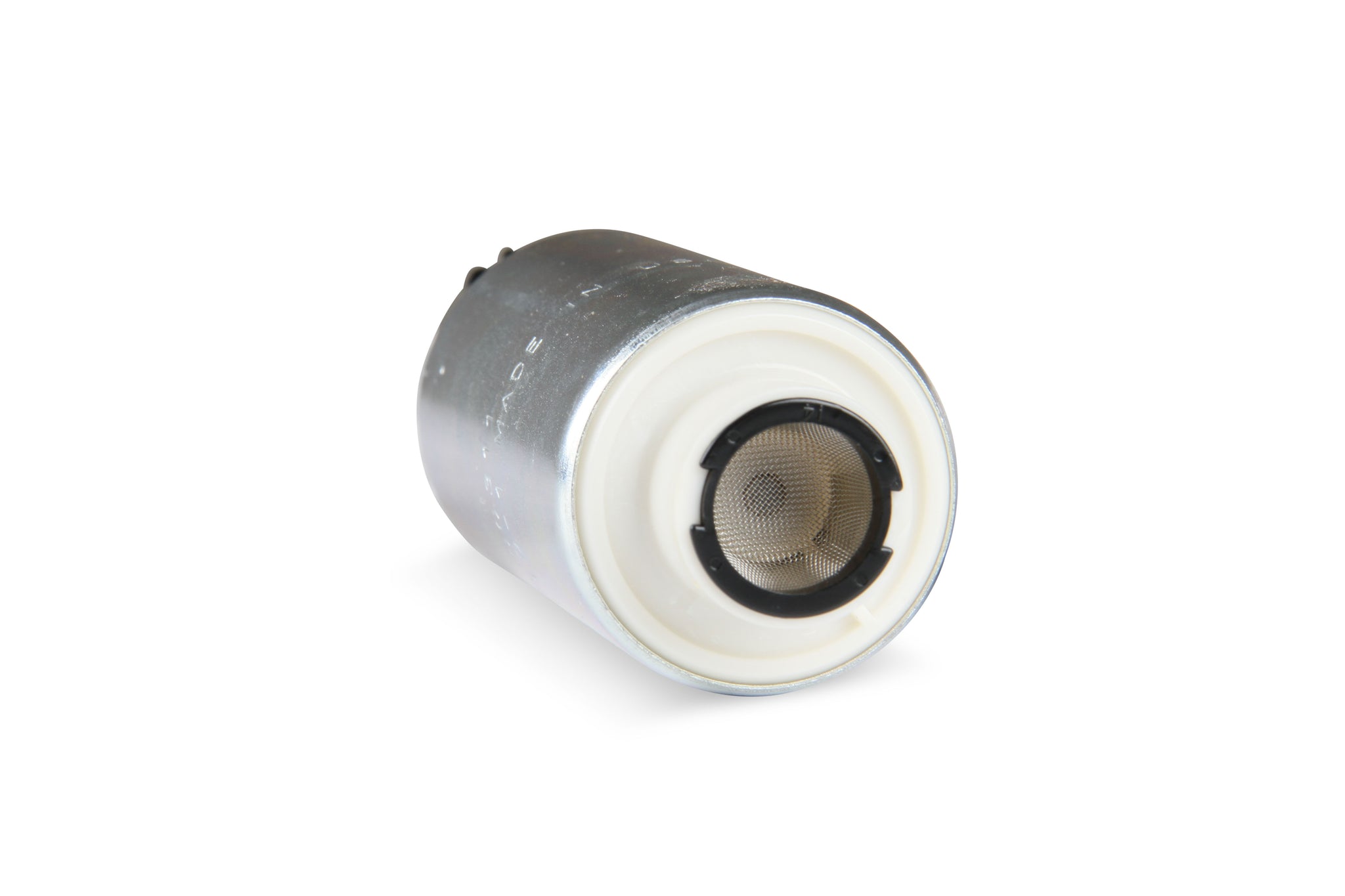

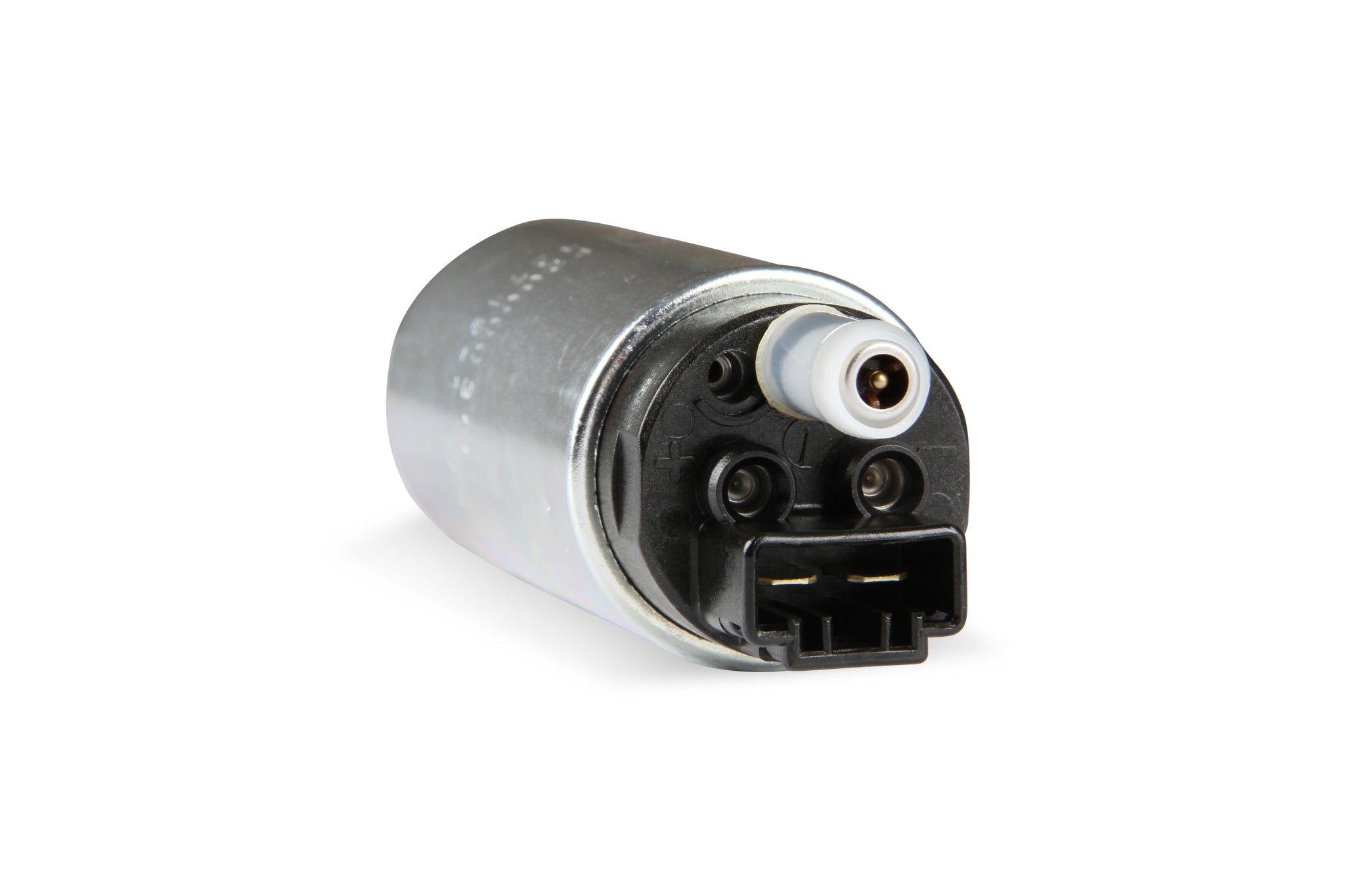

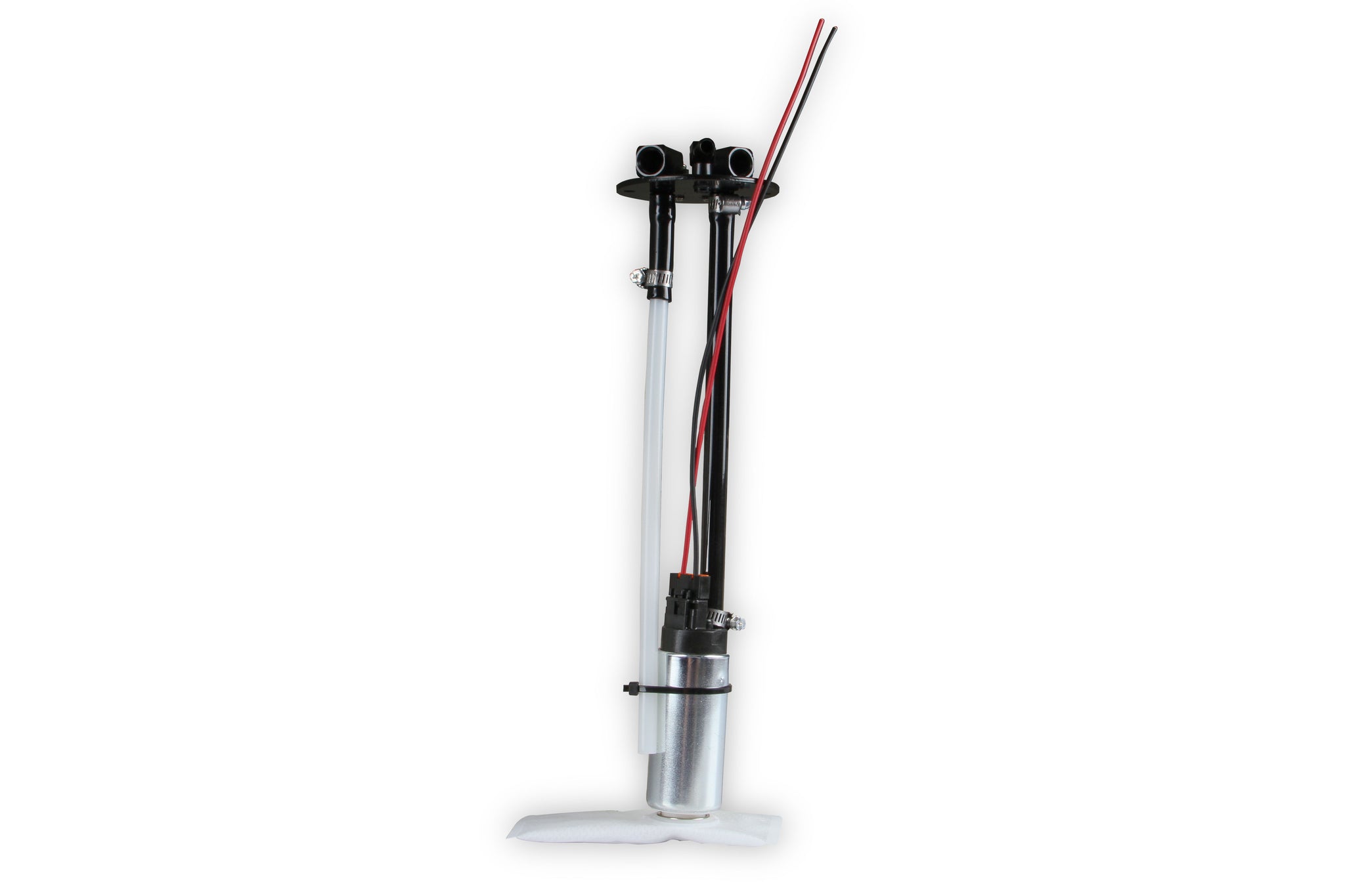

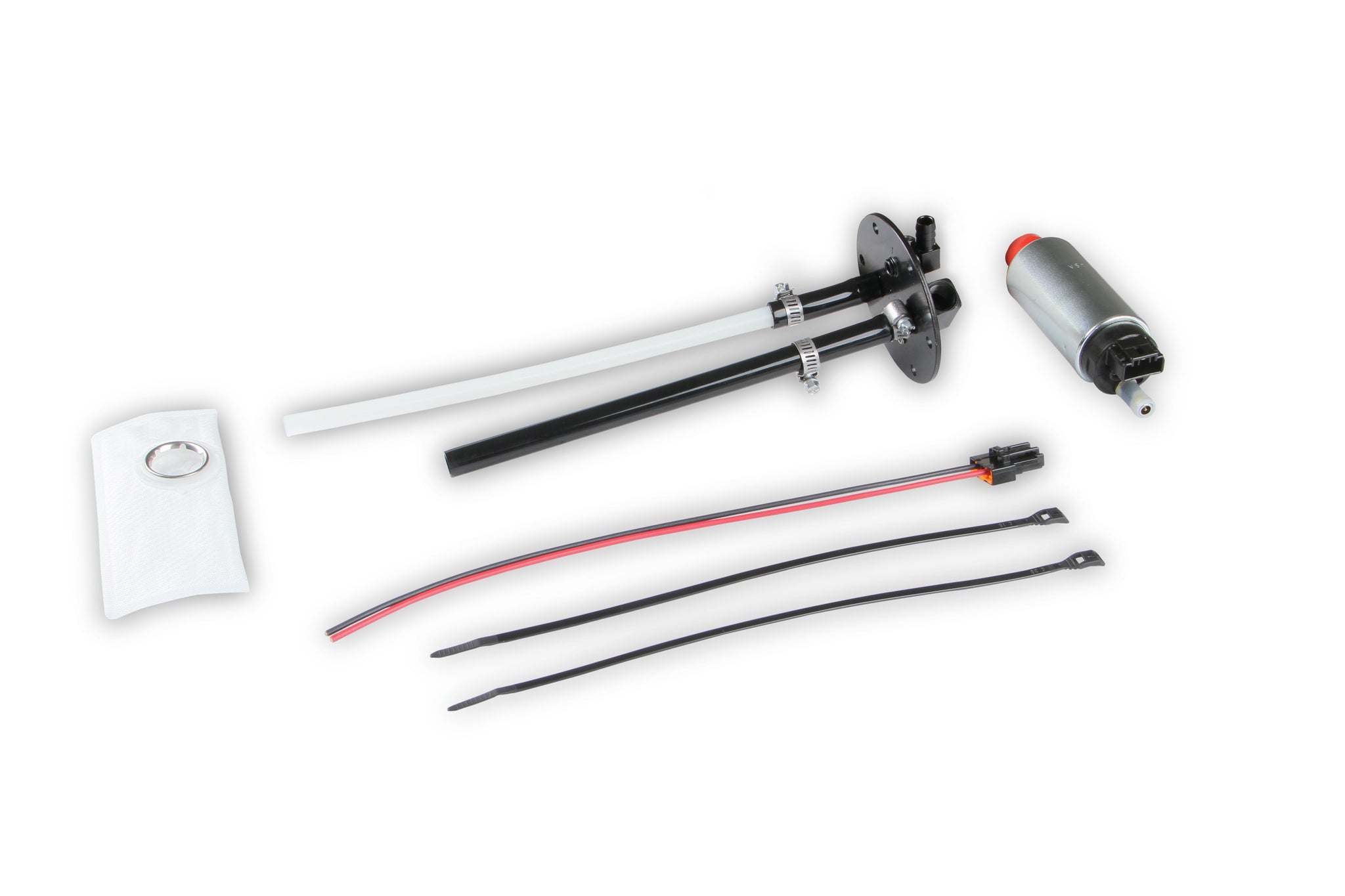

| Description_FAB | 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness. |

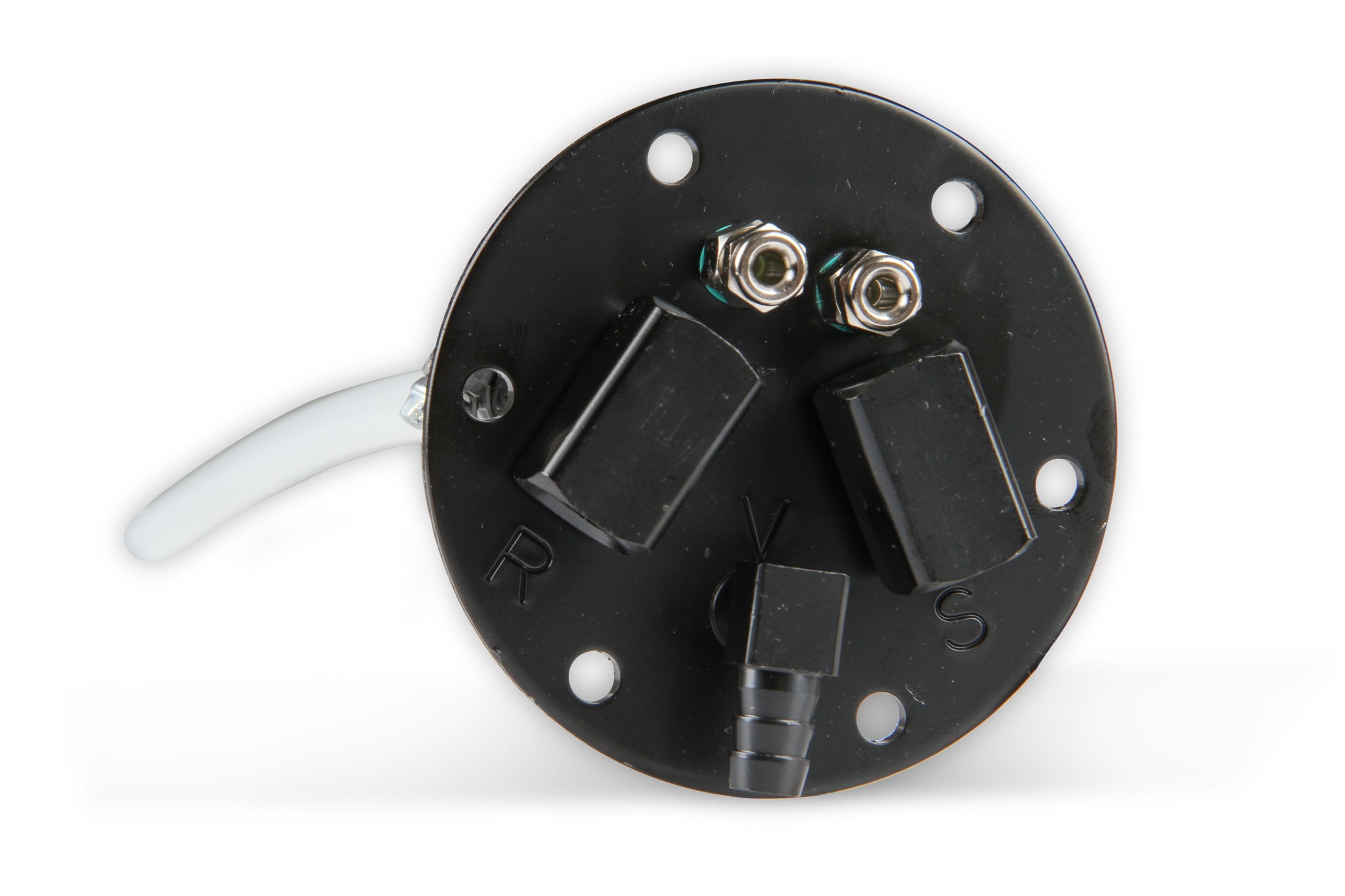

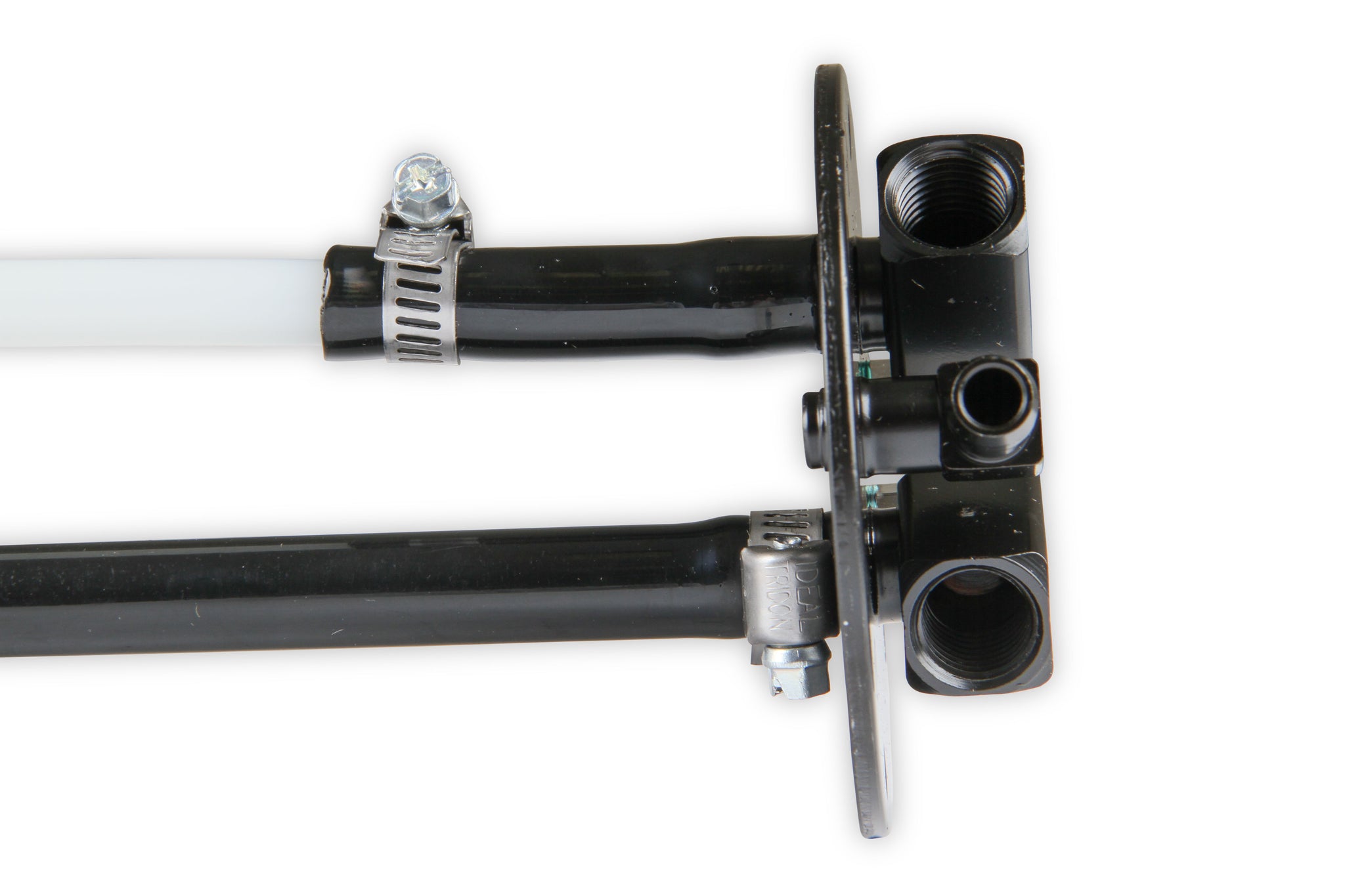

| Description_FAB | Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting. |

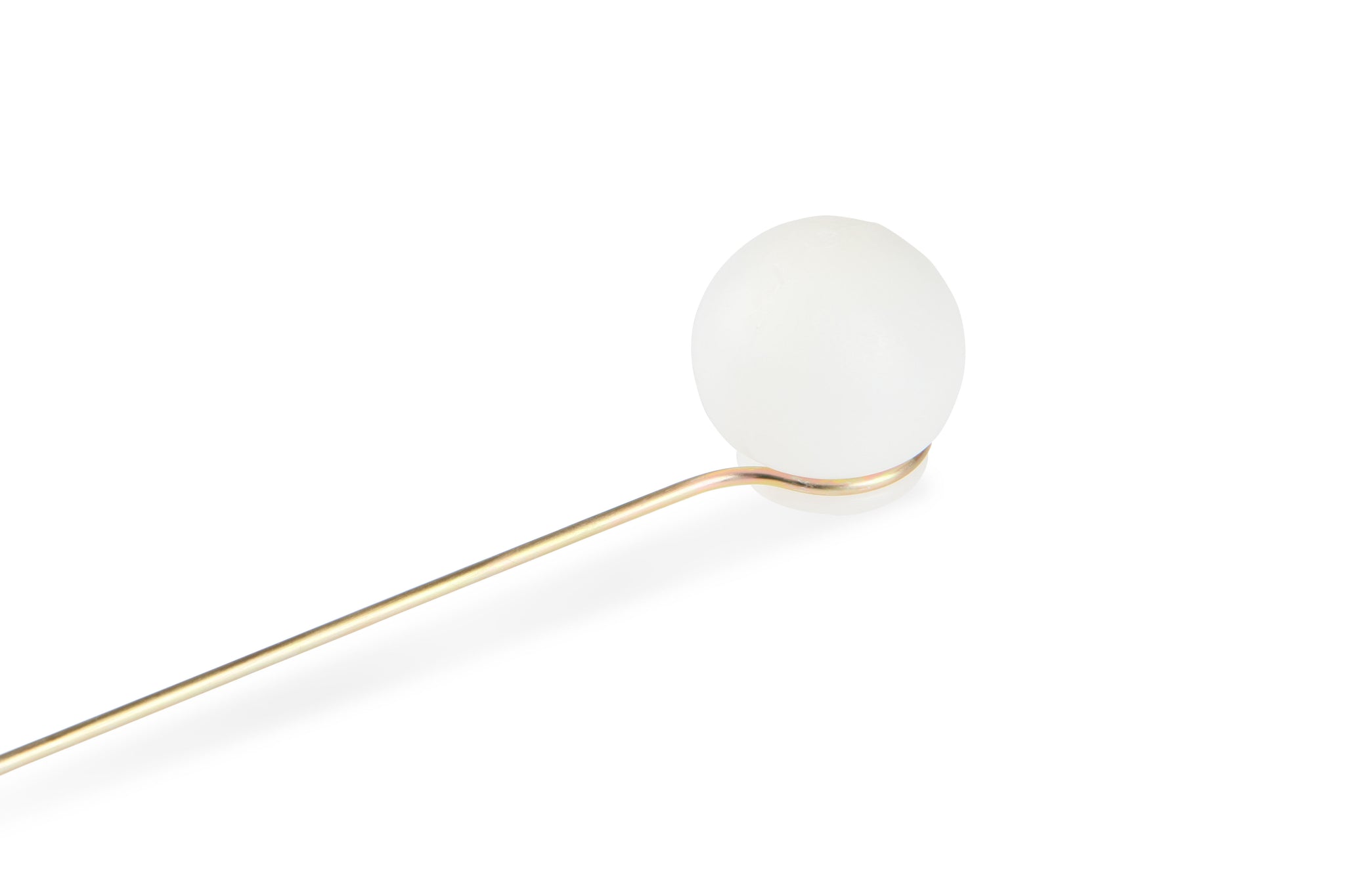

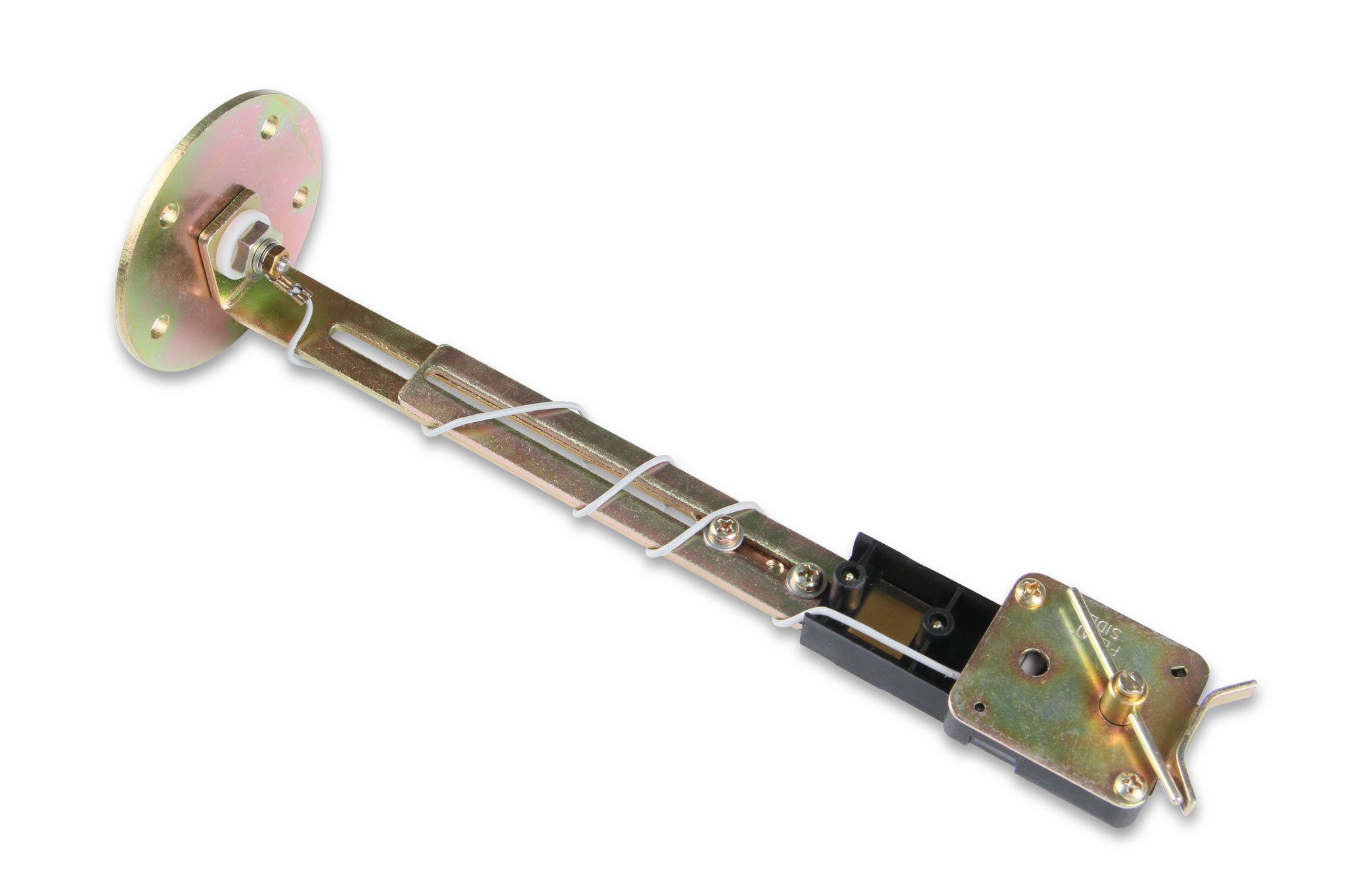

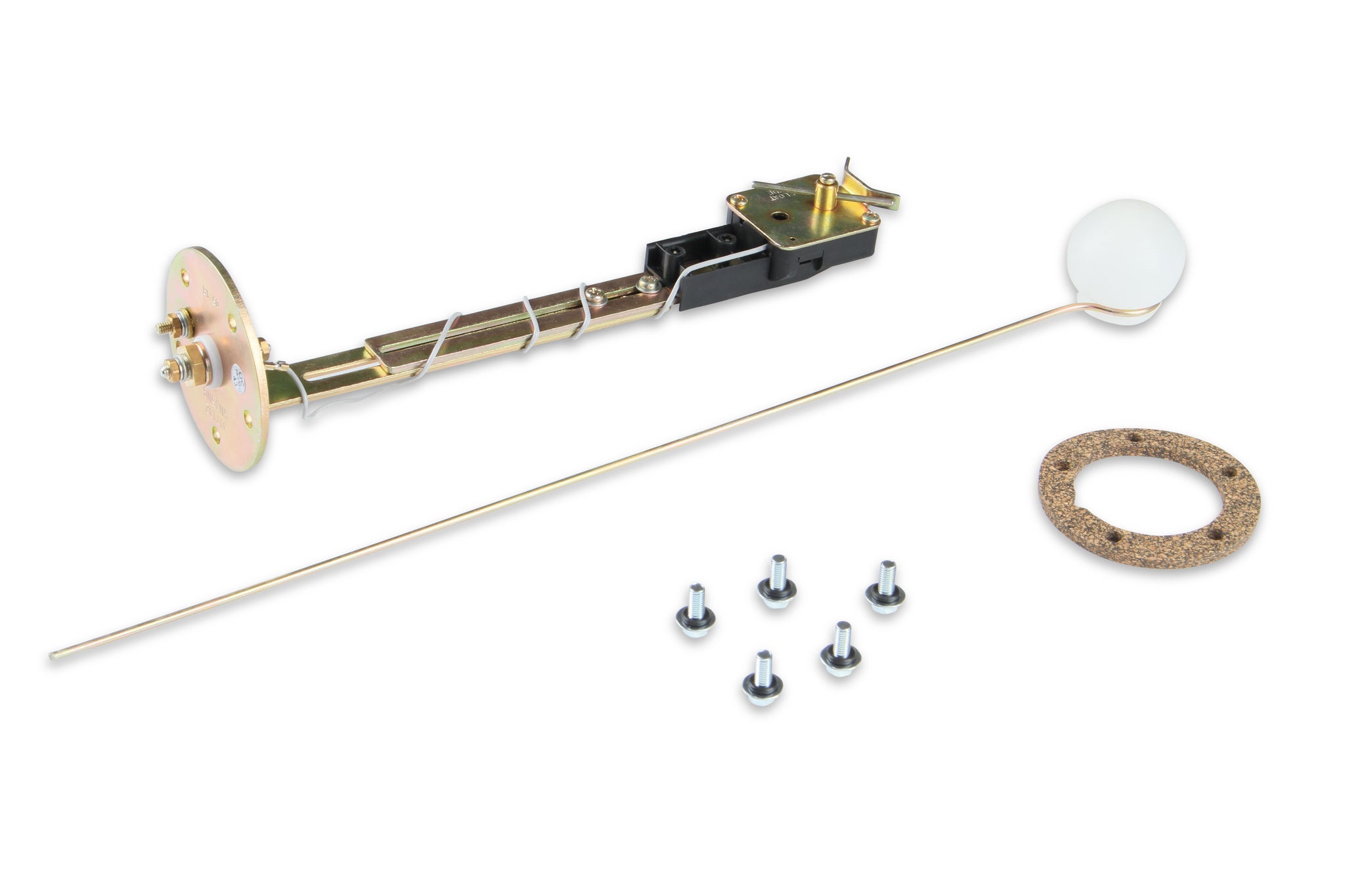

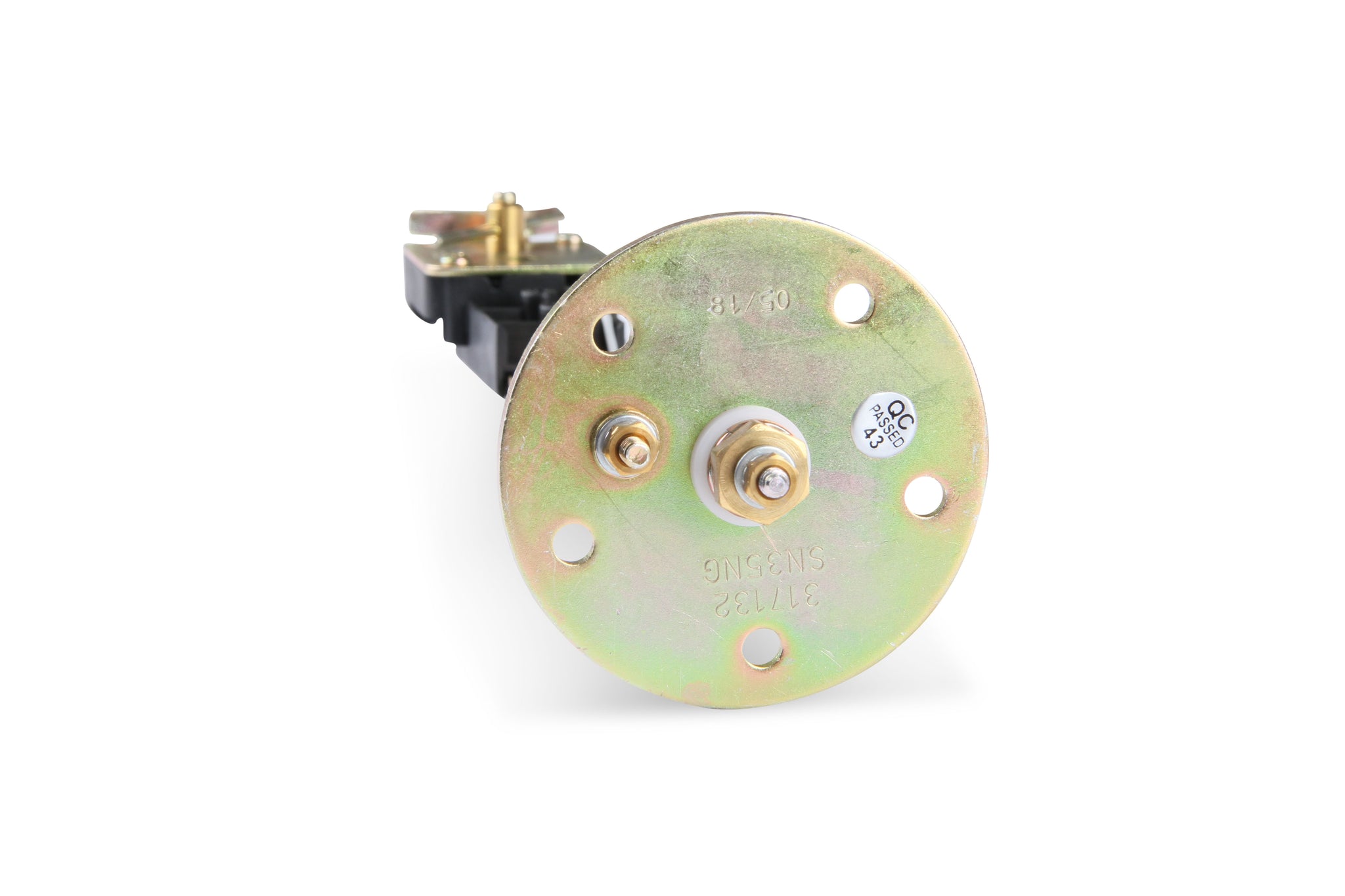

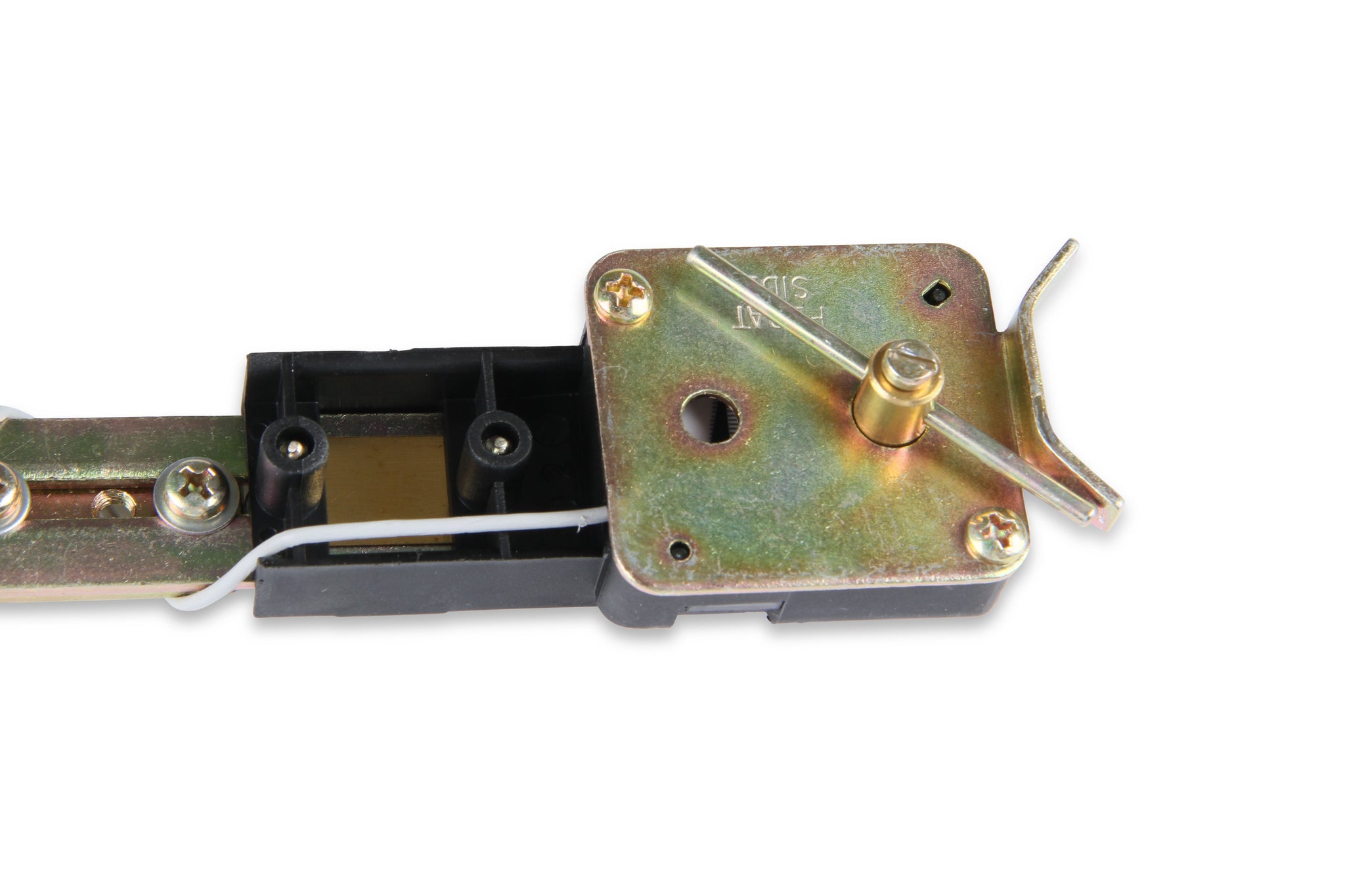

| Description_FAB | Fuel level sender included with the correct Ohm range for your factory gauges. |

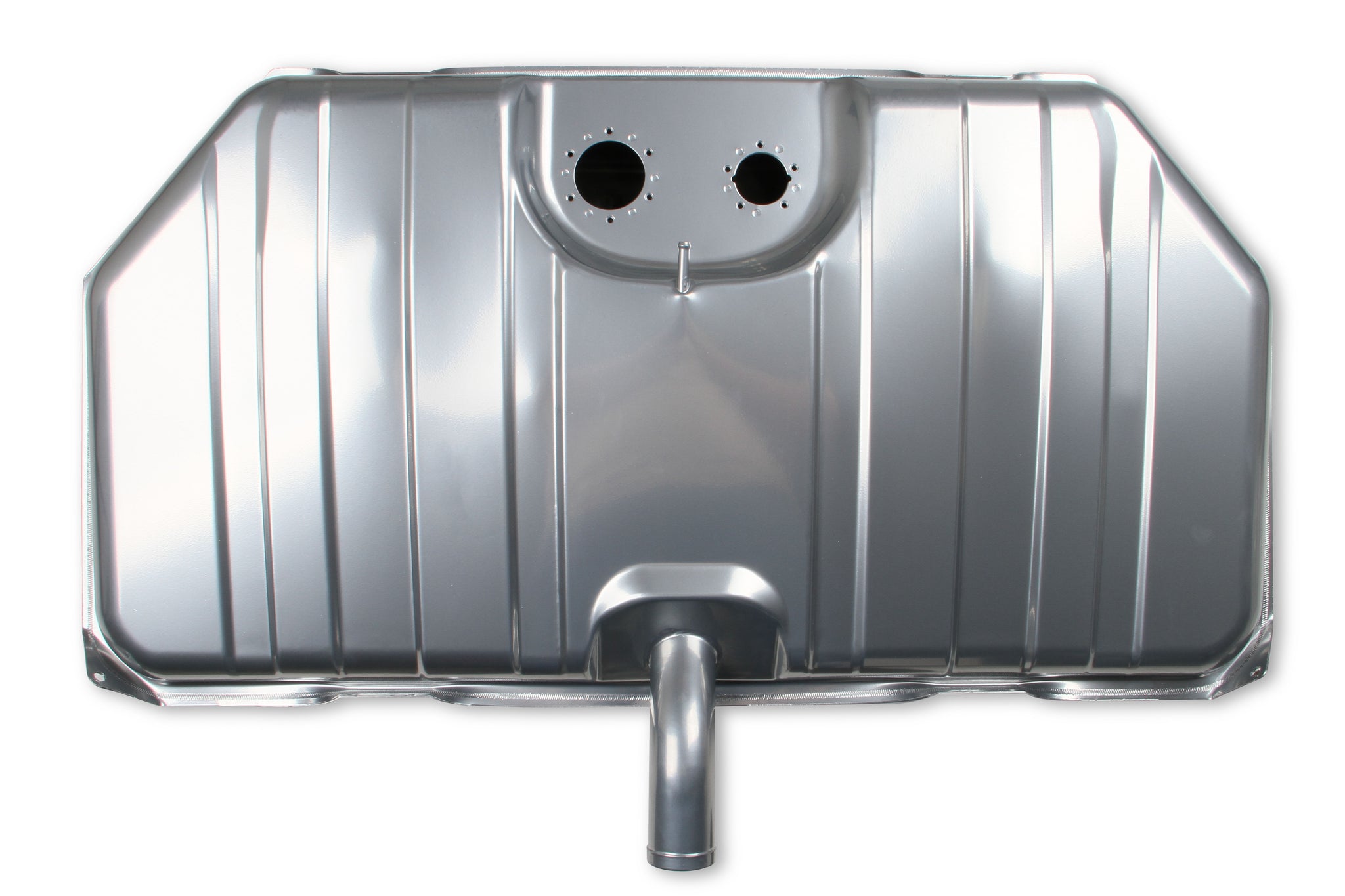

| Description_FAB | Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car. |
| Description_FAB | Internal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation. |
| Description_FAB | Fits and looks like an OE tank when installed. |
| Description_FAB | Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance. |
| Description_INV | 1969 CHEVY CAMARO/FIREBIRD NARROW CORN E |
| Description_ASC | When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank. |
| Description_DES | Sniper EFI Fuel Tank System 255 LPH |
| Description_EXT | 1969 Chevy Camaro / Firebird with notched front corners |
| Description_MKT | Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 255 LPH fuel pump supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw). |
| Description_FAB | Tanks are galvanized steel then powder coated silver for total corrosion protection. |
| Description_FAB | 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness. |
| Description_FAB | Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting. |
| Description_FAB | Fuel level sender included with the correct Ohm range for your factory gauges. |
| Description_FAB | Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car. |
| Description_FAB | Internal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation. |
| Description_FAB | Fits and looks like an OE tank when installed. |
| Description_FAB | Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance. |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1969 | Chevrolet | Camaro | ||
| 1969 | Pontiac | Firebird |
