*item may differ from images
The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

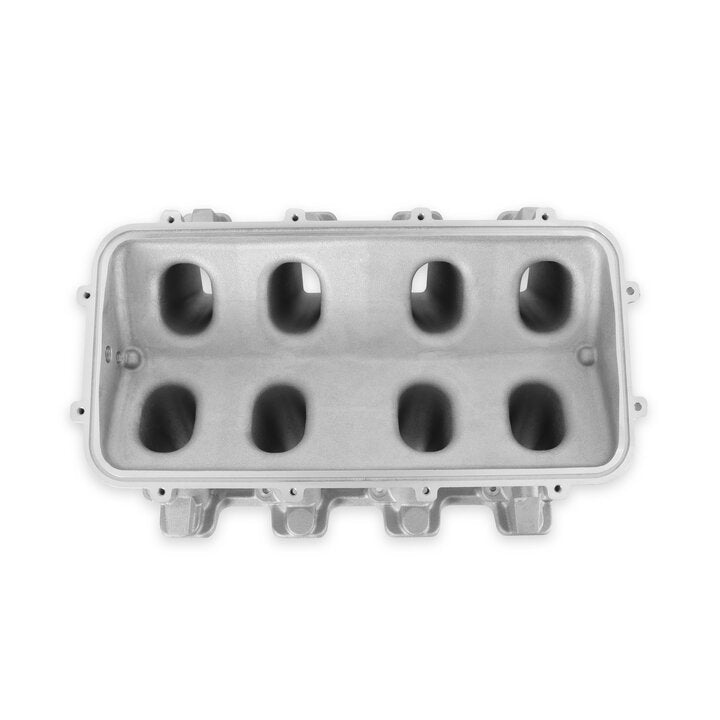

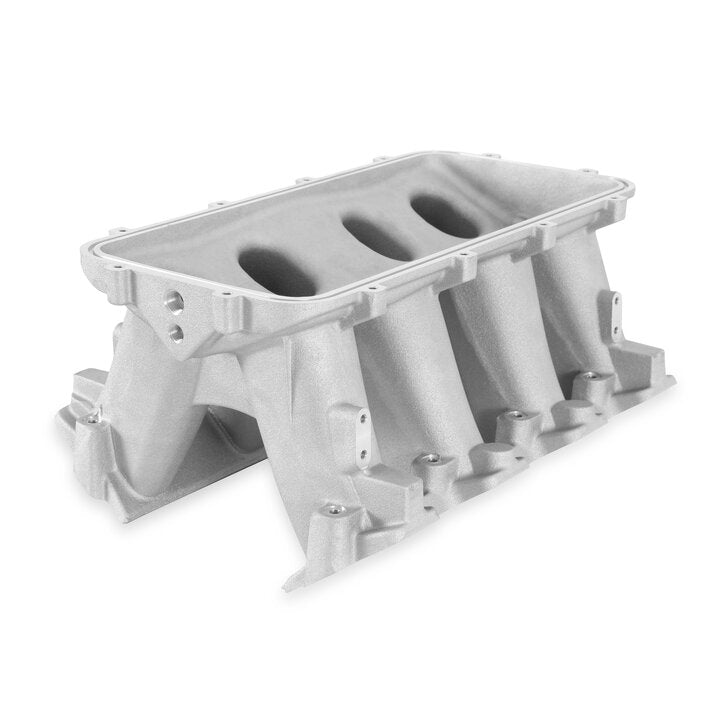

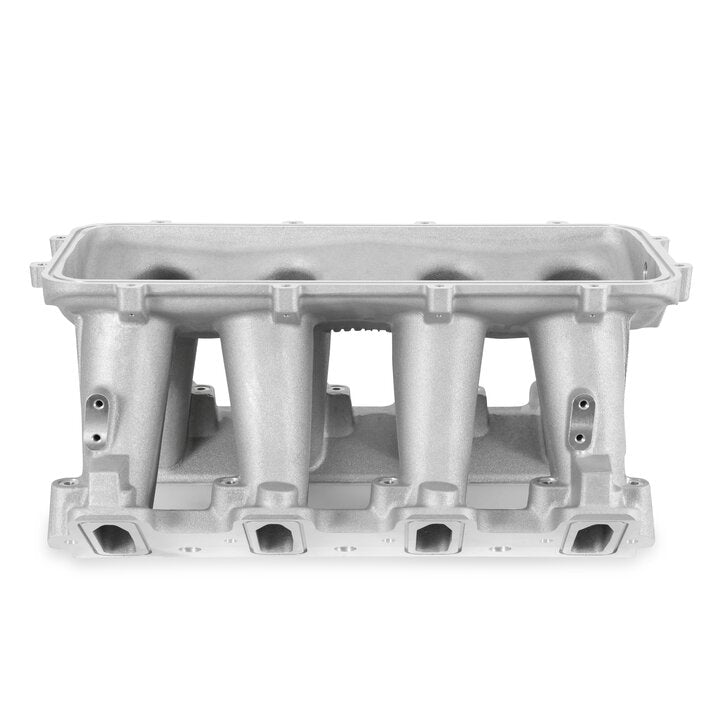

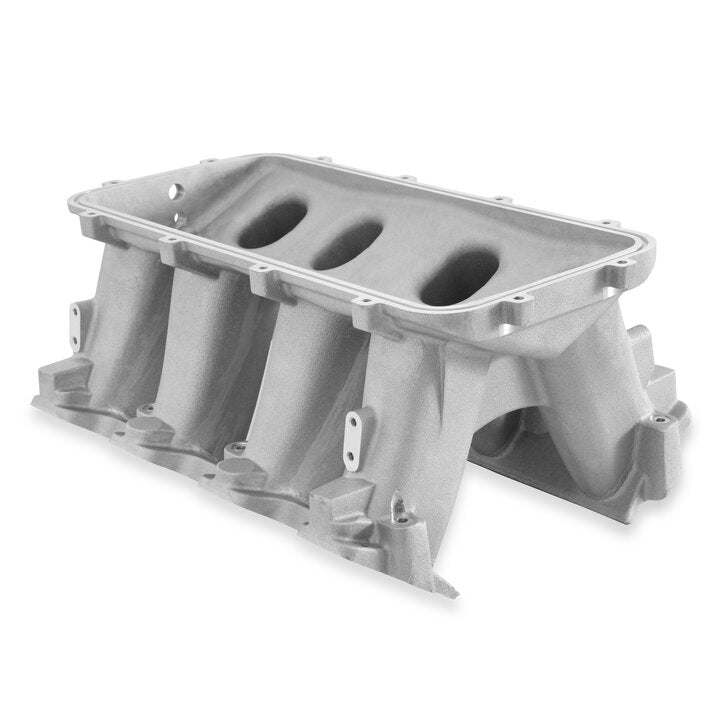

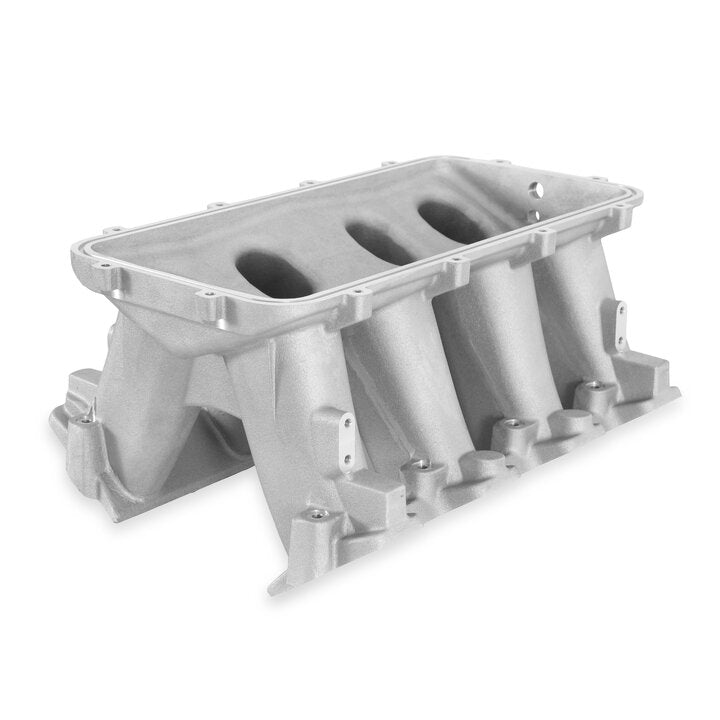

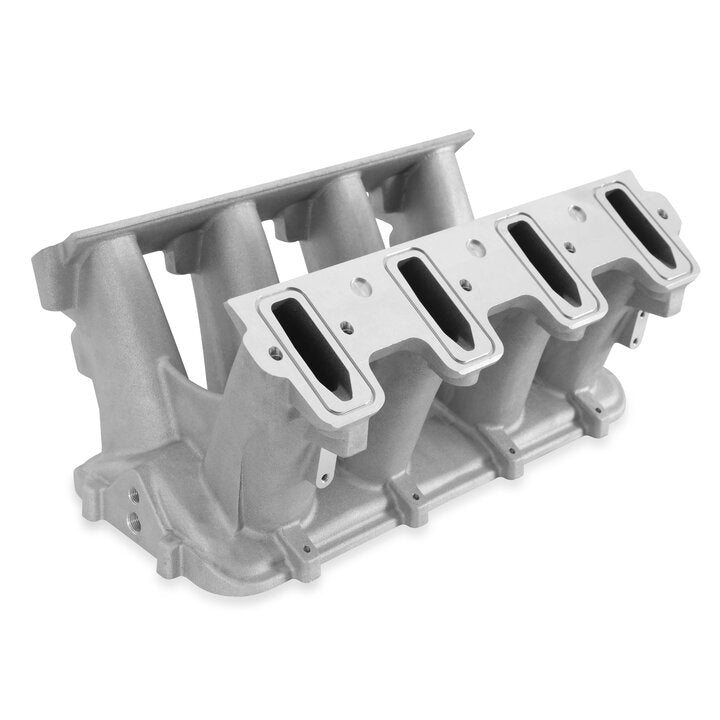

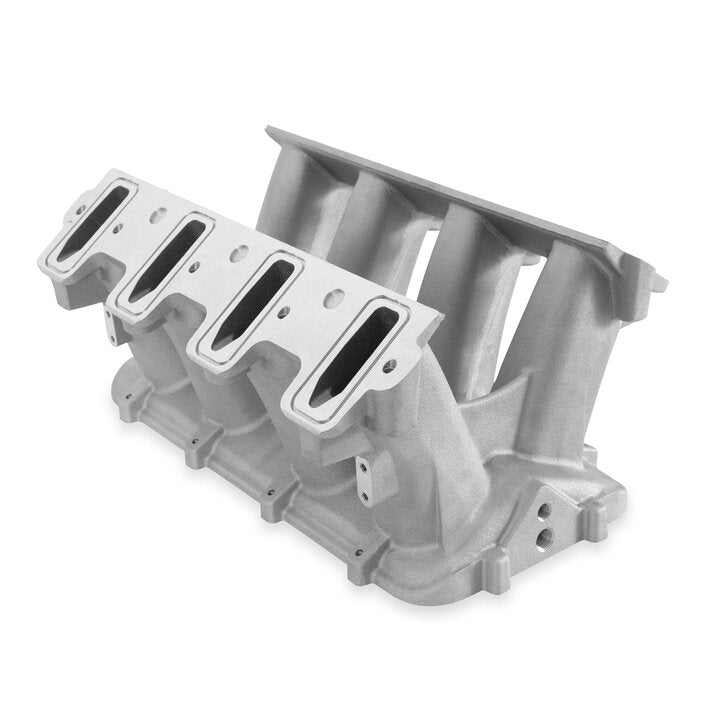

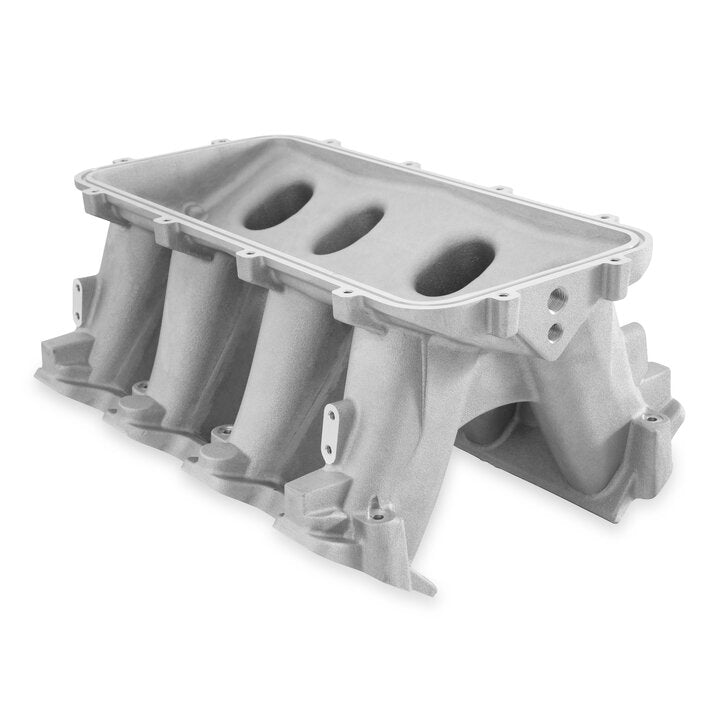

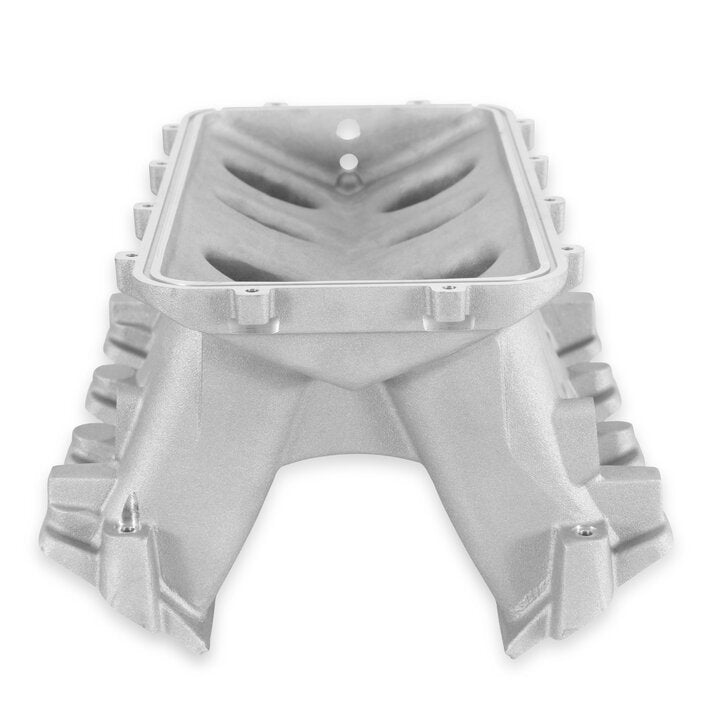

Holley Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 300-226
Specifications:
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| 10652 | No |
| Category | Engine |
| 9063 | No |
| Color | Natural |
| 158 | Cast |
| 5337 | Cathedral |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 4 |
| Engine | GM LS1/LS2/LS6 |
| Flange Style | N/A |
| 906 | No |
| 10644 | No |
| Fuel System Type | Carb |
| 353 | No |
| 3390 | Performance |
| 10651 | No |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Product Type | Intake Manifold Base |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | N/A |
| Throttle Body Gasket Included | No |
| 10626 | No |
| Type of Component | Lower Manifold |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Basic Operating RPM Range | 3500-8000 |
| Brand | Holley |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| 10652 | No |
| Category | Engine |
| 9063 | No |
| Color | Natural |
| 158 | Cast |
| 5337 | Cathedral |
| 6621 | 9.24 |
| 8095 | No |
| Emission Code | 4 |
| Engine | GM LS1/LS2/LS6 |
| Flange Style | N/A |
| 906 | No |
| 10644 | No |
| Fuel System Type | Carb |
| 353 | No |
| 3390 | Performance |
| 10651 | No |
| 10 | Aluminum |
| 10648 | No |
| part type | Engine Intake Manifold |
| Plenum Finish | Natural |
| Product Type | Intake Manifold Base |
| 10645 | No |
| 10649 | Yes |
| 6642 | Single Plane |
| Sub Category | Cylinder Block Components |
| Throttle Body Bore Diameter | N/A |
| Throttle Body Gasket Included | No |
| 10626 | No |
| Type of Component | Lower Manifold |
| Vacuum Ports | Yes |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_ABR | LS1 2 6 HI R |
| Description_SHO | HOLLEY HI RAM LOWER |
| Description_INV | LS1/2/6 HI-RAM, IM CARB, BASE ONLY |
| Description_ASC | These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration. |
| Description_DES | Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 |
| Description_EXT | LS1/LS2/LS6 Cathedral Port Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available) |
| Description_MKT | • Cast aluminum construction. |
| Description_MKT | • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. |
| Description_MKT | • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. |
| Description_MKT | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_MKT | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_MKT | The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_FAB | Port Size – 2.49” Height x 1.21” Wide |
| Description_FAB | Mounting Flange Gasket Type – Standard LS3 Molded O-Ring |
| Description_FAB | Plenum Top Gasket Type – 3/32” Round O-ring Cord |
| Description_FAB | Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in² |
| Description_ABR | LS1 2 6 HI R |
| Description_SHO | HOLLEY HI RAM LOWER |
| Description_INV | LS1/2/6 HI-RAM, IM CARB, BASE ONLY |
| Description_ASC | These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration. |
| Description_DES | Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 |
| Description_EXT | LS1/LS2/LS6 Cathedral Port Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available) |
| Description_MKT | • Cast aluminum construction. |
| Description_MKT | • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. |
| Description_MKT | • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. |
| Description_MKT | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_MKT | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_MKT | The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_FAB | Port Size – 2.49” Height x 1.21” Wide |
| Description_FAB | Mounting Flange Gasket Type – Standard LS3 Molded O-Ring |
| Description_FAB | Plenum Top Gasket Type – 3/32” Round O-ring Cord |
| Description_FAB | Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in² |
