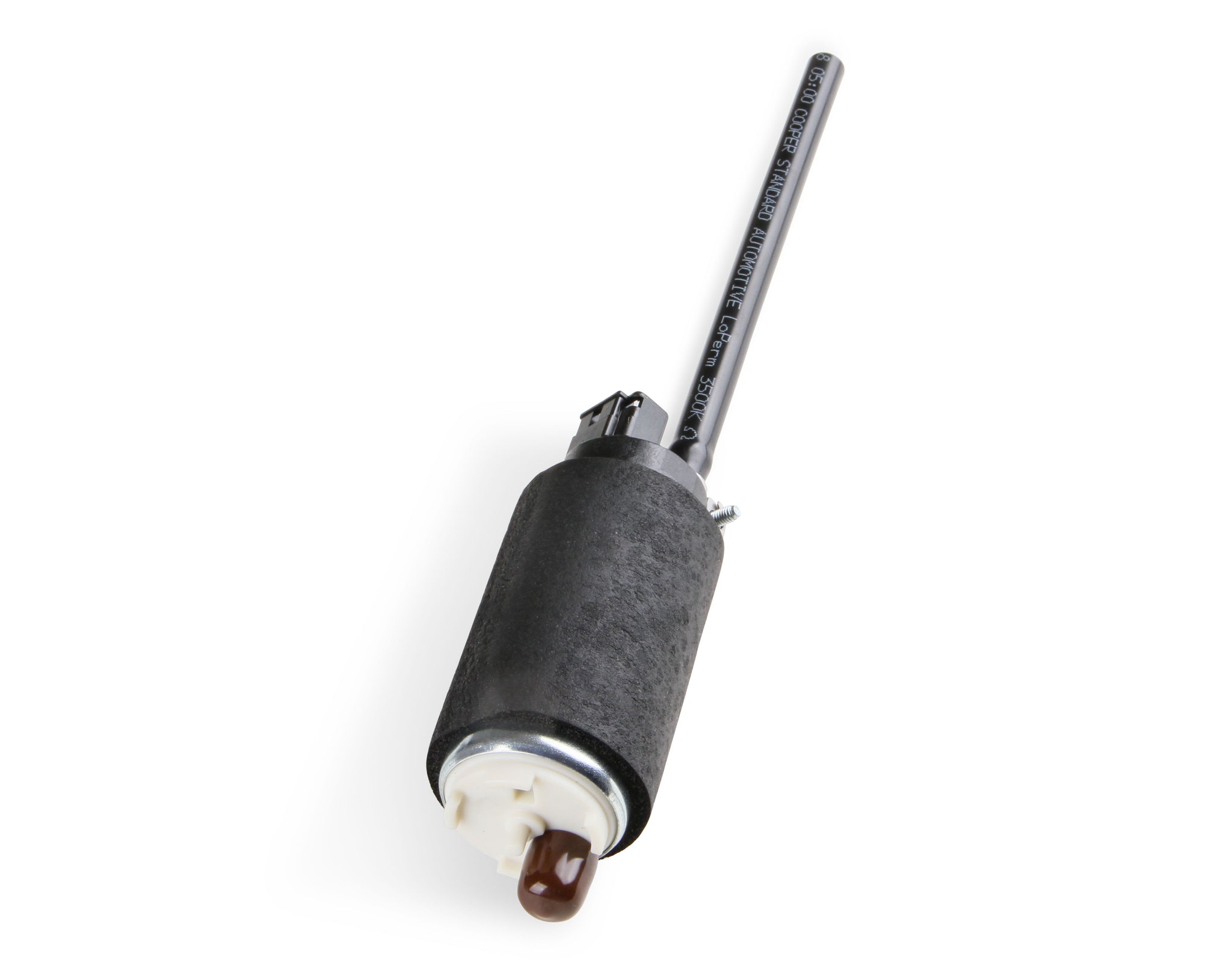

*item may differ from images
Supports up to 700 Carb HP (@ 6 PSI at 13.5 Volts / 10.4 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, fuel cell location, etc...
Holley Holley Diecast In-Tank Carbureted RetroFit Fuel Pump Module-Returnless System 12-129
Specifications:
| Description_INV | DIE CAST RETROFIT CARB PUMP HNGR |
| Description_ASC | It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. |
| Description_DES | Holley Diecast In-Tank Carbureted RetroFit Fuel Pump Module-Returnless System |
| Description_EXT | 255 LPH Drop-In Retrofit Carbureted Fuel System Supports up to 700 Carb HP (HP Rating @ 6 PSI at 13.5 Volts / 10.4 AMP Draw) |
| Description_MKT | The Holley "red and blue" electric fuel pumps have been the performance standard for decades. They continue to perform well, however, the evolution of fuel pump technology has surpassed them in quiet operation and fuel delivery capabilities that an in-tank module can deliver. |

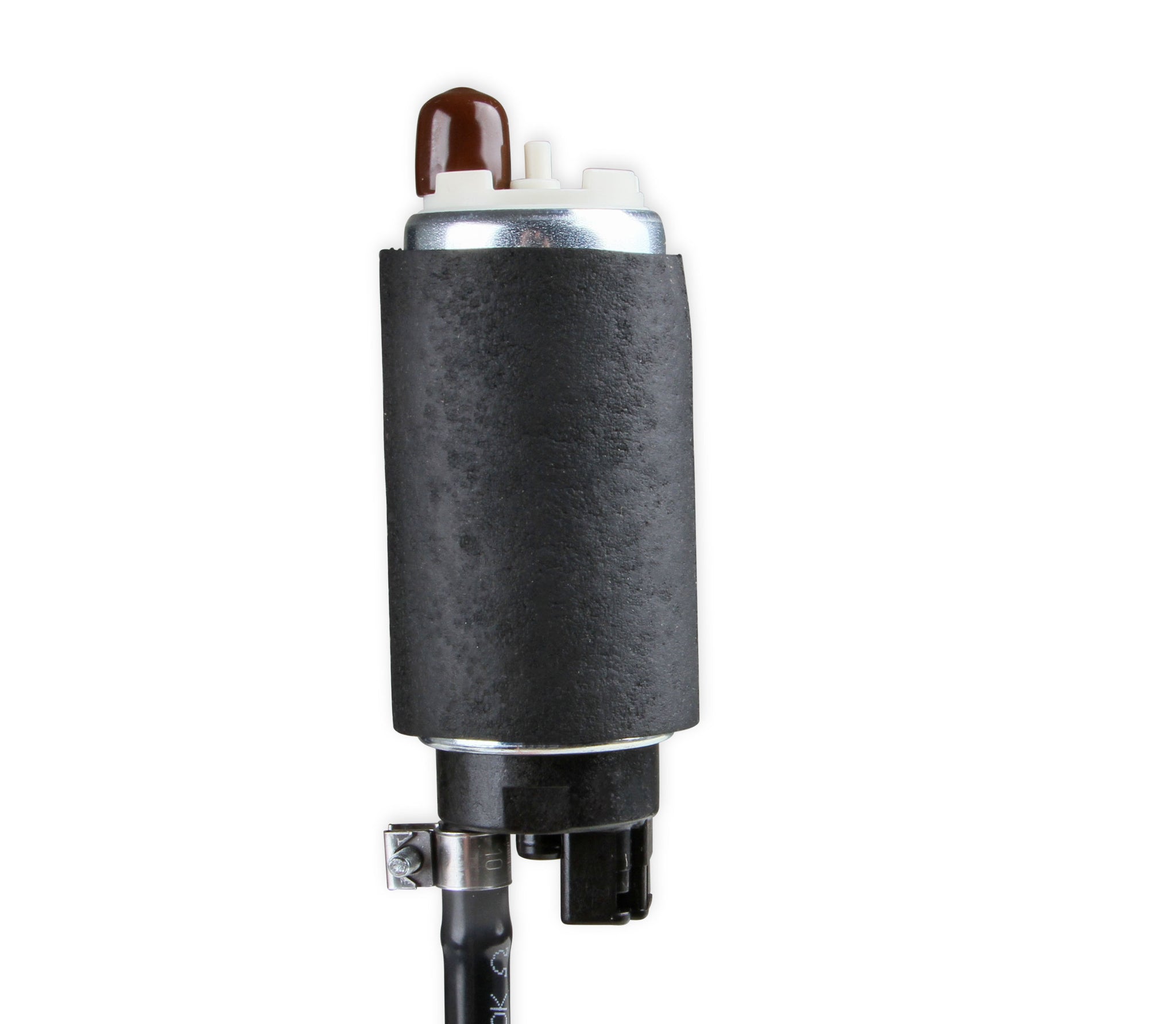

| Description_MKT | Looking ahead to the future, Holley has designed their latest retrofit pump module especially for the carbureted applications. The 5 inch diameter module design is very similar to the existing EFI pump modules using a 255 LPH pump, but includes a built-in regulator for lower fuel pressure that carburetor applications require. |

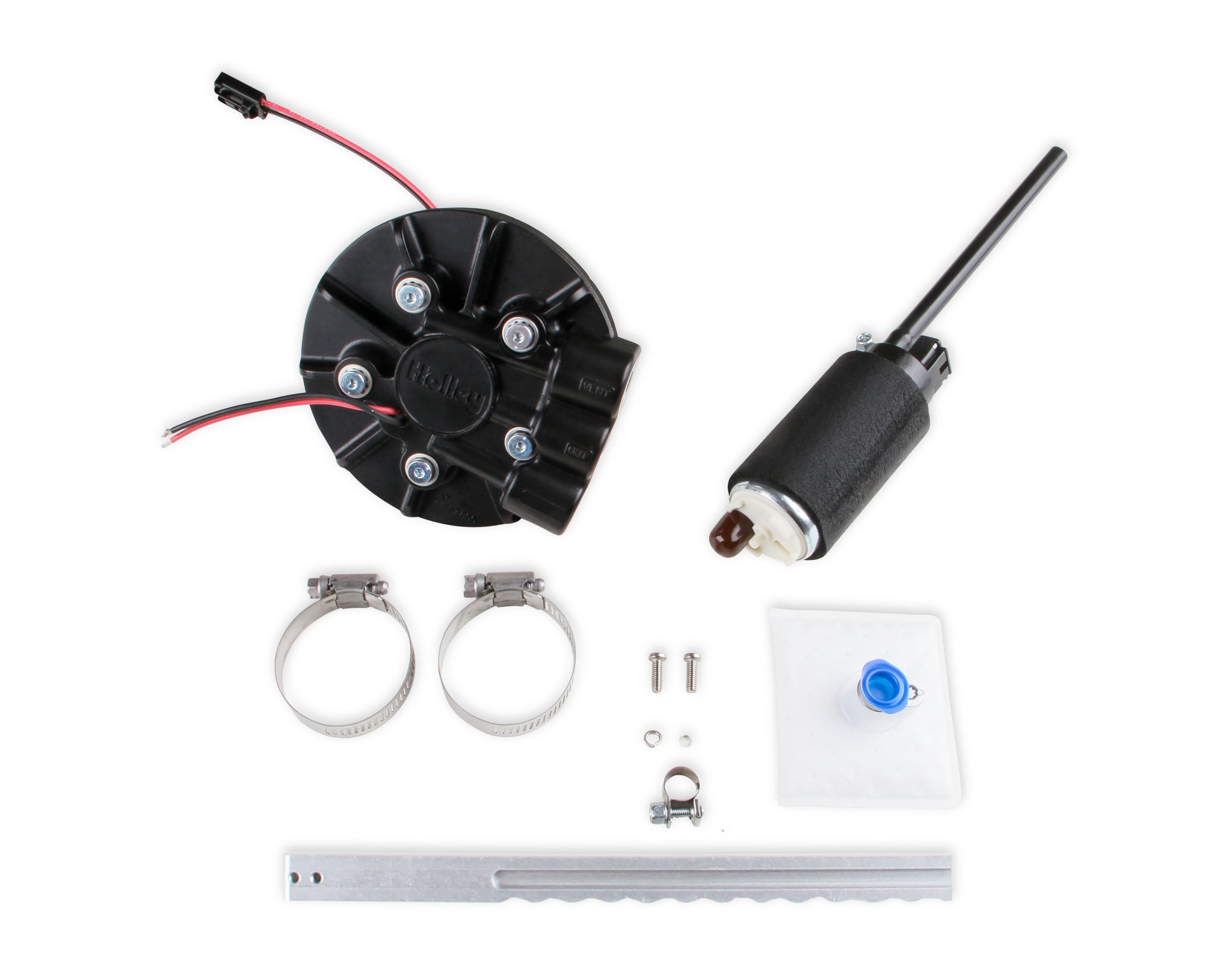

| Description_MKT | Now you can convert your factory tank or fuel cell to an in-tank fuel system quickly and easily! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The aluminum module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy. Once installed, hook up your fuel lines and your power source/ground and you're off and running! NO hassle! |
| Description_MKT | An added bonus is that you can upgrade this module if you eventually change to an EFI system by changing the internal regulator. |
| Description_MKT | Supports up to 700 Carb HP (@ 6 PSI at 13.5 Volts / 10.4 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, fuel cell location, etc... |
| Description_FAB | The easiest way to convert your vehicle to an in-tank fuel system |

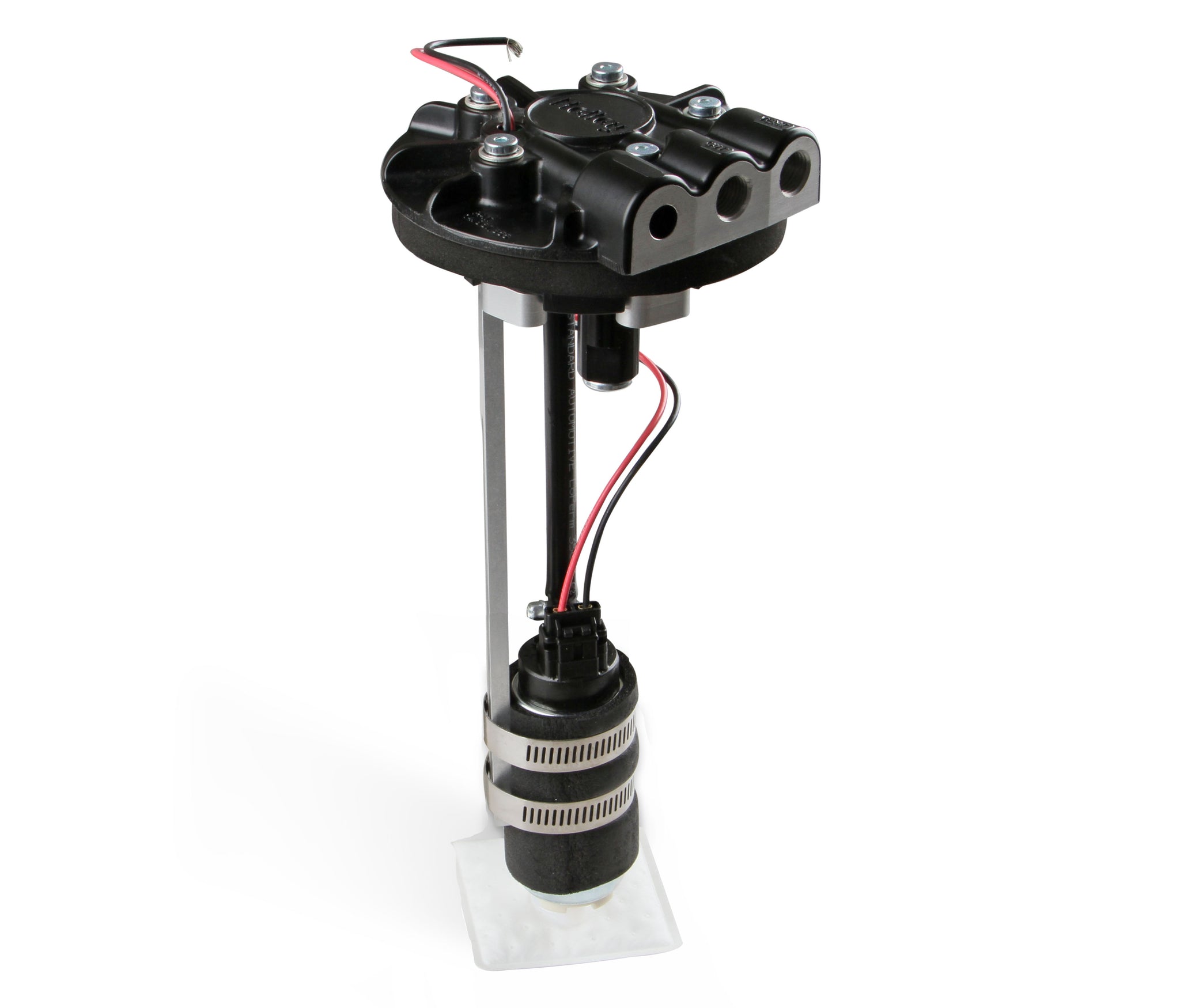

| Description_FAB | Installs in any fuel tank from 6.5” to 12” deep to fit a wide variety of applications |
| Description_FAB | The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed |

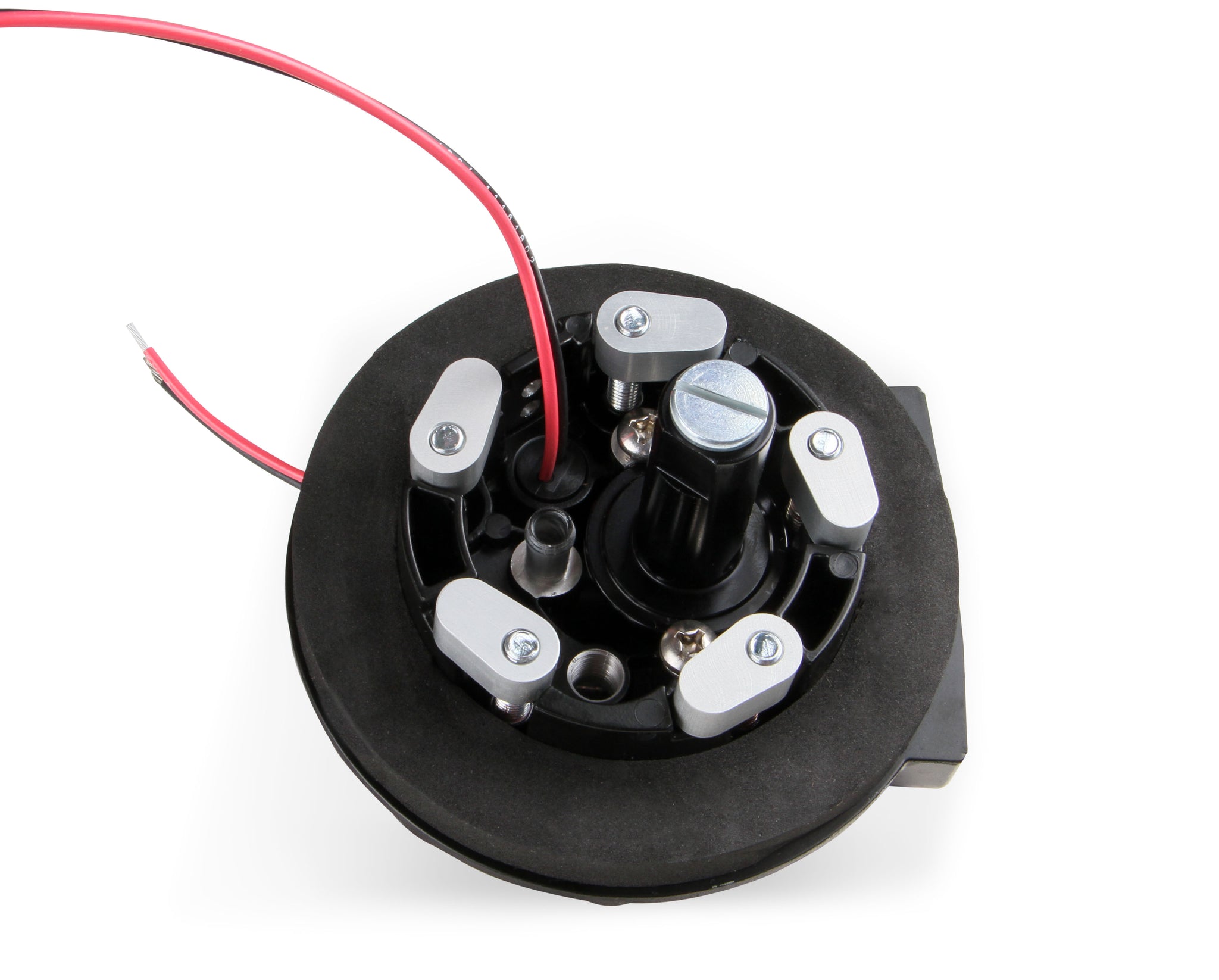

| Description_FAB | The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit |
| Description_FAB | The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride |
| Description_FAB | Die cast aluminum construction for corrosion resistance and long lasting good looks |

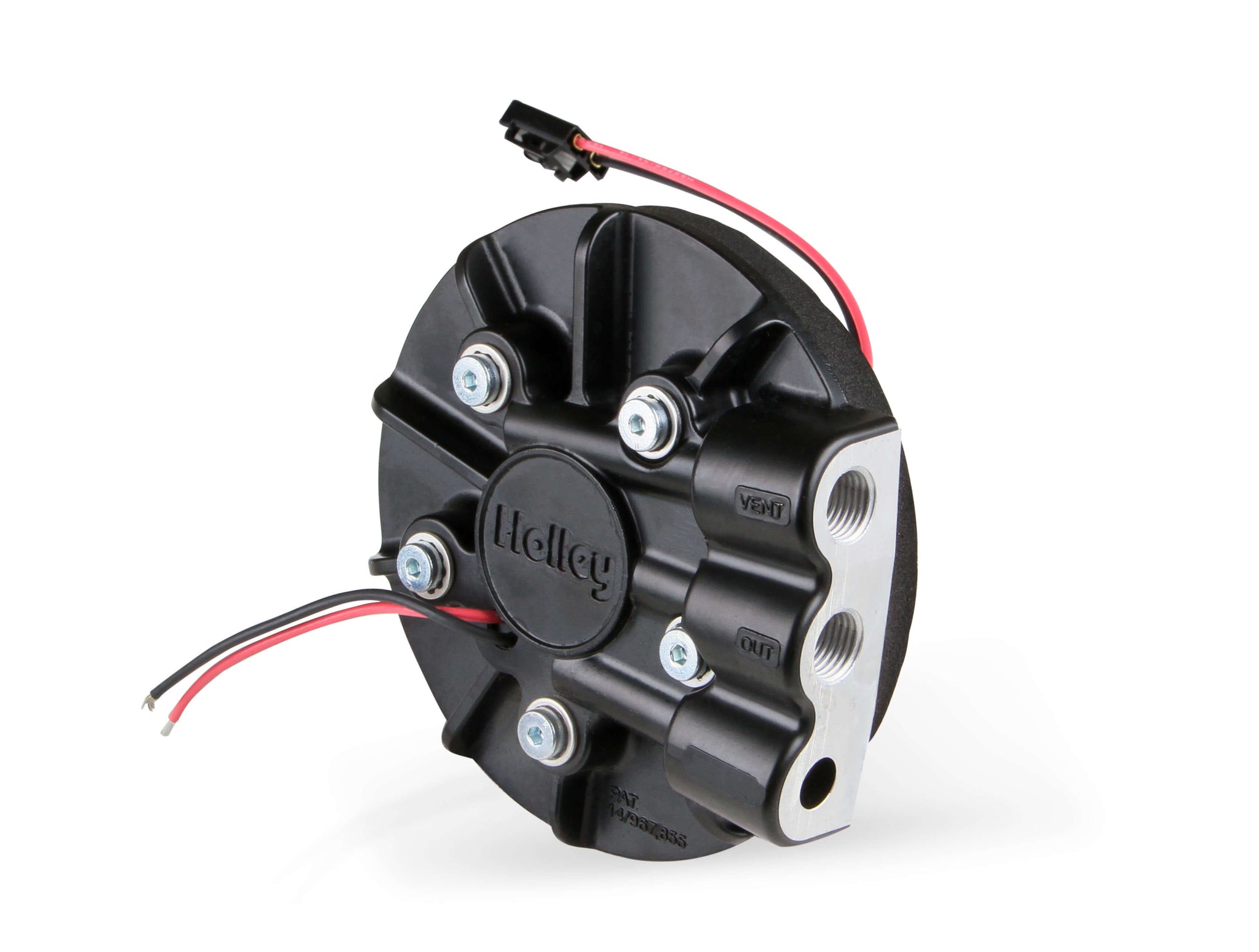

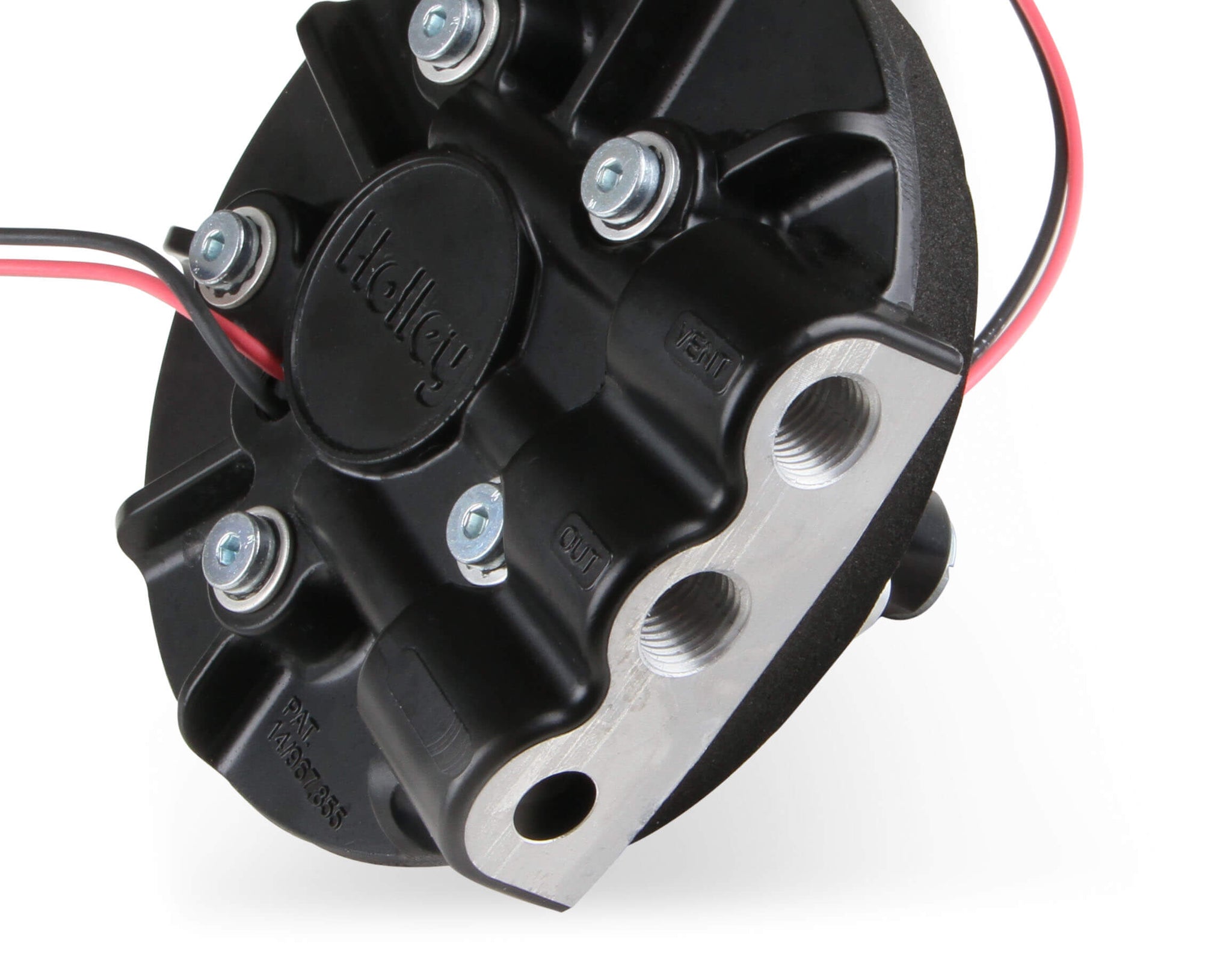

| Description_FAB | ¼” NPT ports for a wide variety of plumbing options |
| Description_INV | DIE CAST RETROFIT CARB PUMP HNGR |
| Description_ASC | It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. |
| Description_DES | Holley Diecast In-Tank Carbureted RetroFit Fuel Pump Module-Returnless System |
| Description_EXT | 255 LPH Drop-In Retrofit Carbureted Fuel System Supports up to 700 Carb HP (HP Rating @ 6 PSI at 13.5 Volts / 10.4 AMP Draw) |
| Description_MKT | The Holley "red and blue" electric fuel pumps have been the performance standard for decades. They continue to perform well, however, the evolution of fuel pump technology has surpassed them in quiet operation and fuel delivery capabilities that an in-tank module can deliver. |
| Description_MKT | Looking ahead to the future, Holley has designed their latest retrofit pump module especially for the carbureted applications. The 5 inch diameter module design is very similar to the existing EFI pump modules using a 255 LPH pump, but includes a built-in regulator for lower fuel pressure that carburetor applications require. |
| Description_MKT | Now you can convert your factory tank or fuel cell to an in-tank fuel system quickly and easily! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The aluminum module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy. Once installed, hook up your fuel lines and your power source/ground and you're off and running! NO hassle! |
| Description_MKT | An added bonus is that you can upgrade this module if you eventually change to an EFI system by changing the internal regulator. |
| Description_MKT | Supports up to 700 Carb HP (@ 6 PSI at 13.5 Volts / 10.4 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, fuel cell location, etc... |
| Description_FAB | The easiest way to convert your vehicle to an in-tank fuel system |
| Description_FAB | Installs in any fuel tank from 6.5” to 12” deep to fit a wide variety of applications |
| Description_FAB | The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed |
| Description_FAB | The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit |
| Description_FAB | The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride |
| Description_FAB | Die cast aluminum construction for corrosion resistance and long lasting good looks |
| Description_FAB | ¼” NPT ports for a wide variety of plumbing options |
| Application | Universal |
| 9102 | 10.4 |
| Average Flow Rating | 255 |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| 2170 | Black |
| 43 | Male |
| 342 | 1 |
| Diameter | 4.8" |
| Emission Code | 5 |
| Free Flow GPH | 67 |
| Free Flow LPH | 255 |
| 7246 | Yes |
| 1153 | No |
| Fuel System Type | Gasoline |
| 9103 | No |
| Fuel Type | Gasoline |
| 353 | Yes |
| 8930 | Foam |
| 3390 | Performance |
| Height | Adjustable |
| 357 | Aluminum |
| 7617 | In Tank |
| Inlet Fitting Thread Size | 1/4 |
| Inlet Quantity | One |
| 596 | NPT |
| 8933 | External |
| 4284 | Yes |
| Material | Die Cast Aluminum |
| 280 | 6 |
| 30 | Yes |
| 1154 | Yes |
| NPT Thread | 1/4 NPT |
| Outlet Fitting Thread Size | 1/4 |
| Outlet Quantity | One |
| 598 | NPT |
| part type | Fuel Pump Module Assembly |
| Product Type | Fuel Pump |
| 958 | Electric |
| 235 | Yes |
| Sub Category | Fuel Pumps and Related Components |
| 4282 | 5 |
| 3145 | Universal |
| 123 | 12 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 8934 | Yes |
| 338 | 2 |
