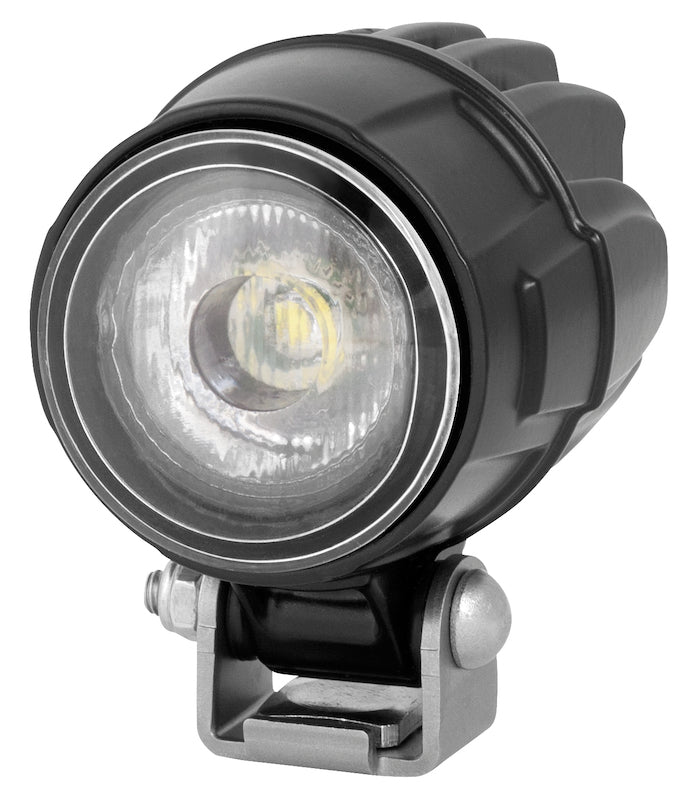

With the Module 50 LED, HELLA offers an ultra-compact workLight that achieves powerful Light output despite its size. The Light is focused by a specially developed lens system and distributed into the working area. The Module 50 LED is the smallest workLight in the HELLA Range and is therefore particularly suitable for Mounting situations with little space. The Light output of 800 lumens is well suited for close-Range illumination. Thanks to its Light output, the Module 50 LED can replace standard halogen workLights (e.g. H3/55W) - and that with only 15W power Consumption. This makes it ideal for use on vehicles with battery operation and also where the alternator is already heavily loaded. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating Voltage of 9 to 50 volts. This secures the Function of the workLight and ensures safe working at night. With a Color Temperature of 6,500 Kelvin, the Light of the LED workLight is very similar to dayLight. This has the effect of distinguishing Colors more Clearly in the dark, making sensory perception much easier for the human eye. Working at night is thus made easier and rapid eye fatigue is prevented. The workLight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance multi-chip LED. In addition, a Temperature sensor protects the workLight from overheating. This is the only way to exploit the long life of LEDs (up to 130 Times the life of a halogen bulb).
Hella Work Light 995050001
Specifications:
| Mounting Type | Bolted |
| Fastening Type | Vertical |
| Light Design | LED |
| Lamp Type | LED |
| Voltage [V] | 48 |

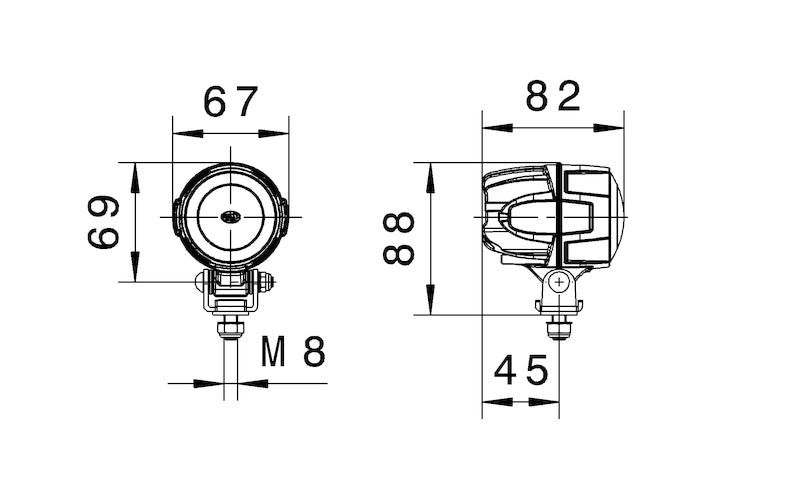

| Height [mm] | 88 |
| Width [mm] | 67 |
| Height [in] | 3.46 |
| Depth [mm] | 82 |
| Width [in] | 2.64 |
| Depth [in] | 3.23 |

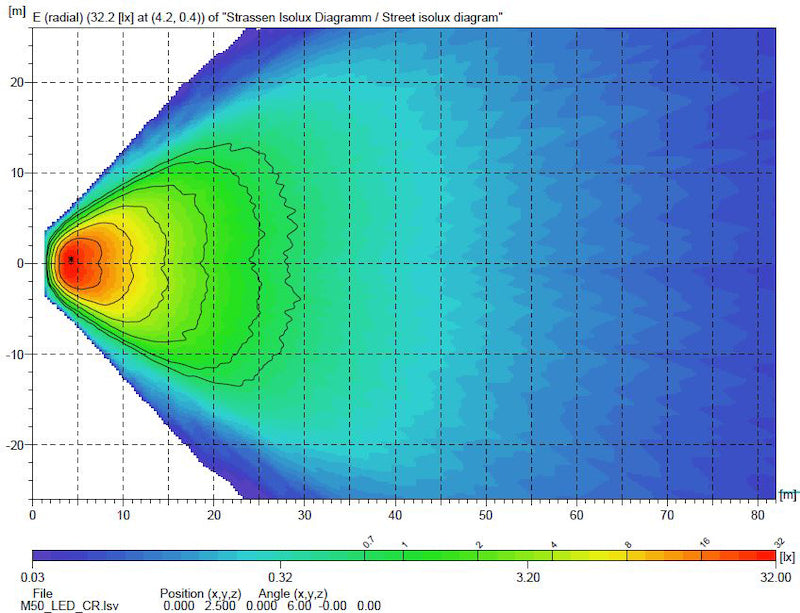

| Light Distribution | Short Distance Lighting |
| Housing Color | black |
| Diffusing Lens Type | Patterned Diffusing Lens |
| Assy./disassy. by qualified personnel required! | . |
| Test Mark | RCM |
| Plug Type | DEUTSCH Plug |
| fulfils test standard | RCM |
| Protection Type (IP Code) | IP6K7 |
| Luminous Flux [lm] | 700 |
| Number of LEDs | 1 |
| Color Temperature [K] | 6500 |
| Power Consumption [W] | 15 |
| Supplementary Article/Info 2 | without Cable |
| Cable Length [mm] | 2500 |
| Cable Length [in] | 98.43 |
| Housing Type | Aluminium Housing |
| Diffusing Lens Material | Glass |
| Description_INV | WORK LAMP NA 0GR MD12-42 DT M50 |
| Description_MKT | With the Module 50 LED, HELLA offers an ultra-compact workLight that achieves powerful Light output despite its size. The Light is focused by a specially developed lens system and distributed into the working area. The Module 50 LED is the smallest workLight in the HELLA Range and is therefore particularly suitable for Mounting situations with little space. The Light output of 800 lumens is well suited for close-Range illumination. Thanks to its Light output, the Module 50 LED can replace standard halogen workLights (e.g. H3/55W) - and that with only 15W power Consumption. This makes it ideal for use on vehicles with battery operation and also where the alternator is already heavily loaded. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating Voltage of 9 to 50 volts. This secures the Function of the workLight and ensures safe working at night. With a Color Temperature of 6,500 Kelvin, the Light of the LED workLight is very similar to dayLight. This has the effect of distinguishing Colors more Clearly in the dark, making sensory perception much easier for the human eye. Working at night is thus made easier and rapid eye fatigue is prevented. The workLight's black housing is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance multi-chip LED. In addition, a Temperature sensor protects the workLight from overheating. This is the only way to exploit the long life of LEDs (up to 130 Times the life of a halogen bulb). |
| Description_FAB | With the Module 50 LED, HELLA now offers an ultra-compact workLight that achieves a powerful Light output despite its size. |
| Description_DEF | Work Light |
