For a variety of technical applications, it is necessary to switch loads on or off with a delay. Applications Time control units drop-out delayed: HeadLight cleaning, rear window heating, radiator fan run-on, Timer etc. Applications Timer delayed start: Compressor air conditioning, delayed start motors, bus doors, etc. Delay manually adjustable. Delay Time: 0 - 900 sec. Holder included in scope of delivery. Type approval according to Directive 95/54/EC (e1). Temperature resistance: -25 °C to +80 °C.

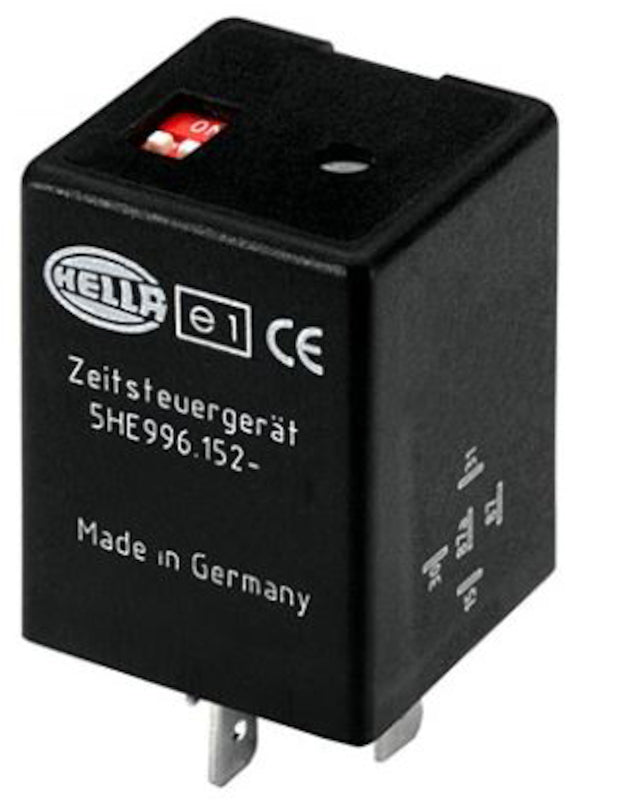

Hella Time Delay Relay Accessory 996152131
Specifications:
| Supplementary Article/Info 2 | Switch-Off Delay |
| Adjustment range from [min] | 0 |
| Adjusting range to [min.] | 15 |
| Adjustment Range from [s] | 0 |
| Adjustment range from [sec] | 0 |
| Adjustment Range to [min] | 15 |
| Adjustment Range to [s] | 900 |
| Adjusting range to [sec.] | 900 |
| Registration Type | ECE approved |
| Test Mark | ECE |
| Voltage [V] | 12 |
| Temperature range from [°C] | -25 |
| Temperature range from [°F] | -13.00 |
| Temperature range to [°F] | 176.00 |
| Temperature range to [°C] | 80 |

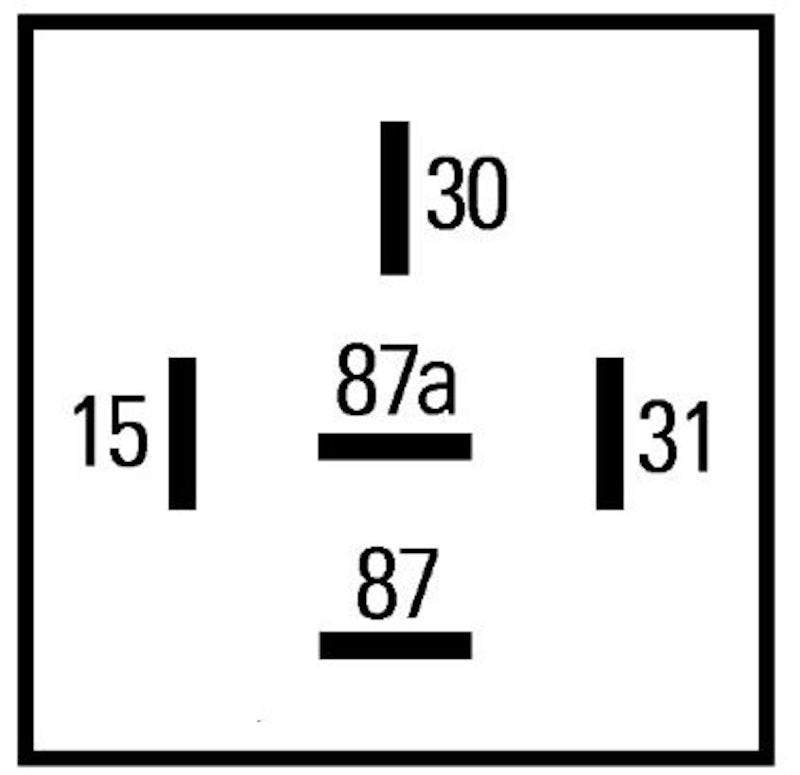

| Number of connectors | 5 |
| Combi Switch Function | Changeover Contact |
| Assy./disassy. by qualified personnel required! | . |
| Description_INV | TimeR CONTROL 12V 5PIN 0-900S DELAY OFF |
| Description_MKT | For a variety of technical applications, it is necessary to switch loads on or off with a delay. Applications Time control units drop-out delayed: HeadLight cleaning, rear window heating, radiator fan run-on, Timer etc. Applications Timer delayed start: Compressor air conditioning, delayed start motors, bus doors, etc. Delay manually adjustable. Delay Time: 0 - 900 sec. Holder included in scope of delivery. Type approval according to Directive 95/54/EC (e1). Temperature resistance: -25 °C to +80 °C. |
| Description_FAB | HELLA produces more than 100 million units per year in its own production facilities |
| Description_DEF | Time Delay Relay Accessory |
