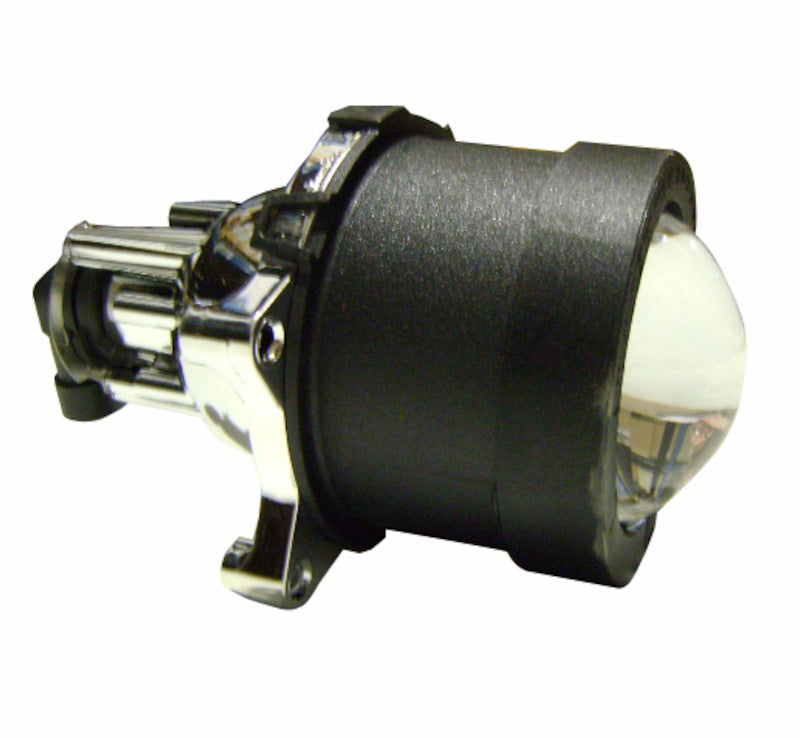

Hella Headlamp 60mm High Beam HB3 SAE 998570021

The Module 60 floodLights feature a compact design and excellent Light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The Light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.

Hella Headlamp 60mm High Beam HB3 SAE 998570021

Specifications:

Mounting Type	Fitting
Lamp Type	HB3
Light Design	Halogen
Voltage [V]	12
Fitting Position	Right
Width [mm]	99
Width [in]	3.90
Height [mm]	89
Height [in]	3.50
Depth [in]	6.18
Depth [mm]	157
Light Function	with High Beam
Number of light functions	1
Registration Type	ECE approved
Test Mark	E4 10892
Reference number	12.5
Shape	Round
Housing Color	black
Illuminated Area [in]	2.36
Illuminated Area [mm]	60
Supplementary Article/Supplementary Info	with Bulb
Left-hand/Right-hand Traffic	for right-hand traffic
Assy./disassy. by qualified personnel required!	.
1271	Yes
1272	Clear
1274	Yes
1279	Clear
1822	9005/HB3
30	Yes
4591	Bulb
532	Black
9086	Halogen
975	65.0
Description_INV	HLMP 60MM HB3 HI SAE M
Description_DES	Headlamp 60mm High Beam HB3 SAE
Description_MKT	The Module 60 floodLights feature a compact design and excellent Light output. Despite the smallest construction size, the road illumination is homogeneous. An optics-free lens is used for the high beam and low beam. The Light source is an HB3 bulb (60 W) for both the high beam and the low beam. The module consists of a glass lens, lens retaining ring (black plastic), spacer ring (black plastic) and a die-cast aluminium reflector with 4 fixing lugs.
Description_FAB	Universally usable
Description_DEF	Headlight Assembly
