*item may differ from images

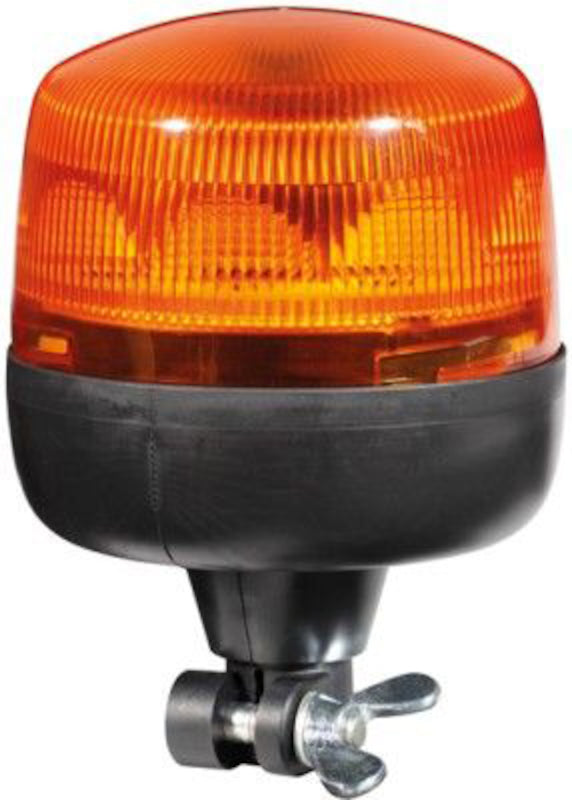

The RotaLED beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating Voltage of 10 - 30 V and has an impact-resistant polycarbonate Light cover. The height is approx. 124 mm (F) to 184 mm (FL), depending on the design. The RotaLED beacon meets the requirements of IP 5K4K and IP X9K and is therefore protected against dust and resistant to high-Pressure cleaners. The product is attached to the vehicle by means of Screws in the case of fixed Mounting or by means of a flexible Pipe Socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots.
Hella Hazard Warning and Turn Signal Flasher 010979011
Specifications:
| Housing Color | black |
| Rotating beacon RPM [1/min] | 123 |
| Power Consumption [W] | 10 |
| Housing material | EPDM (Ethylene Propylene Diene Monomer (M-class) Rubber) |
| Weight [oz] | 26.28 |
| Weight [g] | 745 |
| Diffusing Lens Material | PC (Polycarbonate) |
| Reverse polarity protection | Yes |
| Quantity | 1 |
| Supplementary Article/Info 2 | Electromagnetic Compatibility (EMC) |
| Assy./disassy. by qualified personnel required! | . |
| Mounting Type | Flexible Pipe Sockets |
| Light Design | LED |
| Lamp Type | LED |
| Voltage [V] | 24 |

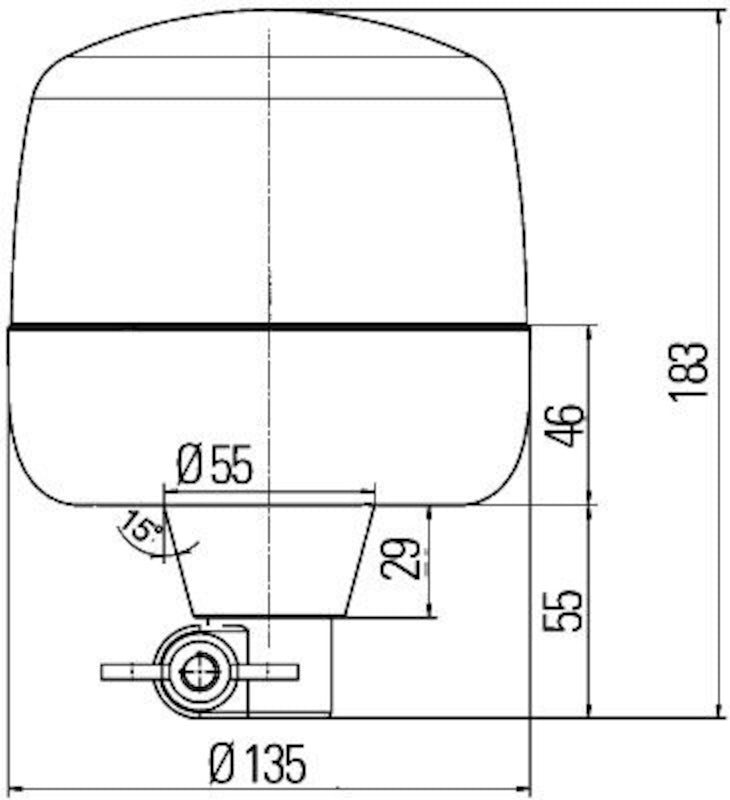

| Height [in] | 7.20 |
| Height [mm] | 183 |
| Outer diameter 1 [mm] | 135 |
| Outer Diameter 1 [in] | 5.31 |
| Light Function | With Rotating Warning Signal |
| Light Color | yellow |
| Number of LEDs | 8 |
| Protection Type (IP Code) | IPX9K |
| Test Mark | ECE-R10 |
| Fulfils ECE norm | R65 |
| Registration Type | SAE approved |
| fulfils test standard | RCM |
| Lens Color | yellow |
| Description_INV | LED LAMP 12/24V AMBER FLEX Mounting 2RL |
| Description_MKT | The RotaLED beacon is available as a flashing or rotating version. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating Voltage of 10 - 30 V and has an impact-resistant polycarbonate Light cover. The height is approx. 124 mm (F) to 184 mm (FL), depending on the design. The RotaLED beacon meets the requirements of IP 5K4K and IP X9K and is therefore protected against dust and resistant to high-Pressure cleaners. The product is attached to the vehicle by means of Screws in the case of fixed Mounting or by means of a flexible Pipe Socket or magnetic adapter in the case of the other variants. The beacon is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. |
| Description_FAB | No moving parts are required for the Lighting Functions - no wear and tear and Maximum reliability |
| Description_DEF | Hazard Warning and Turn Signal Flasher |
